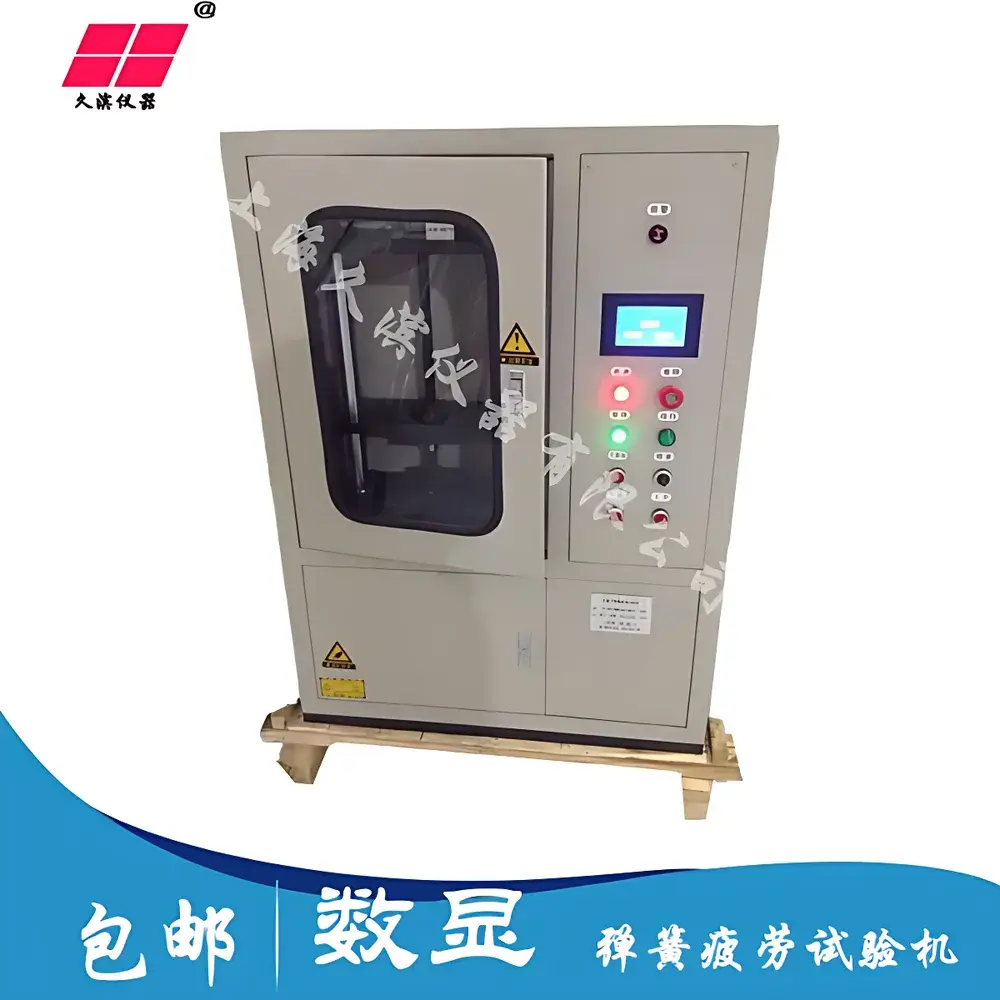

JB-THP Damping Device Durability and Fatigue Testing Machine
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-THP |
| Price | USD 12,500 (FOB Shanghai) |
| Type | Electromechanical Servo-Controlled Fatigue Testing System for Viscoelastic Energy Dissipation Components |
Overview
The JB-THP Damping Device Durability and Fatigue Testing Machine is an electromechanical servo-hydraulic hybrid testing system engineered for controlled cyclic loading of passive and semi-active damping components under defined displacement, force, or waveform profiles. It operates on the principle of programmed sinusoidal, trapezoidal, or user-defined waveforms applied to structural dampers—including hydraulic shock absorbers, viscous wall dampers, friction pendulum systems, magnetorheological (MR) fluid devices, and elastomeric isolation mounts—to evaluate performance degradation over extended service life. Designed in accordance with ASTM E466, ISO 1099, and GB/T 2611–2022 standards for axial fatigue testing, the JB-THP supports both constant-amplitude and variable-amplitude loading protocols, enabling accelerated life-cycle validation for civil infrastructure, automotive suspension, rail vehicle secondary suspension, and seismic protection systems.
Key Features
- High-precision electrodynamic actuator with ±100 kN static load capacity and ±50 mm stroke, capable of operating at frequencies from 0.01 Hz to 25 Hz with phase-controlled waveform fidelity
- Integrated high-resolution load cell (accuracy ±0.5% FS) and LVDT-based displacement transducer (resolution ≤0.1 µm), both traceable to NIM (National Institute of Metrology, China)
- Dual-mode control architecture: closed-loop force control for low-frequency durability cycling; displacement-synchronized load tracking for high-frequency resonance avoidance
- Thermally stabilized test chamber (optional –20°C to +80°C) with real-time temperature monitoring for evaluating temperature-dependent damping hysteresis
- Modular fixture interface compliant with ISO 26203-2 for standardized mounting of cylindrical, planar, and shear-type damper geometries
- Real-time data acquisition at up to 10 kHz sampling rate, supporting dynamic hysteresis loop reconstruction and energy dissipation calculation per cycle
Sample Compatibility & Compliance
The JB-THP accommodates damping elements ranging from 50 mm to 1200 mm in effective length and up to 300 mm in maximum cross-sectional dimension. Compatible sample types include twin-tube hydraulic dampers, rotary friction dampers, wire rope isolators, lead-rubber bearings (LRBs), and tuned mass dampers (TMDs) with integrated viscoelastic cores. The system meets mechanical safety requirements per ISO 12100 and electrical safety per IEC 61000-6-2/6-4. Test reports generated by the JB-THP support GLP-compliant documentation workflows and are structured to satisfy audit requirements under ISO/IEC 17025:2017 for calibration laboratories and ISO 9001:2015 for production QA departments. Optional FDA 21 CFR Part 11–compliant software modules enable electronic signatures and audit-trail logging for regulated pharmaceutical and medical device applications involving vibration-isolation components.
Software & Data Management
Control and analysis are executed via the proprietary TestLab-Damp v3.2 platform, a Windows-based application offering synchronized multi-channel visualization, automated hysteresis loop extraction, and cycle-counting algorithms aligned with ASTM E1049–17 standard practices. Software features include programmable step-stress profiles, real-time stiffness/damping coefficient trending (k and c vs. cycle number), and export-ready datasets in CSV, HDF5, and MDF4 formats compatible with MATLAB, Python (SciPy/Pandas), and commercial FEA post-processors. All raw data files are timestamped, digitally signed, and stored with SHA-256 checksum verification. Version-controlled configuration templates allow replication of test methods across multiple JB-THP units in multi-site R&D or quality assurance networks.
Applications
- Accelerated fatigue validation of automotive shock absorbers per SAE J1491 and OEM-specific specifications (e.g., VW PV1280, GMW14872)
- Cyclic performance assessment of base isolation systems for nuclear power plant auxiliary buildings (per ASCE/SEI 4–16)
- Energy dissipation characterization of buckling-restrained braces (BRBs) under seismic loading protocols (FEMA P-695)
- Long-term creep-fatigue interaction studies on polyurethane-based damping pads used in high-speed rail track slabs
- Quality conformance testing of MR dampers for adaptive suspension systems, including field-current sweep and temperature-coupled response mapping
- Reliability benchmarking of elastomeric seismic isolators subjected to combined vertical compression and horizontal shear histories
FAQ
What standards does the JB-THP comply with for fatigue testing of structural dampers?
ASTM E466, ISO 1099, GB/T 2611–2022, and EN 15129 for seismic dampers.
Can the system perform combined axial-torsional fatigue tests?
No — the JB-THP is configured for uniaxial loading only; torsional capability requires optional add-on modules (JB-THP-TORQ, sold separately).
Is third-party calibration certification included with delivery?
Yes — each unit ships with a NIM-traceable calibration certificate covering load, displacement, and timebase accuracy, valid for 12 months.
What is the maximum test duration supported without operator intervention?
Unattended operation up to 1,000 hours is supported via watchdog-triggered emergency stop and automatic log rotation.
Does the software support custom scripting for advanced waveform synthesis?
Yes — Python API integration is available through the TestLab-Damp SDK, enabling user-defined signal generation and real-time feedback control loops.
