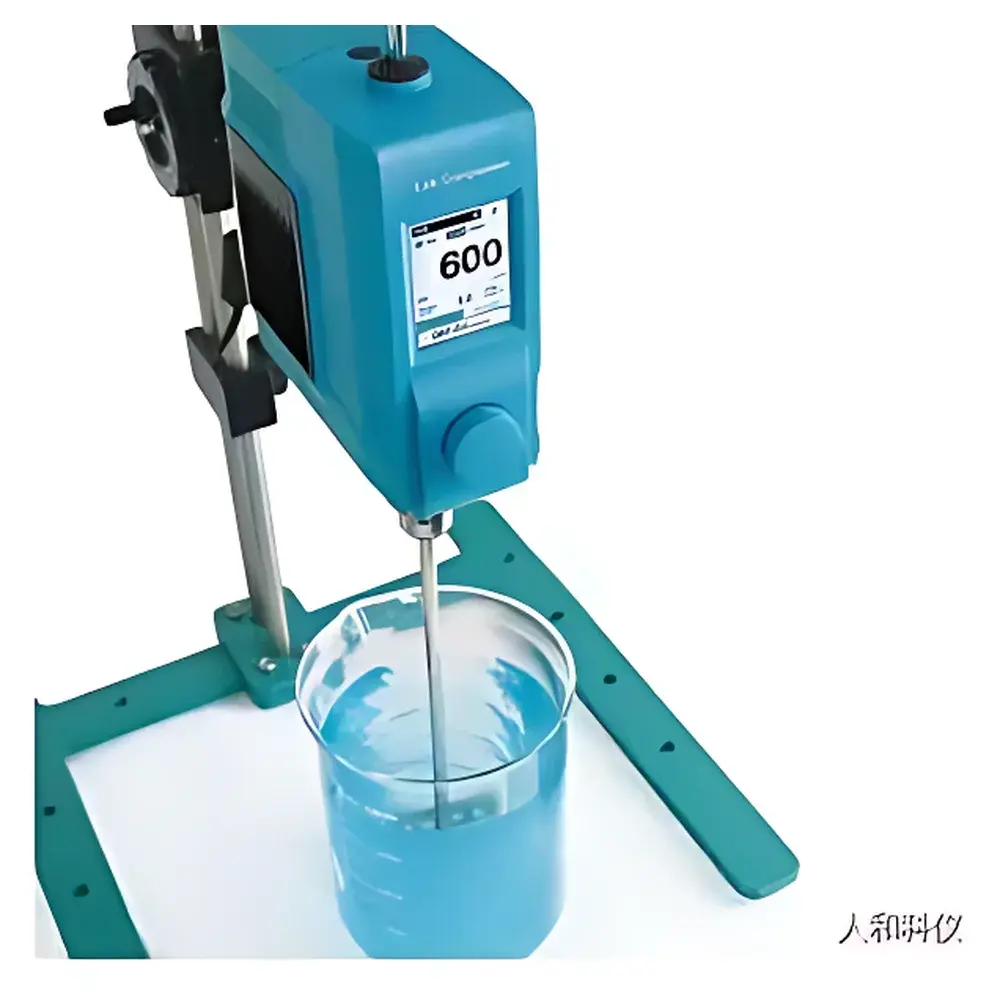

JEIO TECH MSH-0520 High-Performance Overhead Stirrer

Overview

The JEIO TECH MSH-0520 is a high-precision overhead stirrer engineered for demanding laboratory and pilot-scale mixing applications requiring consistent torque delivery, thermal stability, and real-time process adaptability. Utilizing brushless DC (BLDC) motor technology, it eliminates commutator wear and electrical arcing—ensuring intrinsically safe operation in environments where flammable vapors or dust may be present (e.g., solvent-based synthesis, paint formulation, or ethanol-rich food processing). Its core operational principle relies on closed-loop PID feedback control, continuously comparing actual rotational speed against the user-defined setpoint and dynamically adjusting power output to compensate for load-induced deceleration—critical when handling non-Newtonian fluids whose apparent viscosity changes with shear rate. Designed for integration into GLP-compliant workflows, the MSH-0520 supports time-stamped data capture, audit-ready operation logs, and configurable alarm thresholds—making it suitable for regulated quality control laboratories across pharmaceutical, cosmetic, and industrial chemical sectors.

Key Features

• Brushless DC motor delivering 20.8 N·cm maximum torque with thermal derating protection and three-stage LED temperature indication (green/yellow/red) for proactive motor health monitoring.
• PID-controlled speed regulation ensures ±1% speed accuracy across the full 50–2000 rpm range, even under variable-viscosity loads up to 50,000 cP.
• Full-color capacitive touchscreen interface with physical rotary encoder enables intuitive parameter entry, real-time visualization of speed, torque, elapsed time, setpoint deviation, and motor temperature.
• Programmable timer function supporting durations from 1 minute to 99 hours 59 minutes, with automatic shutdown and audible alert upon completion.
• Dual-direction rotation capability (CW/CCW selection) accommodates specialized dispersion protocols, such as deagglomeration of pigment suspensions or controlled crystallization seeding.
• Modular mechanical architecture: vertically adjustable stirring shaft passes directly through the main housing, enabling rapid height calibration without tooling; corrosion-resistant chuck accepts standard 3–10 mm shaft diameters.
• Integrated USB port facilitates direct connection to Windows-based PCs for remote operation, real-time data streaming (speed, torque, temperature, time), and export of CSV-formatted logs compatible with LIMS or statistical process control software.

Sample Compatibility & Compliance

The MSH-0520 is validated for continuous-duty operation with aqueous, organic, and semi-paste formulations across industries including ISO 22000-certified food production, ASTM D1210 pigment dispersion testing, USP viscosity consistency checks, and EPA Method 1664B oil-in-water emulsion stability studies. Its aluminum powder-coated chassis and polypropylene enclosure meet IP20 ingress protection standards for dry laboratory environments. The device complies with IEC 61000-6-3 (EMC emission limits) and IEC 61010-1 (safety requirements for electrical equipment for measurement, control, and laboratory use). Optional Bluetooth connectivity enables secure wireless control via iOS/Android devices within Class 2 radio range (10 m), supporting remote supervision during extended reactions inside fume hoods—without compromising containment integrity.

Software & Data Management

The included PC software provides native support for Windows 10/11 and enables full instrument control—including start/stop, speed ramping profiles, bidirectional rotation toggling, and real-time graphing of torque vs. time. All logged parameters are timestamped with millisecond resolution and stored with metadata (operator ID, method name, sample ID) to satisfy FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with user authentication and audit trail activation. Data exports retain native precision (e.g., torque values reported to 0.01 N·cm) and integrate seamlessly with JMP, MATLAB, or LabArchives for downstream multivariate analysis. Firmware updates are delivered via USB and include version-locking to prevent unauthorized modification—supporting GMP-aligned change control documentation.

Applications

• High-shear homogenization of polymer solutions prior to rheological characterization (ASTM D3236).
• Controlled addition of coagulants in wastewater treatment simulation studies (ISO 15839).
• Viscosity-driven endpoint detection in edible oil hydrogenation processes.
• Stirred-tank bioreactor inoculation and nutrient dispersion in microbial fermentation development.
• Dispersion of TiO₂ nanoparticles in acrylic resin matrices for coating adhesion testing (ISO 2808).
• Temperature-regulated emulsification of pharmaceutical ointment bases (USP ).
• Batch-wise preparation of standardized reference slurries for particle size analyzer calibration.

FAQ

What is the maximum recommended vessel diameter for stable operation at 2000 rpm with 60 L water?
For optimal vortex suppression and mechanical stability, JEIO TECH recommends using vessels ≥300 mm in internal diameter when operating at top speed with full-volume aqueous loads.
Does the MSH-0520 support analog signal output for PLC integration?
No analog outputs are provided natively; however, the USB interface supports Modbus RTU over virtual COM port for programmable logic controller interoperability via third-party drivers.
Can the external temperature sensor option be used for jacketed reactor temperature feedback control?
Yes—the optional external PT100 probe connects to the auxiliary sensor port and enables cascade control mode, where stirrer speed is modulated based on real-time jacket temperature deviation from setpoint.
Is firmware upgrade capability available after initial purchase?
Yes—JEIO TECH releases validated firmware updates annually via their global support portal, each accompanied by release notes, installation guides, and traceable version certification documents.
How is torque overload protection implemented?
The system monitors instantaneous current draw and rotational inertia response; if torque demand exceeds 110% of rated capacity for >500 ms, the drive reduces output while maintaining positional hold, then triggers visual/audible alerts and logs the event with UTC timestamp.
