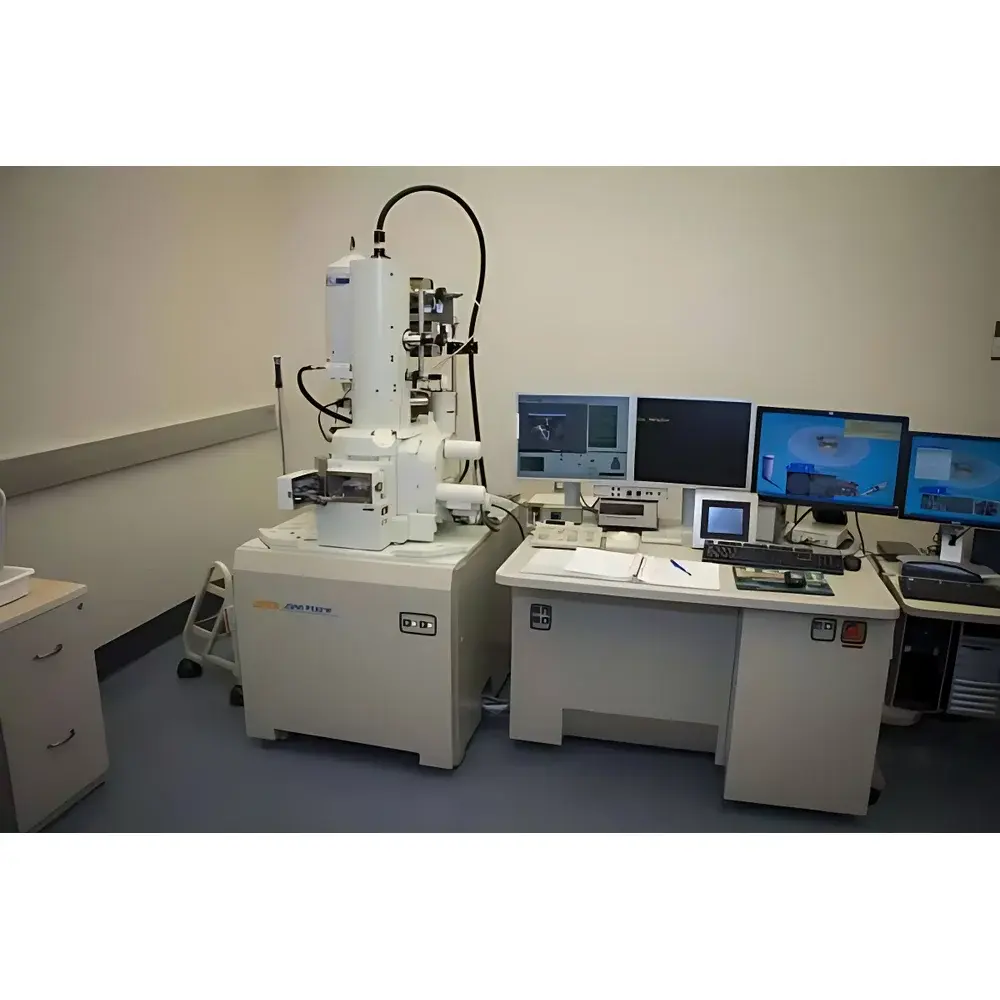

JEOL JSM-7001F Thermal Field Emission Scanning Electron Microscope (Used)

Overview

The JEOL JSM-7001F is a thermally assisted field emission scanning electron microscope (FE-SEM) originally engineered for high-resolution surface imaging and integrated microanalysis in academic research laboratories, materials science centers, and industrial quality control environments. Unlike cold field emission systems, the thermal field emission source provides enhanced beam stability and reduced susceptibility to vacuum fluctuations—critical for extended acquisition sessions and quantitative elemental mapping. Its dual-mode operation supports both high-vacuum (HV) and low-vacuum (LV) conditions, enabling direct observation of non-conductive or beam-sensitive specimens—including polymers, ceramics, biological tissues, and as-received engineering components—without mandatory conductive coating. This capability significantly reduces sample preparation time and preserves native surface morphology and chemical integrity prior to downstream testing or return to production workflows.

Key Features

• Thermal field emission electron source delivering stable probe current up to 200 nA with sub-nanometer probe size at optimal acceleration voltages (0.5–30 kV)
• Motorized 5-axis fully aligned stage with programmable X/Y/Z translation (±50 mm), tilt (−5° to +70°), and rotation (360° continuous), enabling precise multi-angle acquisition and automated tilt-series alignment
• Integrated single-action airlock system allowing rapid sample exchange (<90 seconds) without venting the main chamber, minimizing downtime between analyses
• Dual vacuum operation: High vacuum mode (gun chamber ≤5 × 10⁻⁷ Pa; specimen chamber ≤1 × 10⁻⁴ Pa) for ultra-high resolution imaging; Low vacuum mode (specimen chamber up to 50 Pa using dry nitrogen) for charge-free imaging of insulating samples
• Real-time quad-channel acquisition: Simultaneous display and storage of four synchronized signals (e.g., SE, BEI, EDS live spectrum, CL intensity map) within a single scan pass
• Native Windows XP-based control interface with hardware-accelerated graphics engine, supporting intuitive mode switching via dedicated function keys and scriptable acquisition protocols

Sample Compatibility & Compliance

The JSM-7001F accommodates specimens up to 200 mm in diameter and 80 mm in height, compatible with standard SEM stubs, wafer carriers, and custom holders. Its low-vacuum functionality complies with ASTM E1508-16 guidelines for imaging uncoated non-conductors and satisfies preparatory requirements under ISO 16700:2016 (electron probe microanalysis). While not pre-certified for FDA 21 CFR Part 11, the system’s audit-trail-capable software architecture permits integration into GLP/GMP-compliant workflows when paired with validated third-party data management modules. All refurbished units undergo full vacuum integrity verification, filament emission testing, and detector gain calibration per JEOL Service Bulletin SB-SEM-7001F-Rev.4.

Software & Data Management

The original acquisition software supports TIFF, BMP, and proprietary .JSM file formats with embedded metadata (kV, working distance, dwell time, detector type, stage coordinates). Image stitching, particle analysis, and basic EDS spectral deconvolution are available natively. Raw image and spectrum files are exportable for post-processing in industry-standard platforms including Thermo Fisher Avizo, Oxford Instruments AZtec, and HyperSpy. For long-term archival, users may configure networked storage paths compliant with ISO/IEC 27001 information security frameworks. Optional upgrades include remote diagnostics via secure SSH tunneling and scheduled automated calibration routines.

Applications

• Metallurgical failure analysis: Crack propagation mapping, inclusion identification, and intergranular corrosion assessment in aerospace alloys and weldments
• Geoscience and mineralogy: Quantitative phase distribution analysis via BSE contrast combined with EBSD orientation mapping
• Electronics packaging inspection: Cross-sectional imaging of solder joints, die attach voiding, and wire bond integrity without carbon coating artifacts
• Pharmaceutical solid-state characterization: Particle morphology, agglomeration behavior, and excipient distribution in uncoated tablet surfaces
• Nanomaterial metrology: Size distribution profiling of catalyst nanoparticles on support substrates using secondary electron contrast at ≤5 kV

FAQ

Is this unit supplied with original JEOL service documentation and calibration records?
Yes—each refurbished JSM-7001F includes scanned copies of the factory acceptance test report, vacuum logbook entries, and last-service certificate issued by JEOL-certified technicians.
Can the system be upgraded to support modern operating systems like Windows 10 or 11?
Hardware compatibility is limited due to legacy PCI bus architecture and proprietary frame grabbers; however, image export and offline analysis can be fully supported via modern workstations using exported TIFF/RAW data.
What level of technical support is available post-purchase?
We provide 12 months of remote engineering support, including troubleshooting, parameter optimization guidance, and interpretation of vacuum or signal-to-noise anomalies—subject to valid proof of refurbishment certification.
Are EDS or EBSD detectors included in the base configuration?
No—these are optional add-ons. The system is fully compatible with Oxford Instruments X-MaxN, EDAX Octane Elite, and Bruker eFlash HR detectors via standard IEEE-488 and USB 2.0 interfaces.
Does the low-vacuum mode support environmental SEM (ESEM)-style water vapor operation?
No—the JSM-7001F LV mode is designed exclusively for dry nitrogen or argon; it lacks differential pumping stages and pressure-regulated gas injection required for hydrated sample imaging.
