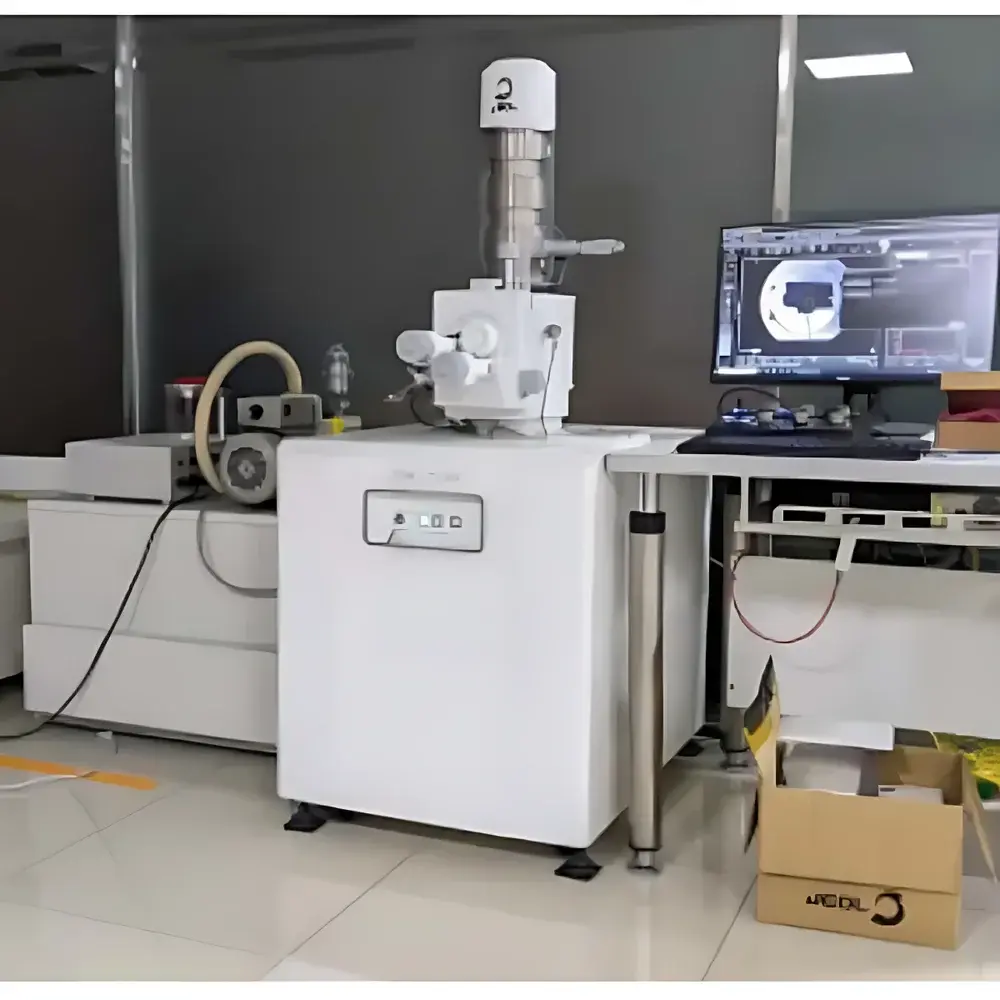

JEOL JSM-IT200 Used Scanning Electron Microscope with Integrated EDS System

Overview

The JEOL JSM-IT200 is a high-performance, user-intuitive scanning electron microscope (SEM) originally engineered for industrial quality control, materials science research, and failure analysis laboratories. This pre-owned unit—refurbished and verified for full operational integrity—is equipped with integrated Energy Dispersive X-ray Spectroscopy (EDS), enabling simultaneous morphological imaging and elemental composition analysis at micron-to-submicron spatial resolution. The instrument operates on thermionic tungsten or optional LaB₆ electron source architecture (configuration-dependent), delivering stable beam current and consistent signal-to-noise ratio across magnifications from 5× to 300,000×. Its core design philosophy centers on workflow acceleration: the “Observe-Now, Analyze-Now, Report-Now” paradigm is realized through hardware-synchronized vacuum sequencing, real-time CCD-based optical navigation, and zero-magnification (Zeromag) sample positioning—eliminating manual stage repositioning delays between loading and imaging.

Key Features

• Integrated Optical Navigation System: A 5-megapixel CCD camera captures true-color optical images of the entire sample stage (6 × 4.5 cm field of view), enabling rapid region-of-interest (ROI) selection via double-click interaction within the Zeromag interface—prior to vacuum pump-down.
• Intelligent Sample Exchange Workflow: Step-by-step on-screen navigation guides operators through chamber opening, height calibration using dedicated sample-height gauge, safe insertion via draw-out stage mechanism, and automatic vacuum initiation—all while preserving pre-selected ROI coordinates.
• Live EDS Analysis Integration: Real-time spectrum acquisition and elemental overlay rendering during SEM imaging (in both high-vacuum and low-vacuum LA mode), supporting qualitative and semi-quantitative compositional mapping without interrupting observation.
• SMILE VIEW™ Lab Software Suite: Centralized data management platform supporting batch report generation, cross-session image/spectrum comparison, reprocessing of archived spectra, and audit-trail-enabled session logging compliant with GLP documentation requirements.
• Motorized Precision Stage: Fully encoded XYZ translation with tilt and rotation capabilities, calibrated for repeatable positional accuracy and compatible with standard JEOL specimen holders (e.g., 100 mm diameter, 50 mm max height).

Sample Compatibility & Compliance

The JSM-IT200 accommodates a broad range of conductive and non-conductive specimens—including metals, ceramics, polymers, biological tissues (with appropriate coating), and geological samples—leveraging its dual-mode vacuum system (high vacuum for maximum resolution; low vacuum for charge mitigation on insulators). All refurbished units undergo full JEOL-recommended performance validation per internal technical bulletin SEM-IT200-REV-2023, including resolution verification at 30 kV (≤3.0 nm), detector efficiency calibration, and EDS peak resolution check (Mn Kα FWHM ≤135 eV). The system supports ASTM E1508, ISO 16700, and IEC 62239 standards for SEM-based microanalysis. Full service history, vacuum integrity logs, and post-refurbishment certification documents are provided with each unit.

Software & Data Management

SMILE VIEW™ Lab serves as the unified interface for instrument control, image acquisition, EDS spectral processing, and data archival. It implements role-based user permissions, timestamped metadata embedding (including HV, WD, detector bias, dwell time), and export-ready formats (TIFF, BMP, CSV, .eds, .spc). For regulated environments, optional 21 CFR Part 11-compliant modules are available upon request—enabling electronic signatures, audit trail review, and secure data lock functionality. Raw image and spectrum files are stored in vendor-neutral hierarchical directories, facilitating integration with third-party analysis tools (e.g., Thermo Fisher Avizo, Oxford AZtec, or open-source HyperSpy).

Applications

This refurbished JSM-IT200 is routinely deployed in academic materials characterization labs for phase identification in multiphase alloys; in semiconductor fabs for defect root-cause analysis on wafers and packaging; in geoscience departments for mineral grain morphology and compositional zoning studies; and in polymer R&D for filler dispersion assessment and fracture surface topography. Its intuitive navigation and rapid ROI targeting make it especially suitable for routine QC applications where throughput and operator consistency are critical—such as incoming raw material inspection, coating thickness verification, or solder joint integrity evaluation.

FAQ

Is this unit covered by JEOL factory support or extended warranty?
Yes—each refurbished JSM-IT200 includes a 12-month comprehensive parts-and-labor warranty administered by an authorized JEOL service partner, with optional 24/7 remote diagnostics and priority on-site response.
Can the EDS detector be upgraded to a silicon drift detector (SDD)?
Yes—original equipment manufacturer (OEM) SDD retrofit kits are available and fully compatible with the IT200’s digital pulse processor and SMILE VIEW™ Lab software stack.
What documentation accompanies the instrument?
Full set includes: As-shipped configuration report, vacuum integrity test log, resolution verification certificate, EDS calibration certificate, SMILE VIEW™ Lab license key, and complete English-language operation & maintenance manuals.
Is installation and operator training included?
Standard delivery includes on-site mechanical/electrical commissioning, vacuum system validation, and two days of hands-on operator training covering navigation workflow, EDS acquisition, report generation, and basic preventive maintenance procedures.
