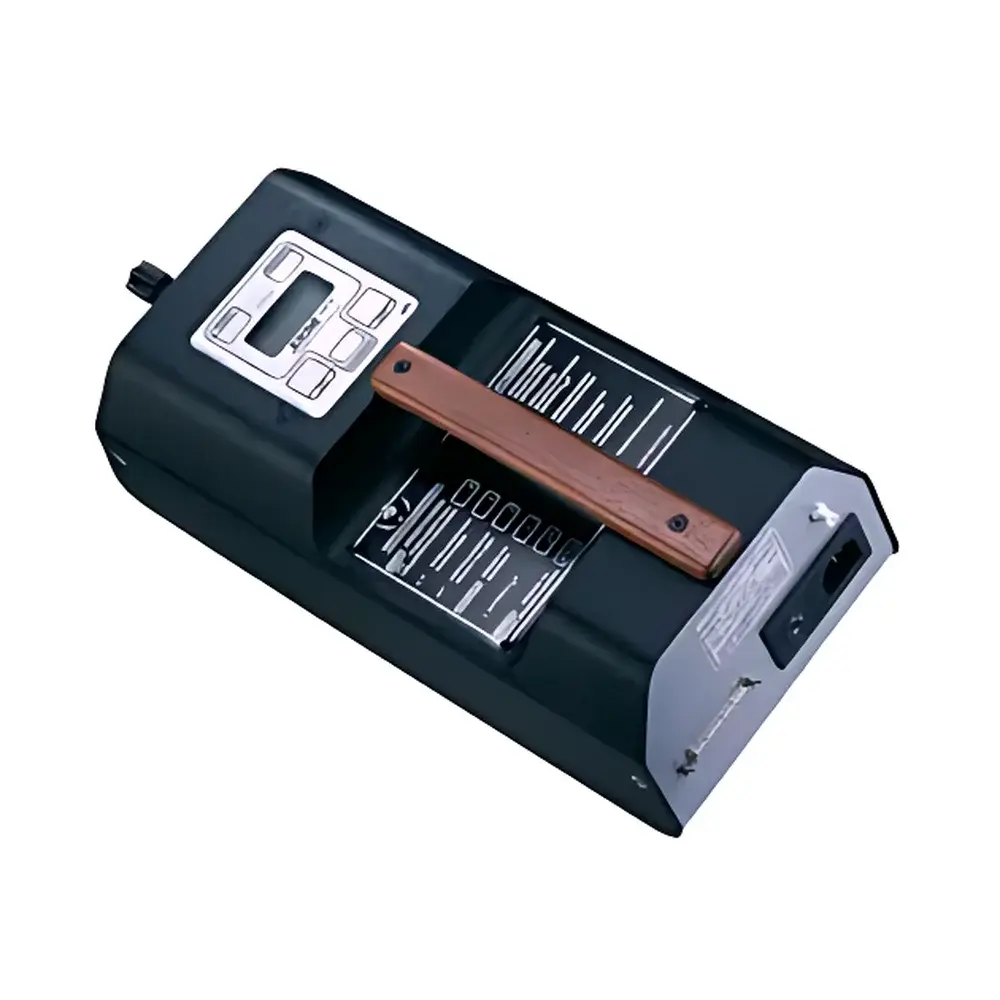

Jerome 631-X Hydrogen Sulfide Analyzer
| Brand | Brookfield |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | 631-X |
| Instrument Type | Portable |
| Target Gas | Hydrogen Sulfide (H₂S) |
| Response Time | 3–20 seconds |
| Measurement Accuracy | ±0.003 ppm |
| Measurement Range | 0.003 ppm to 50 ppm |
Overview
The Jerome® 631-X Hydrogen Sulfide Analyzer is a field-proven, portable electrochemical gas analyzer engineered for high-fidelity detection of hydrogen sulfide (H₂S) in ambient air. It employs a proprietary gold-film sensor technology—validated across more than three decades of operational use in environmental monitoring, industrial hygiene, and wastewater infrastructure applications. Unlike metal-oxide or semiconductor-based detectors, the gold-film sensing principle relies on selective adsorption and electrochemical oxidation of H₂S on a catalytically active gold surface, generating a linear current response proportional to gas concentration. This architecture delivers exceptional specificity for H₂S—even in complex matrices containing volatile organic compounds (VOCs), hydrogen, or sulfur dioxide—minimizing cross-sensitivity and enabling reliable quantification at sub-ppb detection thresholds. Designed for compliance-driven workflows, the 631-X meets performance criteria aligned with EPA Method IO-4, ASTM D5016, and ISO 16000-29 for ambient H₂S measurement, making it suitable for regulatory reporting, odor investigation, and corrosion risk assessment in control rooms, biogas facilities, and landfill perimeter monitoring.
Key Features
- Gold-film electrochemical sensor with 35+ years of field validation for long-term stability and reproducibility
- Wide dynamic range: 0.003 ppm to 50 ppm H₂S, supporting both trace-level odor threshold detection and occupational exposure limit (OEL) verification
- Rapid response time of 3–20 seconds (T90), enabling real-time spatial mapping during leak surveys
- Ruggedized aluminum housing rated IP65 for dust and water resistance, certified for continuous operation across -10 °C to +50 °C ambient conditions
- One-button operation with auto-zeroing and automatic backlighting LCD display optimized for low-light environments
- Dual-mode operation: Standard sampling mode for discrete measurements and Survey Mode for continuous air aspiration and source localization
- Onboard detector regeneration capability via external power module—restores baseline sensitivity without sensor replacement
Sample Compatibility & Compliance
The 631-X is validated for direct analysis of ambient air, stack effluents (with dilution), and headspace gases from biological treatment units. It exhibits negligible interference from CO, CO₂, CH₄, NH₃, SO₂, and common hydrocarbons at typical environmental concentrations. The instrument complies with OSHA PEL (10 ppm TWA, 15 ppm STEL), NIOSH REL (10 ppm TWA), and ACGIH TLV (1 ppm TWA) reference values. Its measurement uncertainty profile satisfies QA/QC requirements under EPA Region 5 Ambient Air Monitoring Guidance and supports data defensibility in GLP-compliant odor complaint investigations. Calibration traceability is maintained to NIST-traceable H₂S standards (e.g., Scott Specialty Gases Certi-Source®), and full audit logs—including calibration history, zero checks, and user interventions—are retained internally.
Software & Data Management
The optional integrated data logger stores up to 1,000 timestamped records (date, time, H₂S concentration, temperature, battery status) with automatic file rollover. Data export is supported via USB-C interface using CSV-compatible format for import into LIMS, Excel, or GIS platforms. Firmware v3.2+ enables secure configuration locking and user-access level management—supporting 21 CFR Part 11–aligned audit trails when paired with enterprise-grade documentation systems. No proprietary software installation is required; raw files are human-readable and compatible with standard statistical analysis tools.
Applications
- Odor source identification and dispersion modeling around wastewater treatment plants and composting facilities
- Corrosion potential assessment in electrical control rooms, pump stations, and SCADA enclosures
- Performance verification of H₂S scavenging systems (e.g., iron sponge, activated carbon, triazine injection)
- Landfill gas monitoring per Subtitle D requirements and municipal solid waste facility compliance reporting
- Emergency response screening during pipeline ruptures, manhole entries, or confined space entry pre-checks
- Academic and regulatory research requiring trace H₂S quantification in urban ambient air networks
FAQ
What is the recommended calibration frequency for routine environmental monitoring?
Calibration is advised before each daily use or after exposure to concentrations exceeding 20 ppm; zero and span checks should be performed using certified NIST-traceable gas standards.
Can the 631-X operate continuously in high-humidity environments?
Yes—the sensor module includes integrated humidity compensation, and the housing design prevents condensation ingress, supporting operation at up to 95% RH non-condensing.
Is the gold-film sensor replaceable in the field?
Sensor replacement requires factory service; however, on-site detector regeneration extends functional life by >2× compared to non-regenerable electrochemical cells.
Does the instrument support external pump integration for duct or stack sampling?
The optional Auto-Sampling Module provides programmable interval sampling (1–60 min) and can be configured with an external aspirator for remote probe deployment.
How is measurement traceability documented for regulatory submissions?
Each unit ships with a Certificate of Conformance and NIST-traceable calibration report; field calibration logs are stored internally and exportable as tamper-evident CSV files.
