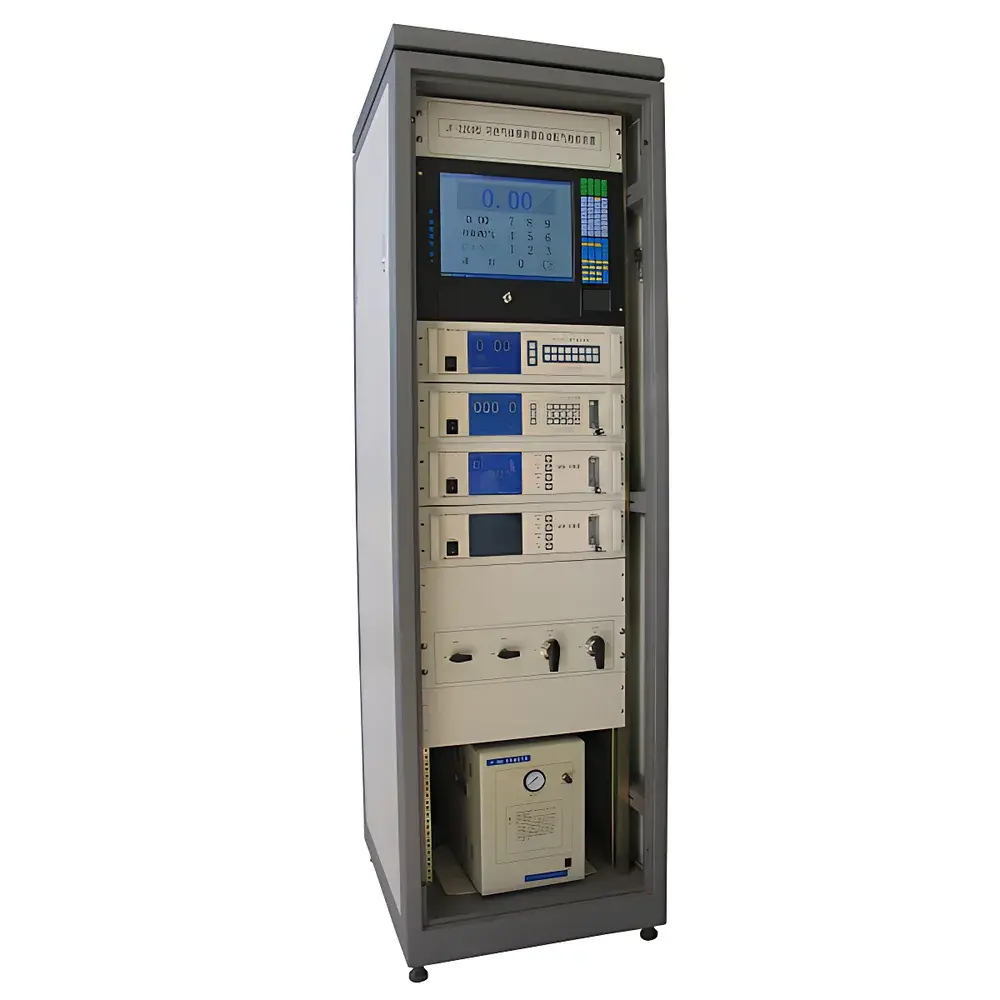

JF-2200 Combustible Gas Detector Calibration and Verification System by Junfang Chemical & Physical

Overview

The JF-2200 Combustible Gas Detector Calibration and Verification System is an integrated benchtop platform engineered for the functional validation, periodic calibration, and performance verification of fixed and portable combustible gas detectors used in industrial safety, petrochemical facilities, municipal infrastructure, and confined-space entry programs. Unlike standalone gas analyzers, the JF-2200 operates as a closed-loop verification station: it generates traceable, stable gas mixtures at defined concentrations (CH₄, C₃H₈, CO, H₂), exposes connected detectors under controlled flow and environmental conditions, and acquires, timestamps, and evaluates real-time response data—including alarm activation thresholds, recovery time, and linearity across the full scale. Its architecture adheres to fundamental principles of electrochemical, catalytic bead, and infrared detection physics, enabling metrologically sound assessment against reference standards traceable to national primary standards (e.g., NIM, China National Institute of Metrology). The system supports both single-point and multi-point calibration workflows, fulfilling requirements for routine maintenance, post-repair validation, and regulatory audit readiness.

Key Features

• Automated calibration sequence control via embedded industrial PC with deterministic real-time scheduling—eliminating manual timing errors and operator-dependent variability.
• Simultaneous acquisition and synchronized logging from up to 20 independent gas alarm units, each with configurable channel identification, alarm state tagging, and timestamped event capture.
• Intelligent host controller with auto-zeroing, automatic span adjustment, and built-in reference gas validation routines prior to each test cycle.
• Dual-output architecture: isolated 4–20 mA analog signal for PLC integration and RS-232C serial interface compliant with EIA/TIA-232-F for direct PC communication and SCADA system interfacing.
• Non-volatile internal storage supporting ≥100,000 test records with metadata (date/time, gas type, concentration, detector ID, operator ID, pass/fail status).
• Modular gas delivery subsystem with mass flow controllers (MFCs), certified zero-air supply, and certified standard gas cylinders—configured per user-specified range (e.g., 0–100% LEL CH₄ or 0–1000 ppm CO).

Sample Compatibility & Compliance

The JF-2200 accommodates detectors based on catalytic combustion (LEL), electrochemical (CO, H₂), and infrared (CH₄, C₃H₈) sensing technologies. It supports common industrial form factors including 4–20 mA loop-powered transmitters, 2-wire and 3-wire alarm relays, and Modbus RTU-enabled smart sensors. All test procedures align with national and international verification frameworks: GB 50493–2019 (Design Code for Detection and Alarm of Combustible Gases and Toxic Gases in Petrochemical Enterprises), JJG 693–2011 (Verification Regulation for Flammable Gas Detectors), and ISO 16000-24:2015 (Indoor air — Part 24: Determination of volatile organic compounds and other gases using active sampling onto sorbent tubes followed by thermal desorption and gas chromatography). The system’s firmware maintains audit-ready logs compliant with GLP principles, including electronic signatures, change history, and immutable record retention.

Software & Data Management

The JF-2200 runs proprietary calibration management software (v3.2+) under Windows Embedded Standard OS. The application provides role-based access control (administrator, technician, auditor), customizable report templates (PDF/CSV/XLSX), automated certificate generation per test (including uncertainty budgets per ISO/IEC 17025), and scheduled backup to network drives or USB media. Data export supports ASTM E1461-compliant formats for third-party LIMS integration. Audit trail functionality records all user actions—including parameter modifications, calibration overrides, and firmware updates—with ISO/IEC 17025-compliant timestamps and operator authentication. Optional 21 CFR Part 11 compliance package available with electronic signature workflow and encrypted database storage.

Applications

• Routine calibration verification of fixed gas detection systems in refineries, LNG terminals, and chemical manufacturing plants.
• Pre-deployment functional testing of portable multi-gas monitors used by HSE officers and emergency response teams.
• Factory acceptance testing (FAT) and site acceptance testing (SAT) for new gas detection installations.
• Root-cause analysis of false alarms or sensor drift through comparative response profiling across multiple units.
• Supporting ISO 45001:2018 occupational health and safety management system audits with documented calibration evidence.
• Training laboratories for technician certification programs accredited under GB/T 27024.

FAQ

Does the JF-2200 support calibration of toxic gas detectors beyond CO and H₂?

Yes—hardware architecture permits expansion to H₂S, SO₂, Cl₂, NH₃, and NO₂ with appropriate sensor modules and certified gas standards; contact technical support for configuration options.
Can test data be exported directly to enterprise asset management (EAM) systems?

Yes—the RS-232C interface supports Modbus ASCII/RTU protocols, and CSV exports are structured for direct ingestion into Maximo, SAP PM, or Infor EAM platforms.
Is on-site installation and commissioning included with purchase?

Standard delivery includes remote setup assistance; on-site commissioning, IQ/OQ documentation, and GMP-compliant validation services are available as optional contractual deliverables.
What is the recommended calibration interval for the JF-2200’s internal reference sensors?

Per JJG 693–2011, annual traceable calibration against national standards is required; factory-certified recalibration kits and service contracts are offered.
How does the system handle ambient temperature and humidity variations during testing?

Integrated environmental monitoring module logs T/RH in real time; test reports include correction factors applied per ISO 8573-1 Annex B for gas density compensation.
