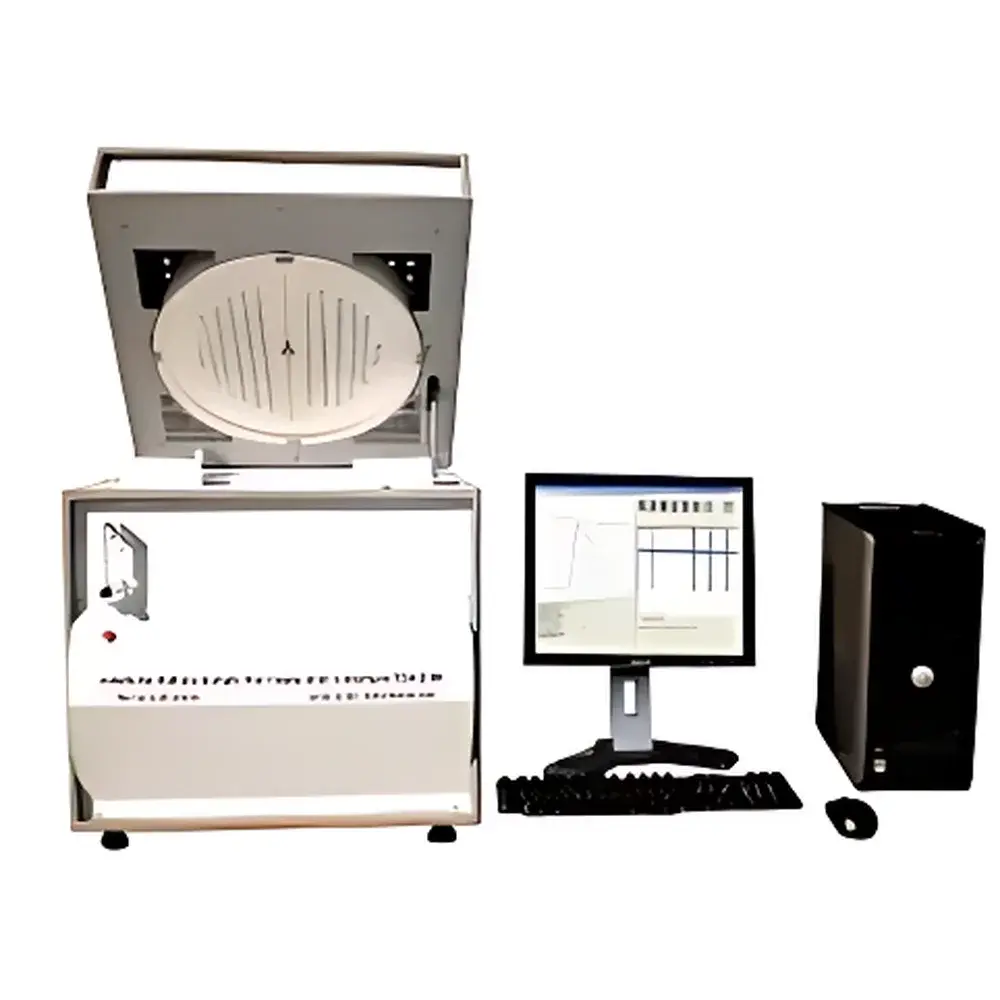

JHX TGA-2000 Coal Quality Industrial Analyzer

Overview

The JHX TGA-2000 Coal Quality Industrial Analyzer is a fully automated thermogravimetric analysis (TGA) system engineered for high-throughput, regulatory-compliant proximate analysis of coal and coke in industrial laboratories. Operating on the principle of controlled thermal decomposition under inert or reactive atmospheres, the instrument quantifies moisture, volatile matter, fixed carbon, and ash content per ASTM D3172, ASTM D7582, ISO 1171, and ISO 562. Its core architecture integrates dual independent sample carousels — one dedicated to crucible lids and the other to crucibles — enabling synchronized lid placement, precise mass measurement, and sealed thermal treatment without manual intervention. This design eliminates operator exposure to elevated temperatures (up to 600 °C during access), prevents lid drop into the furnace chamber, and minimizes oxidative bias during volatile matter determination — directly enhancing result reproducibility and method robustness.

Key Features

• Dual-carousel automation: Upper carousel handles crucible lids; lower carousel holds crucibles. Vertical actuation enables lid placement *inside* the furnace chamber, ensuring complete coverage prior to heating.
• Integrated 4-digit analytical balance (0.0002 mg resolution) with real-time mass monitoring at each thermal stage.
• Thermal control from 50 °C to 1000 °C with ±1 °C accuracy across the full range; programmable ramp rates, hold times, and gas switching sequences.
• Optional external balance integration for pre-weighing crucibles and samples, decoupling weighing from thermal cycles to increase throughput.
• USB-connected Windows-based control software with multi-stage method programming: temperature setpoints, heating rates, purge gas selection (N₂, air, O₂), flow control, and dwell parameters.
• Uninterruptible operation: automatic recovery and resumption after power loss, preserving method integrity and data continuity.
• Modular hardware design: pneumatic actuators, solenoid valves, and magnetic sensors are industry-standard components — serviceable using off-the-shelf replacements without vendor lock-in.

Sample Compatibility & Compliance

The TGA-2000 accommodates standard ASTM/ISO crucibles (typically alumina or platinum) with sample masses between 0.1 g and 5 g. Its sealed-lid protocol ensures compliance with the oxygen-exclusion requirements of volatile matter determination (ASTM D3175, ISO 562). The system supports dual-furnace configurations for parallel analysis and meets essential instrumentation criteria for GLP and GMP environments: full electronic audit trail, user-access logging, method version control, and secure electronic signatures per FDA 21 CFR Part 11. All calibration records, raw mass vs. temperature datasets, and final proximate reports are timestamped and exportable in auditable formats.

Software & Data Management

The embedded Windows application provides intuitive method setup, real-time curve visualization (mass % vs. temperature/time), and automated calculation of moisture, volatile matter, fixed carbon, and ash. Data output adheres to laboratory informatics standards: native ODBC connectivity enables direct ingestion into LIMS platforms; export options include tab-delimited TXT, CSV, and Excel-compatible XLS files. All datasets retain full metadata — operator ID, instrument serial number, calibration status, gas flow logs, and environmental sensor readings (ambient temperature/humidity if configured). Software updates are distributed via secure HTTPS with cryptographic signature verification.

Applications

• Routine proximate analysis of bituminous, sub-bituminous, lignite, and anthracite coals per utility and trading specifications.
• Quality control in coal blending operations for power generation and metallurgical coke production.
• Research-grade thermal stability profiling of coal-derived chars, biomass blends, and alternative solid fuels.
• Method validation and interlaboratory comparison studies requiring high inter-run repeatability (RSD < 0.3% for volatile matter across 19-sample batches).
• Regulatory submission support for EPA, ISO-certified labs, and third-party certification bodies requiring traceable, ALCOA+ compliant data.

FAQ

Does the TGA-2000 comply with ASTM D7582 for automated proximate analysis?
Yes — its dual-carousel lid-sealing mechanism, temperature uniformity, and mass resolution meet all instrumental requirements specified in ASTM D7582 Annex A1.
Can the system operate unattended for overnight analysis?
Yes — fully automated sample loading, lid placement, heating, cooling, and data capture enable 24-hour unattended operation with no manual intervention required.
Is external balance integration mandatory for routine use?
No — the internal 4-digit balance handles all in-situ measurements. The external balance is optional and used only to increase sample preparation throughput.
What gas control capabilities does the system provide?
Programmable switching between up to three gases (e.g., N₂ → air → O₂) with mass flow controllers; individual flow rate and timing per thermal segment.
How is calibration traceability maintained?
Built-in calibration routines for temperature (using certified reference materials) and mass (NIST-traceable weights); all calibrations are logged with operator ID, date, and pass/fail status.
