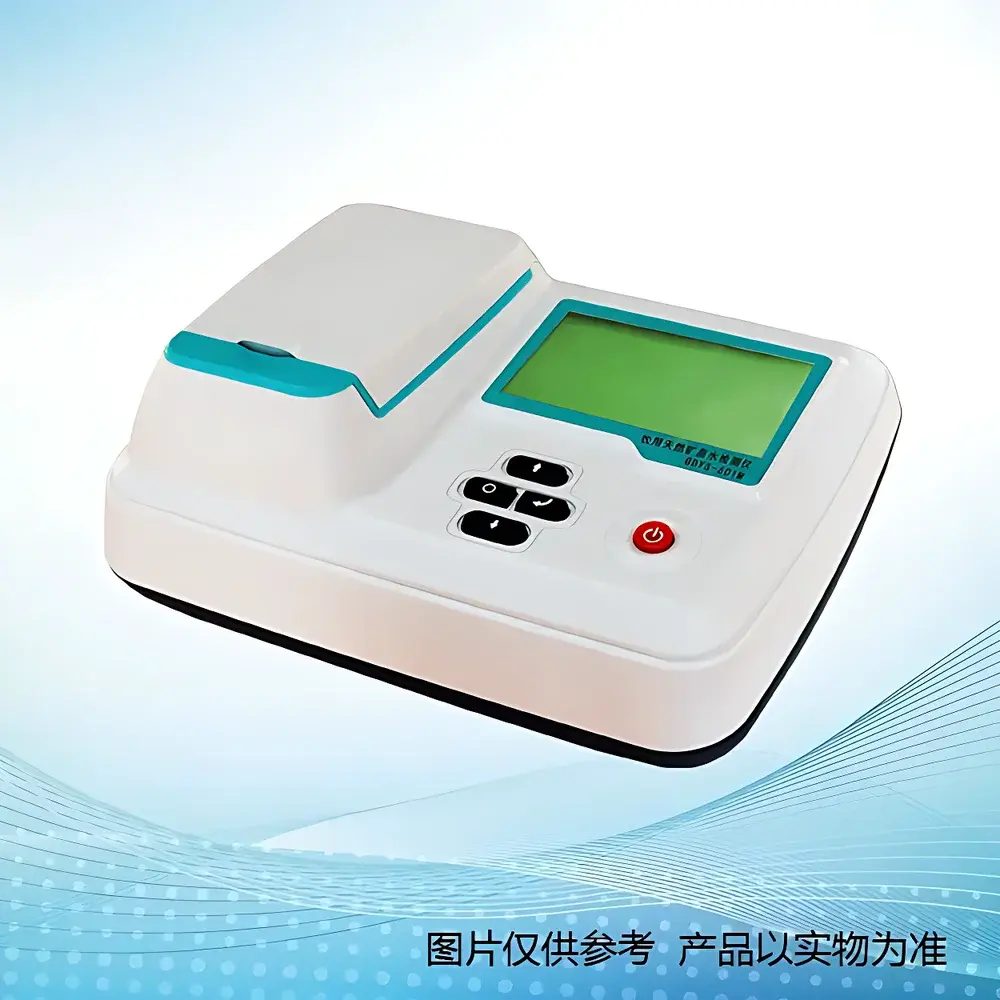

Jiada Xiaotianshe GDYS-601M Portable Natural Mineral Water Analyzer

Overview

The Jiada Xiaotianshe GDYS-601M Portable Natural Mineral Water Analyzer is a field-deployable, multi-parameter photometric analyzer engineered for rapid, on-site quantification of key physicochemical and ionic constituents in natural mineral water. It operates on dual analytical principles: spectrophotometry (for color, turbidity, metasilicic acid, and iodide) and titrimetric endpoint detection (for select parameters requiring stoichiometric reaction). The instrument integrates optical, fluidic, and electronic subsystems into a single ruggedized platform—designed to meet the operational demands of regulatory sampling, source water validation, bottling line QC, and geological survey teams working under variable environmental conditions. Its solid-state optical architecture eliminates moving parts, ensuring long-term stability in vibration-prone or high-humidity settings typical of spring-source monitoring or remote distribution points.

Key Features

• Integrated Solid-State Optical Engine: Uses high-luminance LEDs as both light source and wavelength selector—eliminating mechanical filters, gratings, or rotating prisms. Wavelength selection is achieved via discrete LED arrays at 380, 410, 430, 520, 538, 595, and 630 nm, enabling precise bandpass targeting per assay without recalibration.
• Zero-Transfer Measurement Architecture: All spectrophotometric assays are performed directly within sealed, standardized 30-mm cylindrical glass cuvettes—minimizing contamination risk, photodegradation, and volumetric error associated with sample transfer between reaction and measurement vessels.
• Pre-Calibrated Onboard Calibration Curves: Factory-loaded calibration functions for metasilicic acid and other priority analytes eliminate routine standard preparation. Users perform only blank correction using supplied reagent blanks—reducing procedural variability and analyst training burden.
• Dual-Power Operational Flexibility: Supports continuous AC operation or up to 8 hours of uninterrupted field use via internal 7.4 V / 900 mAh lithium-ion battery, with real-time state-of-charge monitoring and low-battery warning protocol.
• Robust Environmental Tolerance: Rated for continuous operation between 5 °C and 40 °C and relative humidity ≤85% non-condensing. Sealed optical path and conformal-coated PCBs enhance resistance to condensation, dust ingress, and mechanical shock during transport.

Sample Compatibility & Compliance

The GDYS-601M is validated for direct analysis of unfiltered or pre-filtered natural mineral water samples meeting national and international classification criteria (e.g., GB 8537–2018, EU Directive 2009/54/EC). It supports measurement of color (platinum-cobalt scale), turbidity (NTU, per ISO 7027), metasilicic acid (via molybdenum blue reduction), and iodide (via cerium(IV)–arsenite redox titration or catalytic spectrophotometry). While not certified for GLP or FDA 21 CFR Part 11 out-of-the-box, its audit-ready data logging—including timestamped measurements, operator ID, sample ID, and method version—supports traceability requirements under ISO/IEC 17025-accredited laboratories when paired with documented SOPs and external calibration verification.

Software & Data Management

The embedded firmware provides full local control over measurement protocols, unit conversion, statistical summary (mean, SD, CV%), and result archiving (≥1,000 records). USB 2.0 and RS232 interfaces enable bidirectional communication with Windows-based desktop software for batch report generation, custom template deployment, and export to CSV or Excel-compatible formats. Raw absorbance values, calibration coefficients, and reagent lot tracking metadata are retained alongside concentration results—facilitating retrospective method validation and inter-instrument comparability studies.

Applications

• Regulatory verification of bottled natural mineral water against label claims (e.g., silica content, iodide concentration)
• In-situ quality screening at spring discharge points prior to bottling or distribution
• Field-based compliance checks for GB/T 5750.4–2023 (turbidity), GB/T 5750.5–2023 (color), and GB/T 5750.10–2023 (silica)
• Geological hydrochemistry surveys assessing aquifer mineralization trends
• QC/QA support for small-to-midsize bottlers lacking centralized lab infrastructure

FAQ

Does the GDYS-601M comply with ISO/IEC 17025 requirements?
It supports essential traceability features (time-stamped records, operator ID, calibration history), but formal accreditation requires laboratory-specific validation, uncertainty budgeting, and external proficiency testing.
Can the instrument be used for wastewater or seawater analysis?
No—it is optimized for low-TDS natural mineral waters; high ionic strength or suspended solids may interfere with photometric accuracy and cuvette integrity.
Are reagents supplied with the instrument certified reference materials?
Reagents are manufactured to internal QC specifications aligned with GB/T 601–2016; NIST-traceable CRM kits are available as optional accessories.
Is firmware upgrade supported remotely?
Yes—updates are delivered via USB flash drive using vendor-provided configuration utilities; no internet connection required in the field.
What maintenance is required beyond routine cleaning?
Annual verification of photometric linearity (using neutral density filters) and wavelength accuracy (using holmium oxide reference) is recommended per manufacturer guidelines.
