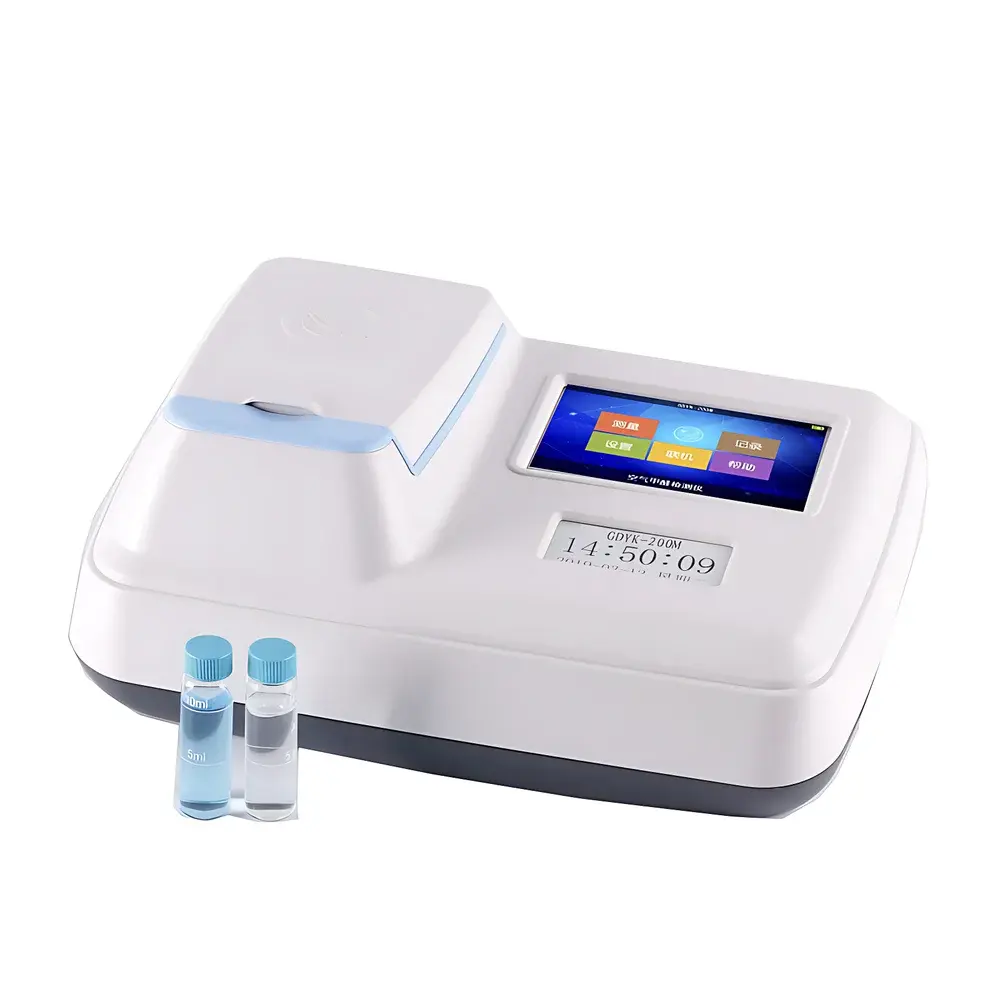

JiDa-Xiaotianshe GDYK-200M Formaldehyde Analyzer

Overview

The JiDa-Xiaotianshe GDYK-200M Formaldehyde Analyzer is a portable, field-deployable colorimetric instrument engineered for quantitative determination of formaldehyde (HCHO) in ambient and indoor air environments. It operates on two standardized wet-chemical colorimetric principles—phenol reagent (MBTH) and AHMT (4-amino-3-hydrazino-5-mercapto-1,2,4-triazole)—both recognized in national regulatory frameworks for indoor air quality assessment. The device integrates a precision micro-pump for active sampling, ensuring consistent volumetric draw across variable environmental conditions. Its optical detection module employs stable LED light sources and matched photodiode receivers to quantify absorbance changes in the derivatized chromophore, translating optical density into formaldehyde concentration via preloaded or user-generated calibration functions. Designed specifically to meet the analytical requirements of GB 50325-2020, the GDYK-200M supports compliance-driven testing in residential, commercial, and institutional building commissioning, post-renovation verification, and routine indoor air quality (IAQ) monitoring programs.

Key Features

• Pump-aspiration sampling system with flow rate stabilization for reproducible 10–30 L/min air draw, minimizing sampling bias due to pressure or temperature fluctuations
• Dual-method switching capability: seamless toggling between phenol reagent (ISO 16000-23 compatible methodology) and AHMT protocols without hardware modification
• On-device calibration curve builder: users may input paired concentration-absorbance data points to generate custom 2nd-order polynomial or linear calibration models
• Integrated real-time clock and internal memory (≥1,000 test records) with timestamp, location tag (manual entry), and operator ID fields
• Backlit monochrome LCD display with intuitive icon-based navigation for measurement, setup, data review, and PC linking operations
• USB-C interface supporting bidirectional communication: firmware updates, raw absorbance export, and batch report generation via Windows-compatible desktop software

Sample Compatibility & Compliance

The GDYK-200M is validated for use with standard 10 mL absorption solution vials containing either phenol reagent or AHMT reagent, aligned with Chinese National Standard GB/T 18204.2–2014 (Method 2 for formaldehyde in air). It accommodates common silica gel or impinger-based collection media and interfaces with standard 1/4-inch PTFE sampling tubing. All reagent kits supplied are certified for shelf life ≥12 months when stored at 2–8 °C. The analyzer’s measurement uncertainty (k=2) is ≤±7.5% within its 0.00–1.00 mg/m³ range under controlled laboratory validation per JJF 1059.1–2012. It satisfies mandatory reporting requirements under GB 50325-2020 for Class I (residential) and Class II (public) civil construction projects and supports audit-ready documentation for GLP-aligned environmental testing laboratories.

Software & Data Management

The companion GDYK-DataLink desktop application (Windows 10/11, 64-bit) enables secure data aggregation, statistical summary (mean, SD, CV%), and customizable PDF report generation compliant with ISO/IEC 17025 documentation practices. Audit trail functionality logs all calibration events, method changes, and result modifications with user credentials and timestamps. Data export supports CSV and XML formats for integration into LIMS platforms. Software enforces password-protected administrator mode for critical configuration changes and complies with basic traceability provisions analogous to FDA 21 CFR Part 11 Annex 11 expectations for non-GxP but regulated-use instruments.

Applications

• Pre-occupancy IAQ verification in newly constructed or renovated residential, school, and healthcare facilities
• Periodic compliance screening in office buildings, hotels, and public transportation hubs
• Field validation of HVAC filtration efficiency and source control interventions
• Supporting third-party environmental consulting reports under CMA (China Metrology Accreditation) or CNAS accreditation scopes
• Educational use in environmental science laboratories for method comparison studies between phenol reagent and AHMT kinetics

FAQ

What formaldehyde detection standards does the GDYK-200M support?

It fully implements GB/T 18204.2–2014 and meets the performance criteria specified in GB 50325-2020 for formaldehyde limit verification (0.07 mg/m³ for Class I, 0.08 mg/m³ for Class II spaces).
Can the instrument store calibration curves from multiple users or projects?

Yes—up to 10 independent calibration sets can be saved onboard; each retains slope, intercept, correlation coefficient (r²), and creation metadata.
Is external power required during field operation?

No—the built-in rechargeable Li-ion battery provides ≥6 hours of continuous operation at 20 L/min sampling flow, with low-power sleep mode extending standby time to 72 hours.
Does the device require annual factory recalibration?

While not mandatory, JiDa-Xiaotianshe recommends biannual optical path verification using NIST-traceable neutral density filters and annual full-system performance check against certified gas standards (e.g., permeation tube-generated HCHO at 0.25 mg/m³).
