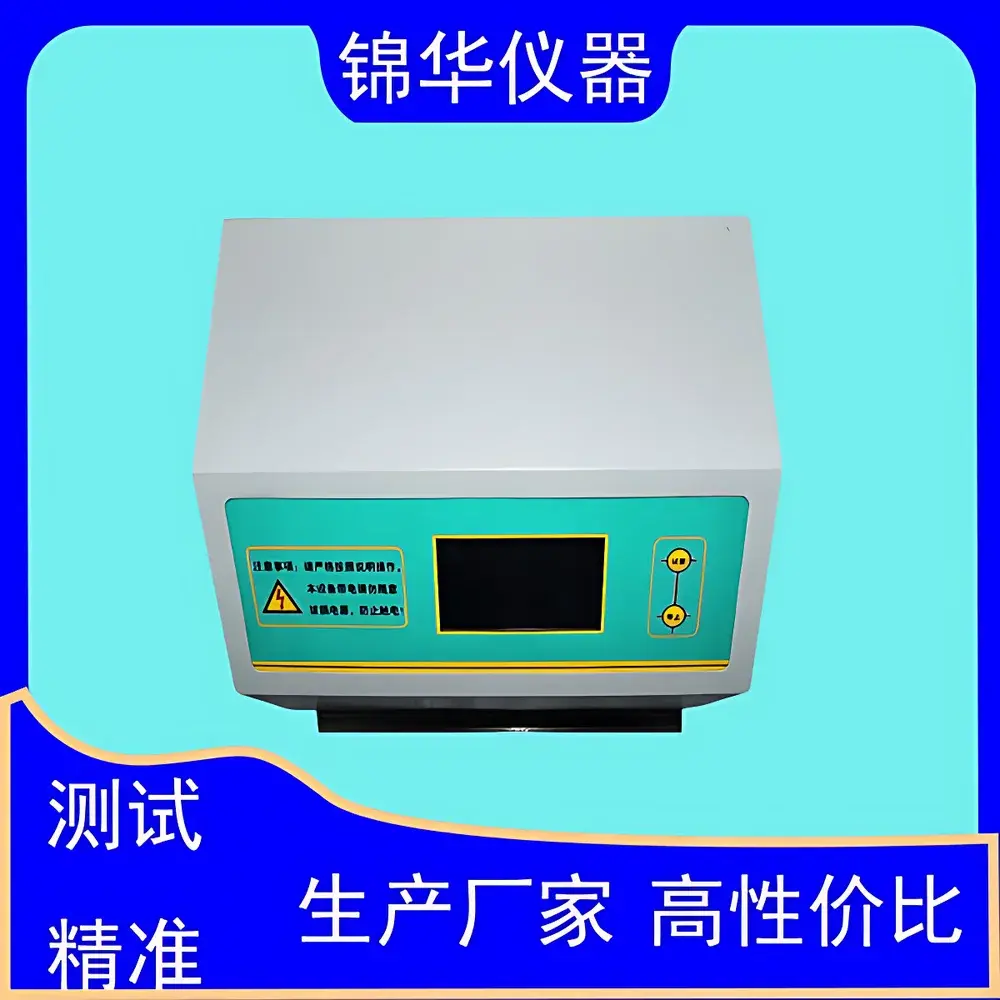

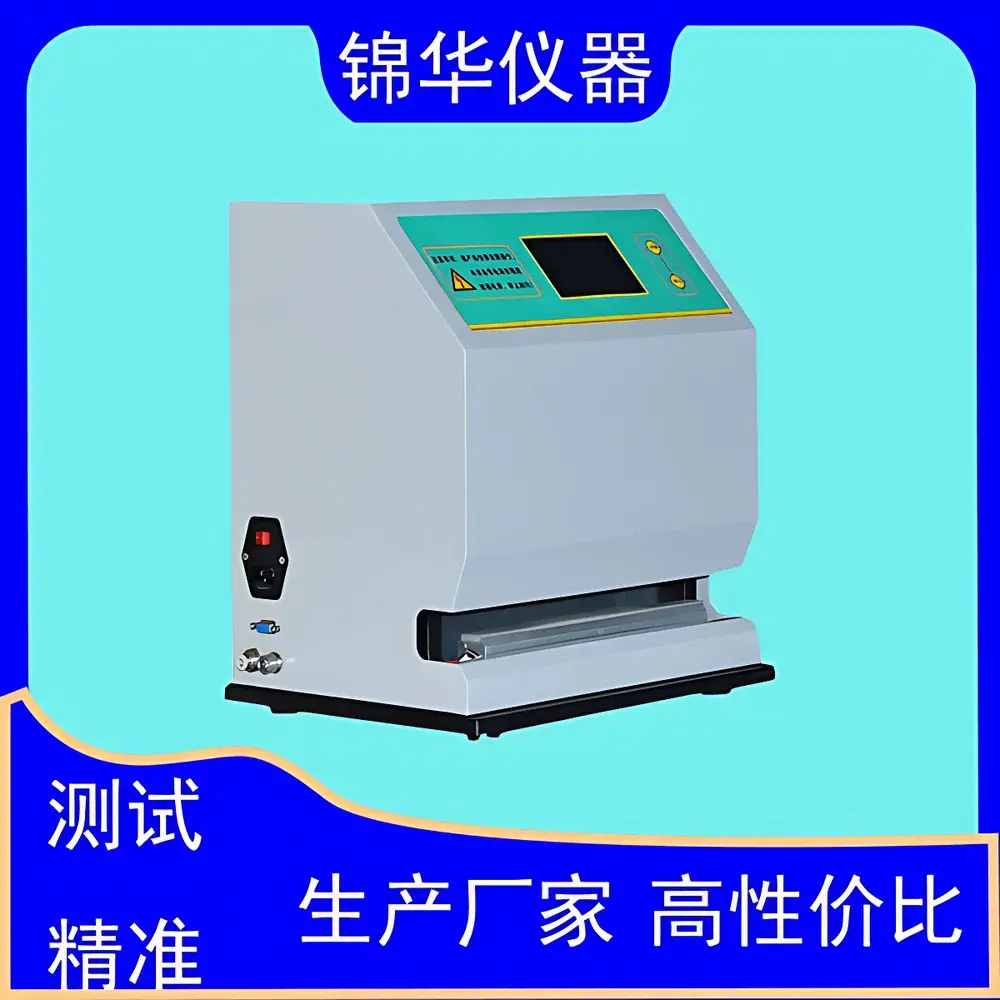

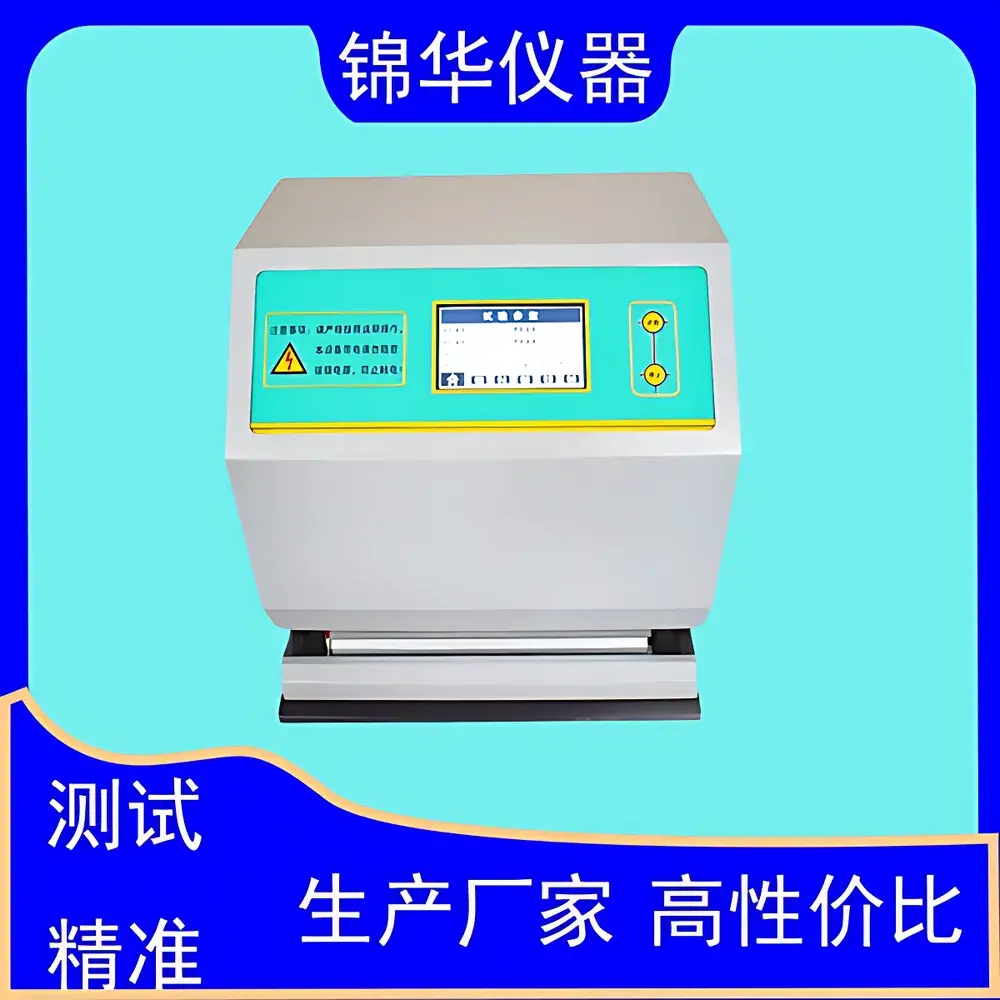

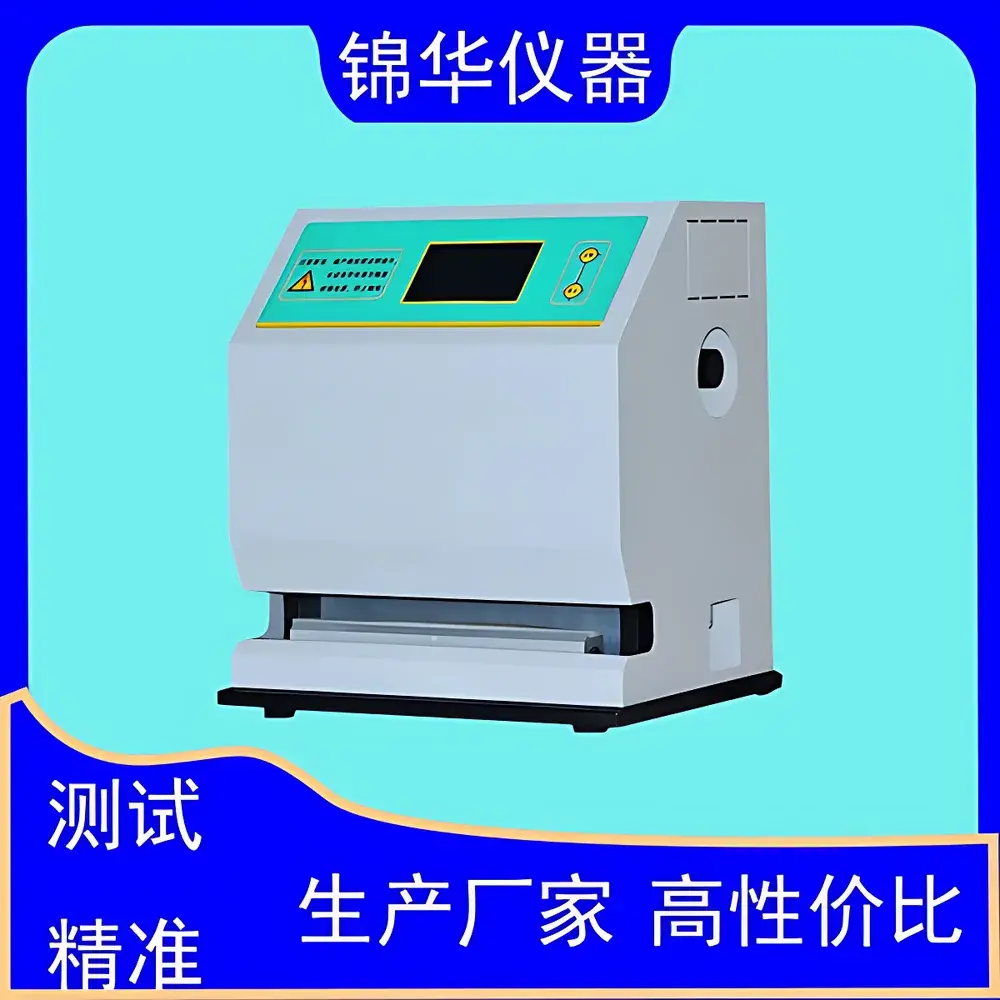

Jinhuatester HST-01 Heat Seal Strength Tester

Overview

The Jinhuatester HST-01 Heat Seal Strength Tester is an electromechanical test instrument engineered for precise, repeatable thermal sealing parameter optimization and validation in packaging R&D and quality control laboratories. It operates on the principle of controlled heat-and-pressure sealing—applying calibrated thermal energy, defined dwell time, and regulated pneumatic force to replicate industrial heat sealing processes under laboratory conditions. Unlike empirical trial-and-error approaches, the HST-01 enables systematic determination of optimal sealing parameters—including temperature, dwell time, and pressure—for a wide range of flexible and semi-rigid packaging substrates. Its design supports method development per standardized thermal seal integrity protocols, serving as a foundational tool for establishing validated sealing windows prior to production scale-up or process transfer.

Key Features

• Independent dual-zone PID temperature control for upper and lower sealing heads ensures uniform thermal distribution and minimizes thermal lag across the sealing interface;
• Pneumatically actuated upper sealing head with integrated pressure transducer feedback loop delivers consistent, traceable sealing force within 0.05–0.7 MPa range;
• Aluminum-clad sealing jaws with extended 260 mm × 10 mm active surface support multi-sample parallel testing or large-format film evaluation; custom sealing jaw geometries available upon request;
• Human-centered ergonomics: bottom-mounted fixed lower jaw facilitates sample placement; top-mounted cylinder reduces mechanical inertia and improves response repeatability;
• Dual activation mode—manual touchscreen initiation and foot-pedal operation—enables hands-free, operator-safe execution during high-throughput testing;
• Quick-connect heating element interfaces allow rapid maintenance and field-replaceable thermal modules without recalibration;
• Industrial-grade 7-inch color TFT touchscreen with intuitive GUI provides real-time parameter monitoring, recipe storage, and test log export via USB;
• Integrated electrical safety architecture includes overtemperature cutoff, ground-fault circuit interruption (GFCI), and insulated thermal shielding to prevent operator contact with heated surfaces.

Sample Compatibility & Compliance

The HST-01 is validated for use with polymeric films (e.g., LDPE, PP, PET, PA), laminated structures (e.g., PET/AL/PE, OPP/CPP), pharmaceutical foils (including cold-forming aluminum and blister aluminum), and rigid PVC hard sheets. It supports comparative evaluation of seal integrity across material combinations—such as aluminum foil-to-foil, foil-to-PVC, and multilayer laminate interfaces. The instrument conforms to key regulatory and industry standards governing packaging seal performance, including ASTM F2029 (Standard Test Method for Measuring Heat Seal Strength of Thermoplastic Polymer-Based Materials), QB/T 2358 (Chinese national standard for plastic film heat seal strength), and multiple Chinese Pharmacopoeia packaging standards (YBB 00122003–2015, YBB 00152002–2015, YBB 00212005–2015, YBB 00222005–2015, YBB 00232005–2015, YBB 00242002–2015). While not inherently 21 CFR Part 11 compliant, its data logging architecture supports integration into GLP/GMP environments when paired with validated electronic record systems.

Software & Data Management

The embedded microprocessor controls all operational sequences—including ramp-and-soak temperature profiling, pressure ramping, dwell timing, and cycle sequencing—with user-defined test methods stored as named protocols. Each test generates a timestamped record containing setpoints, actual measured values (temperature deviation, pressure stability, elapsed time), and operator ID. Data exports as CSV files for post-processing in statistical analysis software (e.g., Minitab, JMP) or LIMS integration. Audit trail functionality logs all parameter modifications, method changes, and system events—supporting internal QA review and external audit readiness. Firmware updates are delivered via secure USB interface with version-controlled release notes.

Applications

• Establishing thermal seal initiation temperature (TSIT) and seal strength plateau for new film formulations;
• Validating heat seal robustness across environmental aging conditions (e.g., post-accelerated aging per ISO 11607-1);
• Comparing seal integrity between alternative adhesive layers or surface treatments (e.g., corona vs. plasma treatment);
• Supporting root cause analysis of package leakage failures in stability studies;
• Qualifying secondary packaging seals for medical device pouches under ISO 11607-2;
• Generating reference data for heat seal process qualification (IQ/OQ/PQ) documentation packages;
• Training production line technicians on parameter sensitivity—e.g., how ±5 °C shift affects peel strength distribution.

FAQ

What types of materials can be tested on the HST-01?
The instrument accommodates thermoplastic films, coextrusions, laminates, pharmaceutical aluminum foils, and PVC-based rigid sheets—provided the substrate exhibits measurable cohesive or adhesive failure under controlled thermal compression.
Is compressed air supply included with the base configuration?
No. An external oil-free air compressor capable of delivering ≥0.7 MPa at ≥10 L/min is required and available as optional accessory.
Can the HST-01 perform seal strength quantification directly?
No. The HST-01 is a thermal seal parameter optimizer—not a tensile tester. Seal strength must be evaluated separately using instruments such as ASTM F88-compliant peel testers or tensile analyzers.
Does the unit support automated data upload to networked systems?
Raw data export is supported via USB flash drive. Network connectivity (Ethernet/Wi-Fi) requires optional hardware module and middleware configuration.
What calibration documentation is provided?
Each unit ships with factory calibration certificate traceable to NIM (National Institute of Metrology, China) for temperature and pressure sensors, valid for 12 months under normal operating conditions.
