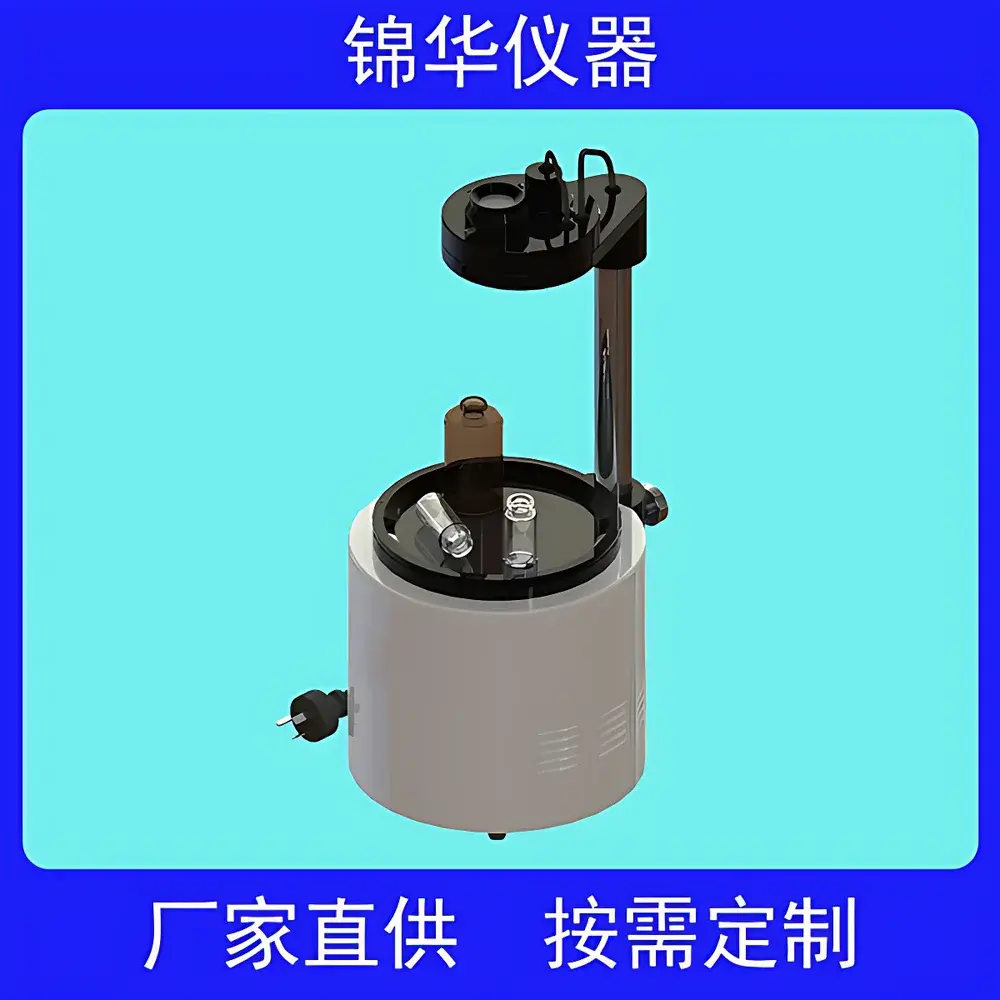

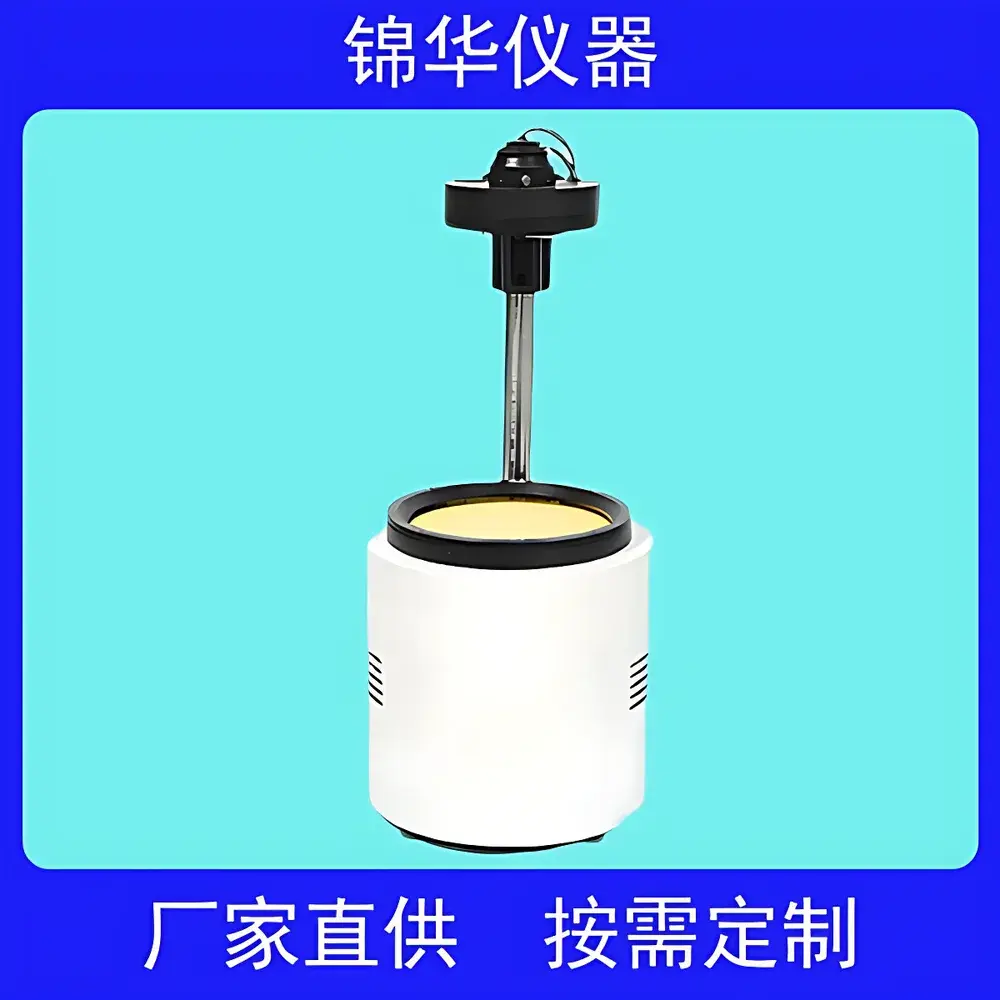

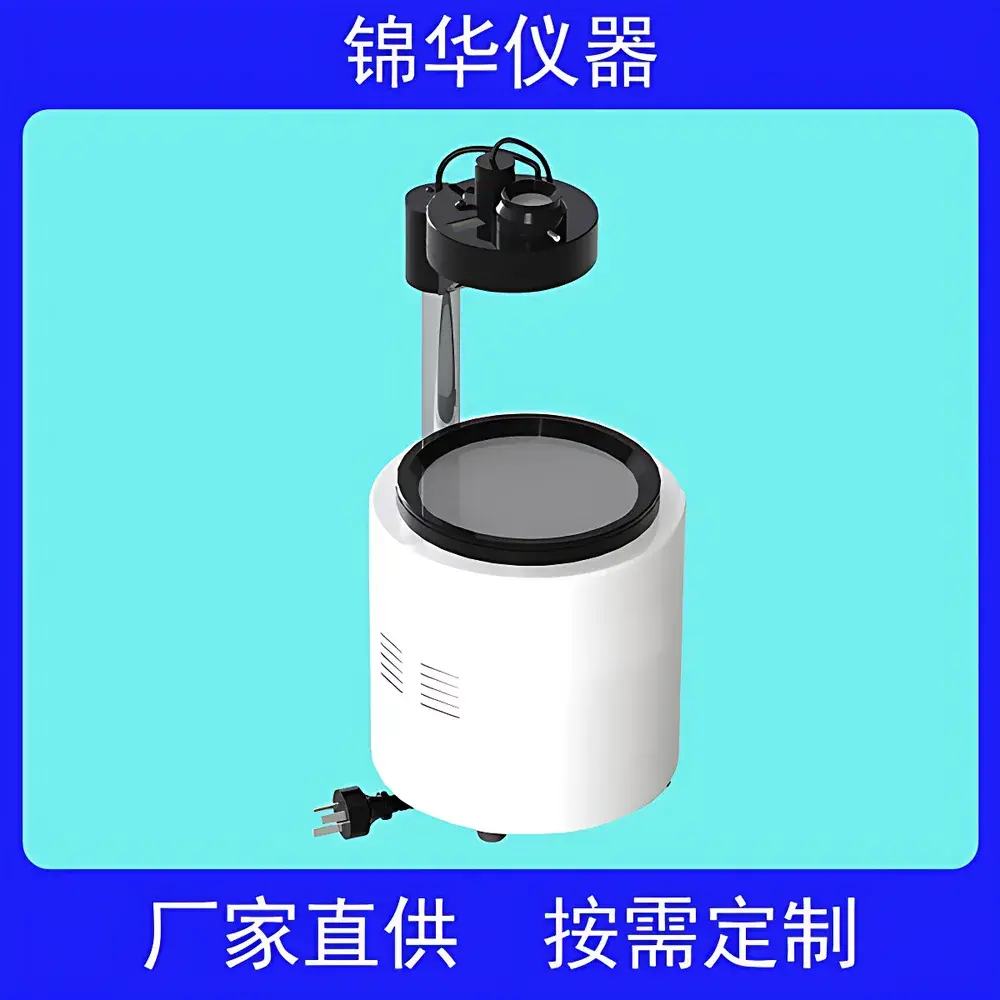

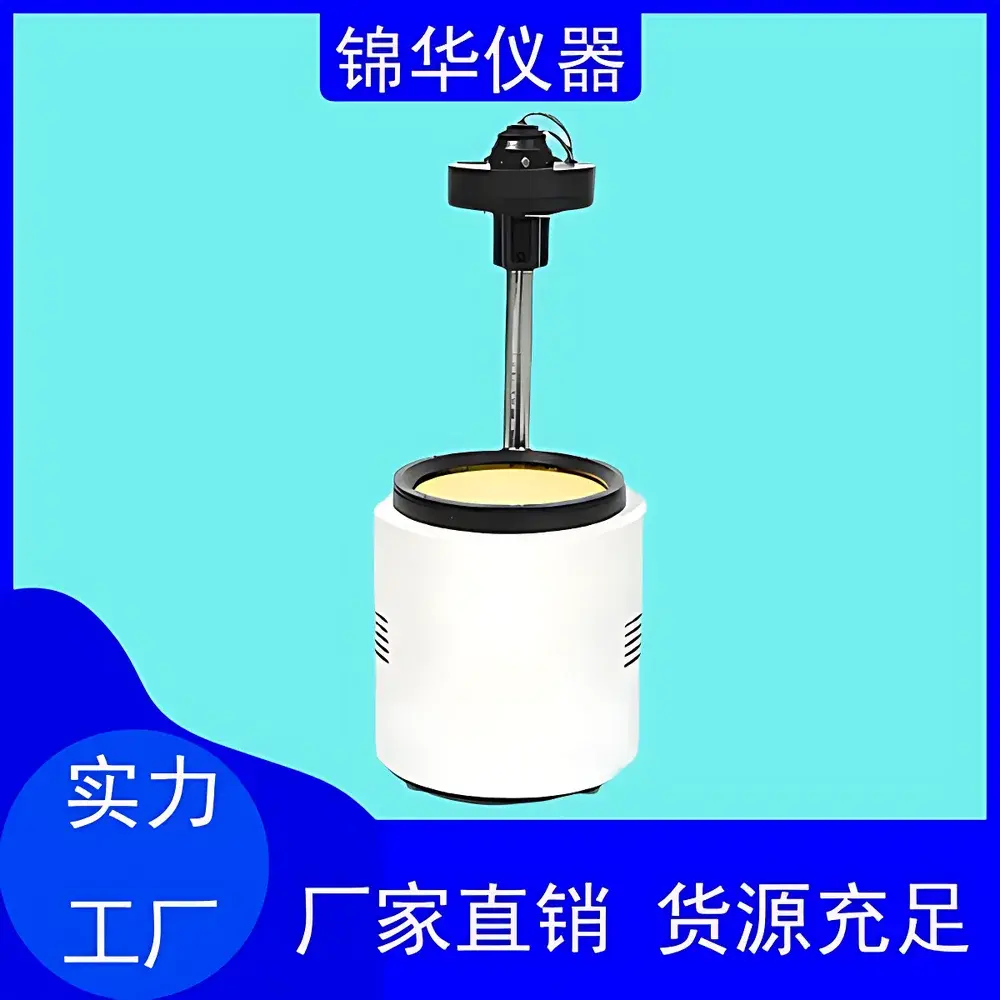

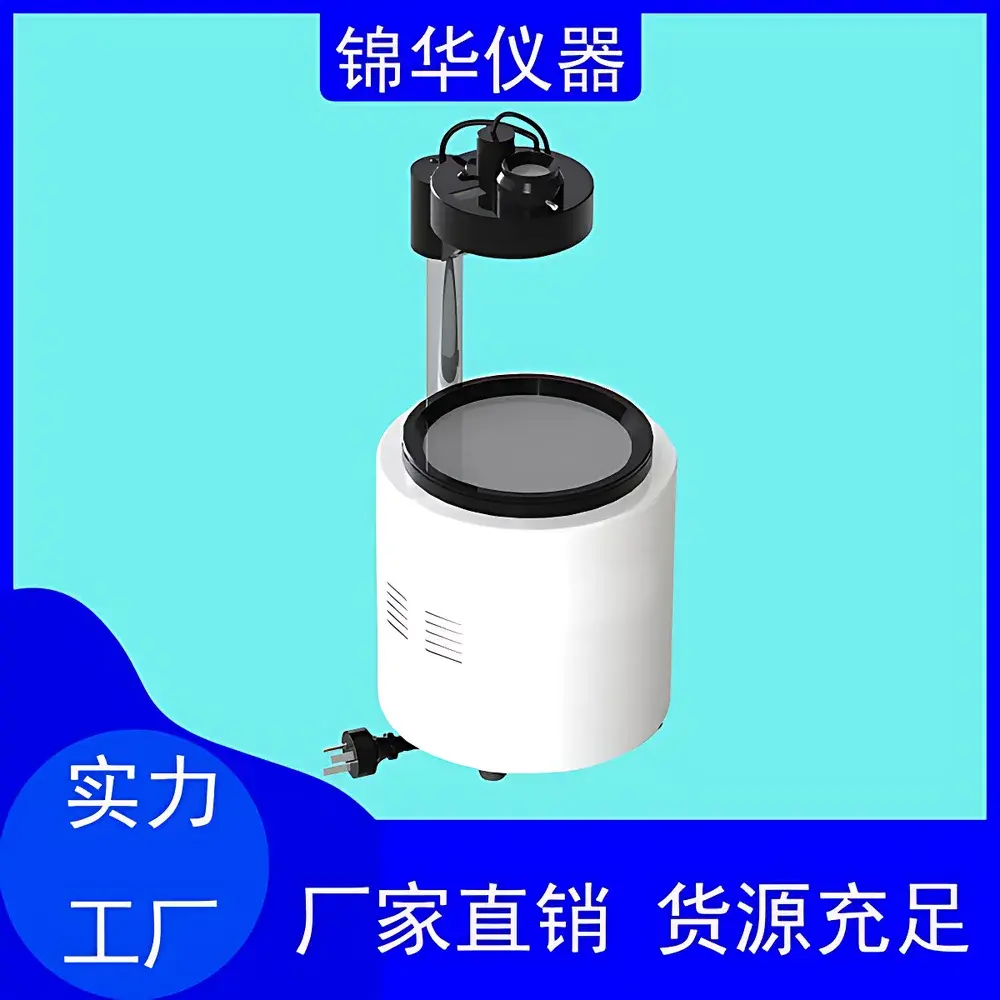

Jinhuatester YLY-01S Polarizing Stress Meter

Overview

The Jinhuatester YLY-01S Polarizing Stress Meter is a precision photoelastic instrument engineered for quantitative and qualitative assessment of residual birefringence in transparent isotropic materials—primarily optical glass, pharmaceutical glass containers, and rigid transparent polymers. It operates on the fundamental principle of stress-induced birefringence: when mechanically stressed, optically isotropic materials become temporarily anisotropic, inducing a phase delay (retardation) between orthogonal polarization components. This retardation—measured in nanometers—is directly proportional to the magnitude and orientation of internal stress. The YLY-01S implements two complementary measurement modes: (1) quantitative compensation using a calibrated quarter-wave plate (λ/4), enabling precise determination of retardation values via angular nulling of isoclinic fringes; and (2) qualitative interference color analysis using a full-wave retardation plate (sensitive tint plate), allowing rapid visual estimation of stress distribution based on standardized Michel-Lévy color charts. Designed for routine QC environments and regulatory-compliant laboratories, the instrument delivers traceable, repeatable measurements without reliance on subjective operator interpretation.

Key Features

• High-resolution absolute-angle encoding: Integrated high-precision absolute rotary encoder ensures angular resolution of 0.1° and measurement reproducibility ≤2 nm—eliminating cumulative drift and enabling true zero-reference stability across repeated sessions.
• Dual-parameter real-time display: High-contrast LED interface simultaneously shows both analyzer rotation angle (°) and calculated optical path difference (nm), streamlining data acquisition and reducing transcription errors.
• Factory-calibrated dark-field alignment: Dark-field zero point is permanently aligned during manufacturing. Absolute encoder architecture guarantees that the extinction position remains fixed at 0°, removing the need for manual zero calibration and mitigating user-induced misalignment errors.
• Energy-efficient LED illumination: Warm-white (3500 K) LED light source provides uniform, flicker-free illumination with luminance >120 cd/m² while consuming <8 W—reducing thermal load on samples and extending operational lifetime compared to halogen or tungsten sources.
• Ergonomic mechanical design: Adjustable sample gap (50–250 mm) accommodates diverse geometries—from narrow-neck vials to wide-mouth beakers—without reconfiguration. 150 mm diameter polarization field ensures full coverage of standard pharmaceutical glassware per YBB00162003 and ASTM C148.

Sample Compatibility & Compliance

The YLY-01S is validated for use with flat and curved transparent substrates up to 25 mm thickness, including borosilicate glass (e.g., Type I, II, III), soda-lime silicate glass, fused quartz, and polycarbonate or acrylic sheets. Its measurement range and sensitivity align with mandatory testing requirements for pharmaceutical primary packaging: glass syringes, vials (2–50 mL), ampoules, infusion bottles, and oral liquid containers per Chinese Pharmacopoeia YBB standards and USP <660>. The instrument satisfies metrological traceability requirements under ISO/IEC 17025 when operated within controlled environmental conditions (20 ± 2°C, RH <60%). All mechanical and optical subsystems comply with GB/T 15726 (stress birefringence test methods for optical glass) and ASTM C148 (standard test method for strain birefringence in glass containers). Documentation includes factory calibration certificate referencing NIM-traceable interferometric standards.

Software & Data Management

While the YLY-01S operates as a standalone benchtop instrument with embedded firmware, it supports optional RS232/USB serial output for integration into laboratory information management systems (LIMS) or custom QA databases. Raw angle and retardation values can be exported in CSV format for statistical process control (SPC) analysis. When deployed in GLP- or GMP-regulated environments, users may implement supplementary audit trails using external timestamped logging—consistent with FDA 21 CFR Part 11 principles for electronic records. Firmware updates are delivered via secure USB key, with version history and change logs maintained per ISO 13485 software lifecycle requirements.

Applications

• Quantitative stress mapping of pharmaceutical glass vials and syringes per YBB00162003 and USP <660>
• Batch release testing of glass measuring cylinders and burettes per GB/T 4545 and GB/T 12415
• Quality assurance of beverage containers (wine, beer, spirits bottles) against ASTM C148 failure thresholds
• R&D evaluation of annealing efficacy in optical lens blanks and prisms
• Failure analysis of thermally tempered glass components exhibiting spontaneous fracture
• Validation of molding parameters for transparent polymer optics (e.g., PMMA lenses, PC light guides)

FAQ

Does the YLY-01S require periodic recalibration by the user?
No. The absolute-angle encoder and factory-set dark-field reference eliminate routine zero-point recalibration. Annual verification against NIST-traceable retardation standards is recommended for ISO 17025 compliance.
Can the instrument measure curved surfaces such as bottle shoulders or bottoms?
Yes—within limits. The 150 mm field diameter and adjustable gap accommodate moderate curvature. For highly non-planar regions, localized stress gradients should be interpreted with awareness of optical path distortion.
Is the LED light source replaceable by the end user?
Yes. The LED module is field-serviceable with standard M3 mounting and integrated heat sinking. Replacement units are supplied with photometric certification.
What is the typical measurement time per sample?
Approximately 20–45 seconds per location, depending on operator experience and whether quantitative compensation or qualitative color matching is selected.
Does the YLY-01S support automated scanning or motorized stage integration?
Not natively. It is designed as a manual, operator-guided instrument. Third-party motorized translation stages may be interfaced via TTL trigger signals upon request.
