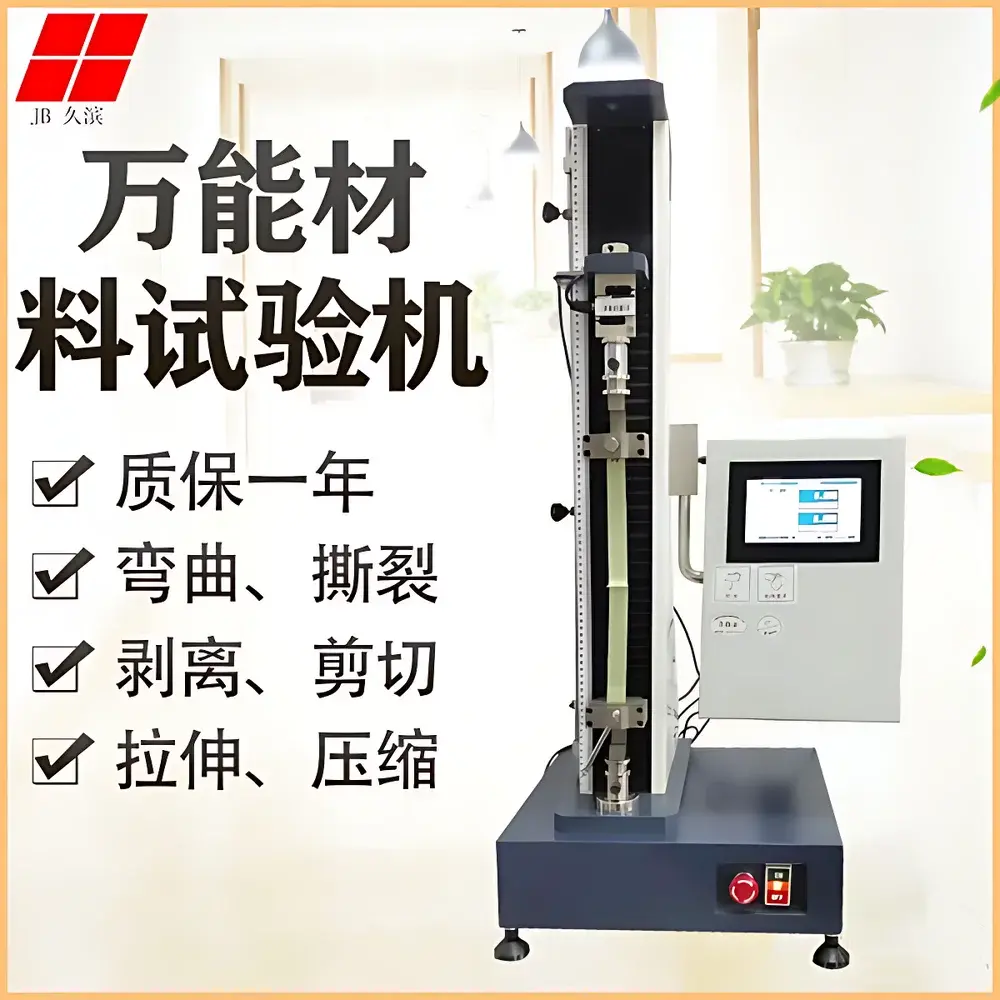

Jiubin JB-126A Electronic Universal Testing Machine for Non-Metallic Composite Materials

Overview

The Jiubin JB-126A Electronic Universal Testing Machine is a precision-engineered mechanical testing system designed specifically for the quasi-static tensile, compressive, flexural, and peel characterization of non-metallic composite materials—including fiber-reinforced polymers (FRP), carbon-fiber laminates, thermoset resins, natural fiber composites, polymer matrix composites (PMCs), and elastomeric matrices. Built upon a dual-column servo-controlled electromechanical architecture, the system operates on the principle of controlled displacement or load application via high-resolution ball-screw actuation and closed-loop PID feedback. Force measurement is performed using calibrated S-type or inline load cells traceable to national metrological standards, while axial displacement is resolved via optical encoder-based crosshead position sensing with sub-micron repeatability. The machine complies with fundamental mechanical testing frameworks defined in ISO 527, ASTM D3039, ASTM D638, ISO 178, and GB/T 1040 series standards—ensuring data compatibility for academic research, industrial QC/QA, and regulatory submissions.

Key Features

• Robust dual-column steel frame with preloaded linear guides and high-rigidity crosshead assembly, minimizing deflection during high-load testing of stiff composites
• Programmable test speed range: 0.001–500 mm/min, adjustable in real time with ±0.2% speed accuracy across full range
• Integrated force transducer options: 1 kN, 5 kN, 10 kN, and 20 kN capacities—each factory-calibrated with NIST-traceable certificate
• Automatic extensometer interface (optional) supporting clip-on, video, or non-contact digital image correlation (DIC) inputs for strain measurement per ASTM E83 and ISO 9513
• Modular grip systems including pneumatic wedge grips, hydraulic self-tightening fixtures, and specialized composite alignment fixtures with angular compensation
• Real-time data acquisition at up to 1 kHz sampling rate, synchronized with load, displacement, and auxiliary analog/digital channels

Sample Compatibility & Compliance

The JB-126A accommodates specimens conforming to standard geometries for composites: dog-bone coupons (ASTM D3039), rectangular strips (ISO 527-4), short-beam shear specimens (ASTM D2344), and interlaminar fracture toughness specimens (ASTM D5528). It supports thicknesses from 0.2 mm to 25 mm and widths up to 80 mm. All mechanical test procedures executed on this platform are fully compatible with GLP-compliant workflows when paired with validated software. The system meets electromagnetic compatibility (EMC) requirements per IEC 61326-1 and safety standards per ISO 12100 and GB/T 2611. For regulated environments—including pharmaceutical packaging validation (e.g., blister film tensile strength per USP ) or medical device component qualification—the hardware architecture supports audit-ready configuration control and user access management.

Software & Data Management

The JB-126A is operated via Jiubin’s proprietary TestMaster Pro v4.2 software—a Windows-based platform compliant with FDA 21 CFR Part 11 requirements when deployed with electronic signatures, audit trail logging, and role-based permissions. The software enables creation of multi-step test sequences (preload → ramp → hold → return), automatic calculation of modulus (tangent, secant, chord), yield point (0.2% offset), ultimate tensile strength (UTS), elongation at break, Poisson’s ratio (with biaxial strain input), and stress-strain curve annotation per ISO 527-2 Annex B. Raw data exports to CSV, XML, and universal MDF4 formats; integrated report templates support customizable branding and automated PDF generation with embedded metadata (operator ID, calibration date, environmental conditions). All calibration records, maintenance logs, and test archives are stored in encrypted local databases with optional network backup.

Applications

• Mechanical property benchmarking of bio-based composites (e.g., flax/PLA, hemp/epoxy) for sustainable packaging R&D
• Quality assurance of prepreg layup integrity in aerospace-grade CFRP panels prior to autoclave curing
• Interfacial adhesion evaluation of coating-substrate systems in flexible electronics substrates
• Tensile fatigue pre-screening of rubber-modified asphalt binders under controlled thermal cycling
• Validation of recycling-induced degradation in post-consumer carbon fiber reclaimed for automotive interior trim
• Standardized mechanical screening of hydrogel-based wound dressings per ISO 10993-10 biocompatibility protocols

FAQ

What standards does the JB-126A support out-of-the-box?

It natively supports test method configurations for ASTM D3039, ASTM D638, ISO 527, ISO 178, GB/T 1040, and GB/T 9341—with downloadable method templates available through Jiubin’s technical portal.
Can the system be integrated into an existing LIMS or MES environment?

Yes—via OPC UA or RESTful API interfaces, enabling bidirectional data exchange with LabWare LIMS, Thermo Fisher SampleManager, or Siemens Opcenter Execution.
Is third-party calibration certification included with delivery?

Each unit ships with a factory calibration certificate traceable to CNAS-accredited laboratories; optional UKAS or DAkkS-certified recalibration services are available upon request.
Does the machine support high-temperature or environmental chamber integration?

The base frame is compatible with commercially available environmental chambers (−70°C to +300°C) via standardized mounting interfaces and feedthroughs for load cell and extensometer cabling.
What training and documentation are provided?

Comprehensive operator training (remote or on-site), ISO/IEC 17025-aligned SOP templates, and full technical manuals—including electrical schematics, mechanical drawings, and firmware update protocols—are delivered with every system.
