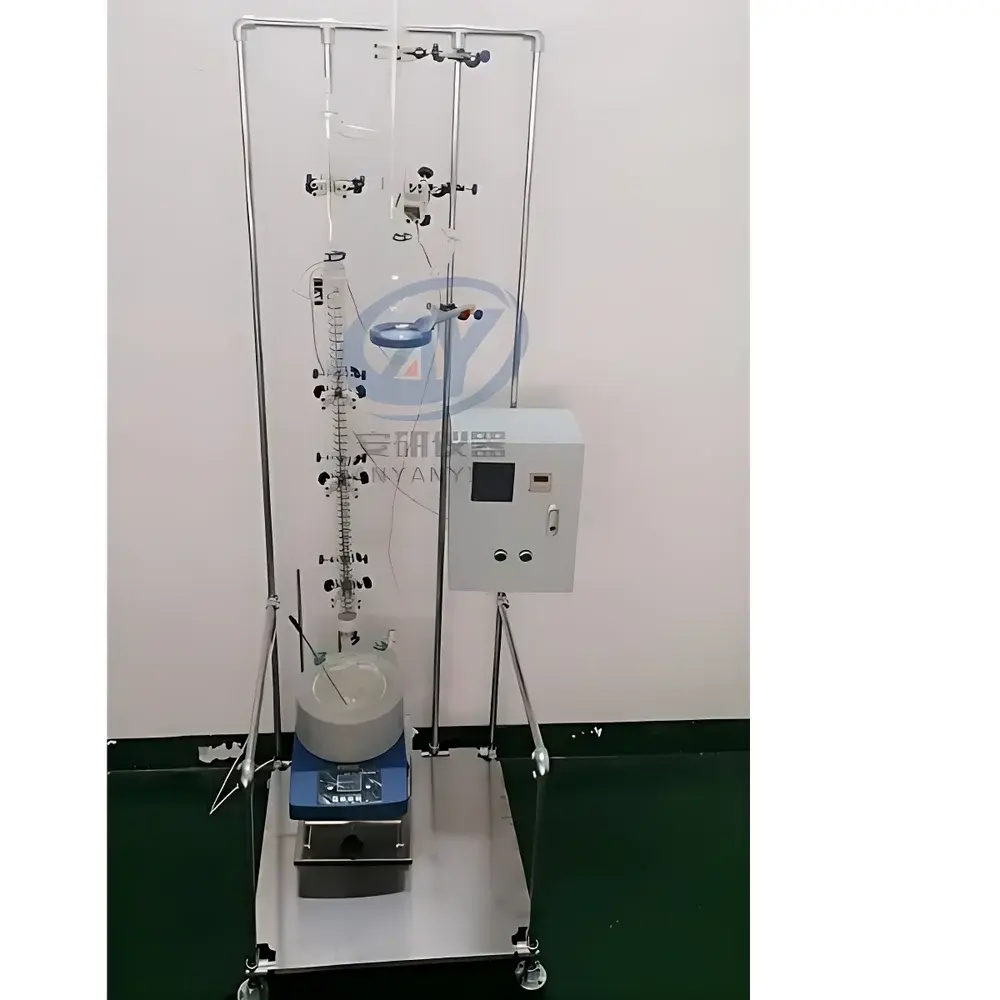

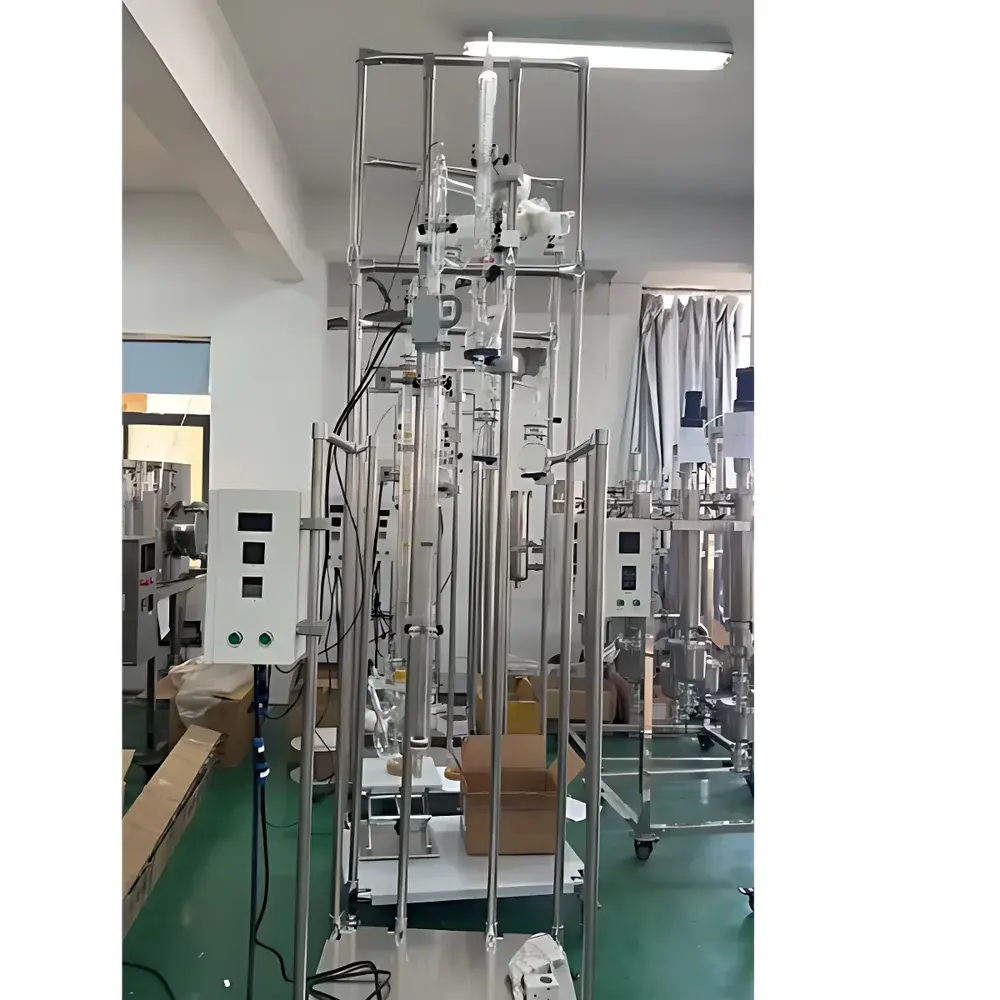

JTONE AYJ-5 Benchtop Glass Packed Distillation Column System

Overview

The JTONE AYJ-5 Benchtop Glass Packed Distillation Column System is a compact, laboratory-scale fractional distillation apparatus engineered for high-precision separation of thermally sensitive or low-volatility mixtures under atmospheric or reduced pressure conditions. Based on the principle of differential volatility—where components in a liquid mixture exhibit distinct vapor pressures at a given temperature—the system enables selective mass transfer between ascending vapor and descending liquid phases across a structured packing bed. This counter-current contact facilitates theoretical plate formation, allowing for efficient separation of close-boiling-point compounds (ΔT < 10 °C) with reproducible cut-point resolution. Designed for scalability validation and process parameter optimization, the AYJ-5 serves as a critical tool in early-stage purification development prior to pilot- or production-scale implementation.

Key Features

• Borosilicate 3.3 glass construction (DIN ISO 3585 compliant) ensures exceptional chemical resistance to organic solvents, acids, and bases, while maintaining optical clarity for real-time phase behavior observation.
• Modular packed column with 1-meter effective packing height, compatible with standardized Raschig rings, Helices, or structured mesh packings (e.g., Sulzer BX) for adjustable HETP performance.
• Integrated electric heating mantle with PID-controlled temperature regulation (range: +10 °C to 300 °C), enabling precise thermal management of the boiling flask without localized hot spots.
• Vertical condenser (0.2 m² heat exchange area) with double-jacketed design and external coolant circulation interface for consistent reflux generation and minimal hold-up volume.
• Digital reflux ratio controller with programmable setpoints (0–100% total reflux to total draw-off), supporting both batch and semi-continuous operation modes.
• Vacuum-compatible configuration rated to ≤0.1 mbar absolute pressure; includes vacuum-tight ground-glass joints (ISO-KF 25 or NW25 optional), pressure relief valve, and vacuum gauge port.
• Stainless steel support frame (AISI 304) with vibration-dampening feet and adjustable leveling mechanism for stable long-duration runs.

Sample Compatibility & Compliance

The AYJ-5 accommodates liquid feedstocks ranging from 100 mL to 5 L per batch, including polar/non-polar solvent systems, viscous natural extracts (e.g., fish oil, wool wax), and reactive intermediates common in fine chemical synthesis. All wetted parts—including pot, column, condenser, and receivers—are fabricated exclusively from borosilicate 3.3 glass, eliminating metal leaching risks and ensuring compliance with USP <661.1>, EP 3.2.1, and ISO 17025 traceability requirements for analytical-grade purification. The system supports GLP-aligned documentation when paired with validated data loggers and meets mechanical safety standards per IEC 61010-1 for laboratory electrical equipment. Optional accessories—including pre-condenser cold traps, inline pressure transducers, and jacketed insulation wraps—facilitate operation under stringent regulatory environments (e.g., FDA 21 CFR Part 11–compliant workflows with audit-trail-capable software).

Software & Data Management

While the base AYJ-5 operates via analog controls and digital panel instrumentation, it is fully compatible with third-party data acquisition systems (e.g., LabVIEW, MATLAB, or DeltaV) through RS485/Modbus RTU or 4–20 mA analog outputs. Temperature sensors (Pt100 Class A) at the pot, column top, and condenser outlet provide synchronized thermal profiling. Optional JTONE DistillSoft™ (v3.2+) adds automated method sequencing, real-time reflux ratio logging, vapor-liquid equilibrium (VLE) curve generation, and CSV export for ASTM D86/D1078-compliant distillation reports. All recorded parameters—including time-stamped temperature, pressure, reflux flow, and collection volume—are timestamped and stored with SHA-256 hash integrity verification to satisfy ALCOA+ data governance criteria.

Applications

• Fine Chemicals: Purification of aromatic oils (e.g., limonene, citral), polymerization inhibitors (e.g., hydroquinone monomethyl ether), and chiral intermediates requiring high enantiomeric excess retention.
• Pharmaceuticals: Isolation of labile vitamins (e.g., tocopherols, retinoids), amino acid derivatives, and glycosylated metabolites under mild thermal stress profiles.
• Food & Nutraceuticals: Molecular distillation of omega-3 concentrates, deacidification of edible oils, and fractionation of medium-chain triglycerides (MCTs) without thermal degradation.
• Environmental & Materials Science: Recovery of catalyst ligands from reaction residues, solvent recycling from coating formulations, and separation of fluorinated surfactants in PFAS research workflows.

FAQ

What types of packing materials are supported?
Standard configurations include stainless steel or glass Raschig rings (6×6 mm); custom options include ceramic saddles, Tellerettes, or high-efficiency structured packings (e.g., Mellapak 250.Y) upon request.
Can the system operate under positive pressure?
Yes—pressure-rated up to 2 bar(g) with reinforced joints and safety burst disc; consult engineering team for ASME BPVC Section VIII Div. 1 certification pathways.
Is automation integration available for GMP environments?
Fully supported via optional PLC-based control cabinet (Siemens S7-1200) with 21 CFR Part 11–compliant electronic signatures, user access levels, and electronic batch records (EBR).
What vacuum pump compatibility is recommended?
Dual-stage rotary vane pumps (e.g., Edwards RV8) for ≤0.1 mbar performance; for corrosive vapors, dry scroll or diaphragm pumps (e.g., Agilent IDP-10) are advised with upstream cold trap.
How is column efficiency validated?
Each unit ships with a certified HETP (Height Equivalent to a Theoretical Plate) test report derived from ethanol/water azeotrope separation under defined reflux ratio and feed composition per ASTM D2892 Annex A1 protocols.
