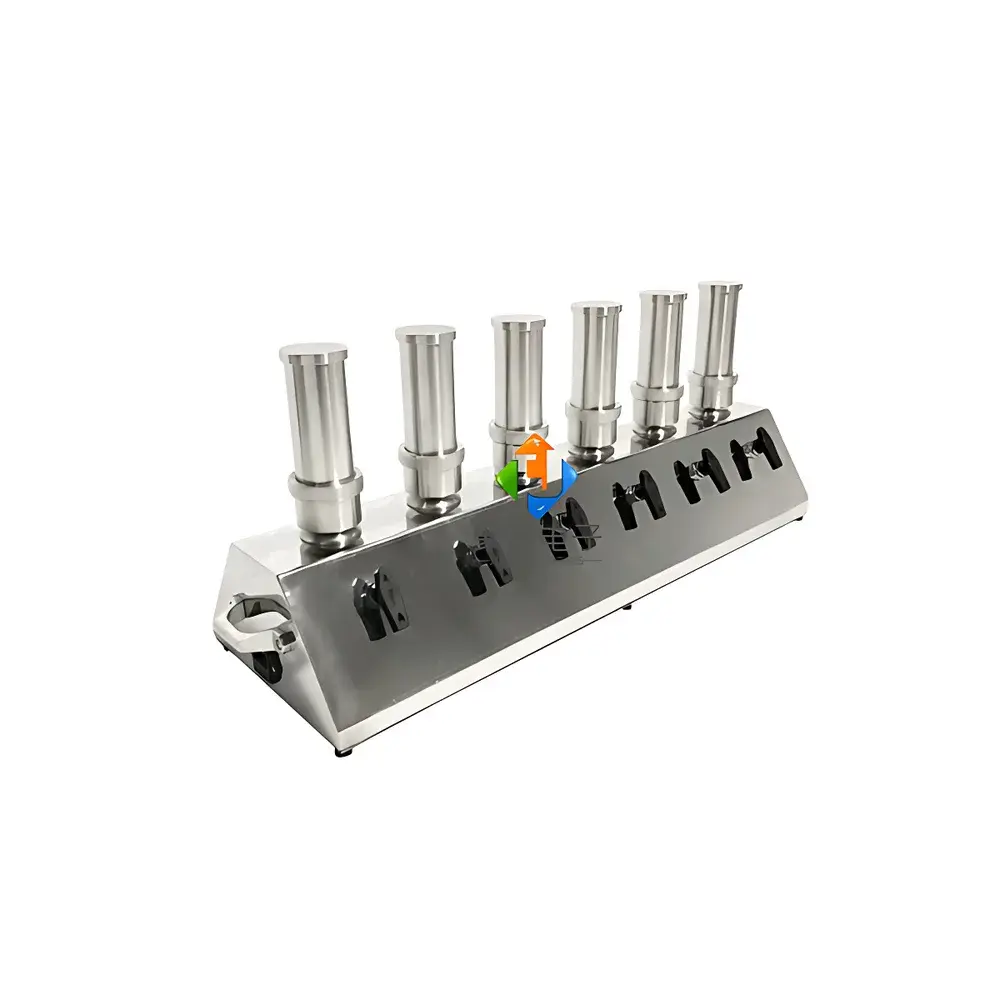

JTONE JTW-600B Six-Station Vacuum Filtration System for Microbial Limit Testing

Overview

The JTONE JTW-600B Six-Station Vacuum Filtration System is an engineered solution for standardized microbial limit testing in pharmaceutical, biotechnology, food & beverage, and cosmetic quality control laboratories. It implements the membrane filtration method—defined in USP <61>, EP 2.6.12, and ISO 8573-7—as a primary technique for quantitative recovery and enumeration of aerobic microorganisms, yeasts, molds, and specified indicator organisms from low-bioburden liquid samples. The system operates on negative-pressure principle via an integrated high-efficiency diaphragm pump, eliminating reliance on external vacuum sources or bulky trap flasks. Its modular six-position architecture enables parallel processing of up to six independent samples under identical pressure conditions, ensuring inter-sample comparability and minimizing operator-induced variability. Constructed entirely from electropolished 304 stainless steel (excluding polymer components), the JTW-600B meets hygienic design standards for repeated steam sterilization (121 °C, 20 min, saturated steam), supporting GLP/GMP-aligned workflows where traceability, repeatability, and contamination control are non-negotiable.

Key Features

• Modular six-station configuration with individual stainless-steel isolation valves—enabling selective operation of one to six filter units without cross-contamination or pressure loss.
• Lip-style sealing mechanism on all filter cups—eliminates O-rings and mechanical clamps, reducing leak points and ensuring uniform membrane contact pressure for consistent microbial retention and recovery rates (>95% per USP <61> validation protocols).
• Quick-release, tool-free disassembly of filter heads, support plates, and transition vessels—facilitating full-access cleaning, visual inspection, and routine autoclaving of all wetted parts.
• Dual filter cup material options: 250 mL electropolished 304 stainless steel (standard) or medical-grade polypropylene—selected based on sample chemistry compatibility (e.g., avoiding metal ion leaching in trace-element-sensitive assays).
• Low-center-of-gravity structural design with reinforced base—prevents tipping during full-load operation (up to 250 mL per cup) and ensures long-term dimensional stability across repeated thermal cycles.
• Front-panel waterproof toggle switches and sealed pump housing—enhancing operational safety in humid or splash-prone environments typical of QC labs.
• Integrated diaphragm pump rated for continuous duty at –0.05 MPa (–0.5 bar) nominal vacuum—optimized for rapid dewatering of aqueous matrices while preserving fragile microbial cells on the membrane surface.

Sample Compatibility & Compliance

The JTW-600B is validated for use with standard sterile 47 mm or 50 mm diameter microporous membranes (0.22 µm or 0.45 µm pore size), including mixed cellulose ester (MCE), nylon, and PVDF variants. It accommodates a broad range of low-viscosity, non-corrosive aqueous solutions—including purified water, WFI, saline buffers, antibiotic solutions, and herbal extracts—provided they fall outside the prohibited categories: strong oxidizers (e.g., hypochlorite >50 ppm), concentrated mineral acids (pH <2), caustic alkalis (pH >12), or halogenated solvents. All wetted surfaces comply with FDA 21 CFR Part 11–ready documentation practices when paired with validated electronic logbooks; the system itself supports audit-trail-capable SOP execution when integrated into LIMS-controlled environments. Its design conforms to ISO 14644-1 Class 5 cleanroom handling requirements when operated within laminar flow hoods.

Software & Data Management

As a benchtop hardware platform, the JTW-600B operates without embedded firmware or proprietary software. Its fully manual, analog control interface—comprising discrete on/off valves and tactile switches—ensures deterministic operation, zero firmware vulnerabilities, and full compatibility with paper-based or hybrid digital record systems. For laboratories implementing 21 CFR Part 11 compliance, the system interfaces seamlessly with validated third-party data capture tools (e.g., LabVantage, STARLIMS) via time-stamped procedural checklists and physical filter membrane lot traceability logs. Each filtration event is documented by recording membrane batch number, sample ID, vacuum duration, observed flow rate deviation, and post-filtration membrane integrity verification (bubble point test or diffusive air flow per ASTM F838).

Applications

• Pharmaceutical QC: Sterility assurance testing of bulk drug substances, excipients, and final dosage forms per USP <71>.
• Biologics Manufacturing: Monitoring bioreactor harvest streams and buffer solutions for adventitious agents.
• Medical Device Sterilization Validation: Recovery of challenge organisms (e.g., B. subtilis spores) from rinse fluids used in ISO 11737-1 bioburden studies.
• Food Safety Labs: Enumeration of total viable count (TVC), coliforms, and Pseudomonas spp. in beverages, dairy products, and plant-based formulations.
• Cosmetic Stability Testing: Microbial challenge studies per ISO 11930 to assess preservative efficacy over accelerated shelf life.
• Pure Water Systems: Routine monitoring of purified water (PW) and water for injection (WFI) per pharmacopoeial specifications.

FAQ

Can the JTW-600B be used with organic solvents?
No. The system is designed exclusively for aqueous and polar protic media. Halogenated, aromatic, or ketonic solvents may degrade diaphragm pump elastomers and compromise seal integrity.
Is flame sterilization of filter heads validated for repeated use?
Yes—each stainless-steel filter head is rated for direct flame pass-through (using calibrated butane torches) between consecutive runs, provided cooling time ≥30 seconds is observed to prevent thermal shock-induced microfractures.
What is the recommended maintenance interval for the integrated diaphragm pump?
Under normal daily use (≤4 hr/day), inspect inlet filters quarterly and replace pump diaphragms every 12 months or after 500 autoclave cycles—whichever occurs first.
Does the system include vacuum level monitoring or regulation?
No. Vacuum is manually regulated via the pump’s built-in pressure relief valve; users must verify –0.05 MPa using an external calibrated vacuum gauge prior to each validation run.
Are replacement parts such as silicone tubing and membrane support plates available separately?
Yes—JTONE supplies certified consumables kits (P/N JTW-FK-06) containing six pre-sterilized support plates, 12 m of USP Class VI silicone tubing, and six lip-seal gasket sets, all traceable to ISO 13485 manufacturing records.
