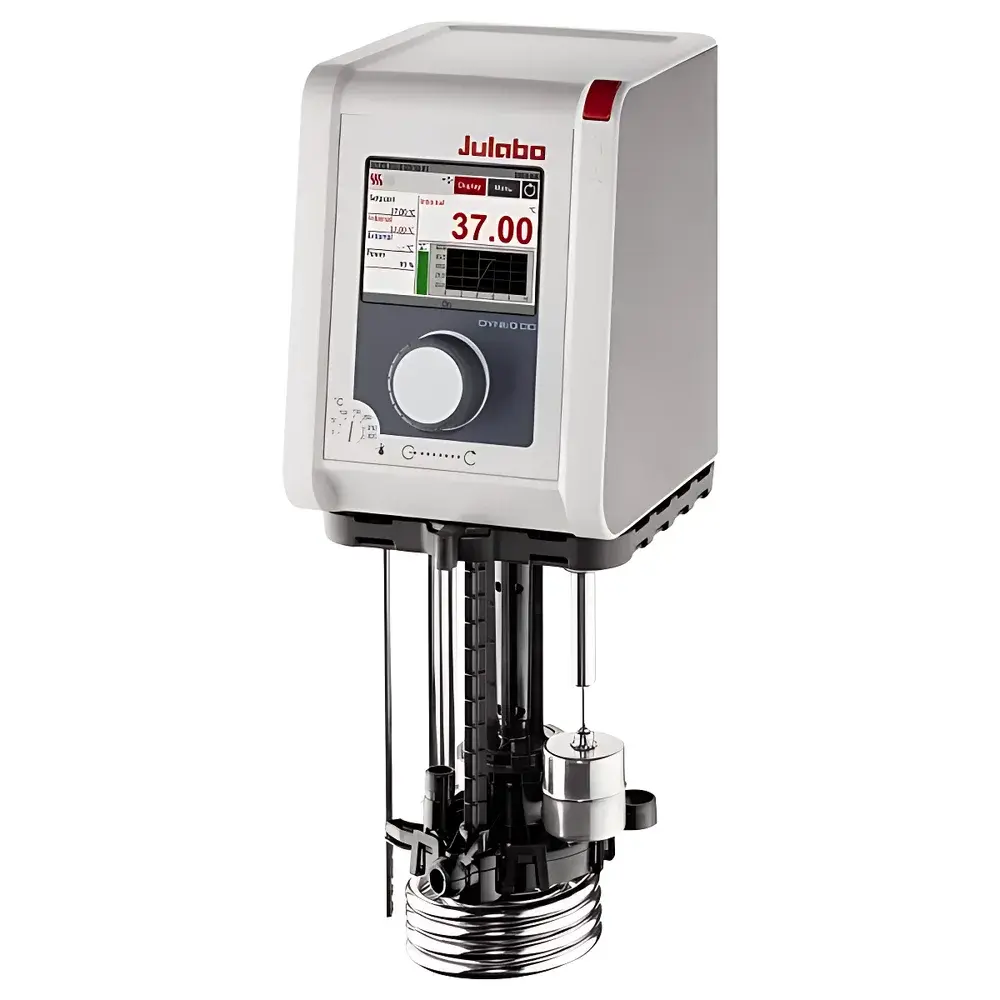

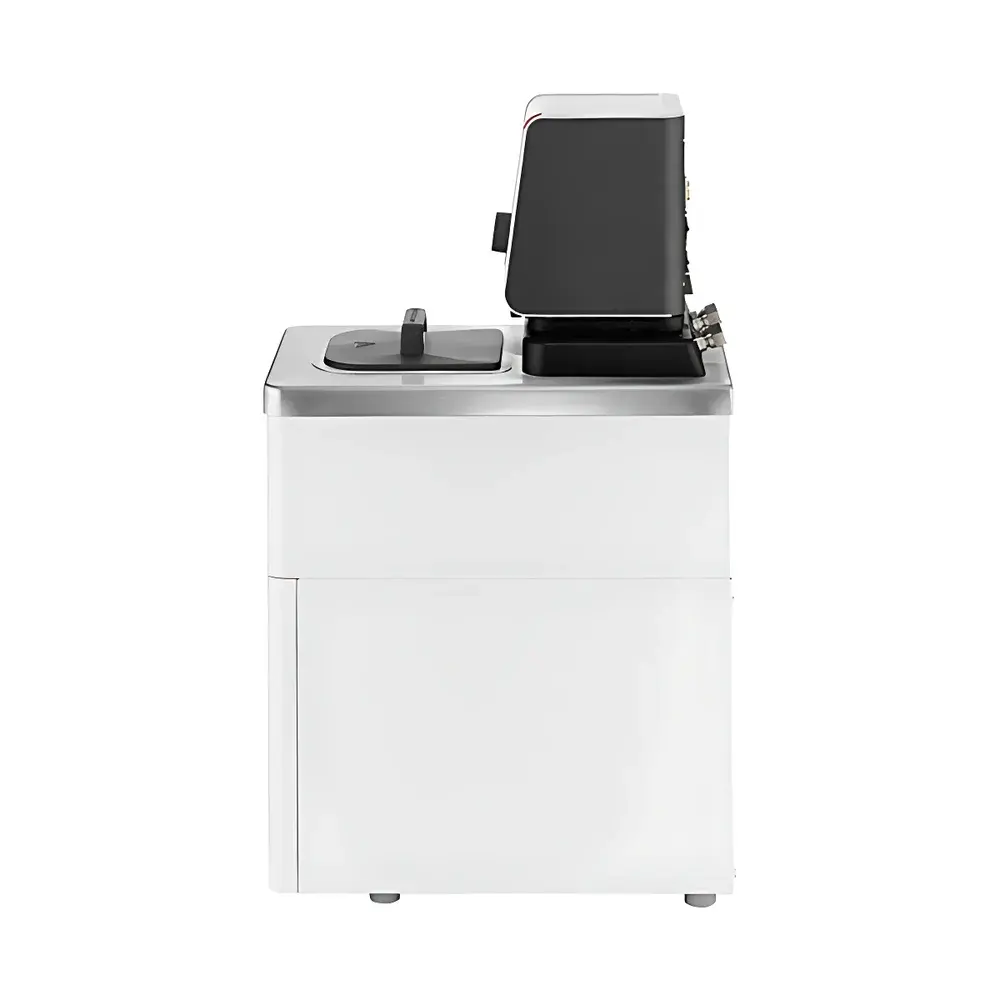

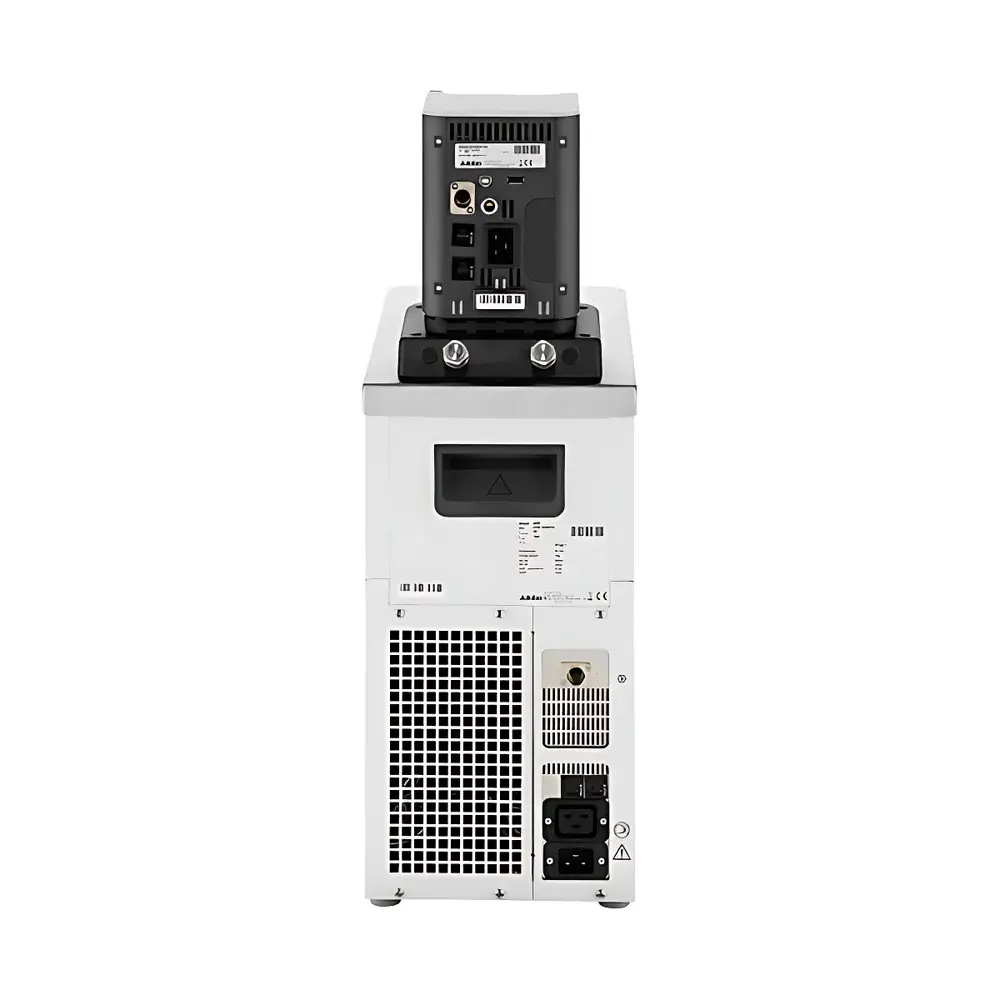

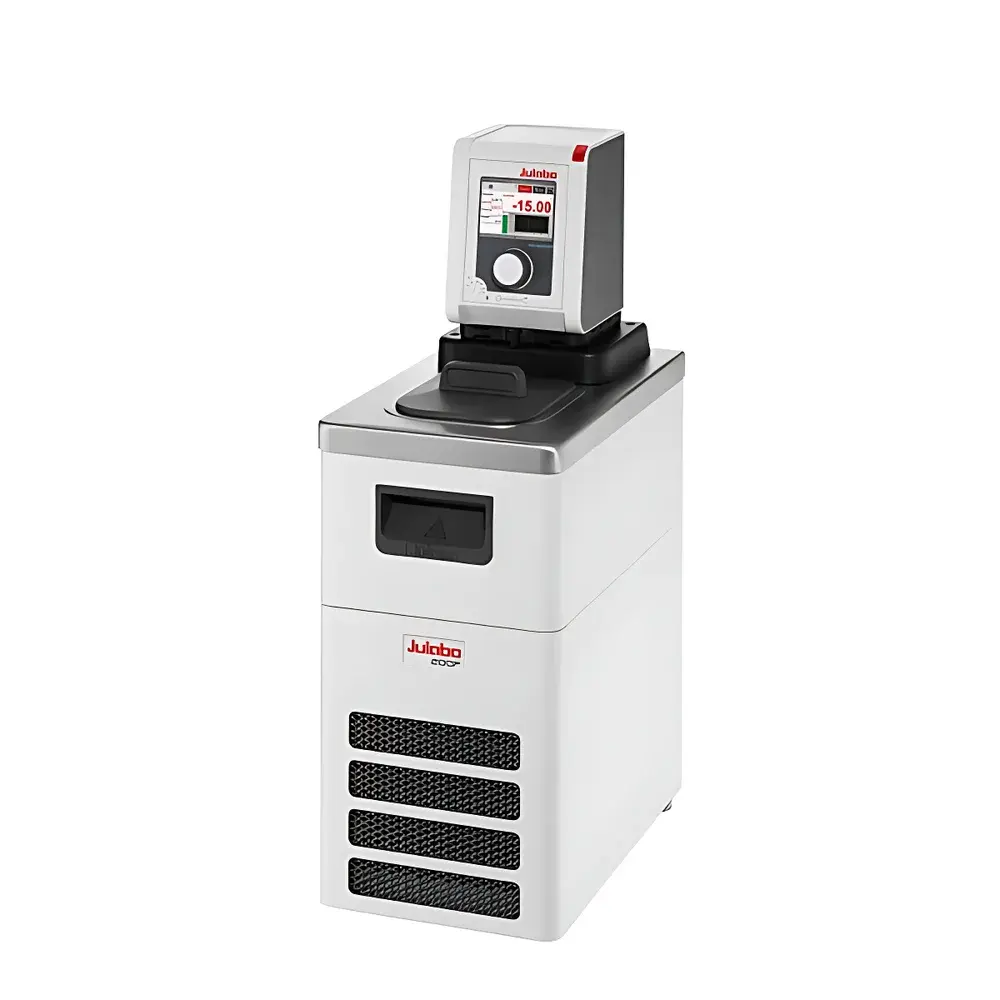

Julabo DYNEO Series Programmable Heating Circulating Bath

Overview

The Julabo DYNEO Series Programmable Heating Circulating Bath is a high-precision, laboratory-grade thermal management system engineered for demanding applications requiring stable, programmable heating up to 200 °C. Unlike basic immersion heaters or static water baths, the DYNEO platform implements a closed-loop circulation architecture—designed specifically for use with both aqueous and flammable organic heat transfer fluids (e.g., silicone oils, glycols, and specialty solvents). Its core operation relies on a digitally regulated heating element coupled with a variable-speed centrifugal pump and an advanced dual-sensor feedback loop, enabling precise thermal delivery to external devices (e.g., reactors, viscometers, or spectroscopic cells) or internal sample containment. The system complies with DIN 12876-1 Class III (FL), certifying safe operation with flammable media—a critical requirement for synthetic chemistry, polymer processing, and materials testing laboratories operating under GLP or ISO 17025 frameworks.

Key Features

• PID2 digital temperature control algorithm ensuring rapid stabilization and minimal overshoot across the full 200 °C range
• 3.5-inch TFT color touchscreen with multi-language support (English, Chinese, German, French, Spanish) and real-time graphical display of setpoint, actual temperature, ramp profiles, and safety thresholds
• ATC3 (Advanced Temperature Calibration) technology supporting single- or multi-point calibration against traceable reference standards—essential for audit-ready compliance with ISO/IEC 17025 and FDA 21 CFR Part 11
• TCF (Temperature Control Flexibility) mode allowing independent adjustment of internal bath temperature vs. external load temperature, plus user-defined power limits and differential temperature constraints to prevent thermal shock
• Front-panel toggle switch for seamless transition between internal recirculation (bath-only mode) and external circulation (system coupling mode), with continuous pump flow rate adjustment from 0.1 to 0.7 bar
• Dual USB ports standard; optional RS232 serial interface or 0–10 V / 4–20 mA analog outputs available for integration into SCADA, LIMS, or PLC-controlled environments

Sample Compatibility & Compliance

The DYNEO series accommodates a broad spectrum of bath media—including deionized water, ethylene glycol/water mixtures, silicone oils (e.g., Dow Corning 200 Fluid), and other non-corrosive, low-volatility heat transfer liquids rated for continuous operation at 200 °C. All models meet DIN 12876-1 Class III (FL) certification requirements, permitting safe use with flash point <60 °C fluids in ventilated laboratory settings. Construction features stainless steel 316L bath interiors, PTFE-sealed pump housings, and IP20-rated electronics enclosures. Units are CE-marked and comply with IEC 61010-1:2010 for electrical safety in laboratory equipment. For regulated environments, full audit trails—including temperature logs, calibration records, and operator actions—are supported when paired with Julabo’s optional LabSoft software.

Software & Data Management

Julabo LabSoft (v4.0+) provides secure, time-stamped data acquisition, remote monitoring, and automated report generation compliant with 21 CFR Part 11 electronic record requirements. Users can define complex temperature programs—including multi-step ramps, plateaus, and slope-controlled transitions—with up to 100 segments per profile. Raw data export is supported in CSV and Excel-compatible formats. The embedded USB interface enables direct firmware updates and local data backup without network dependency. Optional Ethernet/WiFi modules enable integration into centralized lab infrastructure, while RS232 compatibility supports legacy instrument networks. All configurations retain full traceability: each temperature reading includes sensor ID, timestamp (with NTP synchronization), and measurement uncertainty metadata.

Applications

• Controlled-temperature reaction blocks for organic synthesis and catalysis studies
• Thermal conditioning of rheometers, viscometers, and DSC sample stages
• Calibration of temperature-sensitive sensors (RTDs, thermistors, IR detectors)
• Accelerated stability testing per ICH Q1A(R2) guidelines using elevated temperature protocols
• Pre-heating and thermal equilibration of chromatographic columns and detector cells
• Material testing under thermal stress (e.g., polymer melt index, elastomer modulus, adhesive curing)

FAQ

Does the DYNEO bath support external temperature control via PT100 probe input?
Yes—when configured with the optional external sensor port (ADD variant), the unit accepts a calibrated PT100 input for load-temperature feedback, enabling true cascade control.
Can the bath operate continuously at 200 °C with silicone oil?
Yes, provided the selected fluid has a thermal stability rating ≥200 °C and flash point compatible with Class III (FL) classification; Julabo recommends Dow Corning 200 Fluid 50 cSt or equivalent.
Is password protection available for critical parameters?
Yes—LabSoft and the front-panel interface support multi-level user access (Operator, Technician, Administrator) with configurable parameter lockout and change logging.
What maintenance intervals are recommended for pump and heater longevity?
Julabo specifies biannual inspection of pump seals and annual verification of heater resistance and insulation integrity; calibration checks should occur before each critical study or per ISO/IEC 17025 internal schedule.
How is temperature uniformity validated across the bath volume?
Uniformity is verified per ASTM E1112 using nine-point mapping (center + eight perimeter locations); typical results show ≤±0.03 °C deviation at 100 °C in a filled 12-L bath.
