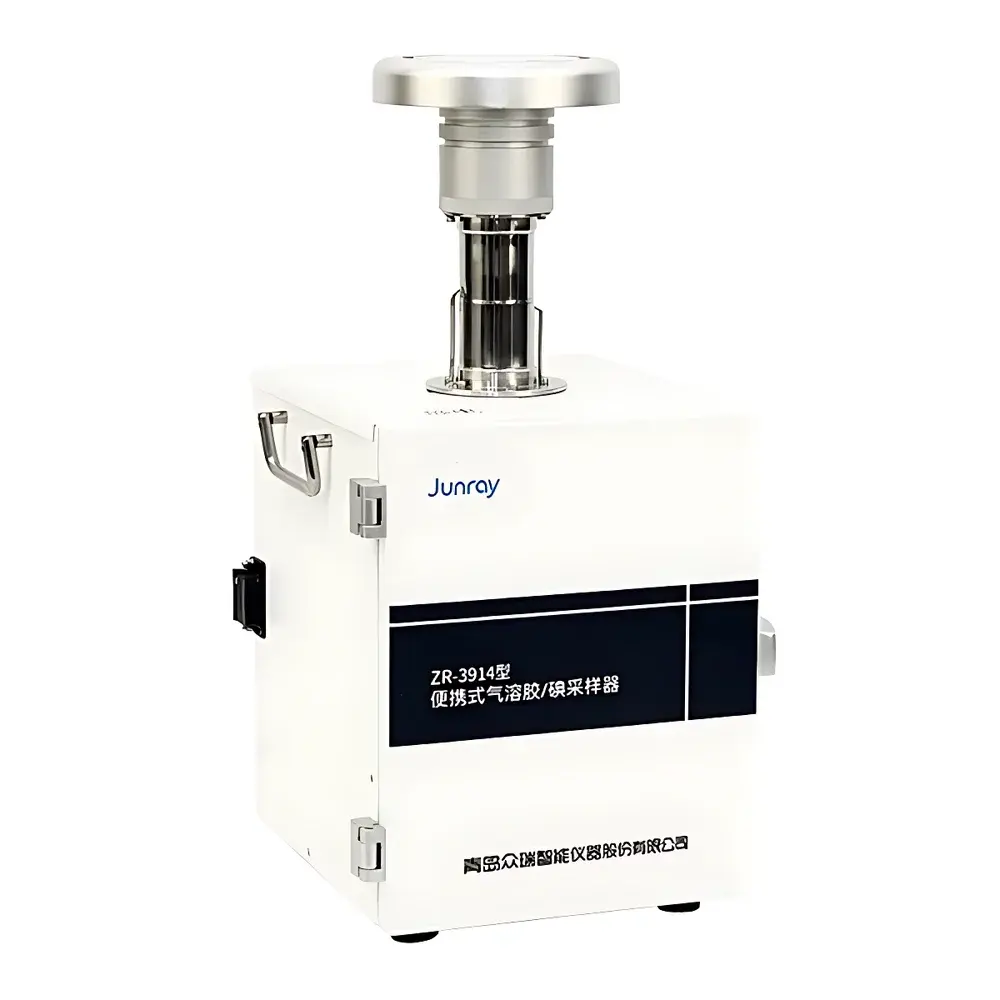

Junray ZR-3914 Portable Aerosol and Radioiodine Sampler

Overview

The Junray ZR-3914 Portable Aerosol and Radioiodine Sampler is a field-deployable, battery-powered environmental monitoring instrument engineered for the quantitative collection of airborne radioactive iodine species—including elemental iodine (I₂), inorganic iodides (e.g., HI, I⁻), and organic iodine compounds—as well as general particulate aerosols. It operates on the principle of controlled-flow filtration, utilizing calibrated suction to draw ambient air through interchangeable sampling media (e.g., activated charcoal cartridges for iodine, membrane filters for aerosols), enabling selective capture based on chemical speciation and particle size distribution. Designed for operational resilience in extreme environments—from arctic field stations to emergency response zones—the ZR-3914 meets the stringent physical and metrological requirements of radiation protection programs, nuclear facility environmental surveillance, and regulatory compliance monitoring.

Key Features

• High-brightness, wide-temperature-range capacitive touchscreen display with Chinese/English bilingual graphical interface—operable from −20 °C to +50 °C without condensation or response lag.
• Modular sampling head architecture: standard iodine adsorption module (activated carbon + KI-impregnated charcoal) and optional aerosol head (supporting 37 mm or 47 mm filter holders per ISO 7709 and IEC 61526).
• Integrated rechargeable lithium-ion battery pack (≥8 h continuous operation at 10 L/min flow); supports full functionality—including data export, printing, and system diagnostics—without external power.
• Auto-scan capability via integrated 2D barcode reader for real-time registration of filter lot numbers, operator IDs, and sampling location codes directly into metadata fields.
• Tilt-detection sensor triggers audible/visual alarm and immediate pump shutdown to prevent sample contamination or filter breakthrough during transport or unstable placement.
• Embedded NFC-enabled electronic tag (ISO/IEC 14443-A compliant) for asset tracking and inventory integration with the ZR-M04 Warehouse Management System.
• Onboard flow calibration routine compatible with the Junray ZR-5411 Portable Flow & Pressure Calibrator (NIST-traceable, ±1% reading accuracy).
• Real-time graphical display of instantaneous volumetric flow rate (L/min) with second-by-second trend visualization; minute-interval flow logs exportable in CSV format.
• Data storage capacity ≥100,000 records, each containing timestamp, flow profile, battery status, tilt events, and user-defined annotations.
• Flexible sampling modes: time-based (1–9999 min), volume-based (1–9999 L), and interval-based (with programmable on/off cycles).
• Built-in electronic manual accessible offline; supports quick-reference navigation by function, error code, or maintenance step.
• Power-failure recovery: automatically resumes interrupted sampling upon reconnection, logging precise UTC timestamps for both power loss and restoration events.

Sample Compatibility & Compliance

The ZR-3914 accommodates standard 37 mm and 47 mm diameter filters (cellulose ester, polyvinyl chloride, quartz fiber) and dual-bed iodine cartridges meeting ASTM D3918 and IAEA-TECDOC-1400 specifications. Its design and performance align with national and international radiation monitoring standards, including GB/T 14584–1993 (sampling and analysis of airborne ¹³¹I), HJ 61–2021 (radiation environmental monitoring methodology), HJ 1149–2020 (γ-emitting radionuclides in aerosols via gamma spectrometry), and HJ 1155–2020 (emergency response monitoring protocols). All firmware and data handling routines support audit-ready traceability, with immutable timestamps, operator authentication, and change logs suitable for GLP-compliant laboratories and regulatory inspections.

Software & Data Management

Data transfer occurs via USB-C or Bluetooth 5.0 to the Junray ZR-Link desktop application (Windows/macOS), which provides batch validation, QC flagging (e.g., flow deviation >±5%), and automated report generation compliant with HJ 1009–2019 station operation documentation requirements. Export formats include CSV, PDF (with embedded digital signature), and XML structured for ingestion into LIMS platforms. The device firmware implements secure local storage with write-protection for critical configuration parameters, and all exported datasets retain cryptographic hash integrity verification. Optional integration with FDA 21 CFR Part 11–compliant electronic signature modules is available for regulated nuclear medicine or reactor oversight applications.

Applications

• Environmental surveillance around nuclear power plants, research reactors, and fuel cycle facilities.
• Radiation emergency response—rapid deployment for plume characterization during incident assessment.
• Occupational health monitoring in radiochemistry labs, hot cells, and radiopharmaceutical production suites.
• Long-term baseline studies of atmospheric iodine speciation in coastal and urban settings.
• Validation of HVAC filtration efficiency in containment buildings per ANSI N13.1 and ISO 29001.
• Academic and governmental research on aerosol transport dynamics and iodine chemistry in the troposphere.

FAQ

Does the ZR-3914 meet international calibration traceability requirements?

Yes—flow calibration is compatible with NIST-traceable standards via the ZR-5411 calibrator, and all factory calibration certificates reference ISO/IEC 17025-accredited procedures.
Can the instrument operate unattended for extended periods?

It supports up to 8 hours of continuous sampling on battery; for longer deployments, external 12 V DC power input is supported with automatic switchover and charge management.
Is raw data export compliant with laboratory information management systems (LIMS)?

Yes—CSV and XML exports include all required metadata fields (e.g., GPS coordinates if paired with external GNSS module, filter ID, calibration certificate ID, operator PIN), conforming to ASTM E1467 and ISO 15197 data structure conventions.
How is firmware updated and validated?

Updates are delivered via signed firmware packages through ZR-Link software; each update undergoes CRC32 and SHA-256 verification prior to installation, with rollback capability and versioned changelogs stored locally.
What maintenance intervals are recommended for field use?

Battery health check every 6 months; flow sensor verification before each high-stakes campaign; full metrological recalibration annually or after 500 operating hours—per HJ 61–2021 Section 7.3.2.
