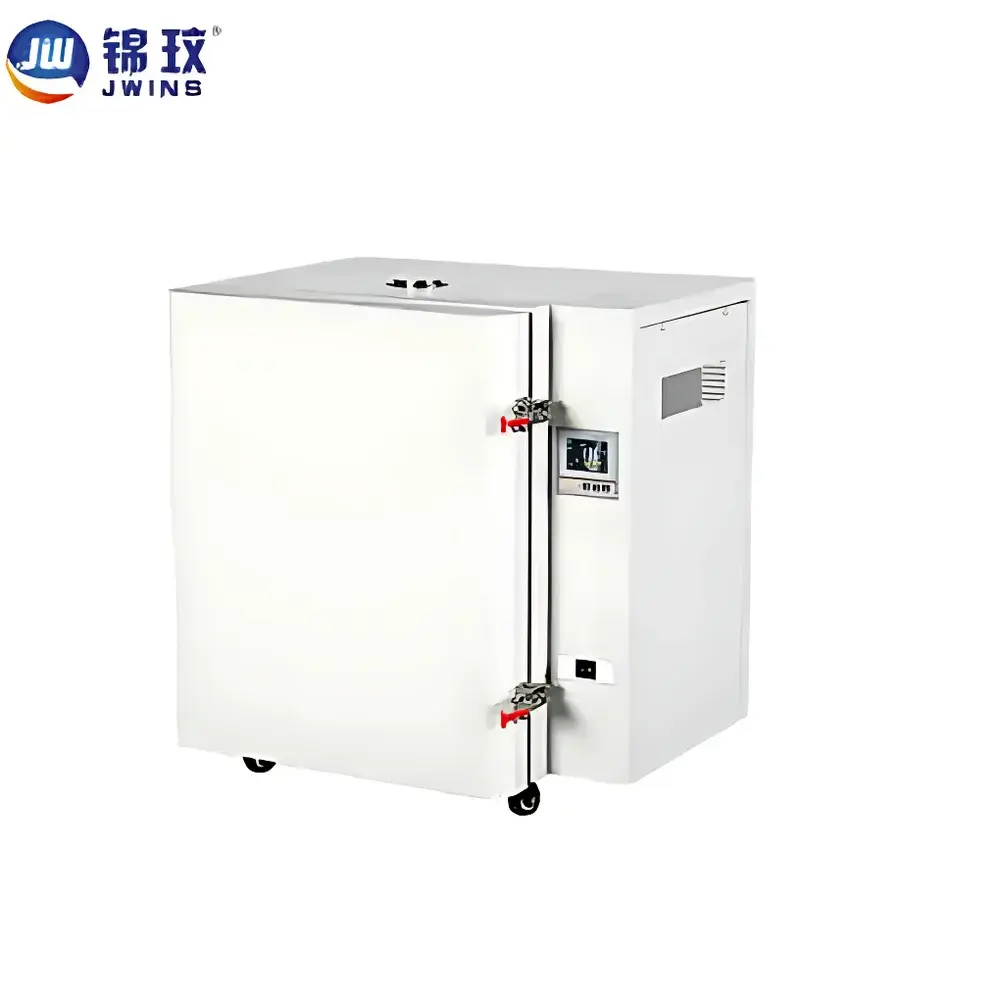

JWINS DHG-9079A High-Temperature Forced-Air Drying Oven

Overview

The JWINS DHG-9079A High-Temperature Forced-Air Drying Oven is an industrial-grade laboratory drying system engineered for precise thermal processing across demanding applications including sample dehydration, polymer curing, glassware pre-drying, wax melting, sterilization of heat-stable instruments, and accelerated aging studies. Designed around a robust forced-convection architecture, the oven utilizes a multi-blade centrifugal blower to generate uniform airflow throughout the chamber—ensuring rapid heat transfer and high spatial temperature consistency (±2°C) within its 70 L stainless steel working chamber. Its operational range extends from ambient +30°C up to 500°C, making it suitable for both routine drying tasks and high-temperature thermal treatments required in materials science, pharmaceutical QC labs, and quality assurance environments. The unit complies with fundamental safety and performance expectations for Class II laboratory ovens per IEC 61010-1:2010 and meets structural requirements for continuous-duty operation under ISO/IEC 17025-compliant laboratory conditions.

Key Features

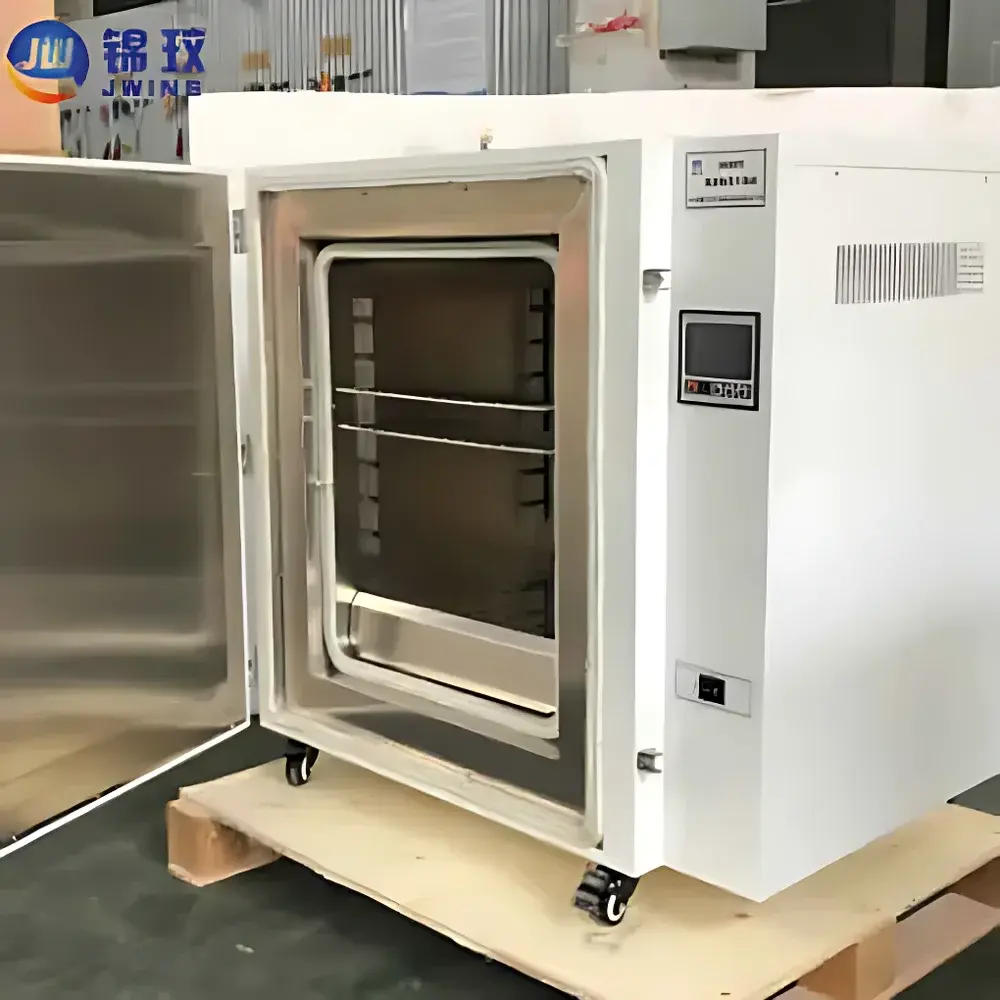

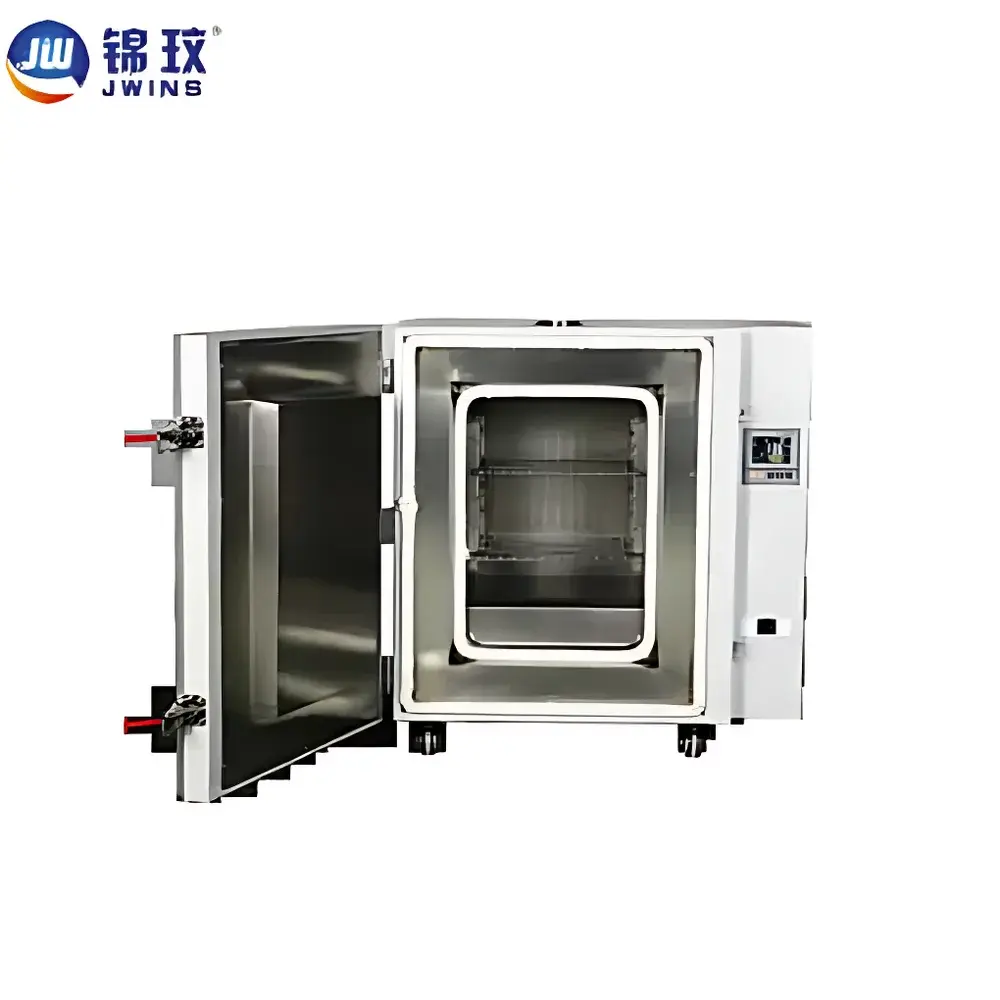

• Mirror-finish 304 stainless steel interior chamber (400 × 400 × 450 mm) with rounded internal corners for ease of cleaning and resistance to corrosion under repeated thermal cycling.
• Microprocessor-based PID temperature controller with large LCD display, real-time temperature readout, programmable timer (up to 9999 minutes), and auto-tuning capability for stable setpoint maintenance.
• High-efficiency thermal insulation using premium-grade glass fiber between inner and outer walls—reducing surface temperature rise and minimizing standby energy loss.
• High-temperature ceramic fiber door gasket rated for continuous service at 500°C, ensuring long-term sealing integrity and preventing thermal leakage during extended operation.
• Low-noise, backward-curved centrifugal blower integrated into a symmetrical air duct system that delivers laminar, bi-directional airflow—optimized to eliminate cold spots and ensure ≤±2°C temperature uniformity across the entire load zone.
• Independent over-temperature protection circuit with audible/visual alarm and automatic power cutoff—configured as standard hardware safety layer compliant with EN 60519-1 for industrial heating equipment.

Sample Compatibility & Compliance

The DHG-9079A accommodates standard laboratory glassware (e.g., Petri dishes, weighing bottles, crucibles), metal trays, ceramic substrates, and polymer specimens without dimensional or chemical compatibility constraints within its specified thermal envelope. It supports ASTM D1654 (corrosion testing), ISO 565 (sieving and drying of granular materials), and USP <1211> (sterilization by dry heat) protocols when operated under documented validation parameters. While not intrinsically certified for GMP or FDA 21 CFR Part 11 compliance, the optional RS485 interface enables integration with validated data loggers and SCADA systems supporting audit-trail-capable temperature recording—a prerequisite for GLP/GMP-aligned laboratories conducting thermal process qualification.

Software & Data Management

The DHG-9079A operates via embedded firmware with no proprietary software dependency. Optional RS485 serial communication (Modbus RTU protocol) allows connection to third-party data acquisition platforms—including Eurotherm, Omega iSeries, or LabVIEW-based logging systems—for time-stamped temperature capture, trend analysis, and CSV export. When paired with compliant external recorders, the system supports full traceability: timestamped setpoints, actual chamber temperatures, runtime duration, and alarm event logs—meeting minimum documentation standards for ISO/IEC 17025 Clause 7.7 (result reporting) and internal calibration management procedures.

Applications

• Drying moisture-sensitive powders and granules prior to elemental analysis (e.g., ICP-OES sample prep).
• Baking ceramic coatings and sintering low-melting-point metal oxides in materials R&D.
• Thermal conditioning of electrical insulators and PCB substrates before dielectric testing.
• Pre-sterilization of stainless steel tools and glassware in microbiology labs using validated 160°C/2h or 180°C/30min dry-heat cycles.
• Accelerated stability testing of packaging adhesives and elastomeric components per ISO 11607-1 Annex B.
• Removal of residual solvents from thin-film samples prior to SEM or XRD characterization.

FAQ

What is the maximum continuous operating temperature of the DHG-9079A?
The unit is rated for continuous operation at up to 500°C, provided ambient conditions remain within 5–40°C and relative humidity stays below 80% RH.
Does the oven include validation support documentation?
Factory calibration certificates (traceable to NIM, China) are supplied with each unit; IQ/OQ templates and sensor placement guidelines are available upon request for user-led qualification.
Can the DHG-9079A be used for sterilization?
Yes—when operated under validated time/temperature profiles (e.g., 180°C for ≥30 minutes), it meets dry-heat sterilization requirements outlined in USP <1211> and EN 554 for non-porous items.
Is the interior lighting optional or standard?
Interior LED lighting is not included as standard but can be retrofitted via OEM accessory kit (JWINS-IL70).
What maintenance intervals are recommended for optimal performance?
Blower filter inspection every 200 operating hours; door gasket integrity check every 6 months; annual verification of temperature uniformity using calibrated PT100 probes per ISO 17025 Annex A.3.
