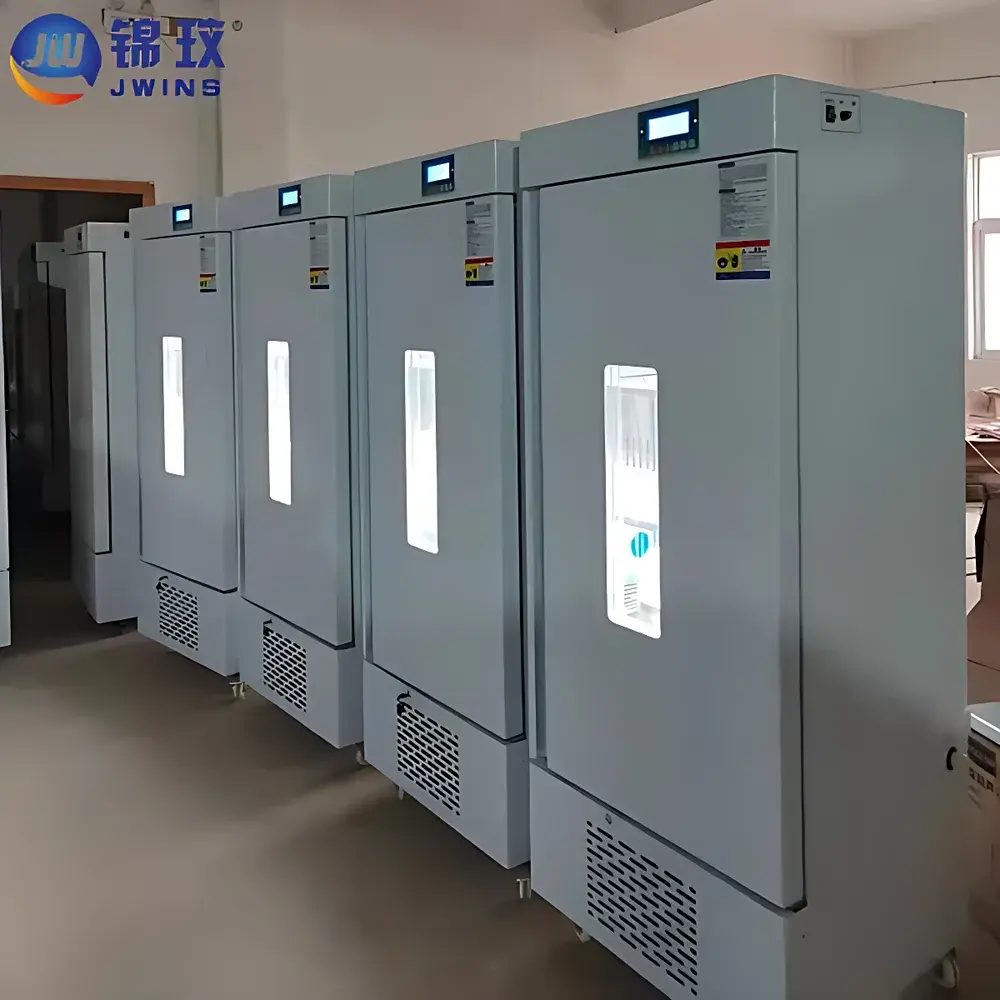

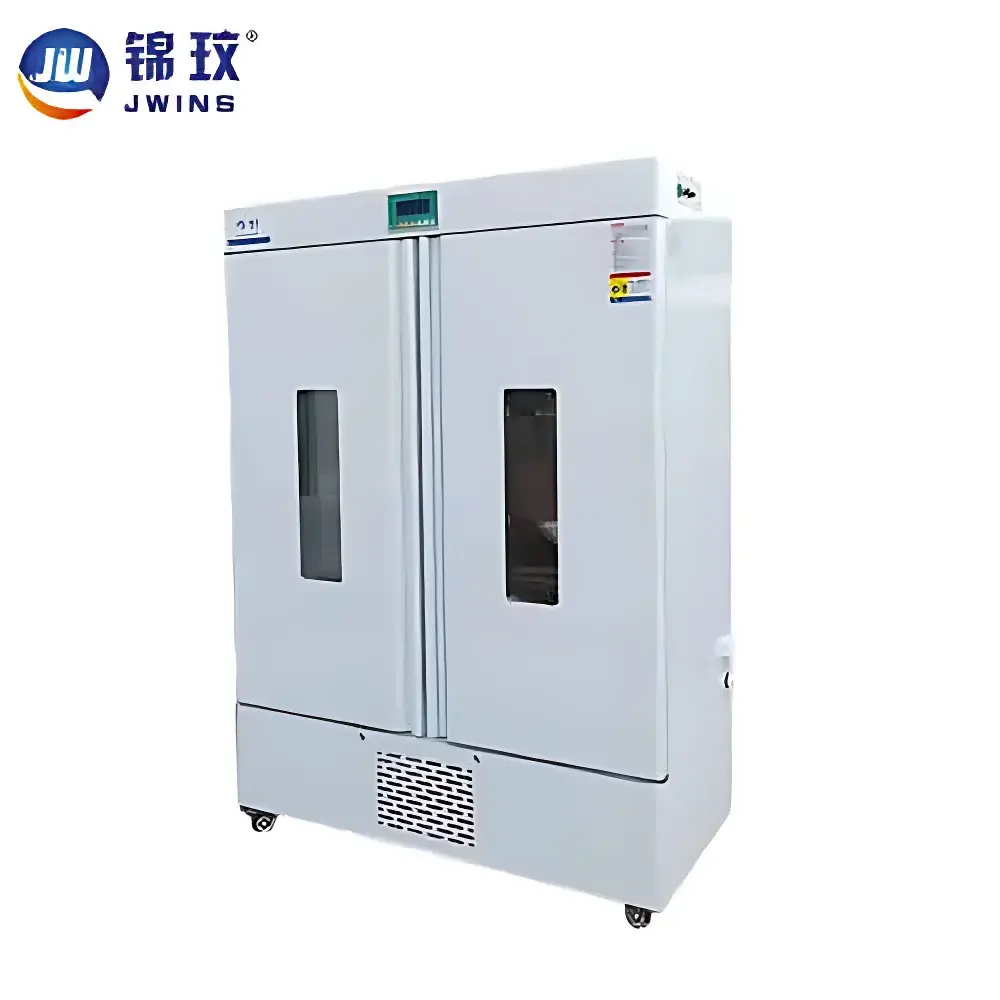

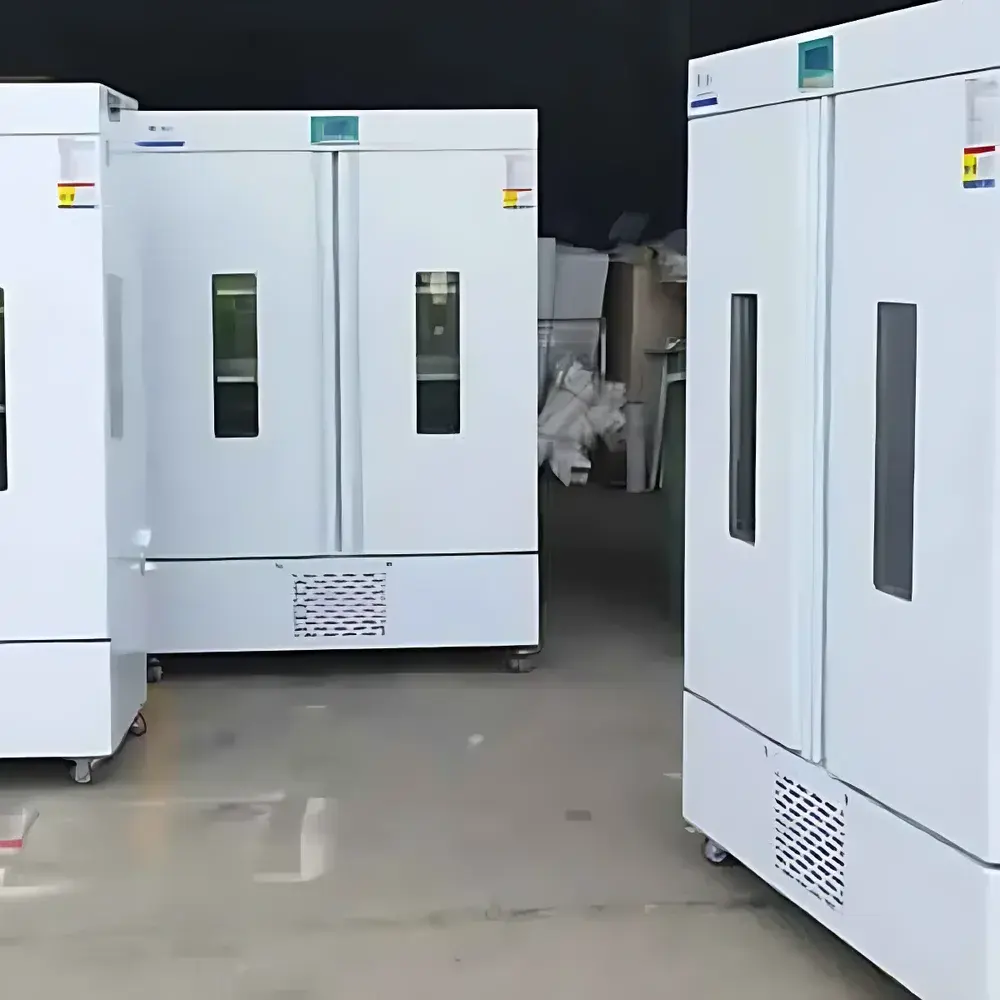

JWINS JLGX-600B-LED Cold Light Source Low-Temperature Plant Growth Chamber

Overview

The JWINS JLGX-600B-LED Cold Light Source Low-Temperature Plant Growth Chamber is an engineered environmental simulation system designed for reproducible, long-term plant physiology studies under precisely controlled photobiological and thermal conditions. Unlike conventional incandescent or fluorescent growth chambers, this unit employs a modular, shelf-integrated LED illumination architecture operating exclusively within the photosynthetically active radiation (PAR) range (400–700 nm), with peak emission at 460 nm (blue) and 620 nm (red) — wavelengths empirically validated for optimal chlorophyll absorption and photomorphogenic regulation. The chamber’s refrigeration system utilizes a high-reliability R134a compressor with forced-air cooling and advanced polyurethane foam insulation (≥80 mm thickness), enabling stable sub-zero operation down to −15°C while maintaining thermal uniformity across all shelves. Its microprocessor-based control system supports multi-segment programmable cycles (up to 30 segments, each 1–99 hours), allowing emulation of diurnal temperature and light regimes essential for phenotyping, seed germination assays, tissue culture acclimatization, and circadian rhythm investigations.

Key Features

• Shelf-mounted, steplessly dimmable LED arrays delivering 0–12,000 lx illuminance with spectral fidelity optimized for plant photoreceptors (cryptochrome, phytochrome)
• Temperature stability of ±0.5°C uniformity and ±0.5–1.0°C fluctuation across full operating range (−15°C to +50°C)
• Mirror-finish stainless steel interior (SUS304) with radius-corner construction for contamination control and ease of decontamination
• Horizontal airflow design ensures consistent thermal distribution between shelves — critical for multi-tier experimental replication
• Modular light panels are field-replaceable and function independently; temperature control can be disabled to operate as a dedicated LED irradiation platform
• Programmable 30-stage controller with real-time display, supporting complex day/night profiles and ramping protocols
• Integrated safety architecture: independent overtemperature cutoff, compressor overload protection, and door-open alarm (optional)
• RS485 communication interface (optional) enables integration into centralized lab monitoring systems compliant with ISO/IEC 17025 data integrity requirements

Sample Compatibility & Compliance

The JLGX-600B-LED accommodates standard plant growth vessels (e.g., Magenta boxes, Petri dishes, hydroponic trays), insect rearing cages, microbial culture plates, and accelerated aging test specimens (e.g., timber, polymer composites, pharmaceutical excipients). Its thermal and photometric performance meets baseline requirements for ASTM E1822 (Standard Practice for Laboratory Animal Housing), ISO 22028-2 (Photographic materials — Imaging materials — Storage), and USP <1151> (Pharmaceutical Dosage Forms — Stability Testing). While not inherently GLP-certified, the system supports audit-ready operation when paired with optional electronic loggers and 21 CFR Part 11-compliant software (via third-party integration). All electrical components conform to IEC 61010-1 safety standards for laboratory equipment.

Software & Data Management

The embedded controller provides local parameter logging (temperature, illuminance setpoints, runtime) with timestamped storage for ≥30 days. Optional RS485 connectivity permits bidirectional communication with PC-based SCADA platforms or LIMS systems using Modbus RTU protocol. Raw sensor data (including compressor duty cycle and LED driver current) can be exported in CSV format for statistical analysis (e.g., ANOVA of growth rate vs. light intensity gradients). Firmware updates are performed via USB port, ensuring traceability per ISO/IEC 17025 Clause 5.9. No cloud dependency or proprietary subscription model is required — data sovereignty remains fully under user control.

Applications

• Controlled-environment plant phenotyping: hypocotyl elongation, leaf expansion kinetics, flowering time assays
• In vitro tissue culture: callus induction, shoot regeneration, and hardening under spectrally tuned light
• Seed viability and germination testing per ISTA guidelines (e.g., AOSA, EPPO protocols)
• BOD₅ incubation for wastewater microbiology (maintaining 20°C ±0.5°C per ISO 5815-1)
• Accelerated aging studies for biomaterials, coatings, and botanical extracts under combined thermal–photostress conditions
• Entomological rearing of Drosophila, Tribolium, or aphid colonies requiring precise thermoperiodicity
• Photobioreactor pre-conditioning and algal strain screening under defined PAR fluence rates

FAQ

Can the LED light panels be replaced without tools or service technician intervention?
Yes — each shelf-integrated light module features quick-release connectors and tool-free mounting brackets, enabling replacement in under 90 seconds.
Is the temperature control system validated for operation at −15°C with full 600 L load?
Yes — validation reports (IQ/OQ documentation available upon request) confirm sustained −15°C operation with ≤±1.0°C deviation at all shelf levels under maximum load (six fully loaded shelves).
Does the unit support CO₂ enrichment integration?
CO₂ inlet port and compatible infrared sensor controller (JWINS CO₂-IR-1000) are available as factory-installed options — not retrofittable post-delivery.
What is the expected calibration interval for temperature and illuminance sensors?
JWINS recommends annual verification against NIST-traceable references; built-in sensor diagnostics report drift >±0.3°C or >±5% lx annually.
Are spare LED modules stocked internationally?
Distributor networks in EU, NA, and APAC maintain 48-hour dispatch inventory for JLGX-600B-LED light panels and control boards.
