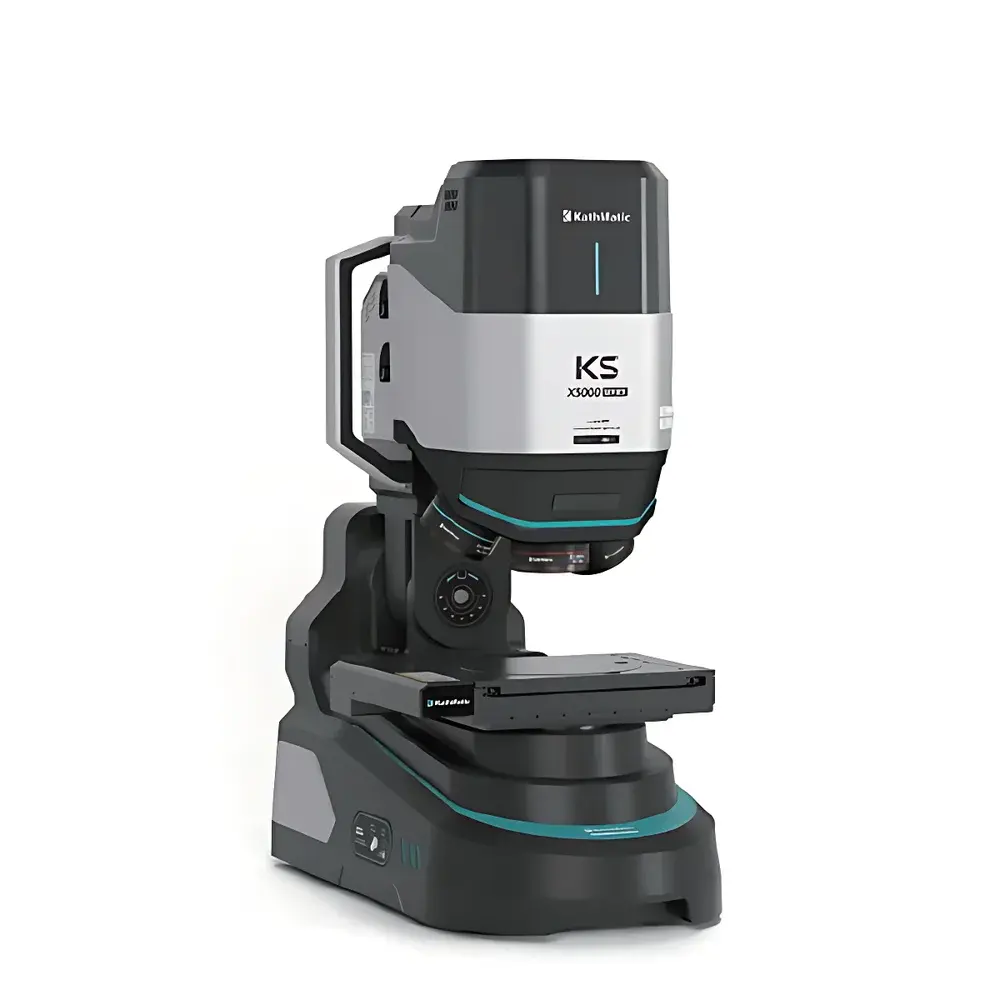

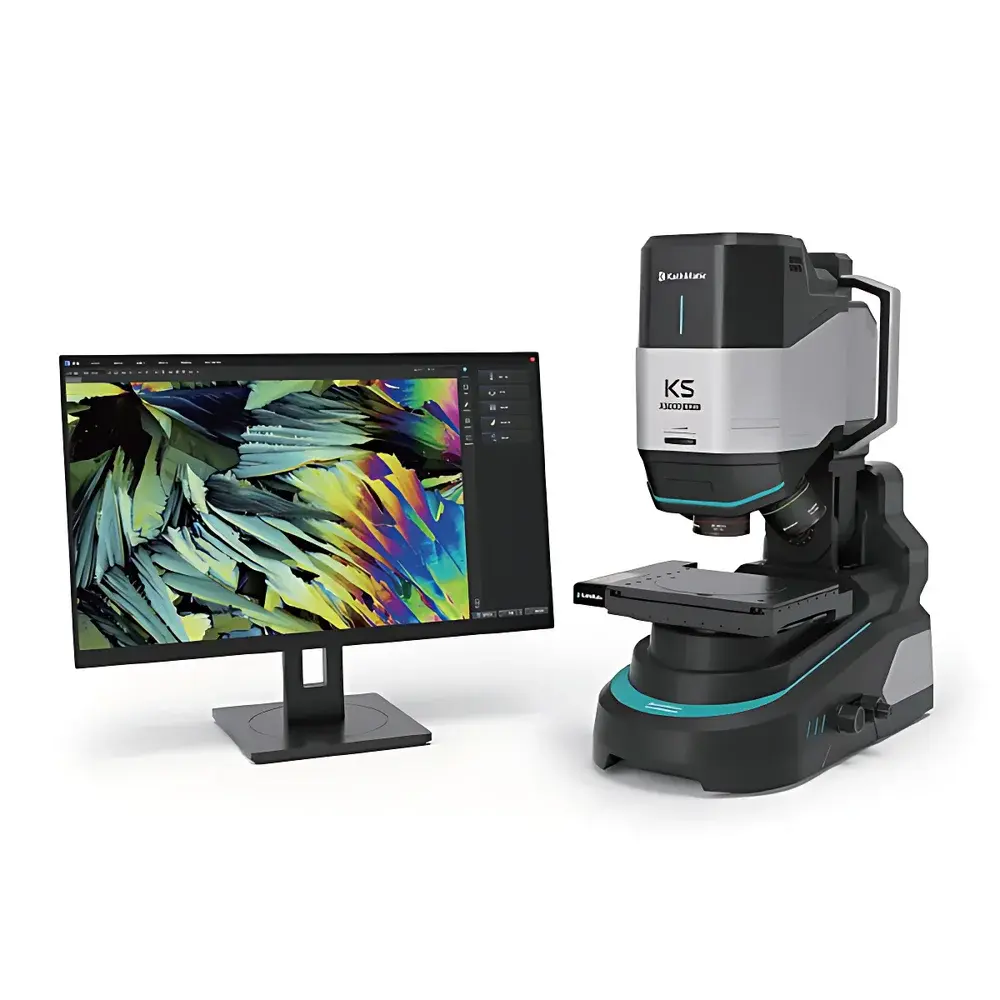

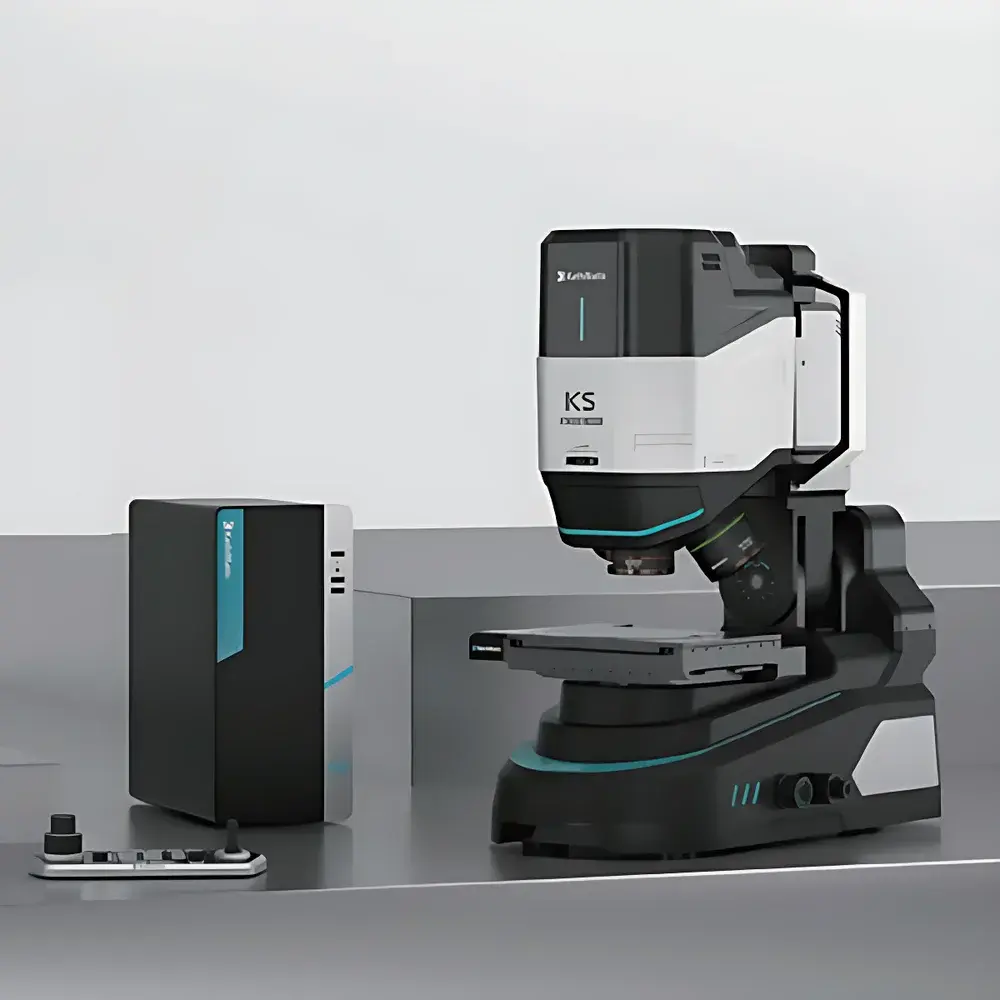

Kathmatic KS-X5000P Ultra-Deep-Field 3D Digital Microscope

Overview

The Kathmatic KS-X5000P Ultra-Deep-Field 3D Digital Microscope is an advanced surface metrology and microstructural analysis platform engineered for high-fidelity, non-contact 3D topographic imaging of industrial and scientific specimens. Unlike conventional optical microscopes constrained by shallow depth of field and limited axial resolution, the KS-X5000P employs a motorized focus-stacking architecture combined with real-time Z-scan synchronization and proprietary multi-layer image fusion algorithms. This enables acquisition of fully focused, pixel-aligned 3D surface reconstructions across extended vertical ranges—up to several millimeters—without mechanical stage repositioning. The system operates on the principle of sequential focal plane capture and sub-pixel registration, delivering quantitative height maps with nanometer-scale axial repeatability and micron-level lateral resolution. Designed for integration into QC labs, R&D centers, and failure analysis workflows, it supports ISO 25178-compliant surface texture analysis and ASTM E2921-22 guidelines for digital microscopy validation.

Key Features

• Motorized precision Z-drive with closed-loop feedback control, enabling repeatable focus positioning within ±0.1 µm tolerance over full travel range
• Modular infinity-corrected optical path supporting interchangeable objective lenses (0.5×–10× magnification adapters), optimized for working distances from 20 mm to 120 mm
• Multi-zone programmable LED illumination system with independent RGB+white channel control, facilitating contrast enhancement for reflective, translucent, or low-diffuse surfaces
• 20-megapixel global-shutter CMOS sensor with 12-bit dynamic range and hardware-based noise suppression for high-SNR imaging under variable lighting conditions
• Real-time 3D rendering engine capable of generating depth maps, false-color elevation models, cross-sectional profiles, and volume deviation overlays directly on-device
• Onboard GPU-accelerated image processing pipeline supporting >60 fps live preview at 1920×1080 and full-resolution focus stacking in under 8 seconds per stack (300 slices)

Sample Compatibility & Compliance

The KS-X5000P accommodates diverse sample geometries—including irregularly shaped components, PCB assemblies, metallic fracture surfaces, ceramic coatings, and polymer films—via its customizable XY translation stage (standard base: 150 × 100 mm; optional extensions up to 300 × 200 mm). Specimen height clearance exceeds 180 mm, permitting analysis of tall or stacked structures. All optical components comply with ISO 10110-7 for surface quality and EN 61340-5-1 for electrostatic discharge safety. The system supports audit-ready operation under GLP/GMP environments through configurable user access levels, electronic signature support, and optional 21 CFR Part 11-compliant software modules with full audit trail logging.

Software & Data Management

Equipped with Kathmatic VisionSuite™ v4.2, the microscope provides integrated tools for measurement (line, angle, radius, roughness Ra/Rz), annotation, report generation (PDF/Excel export), and batch processing of multi-field datasets. Raw data is stored in vendor-neutral TIFF + XML metadata format, preserving calibration parameters, illumination settings, and Z-stack metadata for traceability. Network-enabled deployment allows remote monitoring via HTTPS-secured web interface and integration with LIMS or MES systems using RESTful API endpoints. Software validation documentation (IQ/OQ/PQ protocols) and raw data integrity reports are available upon request.

Applications

• Failure analysis of solder joints, wire bonds, and die attach interfaces in semiconductor packaging
• Surface roughness and defect mapping of machined aerospace components per ASME B46.1
• Coating thickness estimation and delamination detection in automotive paint systems
• Dimensional verification of microfluidic channel geometry and mold cavity fidelity
• Non-destructive evaluation of additive manufacturing layer adhesion and porosity distribution
• Educational use in materials science laboratories for comparative 3D morphology studies

FAQ

Does the KS-X5000P support automated stitching of large-area scans?
Yes—the VisionSuite™ software includes motorized stage synchronization mode for seamless tile-based mosaic acquisition and sub-pixel stitching with intensity normalization.
Can third-party objective lenses be mounted on this system?
Only Kathmatic-certified infinity-corrected objectives with M25×0.75 thread and designated telecentric correction are supported to maintain optical calibration integrity.
Is calibration certification included with shipment?
Each unit ships with factory calibration certificate (traceable to NIST standards) covering magnification accuracy, Z-axis linearity, and illumination uniformity.
What file formats are generated during 3D reconstruction?
Export options include STL (for CAD interoperability), OBJ (with vertex-normal encoding), CSV (height matrix), and proprietary .KVM3D (for full parameter retention and reprocessing).
How is thermal drift compensated during long-duration focus stacks?
An internal temperature sensor triggers adaptive Z-offset correction every 30 seconds when ambient variation exceeds ±0.5°C, maintaining axial stability within ±0.3 µm over 2-hour sessions.
