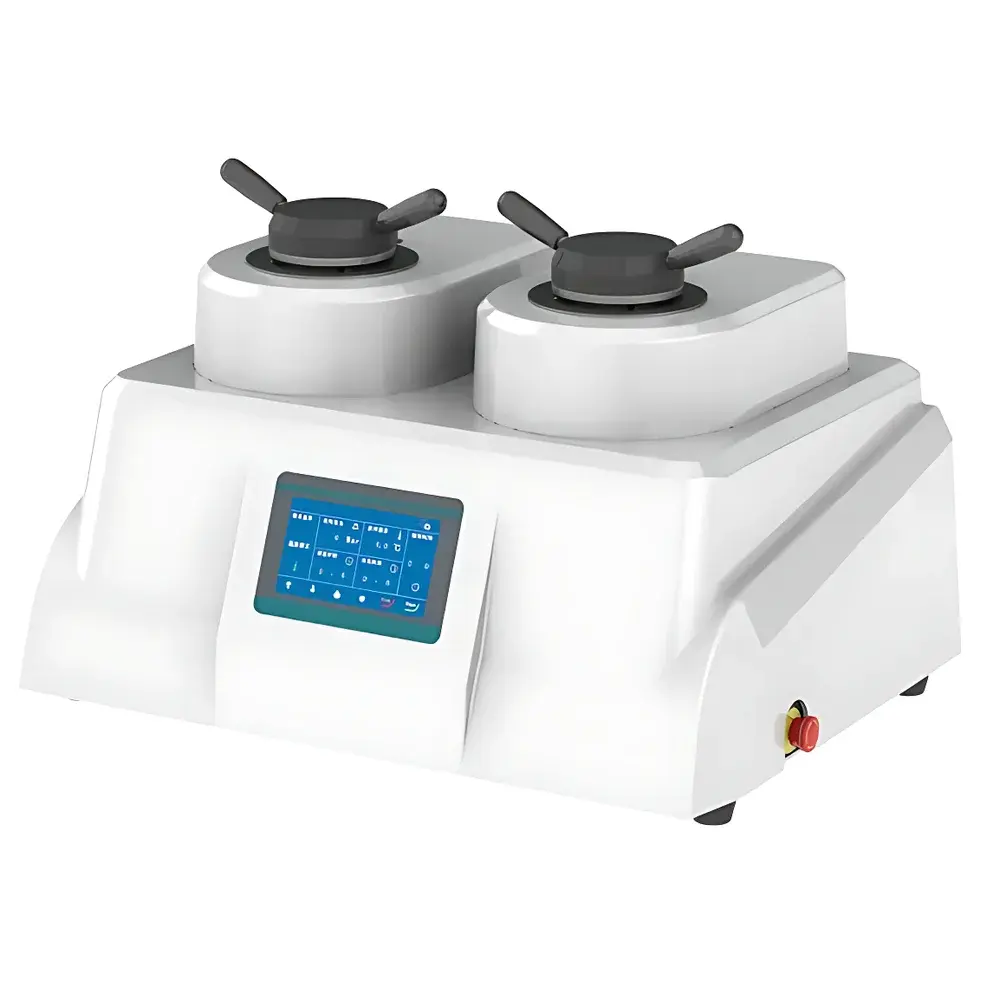

KB KYXQ-5000 Dual-Station Fully Automated Hot Mounting Press

Overview

The KB KYXQ-5000 Dual-Station Fully Automated Hot Mounting Press is engineered for precision thermosetting resin embedding of metallurgical, ceramic, polymer, and composite specimens in quality control and R&D laboratories. It operates on the principle of hot compression molding—applying controlled heat (up to 200 °C) and sustained mechanical pressure to cure thermosetting resins (e.g., phenolic, epoxy, or acrylic) around samples, producing dimensionally stable, edge-retentive mounts with minimal voids and thermal distortion. Designed for high-throughput metallographic sample preparation workflows, the dual-station architecture enables simultaneous processing of up to four specimens per cycle—two per station—significantly reducing turnaround time without compromising reproducibility. Its closed-loop thermal and pressure control system ensures consistent cross-linking kinetics across batches, meeting foundational requirements for ASTM E3, ISO 15510, and GB/T 9445-compliant microstructural analysis.

Key Features

• Dual independent mounting stations with synchronized or asynchronous operation—enabling parallel processing of heterogeneous sample sets (e.g., different materials or resin types) within a single run.
• Industrial-grade ABS monocoque chassis providing electromagnetic shielding, structural rigidity, and chemical resistance to common mounting resins and cleaning solvents.
• 7-inch capacitive touchscreen HMI with multilingual interface (English default), real-time process visualization, and intuitive parameter navigation—no external PC required for routine operation.
• Precision electromechanical press drive delivering repeatable force application (±0.5% full-scale linearity) over extended service life, eliminating hydraulic fluid maintenance and leakage risks.
• Integrated active cooling subsystem with dual-mode selection: time-based termination (0–99 min) or temperature-triggered shutdown (user-set target, e.g., ≤40 °C), minimizing thermal shock and preserving delicate phase boundaries.
• Onboard memory storing >100 customizable mounting protocols—including resin-specific ramp profiles, dwell times, and cooling strategies—supporting GLP-aligned batch traceability and SOP enforcement.
• Modular mold platform accommodating standard diameters (φ22 mm, φ30 mm, φ45 mm) and accepting OEM-machined inserts for non-circular or multi-cavity geometries (e.g., PCB cross-sections, wire bundles, or miniaturized additively manufactured parts).

Sample Compatibility & Compliance

The KYXQ-5000 accommodates specimens ranging from fine-wire cross-sections (<0.5 mm diameter) to irregularly shaped castings (max. 30 mm height × 45 mm footprint). It supports all major thermosetting mounting media—including low-viscosity phenolics for rapid infiltration, high-fidelity epoxies for edge retention in soft alloys, and conductive graphite-filled resins for SEM/EDS preparation. The system complies with electrical safety standards IEC 61010-1 and EMC directive 2014/30/EU. Its deterministic process logging (timestamped temperature/pressure/time records) satisfies audit requirements under ISO/IEC 17025 and FDA 21 CFR Part 11 when integrated with validated LIMS or ELN platforms. Optional calibration certificates (traceable to NIST or CNAS-accredited labs) are available upon request.

Software & Data Management

No proprietary software installation is required—the embedded controller manages all operational logic locally. Process data (start/stop timestamps, setpoints, actual thermal/pressure curves, and operator ID if enabled) are exportable via USB 2.0 to CSV format for integration into laboratory information management systems (LIMS) or statistical process control (SPC) dashboards. Audit trail functionality records all parameter modifications, recipe selections, and emergency stops with user attribution and ISO 8601 timestamps—essential for GMP environments conducting failure analysis or material certification. Firmware updates are delivered via secure HTTPS download and validated checksum verification prior to installation.

Applications

• Routine metallography in foundries, aerospace component suppliers, and automotive Tier-1 manufacturers—ensuring consistent mount integrity for automated grinding/polishing lines.
• Failure analysis laboratories preparing fracture surfaces, corrosion coupons, or solder joint cross-sections where edge preservation directly impacts root-cause determination.
• Academic materials science departments performing comparative studies of grain growth, phase transformation, or interfacial reactions—requiring high inter-batch repeatability.
• Electronics packaging labs embedding multi-layer substrates or wafer-level packages for delamination assessment under thermal cycling conditions.
• Geological thin-section preparation where resin infiltration must preserve fragile mineral assemblages without fracturing.

FAQ

What types of mounting resins are compatible with the KYXQ-5000?
Phenolic, epoxy, acrylic, and conductive graphite-impregnated resins—all commercially available thermosetting formulations—are fully supported. Resin viscosity and curing kinetics must align with the selected temperature/pressure/time profile.
Can the KYXQ-5000 be integrated with an automated grinding and polishing system?
Yes. Its standardized φ30 mm mount output is mechanically and dimensionally compatible with all major automated prep systems (e.g., Struers, Buehler, ATC), enabling seamless transfer without re-fixturing.
Is remote monitoring or control possible?
Local Ethernet port supports Modbus TCP communication for basic status polling (running/idle/error) and recipe triggering via PLC or MES—full remote HMI access requires optional industrial gateway configuration.
How is temperature uniformity validated across the mold cavity?
KB provides factory calibration reports documenting ±1.5 °C spatial uniformity (measured at 9 points across φ30 mm mold base at 160 °C), verified using calibrated PT100 probes traceable to national metrology institutes.
Does the system support regulatory-compliant electronic signatures?
When deployed with third-party validated electronic record software (e.g., LabVantage, Thermo Fisher SampleManager), the KYXQ-5000’s raw data export meets ALCOA+ principles for attributable, legible, contemporaneous, original, and accurate records.
