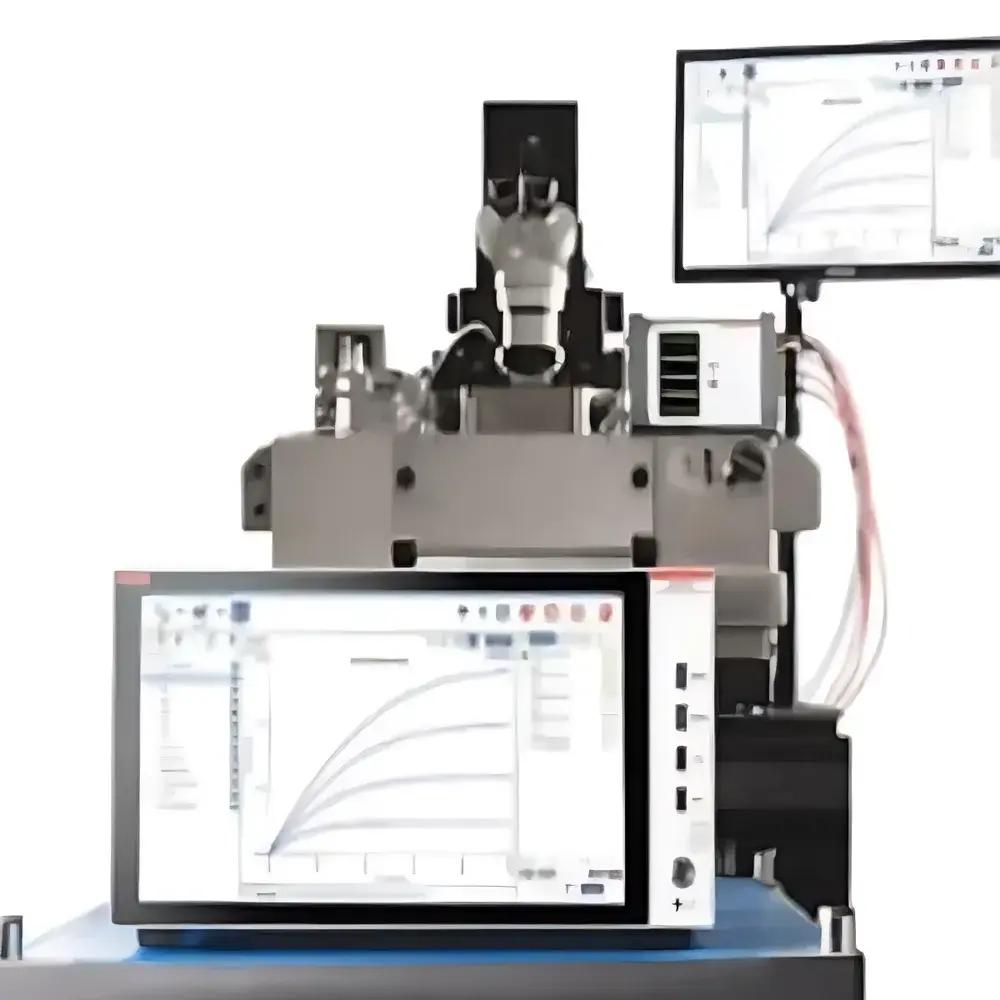

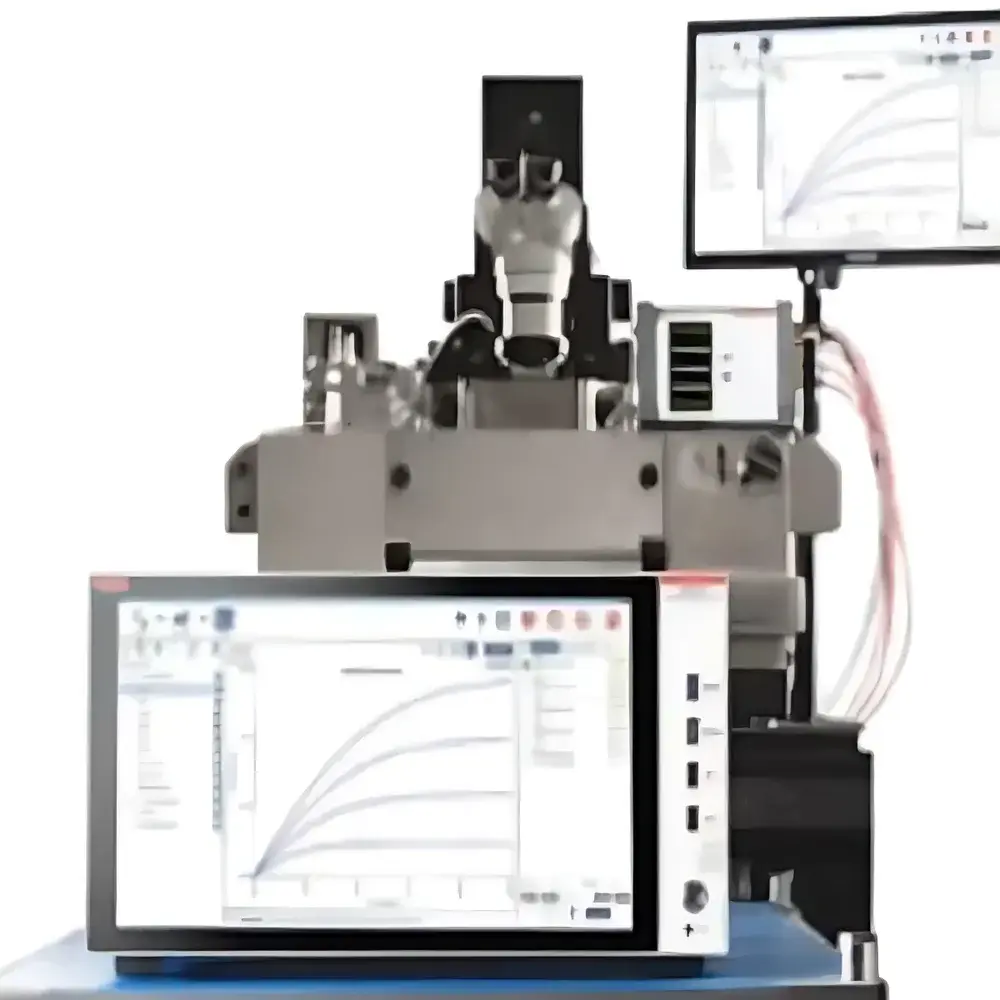

Keithley 4200A-SCS Semiconductor Parameter Analyzer

Overview

The Keithley 4200A-SCS Semiconductor Parameter Analyzer is a modular, high-precision instrumentation platform engineered for comprehensive electrical characterization of semiconductor devices, advanced materials, and microelectronic structures. Built upon a tightly integrated source-measure unit (SMU) architecture with synchronized multi-channel stimulus and measurement capability, the system implements true concurrent I-V, C-V, and ultra-fast pulsed I-V methodologies—enabling accurate extraction of device physics parameters including threshold voltage (V_th), subthreshold swing (SS), transconductance (g_m), oxide capacitance (C_ox), interface trap density (D_it), and time-dependent dielectric breakdown (TDDB) behavior. Designed for R&D labs, process development centers, and reliability engineering groups, the 4200A-SCS delivers traceable, repeatable measurements under both ambient and controlled environmental conditions (e.g., cryogenic or probe station-integrated setups), supporting wafer-level parametric testing, failure analysis (FA), and technology node qualification down to sub-10 nm geometries.

Key Features

• Four-quadrant SMUs with programmable compliance and auto-ranging, delivering 10 aA current resolution and 0.2 µV voltage resolution for ultra-low-leakage and nanoscale device evaluation
• Integrated 4200A-CVIV Multi-Channel Switching Module enabling seamless, hardware-synchronized switching between I-V and C-V measurements—eliminating manual reconfiguration, probe lift cycles, and associated contact resistance artifacts
• Real-time parameter extraction engine with embedded mathematical functions (e.g., derivative, integration, statistical averaging) and automated curve fitting for industry-standard metrics (e.g., V_th extraction via constant-current or derivative methods)
• Built-in multilingual measurement guidance (English, Chinese, Japanese, Korean) and over 200 customizable application test scripts—accelerating method development and reducing operator dependency
• Native support for NBTI/PBTI stress-and-measure sequences, random telegraph noise (RTN) acquisition, nonvolatile memory (NVM) cycling, and power regulator stability analysis—including pulse-width modulation (PWM) and load-transient response profiling
• Open API architecture (via IVI-COM and SCPI) for integration into automated test environments, MES systems, and custom LabVIEW/Python-based data pipelines

Sample Compatibility & Compliance

The 4200A-SCS supports direct interfacing with manual, semi-automated, and fully automated wafer probe stations—including Cascade MicroTech Summit series, Signatone S-1000, MicroManipulator MM3A-EM, and Wentworth Laboratories platforms—via standard triaxial cabling and TTL-triggered handshake protocols. Optional low-current preamplifier modules and guarded cabling configurations enable stable sub-femtoamp measurements on high-impedance structures such as gate oxides, 2D materials (e.g., MoS₂, graphene), and organic semiconductors. The system complies with ISO/IEC 17025 calibration traceability requirements and supports GLP/GMP workflows when configured with 21 CFR Part 11-compliant audit trail, electronic signature, and role-based access control (RBAC) modules. All measurement data are timestamped, metadata-tagged (including instrument configuration, environmental conditions, and user identity), and exportable in HDF5, CSV, and MATLAB-compatible formats.

Software & Data Management

KTE (Keithley Test Environment) software provides an intuitive, workflow-driven GUI with drag-and-drop test sequencing, real-time waveform visualization, and synchronized multi-channel plotting. Each measurement session generates a self-documenting project file containing raw data, instrument settings, script logic, and user annotations—ensuring full experimental reproducibility. Data management includes hierarchical folder organization, keyword-based search, batch processing across multiple datasets, and export to LIMS or enterprise analytics platforms. For regulatory environments, optional KTE Audit Trail Extension logs all user actions (e.g., parameter edits, data deletions, report generation) with immutable timestamps and digital signatures—meeting FDA, JEDEC, and JEITA documentation standards for device qualification reports.

Applications

• Process development: MOSFET/FinFET characterization, high-k/metal gate optimization, SOI and GAA transistor evaluation
• Materials science: Carrier mobility mapping of perovskites, TMDs, and wide-bandgap semiconductors (GaN, SiC)
• Reliability assessment: TDDB, HCI, NBTI/PBTI, electromigration, and thermal cycling correlation studies
• Fault isolation: Current-voltage mapping of leakage paths, defect localization via conductive AFM synchronization
• Electrochemical interfaces: Solid-state battery electrode impedance modeling, electrolyte decomposition voltage screening
• Power electronics: GaN HEMT dynamic R_ds(on) tracking, SiC diode reverse recovery analysis, and EMI filter component modeling

FAQ

Does the 4200A-SCS support cryogenic measurements?
Yes—the system is compatible with commercial cryogenic probe stations (e.g., BlueFors, Janis, and Montana Instruments) via analog trigger synchronization and low-thermal EMF cabling options. Optional temperature-compensated SMU firmware ensures stable bias delivery down to 4 K.
Can I integrate third-party sensors (e.g., temperature, humidity) into measurement sequences?
Yes—KTE supports analog input channels and Modbus/TCP-enabled external sensors through its I/O expansion interface, allowing environmental parameter logging synchronized with electrical measurements.
Is remote operation and monitoring supported?
Yes—KTE includes secure web-based remote desktop access (HTTPS), RESTful API endpoints for JSON-based command execution, and scheduled unattended test execution with email/SMS alerting on completion or error conditions.
What calibration standards does the 4200A-SCS follow?
All SMUs are factory-calibrated per ANSI/NCSL Z540-1 and NIST-traceable procedures. Annual recalibration services include full verification against primary standards for voltage, current, and timing specifications, with certificate of conformance issued per ISO/IEC 17025 requirements.
How is data integrity ensured during long-duration reliability tests?
KTE implements automatic checkpointing every 10 minutes, redundant local SSD + network-attached storage (NAS) mirroring, and cyclic redundancy check (CRC32) validation on all saved datasets—preventing data corruption due to power interruption or storage failure.
