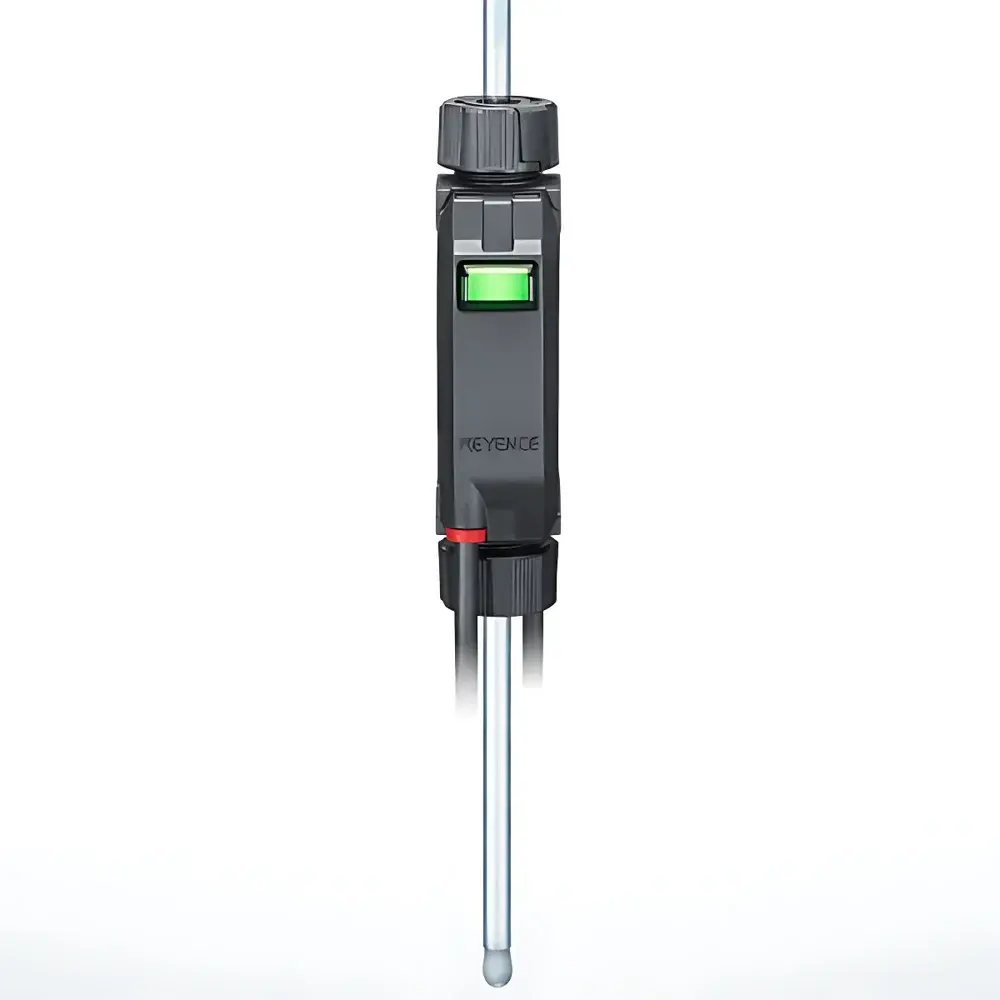

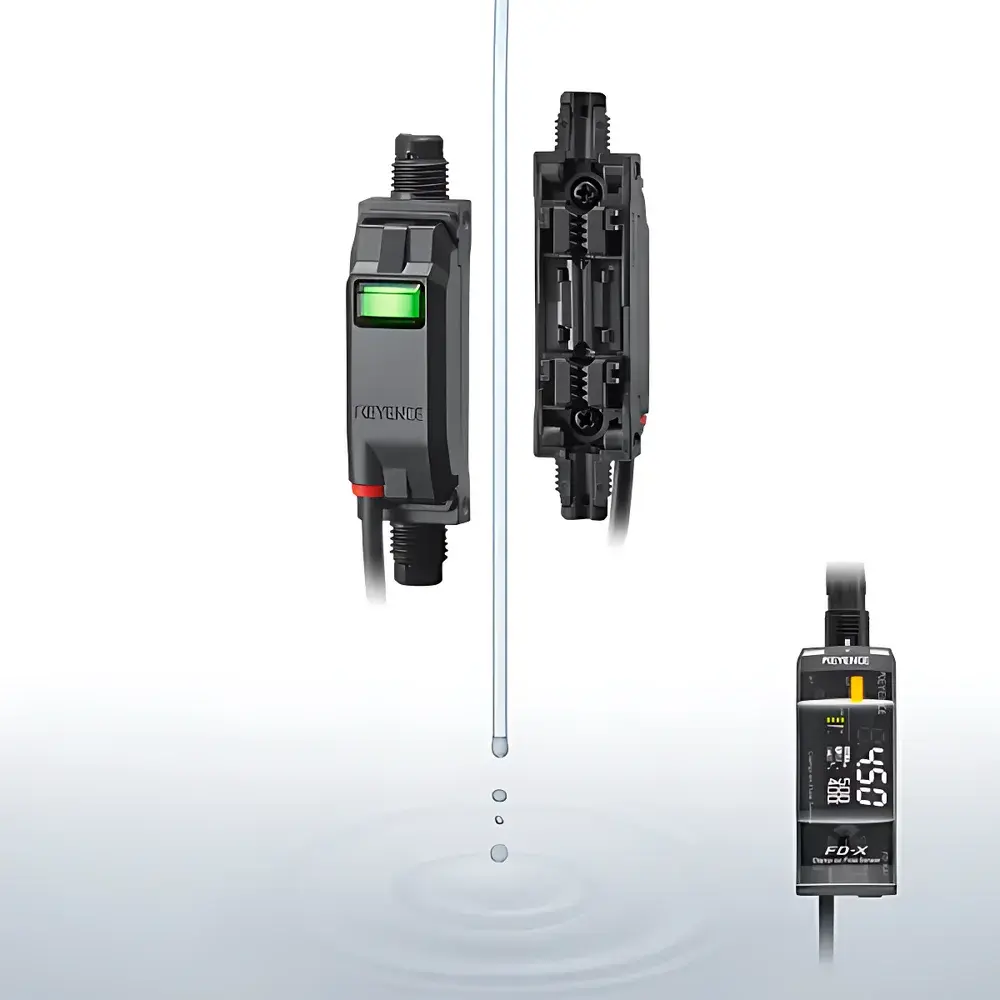

KEYENCE FD-XS8 Clamp-on Ultrasonic Flow Sensor Head with FD-XA1 Controller and FD-XC8R2 Clamp Assembly

Overview

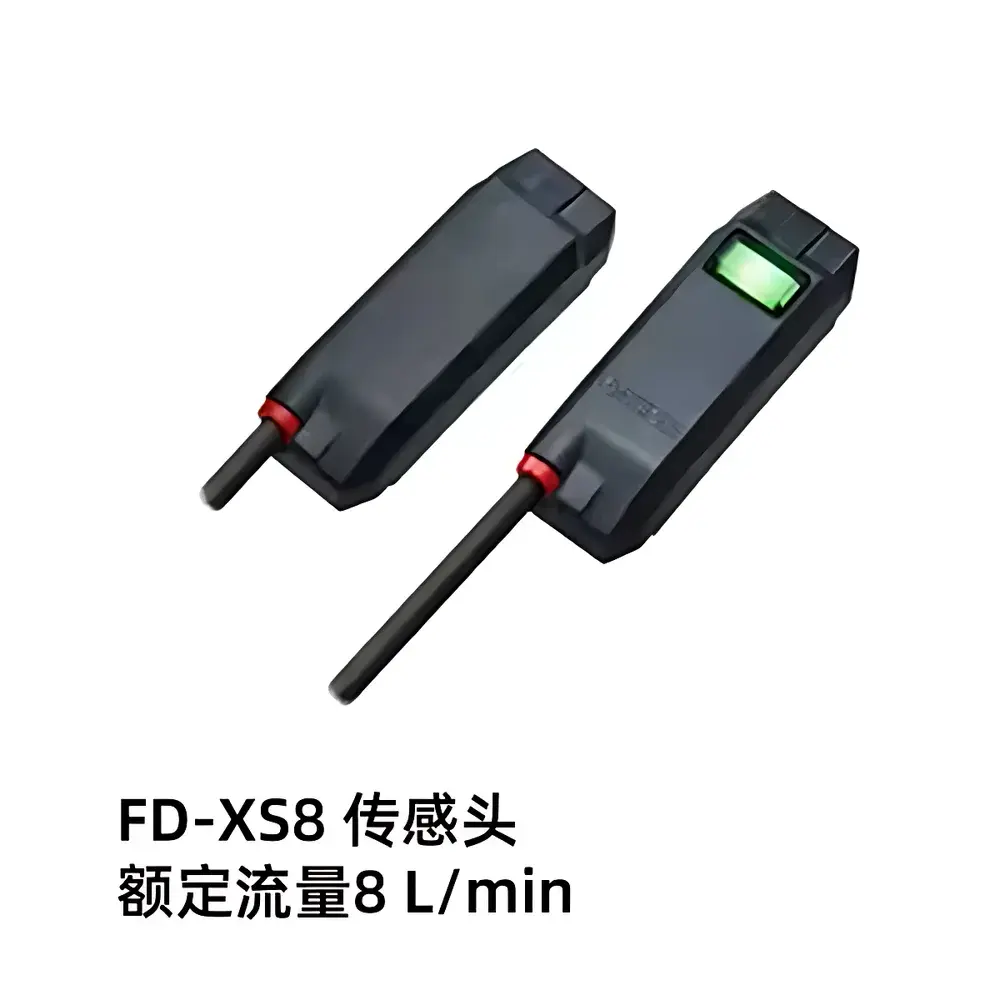

The KEYENCE FD-XS8 is a non-invasive, clamp-on ultrasonic flow sensor head engineered for high-accuracy, real-time measurement of liquid flow in industrial process lines without pipe cutting, welding, or process interruption. It operates on the principle of transit-time difference ultrasonics: two transducers mounted on the external surface of a pipe emit and receive ultrasonic pulses diagonally across the fluid path. The time difference between upstream and downstream pulse propagation is directly proportional to the average axial velocity of the liquid, enabling calculation of volumetric flow rate based on pipe geometry and fluid sound speed. This method eliminates pressure drop, wear, and contamination risks associated with inline flow elements—making the FD-XS8 ideal for sterile, hazardous, corrosive, or high-purity applications in pharmaceutical, chemical, food & beverage, and semiconductor manufacturing environments. When paired with the FD-XA1 controller and FD-XC8R2 clamp assembly, the system delivers calibrated, temperature-compensated flow data with traceable repeatability under dynamic process conditions.

Key Features

• True clamp-on installation: No pipe penetration, no process shutdown required—enables rapid deployment and repositioning across multiple lines.
• Universal pipe compatibility: Supports both metal (stainless steel, carbon steel) and resin (PVC, PP, PVDF, PE) piping systems; FD-XC8R2 clamp optimized for rigid and semi-rigid plastic tubing.
• Wide fluid adaptability: Measures water, oils, solvents, adhesives, lubricants, and aqueous pharmaceutical solutions—provided the liquid is acoustically homogeneous and free of entrained air or particulates exceeding 1% volume.
• Adjustable zero-cut threshold: Configurable from 0 to 200 mL/min via FD-XA1 controller interface to suppress low-flow noise while preserving sensitivity at startup and shutdown phases.
• Response time tuning: Selectable 50 ms to 500 ms filtering enables trade-off optimization between dynamic tracking fidelity and measurement stability—critical for pulsating or intermittently flowing systems.
• Ruggedized construction: IP65/IP67-rated sensor head housing (IEC 60529) and IP68G-rated connector (JIS C0920) ensure reliable operation in washdown, humid, or dust-laden environments typical of ISO Class 7/8 cleanrooms and industrial control rooms.

Sample Compatibility & Compliance

The FD-XS8 system is validated for use with liquids exhibiting stable acoustic impedance and minimal gas entrainment (<0.5% v/v). Performance specifications assume laminar-to-turbulent flow profiles meeting ISO 5167-1:2003 criteria for velocity profile uniformity. For resin pipes, wall thickness must fall within manufacturer-specified tolerances (e.g., 1.0–1.5 mm for Ø8 mm PVC) to maintain ultrasonic coupling efficiency; deviations degrade signal-to-noise ratio and increase measurement uncertainty. Metal pipe applications require nominal wall thicknesses of ~1.0 mm (for FD-XS8) per KEYENCE’s acoustic coupling guidelines. The system complies with electromagnetic compatibility standards IEC 61326-1 (industrial environment) and meets mechanical shock (50 G, 11 ms) and vibration (10–55 Hz, 1.5 mm double amplitude) requirements defined in IEC 60068-2-6 and -2-27. While not certified to FDA 21 CFR Part 11 out-of-the-box, audit trail functionality—including timestamped zero calibration logs and parameter change history—is fully supported when integrated with compliant SCADA or MES platforms.

Software & Data Management

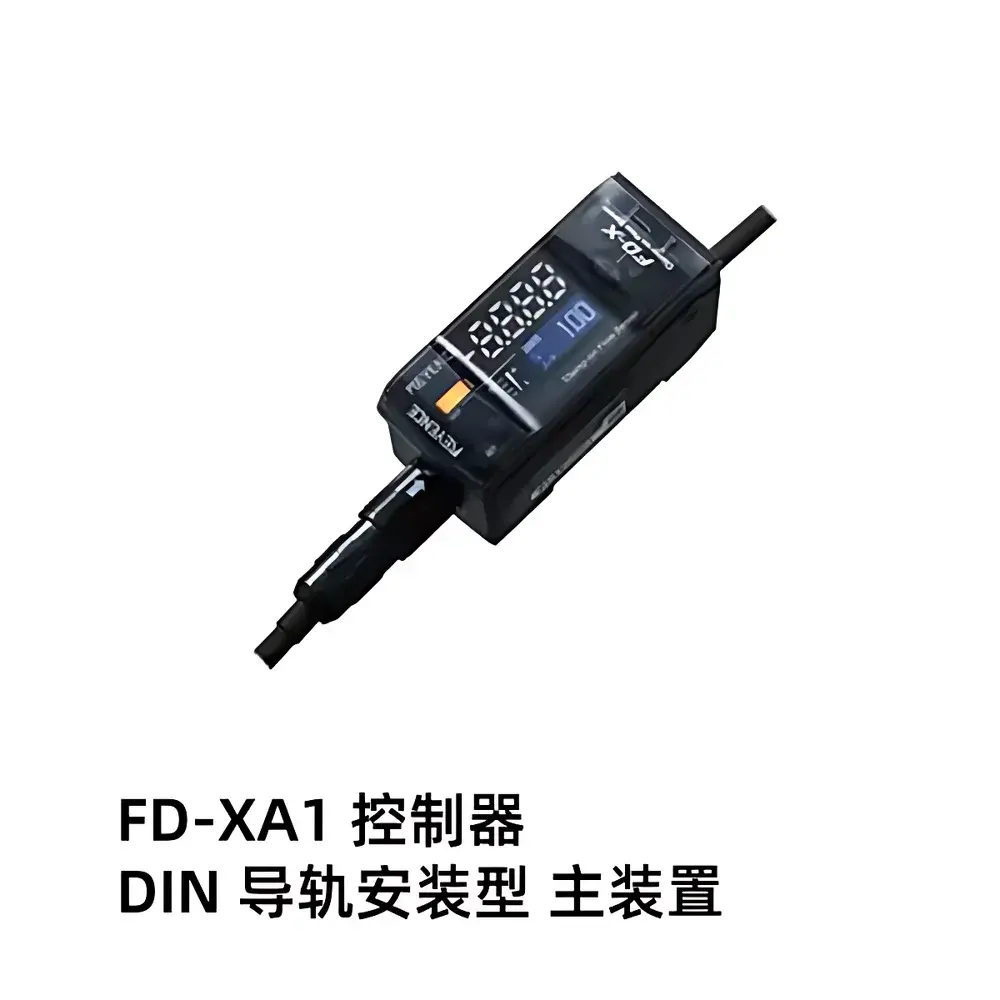

The FD-XA1 controller provides local configuration, real-time display, and analog/digital output interfacing without requiring PC software. All setup parameters—including flow unit scaling, zero-cut value, response time, totalizer reset mode, and alarm thresholds—are accessible via intuitive front-panel navigation. Analog outputs (4–20 mA, 0–10 V) are linearly scaled to instantaneous flow or totalized volume, supporting integration into PLC-based control loops per ISA-84.1 safety integrity level (SIL) design practices. Digital communication options include RS-485 Modbus RTU (slave mode), enabling centralized data acquisition and historian logging. Totalized flow values are stored in non-volatile memory with power-loss retention. For validation-critical environments, the controller supports GLP/GMP-aligned operational qualification (OQ) protocols through documented calibration verification procedures using traceable reference standards.

Applications

• Pharmaceutical batch processing: Monitoring solvent delivery during API synthesis or buffer preparation in single-use bioreactor skids.
• Chemical dosing control: Precise metering of catalysts, initiators, or neutralizing agents in continuous stirred-tank reactors (CSTRs).
• Food & beverage filling lines: Verifying fill volume consistency across high-speed bottling operations without product contact.
• Semiconductor wet benches: Tracking deionized water and etchant recirculation rates in closed-loop cleaning systems.
• Lab-scale R&D: Rapid prototyping of microfluidic circuits or evaluating pump performance across variable viscosity fluids (1–1000 mPa·s).

FAQ

Can the FD-XS8 measure flow in stainless steel pipes with wall thickness >1.5 mm?
Yes, but accuracy degrades progressively beyond the recommended 1.0 ±0.5 mm range due to ultrasonic attenuation; signal strength must be verified via FD-XA1’s built-in diagnostic screen before commissioning.
Is zero calibration required after repositioning the sensor on the same pipe?
Yes—mechanical alignment, pipe surface condition, and coupling gel integrity affect baseline offset; perform zero adjustment with fluid static and temperature stabilized.
Does the system support HART protocol?
No—FD-XA1 natively supports only 4–20 mA analog output and RS-485 Modbus RTU; HART requires external protocol converters compliant with HART Foundation specifications.
What is the minimum measurable flow rate with ±5% uncertainty?
At 500 ms response time and Ø8 mm pipe, the lower limit is approximately 15 mL/min (based on ±2.6 mL/min repeatability spec and 10% FS uncertainty envelope).
Can the FD-XC8R2 clamp be reused on different pipe diameters?

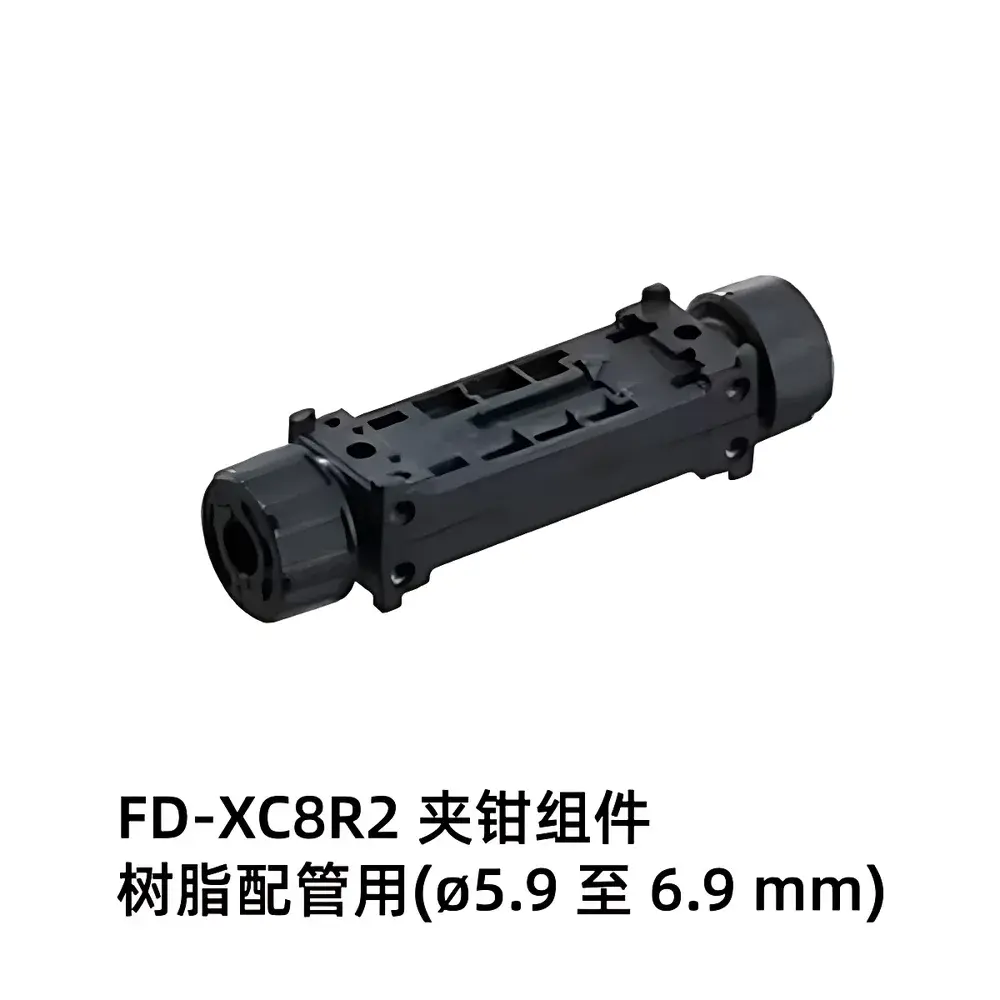

No—FD-XC8R2 is dimensionally optimized for Ø8 mm resin tubing; use FD-XC8R1 for Ø6 mm or FD-XC8R3 for Ø10 mm to ensure proper clamping force and acoustic coupling.
