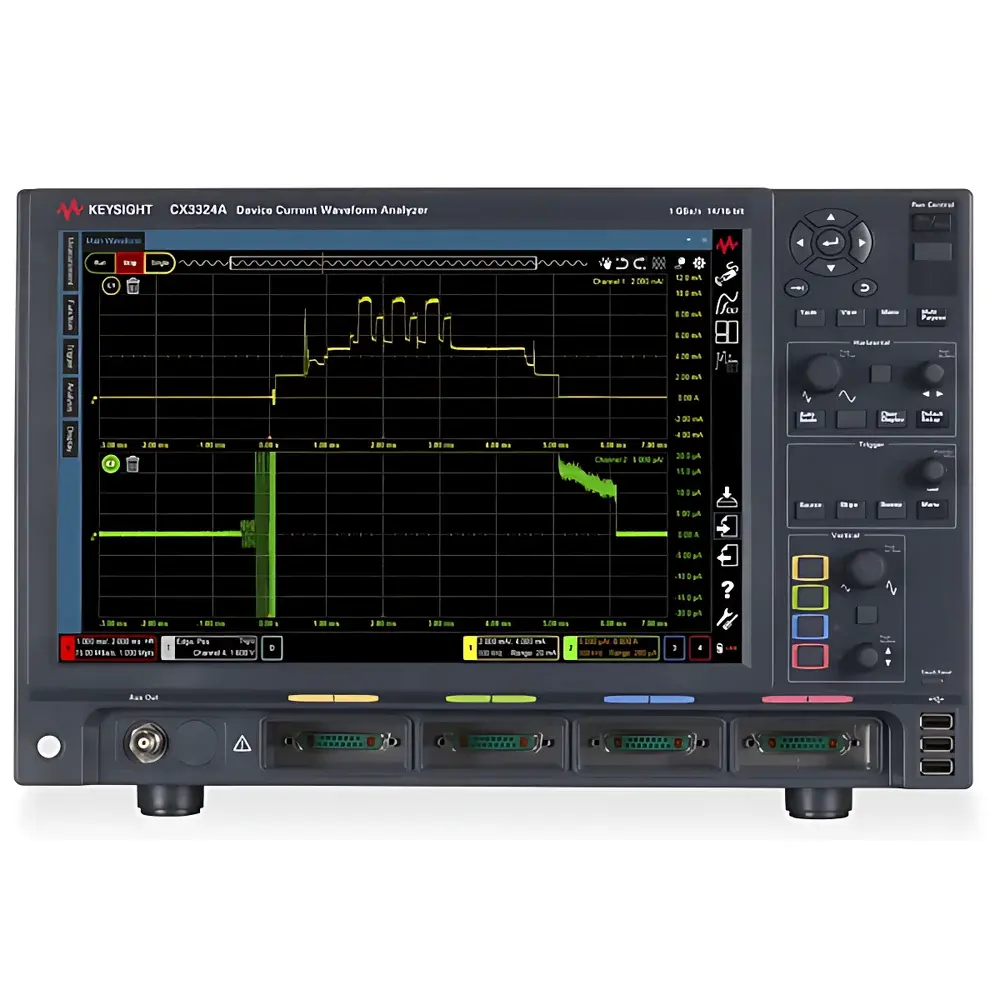

Keysight CX3300 Series Device Current Waveform Analyzer

Overview

The Keysight CX3300 Series Device Current Waveform Analyzer is a precision electronic measurement instrument engineered for high-fidelity acquisition and quantitative analysis of transient current waveforms in semiconductor devices, power electronics, and advanced material characterization systems. Unlike general-purpose oscilloscopes, the CX3300 is specifically architected around low-noise current sensing—leveraging optimized analog front-end design, high-resolution digitization (14- or 16-bit ADC), and calibrated sensor interface circuitry to resolve sub-microampere-level current transients with minimal quantization error and thermal drift. Its core measurement principle relies on real-time digitization of voltage signals from precision current sensors (e.g., shunt-based, Hall-effect, or Rogowski coil outputs), followed by deterministic time-domain reconstruction and parametric extraction. The instrument operates under rigorous traceable calibration protocols aligned with ISO/IEC 17025-accredited standards, ensuring metrological integrity across R&D labs, reliability test benches, and pre-compliance validation environments.

Key Features

• Four synchronized analog input channels with configurable bandwidth options (50 MHz, 100 MHz, or 200 MHz), each supporting direct connection to industry-standard current probes, differential voltage sensors, and passive 10×/100× probes via dedicated adapter interfaces.
• High dynamic range acquisition: selectable 14-bit or 16-bit vertical resolution enables simultaneous capture of both large-swing switching currents (e.g., >10 A peak in GaN HEMT gate drive analysis) and ultra-low quiescent currents (<1 µA) without range switching artifacts.
• Deep memory architecture: scalable waveform record length from 4 Mpts to 256 Mpts per channel, permitting long-duration transient capture (e.g., startup sequencing, fault recovery cycles, or thermal soak testing) at full sampling rate (up to 1 GSa/s).
• Integrated WXGA 14.1-inch capacitive multi-touch display with gesture-native UI—enabling intuitive zoom, pan, marker placement, and parameter table navigation without external peripherals.
• Comprehensive trigger suite including edge, pulse width, slew rate, timeout, logic state, and serial protocol triggers (I²C, SPI, UART), enabling precise isolation of rare-event current anomalies such as latch-up, shoot-through, or ESD-induced conduction spikes.
• Built-in math engine supporting FFT-based spectral analysis, time-domain integration (for charge calculation), differentiation (for di/dt estimation), FIR/IIR filtering, and user-defined expression evaluation (e.g., P = I(t) × V(t)).

Sample Compatibility & Compliance

The CX3300 supports standardized current measurement interfaces compliant with IEEE 1149.4 (mixed-signal boundary scan) and JEDEC JESD22-A114 (ESD sensitivity testing) signal conditioning requirements. It accommodates commercial off-the-shelf current probes meeting IEC 61000-4-8 (power frequency magnetic field immunity) and CISPR 16-1-1 (EMI receiver compatibility) specifications. All factory calibrations are performed per Keysight’s internal metrology procedures traceable to NIST standards. The instrument meets CE marking requirements (EMC Directive 2014/30/EU and LVD Directive 2014/35/EU), and its firmware architecture supports audit-ready operation under GLP and GMP environments—including secure user authentication, electronic signature capability, and FDA 21 CFR Part 11–compliant data logging when paired with Keysight PathWave software.

Software & Data Management

The CX3300 runs on a real-time Linux-based embedded OS with deterministic interrupt handling for jitter-free waveform acquisition. It natively exports binary (.wfm), CSV, and MATLAB-compatible .mat files with full metadata (timestamp, calibration coefficients, sensor gain settings, and trigger context). Optional PathWave Studio integration provides automated test sequencing, statistical process control (SPC) charting, and cross-instrument correlation (e.g., synchronizing current waveforms with thermal imaging or IV curve traces). All waveform datasets include embedded digital signatures for integrity verification; revision-controlled configuration templates can be versioned and shared across global engineering teams via Keysight’s secure cloud repository.

Applications

• Power device characterization: gate charge (Qg), Miller plateau analysis, turn-on/off energy loss decomposition, and short-circuit ruggedness validation for SiC MOSFETs and GaN HEMTs.
• Semiconductor reliability testing: IDDQ monitoring during burn-in, leakage current mapping across wafer lots, and time-dependent dielectric breakdown (TDDB) precursor detection.
• Sensor interface validation: dynamic response assessment of current-output sensors (e.g., linear Hall ICs, isolated amplifiers) under pulsed excitation and EMI stress conditions.
• Low-power IoT node optimization: ultra-low-duty-cycle current profiling (nA–µA range) across sleep/wake transitions, RF transmission bursts, and sensor wake events.
• Material science studies: transient conduction analysis in memristive devices, organic semiconductors, and 2D material heterostructures under pulsed bias conditions.

FAQ

What current probe types are officially supported by the CX3300?
Keysight validates compatibility with its own N2820A/N2821A high-sensitivity current probes (12-bit ENOB, 50 MHz BW), as well as third-party probes meeting IEEE Std 1149.4 analog boundary scan interface specifications and possessing calibrated transfer functions traceable to national metrology institutes.
Can the CX3300 perform automated pass/fail testing against user-defined current waveform limits?
Yes—via PathWave Studio’s Test Executive module, users define limit masks (time-voltage envelopes), statistical thresholds (e.g., max di/dt < 2 A/ns), and tolerance bands; results are logged with timestamp, operator ID, and environmental sensor data (if integrated).
Is remote programming supported, and which interfaces are available?
The instrument supports SCPI over LAN (TCP/IP), USBTMC, and GPIB. Full IVI-COM and IVI-C drivers are provided, along with Python API wrappers compatible with PyVISA and Keysight’s open-source Instrument Control Framework.
How does the CX3300 handle ground loop interference in high-current switching measurements?
All analog inputs feature galvanically isolated front ends with >100 dB CMRR at 1 MHz and differential input architecture; optional isolated sensor adapters (e.g., N2820A-001) eliminate ground reference conflicts in half-bridge or multi-phase inverter topologies.
Does the CX3300 meet MIL-STD-461G or DO-160G electromagnetic compatibility requirements?
While not certified to airborne or military EMC standards out-of-box, the CX3300’s base EMC performance complies with Class B ITE limits per CISPR 32; supplemental shielding kits and filtered I/O modules are available for deployment in avionics test bays or defense-grade labs requiring DO-160G Section 20 radiated emissions compliance.
