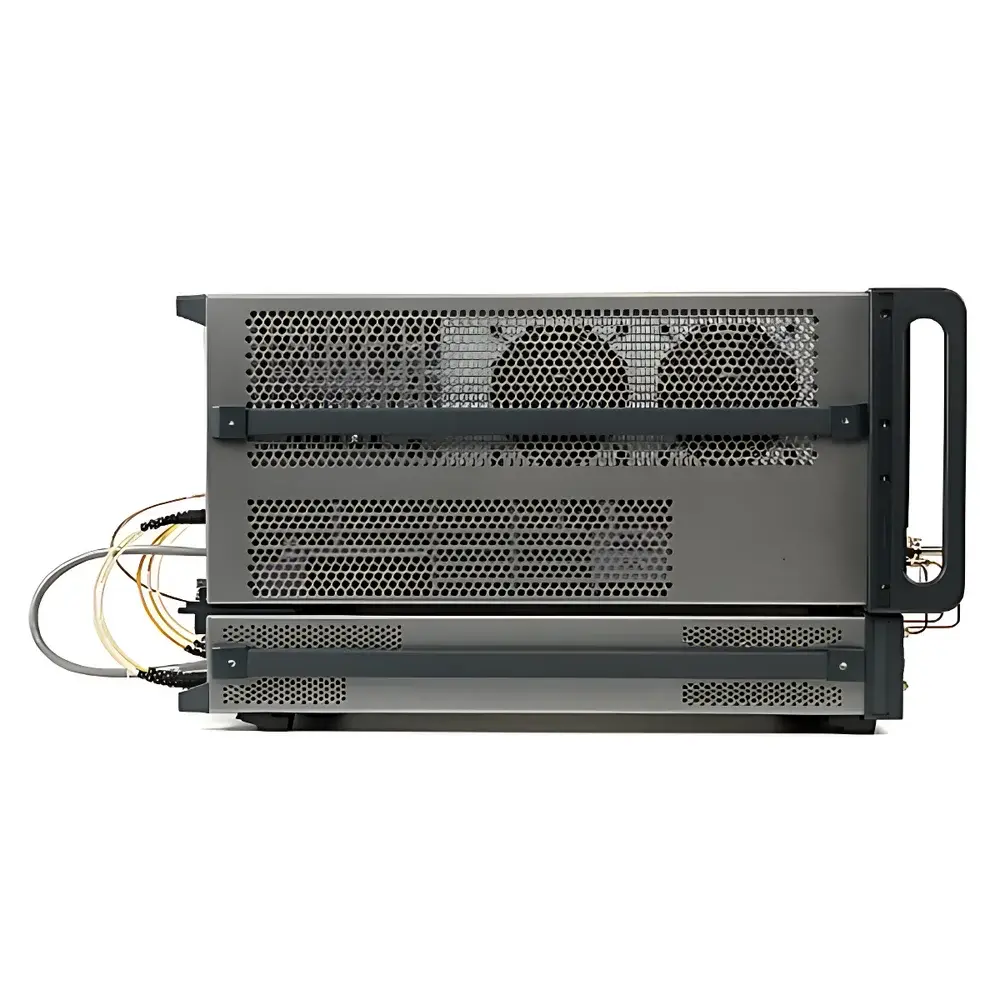

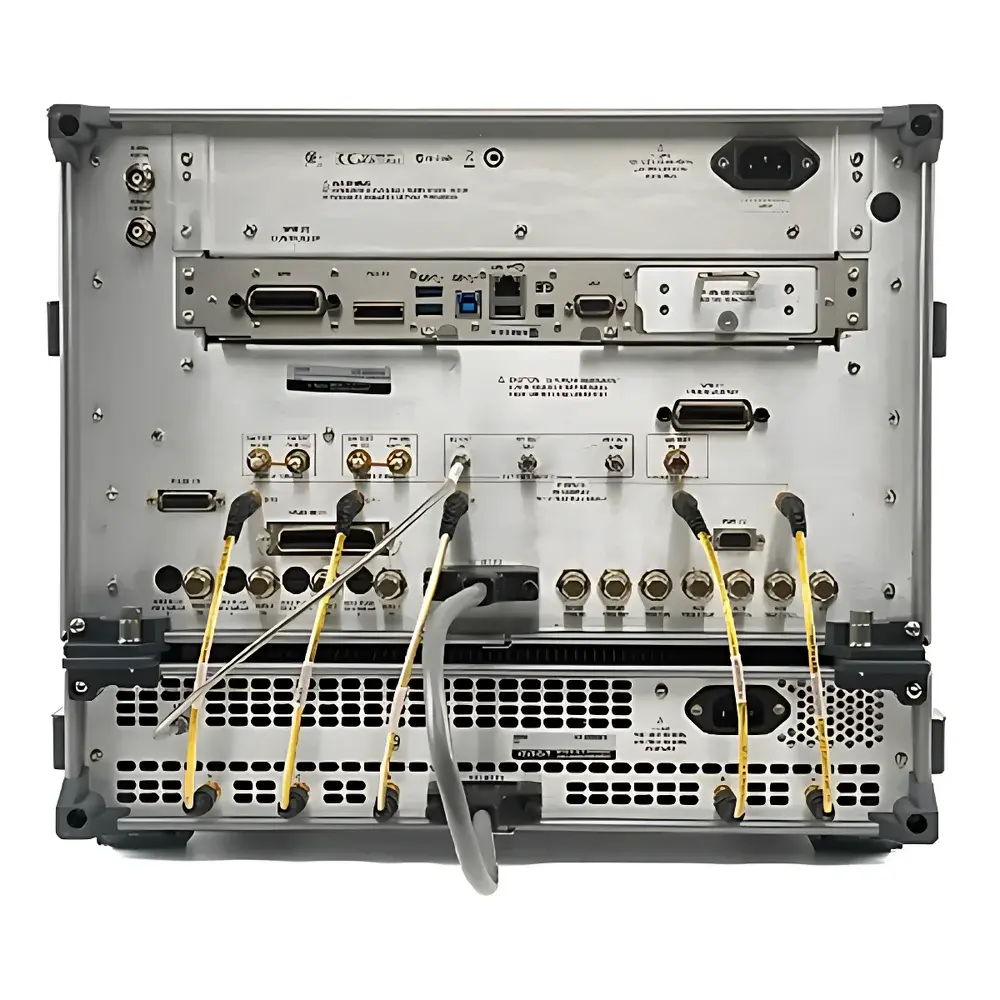

Keysight N5291A PNA Microwave Network Analyzer System (900 Hz to 120 GHz)

Overview

The Keysight N5291A is a high-performance, modular millimeter-wave network analyzer system engineered for precision S-parameter characterization across an ultra-broad frequency span—from 900 Hz up to 120 GHz. Unlike conventional swept-frequency analyzers requiring multiple instrument configurations or external harmonic mixers, the N5291A integrates a base PNA or PNA-X platform with the N5292A millimeter-wave test controller and the N5295AX03 120 GHz frequency extender into a single, coherently synchronized measurement architecture. This architecture leverages fundamental heterodyne receiver design principles combined with phase-locked local oscillator (LO) distribution to maintain traceable amplitude and phase accuracy across all bands. The system operates under true vector network analysis (VNA) principles—measuring complex reflection (S11, S22) and transmission (S21, S12) coefficients with calibrated error correction applied in real time using full 12-term error models. Its design targets R&D laboratories engaged in mmWave IC validation, antenna-in-package (AiP) characterization, 5G FR2 and 6G THz component development, and advanced radar front-end testing where broadband dynamic range (>130 dB at 67 GHz), low residual phase noise (<–110 dBc/Hz at 10 kHz offset), and thermal stability (<±0.01 dB/°C gain drift) are mission-critical.

Key Features

• Single-sweep broadband coverage from 900 Hz to 120 GHz—eliminates band stitching artifacts and reduces measurement uncertainty associated with multi-instrument correlation.
• Modular architecture supporting both 2-port and 4-port configurations; enables differential, mixed-mode (Sdd, Scd), and time-domain reflectometry (TDR) analysis without hardware reconfiguration.
• Integrated N5292A controller provides deterministic LO synchronization, automatic power leveling, and real-time IF bandwidth optimization to preserve dynamic range across extended bands.
• Onboard power calibration capability with user-defined power sweep profiles—supports precise compression point (P1dB), AM-to-PM distortion, and large-signal S-parameter measurements per IEEE Std 1785.1.
• Rugged mechanical design compliant with MIL-STD-461G RS103 radiated emissions requirements—suitable for integration into shielded anechoic chambers and production test environments.
• Front-panel and remote GPIB/LAN/USB interfaces support SCPI command compliance and seamless integration into automated test systems (ATE).

Sample Compatibility & Compliance

The N5291A accommodates standard RF/microwave fixtures including coaxial (2.4 mm, 1.0 mm), waveguide (WR-8, WR-10), and probe station interfaces via optional calibration kits (e.g., Keysight 85056D, 85058D). It supports full two-port calibration (SOLT, TRL, LRM) and multiport extension (NIST-traceable TMS) for on-wafer and packaged device characterization. All firmware and calibration data comply with ISO/IEC 17025 requirements for accredited metrology labs. Measurement data integrity adheres to FDA 21 CFR Part 11 guidelines when used with Keysight PathWave ADS or IC-CAP software featuring audit trail logging and electronic signature enforcement.

Software & Data Management

The system ships with Keysight PathWave Vector Network Analyzer (VNA) Software (version 2023 or later), enabling advanced time-domain gating, limit line testing, impedance matching synthesis, and statistical process control (SPC) charting. Raw .snpx files are natively supported for import into MATLAB, Python (via PyVISA or scikit-rf), and Ansys HFSS. Data export formats include CSV, Touchstone v2.0, and HDF5 for long-term archival. Optional application-specific software packages—including Nonlinear X-Parameters™, Noise Figure Application, and Pulse Profiling—extend functionality for RFIC designers and semiconductor test engineers. All software modules undergo annual cybersecurity hardening per NIST SP 800-53 Rev. 5 controls.

Applications

• Characterization of GaN and GaAs power amplifiers operating in 24–47 GHz (5G FR2) and 71–86 GHz (E-band) bands.
• Validation of integrated antenna modules (AiM) and reconfigurable intelligent surfaces (RIS) for 6G sub-THz channel modeling.
• Time-domain analysis of high-speed interconnects (PCIe 6.0, UCIe) with sub-picosecond resolution via gated impulse response extraction.
• Material property extraction (permittivity, permeability) using free-space or waveguide-based dielectric measurement setups per ASTM D5568.
• Calibration reference standards development for national metrology institutes (NMIs) requiring SI-traceable VNA verification above 110 GHz.

FAQ

What calibration methods are supported for the 120 GHz band?
TRL (Thru-Reflect-Line) and LRM (Line-Reflect-Match) calibrations are fully supported using waveguide-based calibration kits certified to NIST traceability standards. SOLT is available up to 67 GHz.
Can the N5291A perform harmonic distortion measurements?
Yes—when configured with the PNA-X variant and Option 089 (Source Phase Coherence), it supports calibrated harmonic S-parameter measurements up to the 5th harmonic at fundamental frequencies ≤24 GHz.
Is remote programming supported over LAN?
Yes—the instrument implements LXI Class C compliance with full SCPI command set support and IPv4/IPv6 dual-stack operation. VXI-11 and raw socket interfaces are also available.
How is temperature stability managed during extended sweeps?
The N5292A controller includes active thermal compensation algorithms that monitor ambient and internal sensor readings to adjust IF gain and LO power in real time, maintaining amplitude repeatability within ±0.005 dB over 8-hour continuous operation.
Does Keysight provide factory calibration documentation?
Each delivered system includes a NIST-traceable calibration certificate valid for 12 months, listing measured uncertainties per ISO/IEC 17025 Annex A. Certificate metadata is embedded in the instrument’s internal memory and accessible via SCPI query.
