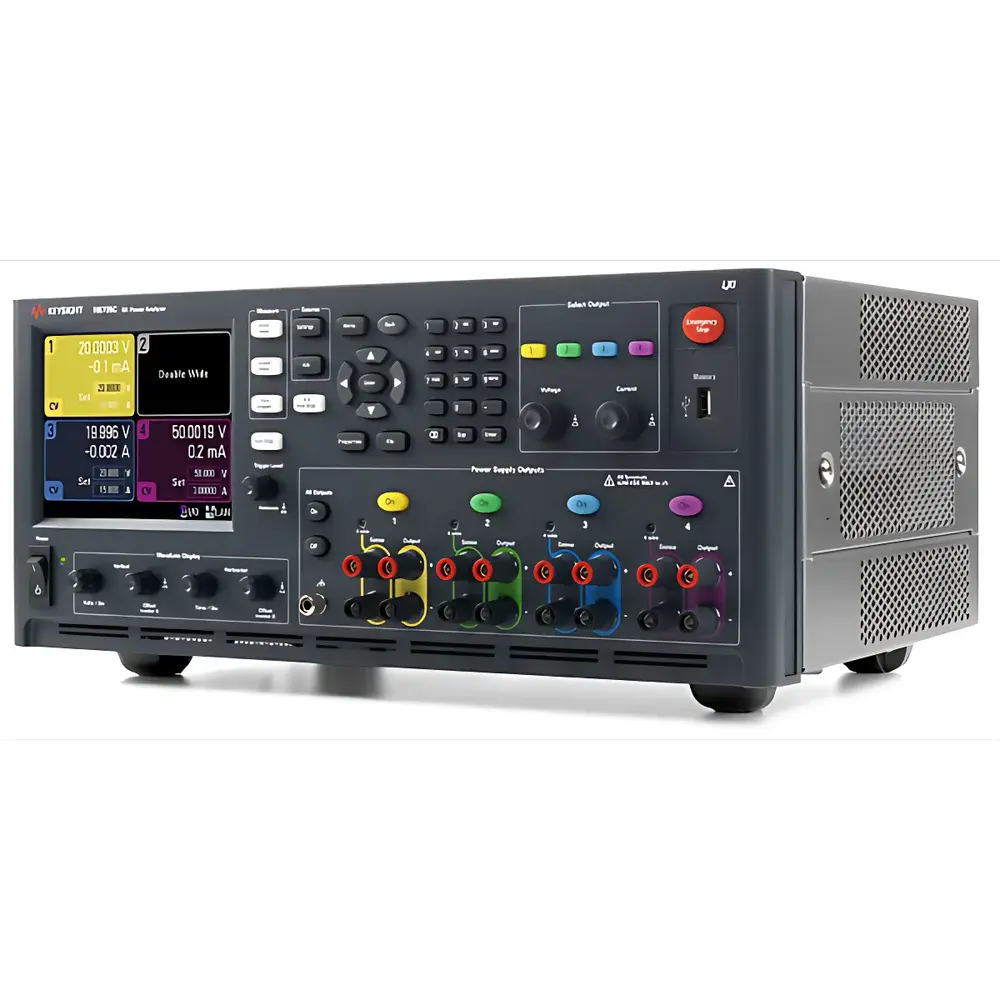

Keysight N6705C DC Power Analyzer

Overview

The Keysight N6705C DC Power Analyzer is an integrated instrumentation platform engineered for high-precision characterization and dynamic analysis of DC power delivery systems. Unlike conventional benchtop power supplies or standalone multimeters, the N6705C unifies four core measurement and sourcing capabilities—DC power supply, digital multimeter (DMM), oscilloscope, and arbitrary waveform generator—into a single, synchronized instrument architecture. It operates on a real-time, high-fidelity signal acquisition principle: analog voltage and current outputs are conditioned via low-noise front-end circuitry, digitized using 18-bit successive-approximation register (SAR) ADCs, and processed with deterministic timing to ensure phase-coherent, time-aligned V-I data capture. This architecture enables sub-microsecond transient monitoring, accurate power integrity assessment, and seamless correlation between stimulus generation and response measurement—critical for validating power sequencing, load regulation, and dynamic line/load step responses in modern electronic designs.

Key Features

• Integrated 4-in-1 functionality: DC power source, precision DMM, 200 kHz dual-channel oscilloscope (512 kpts), and 100 kHz arbitrary waveform generator—all time-synchronized and controlled from a single interface.
• High-accuracy metrology: Voltmeter accuracy of 0.025% + 50 µV and ammeter accuracy of 0.025% + 8 nA, traceable to NIST standards; 18-bit resolution across all measurement domains.
• Ultra-fast transient capture: 200 kHz sampling rate with hardware-triggered acquisition, supporting detailed analysis of voltage droop, current surges, and recovery behavior during load transients.
• Flexible sourcing modes: Constant voltage (CV), constant current (CC), constant resistance (CR), and list mode sequencing with programmable slew rates and dwell times.
• High-speed data logging: Adjustable interval from 20 µs to 60 s; capable of acquiring and storing up to 500 million readings per session with timestamping and metadata tagging.
• Rack-mountable modular design: Compatible with Keysight’s N6700 series modular power system; supports up to four output modules in a single mainframe for multi-rail testing.

Sample Compatibility & Compliance

The N6705C is designed for direct connection to devices under test (DUTs) ranging from low-power ICs and sensors to high-current power converters and battery management systems. Its four-quadrant operation supports both sourcing and sinking modes, enabling bidirectional energy flow analysis essential for regenerative load testing and battery charge/discharge profiling. The instrument complies with IEC/EN 61010-1 for electrical safety and meets CISPR 11 Class B emission limits. Firmware and firmware update procedures adhere to Keysight’s ISO 9001-certified development lifecycle. When configured with optional security and audit trail features, it supports GLP/GMP environments and aligns with FDA 21 CFR Part 11 requirements for electronic records and signatures—particularly relevant for regulated R&D labs and validation workflows.

Software & Data Management

Control and analysis are performed via Keysight PathWave BenchVue software (Windows/macOS), which provides intuitive drag-and-drop test sequencing, real-time waveform overlays, and automated report generation in PDF, CSV, or MATLAB-compatible formats. The instrument supports SCPI command set over LAN (LXI), USB, and GPIB, enabling full integration into automated test systems built on Python, LabVIEW, or TestStand. All acquired datasets include embedded calibration metadata, timestamp synchronization (IEEE 1588 PTP optional), and user-defined annotation fields. Raw binary data files (.bin) are structured for post-processing in MATLAB or Python using Keysight’s open-source IVI-COM and .NET drivers, ensuring long-term data reproducibility and traceability.

Applications

• Power supply design validation: Characterizing line/load regulation, ripple/noise, transient response, and efficiency across operating conditions.
• IC power integrity testing: Measuring quiescent current (IQ), sleep-mode leakage, and wake-up transients in microcontrollers, PMICs, and RF SoCs.
• Battery and energy storage evaluation: Performing CC/CV charge profiling, pulse discharge testing, and internal resistance (DCIR) calculation.
• Automotive ECU power sequencing: Verifying startup/shutdown timing, rail coupling effects, and brown-out recovery behavior under programmable load steps.
• Academic and standards-compliant research: Supporting IEEE 1149.4, JEDEC JESD22-A123, and IEC 62304-related power stress testing protocols.

FAQ

What distinguishes the N6705C from a standard programmable DC power supply?
The N6705C integrates precision measurement capabilities—including 18-bit DMM, 200 kHz oscilloscope, and data logging—within the same physical unit as the power source, eliminating signal path errors introduced by external meters and enabling true stimulus-response correlation.
Can the N6705C perform simultaneous voltage and current measurements at 200 kHz?
Yes. Both channels acquire voltage and current data synchronously at up to 200 kHz with hardware-level time alignment, preserving phase relationships critical for power and impedance calculations.
Is remote programming and automation supported?
Yes. Full SCPI command support over LAN, USB, and GPIB; compatible with Keysight IO Libraries Suite, Python (pyvisa), LabVIEW, and NI TestStand.
Does the instrument support compliance testing for medical or automotive standards?
While the N6705C itself is not certified to UL/CSA for end-product safety, its metrological performance and audit-trail-ready firmware options make it suitable for use in laboratories performing testing per IEC 60601-1, ISO 26262, or AEC-Q200 qualification workflows.
How is calibration maintained over time?
Keysight recommends annual calibration using Keysight-certified service centers; internal self-calibration routines verify gain/offset stability before each measurement session, and calibration certificates include uncertainty budgets per ISO/IEC 17025.
