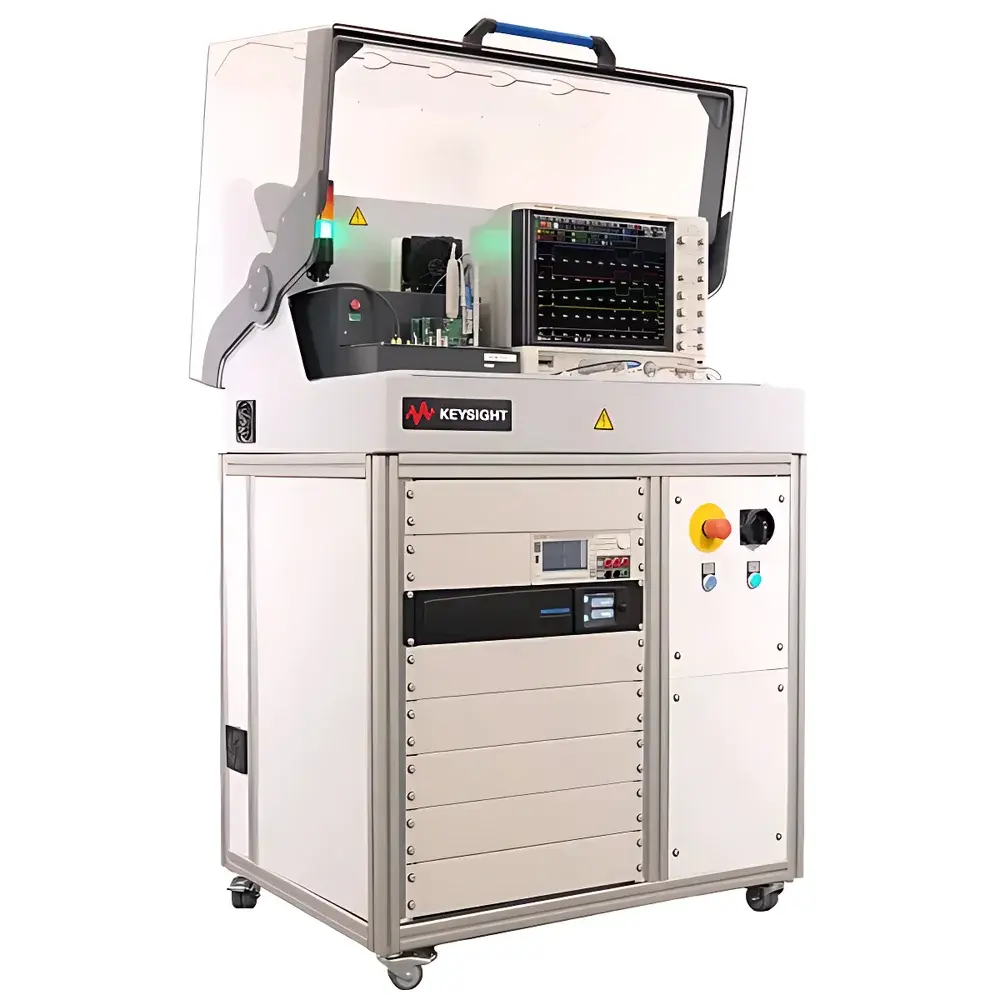

Keysight PD1500A Dynamic Power Device Analyzer / Double-Pulse Tester

Overview

The Keysight PD1500A Dynamic Power Device Analyzer / Double-Pulse Tester is a purpose-built, high-fidelity measurement platform engineered for the precise characterization of power semiconductor switching dynamics under realistic operating conditions. It implements the industry-standard double-pulse test (DPT) methodology—defined in JEDEC JESD24-1 and IEC 60747-9—to excite and capture transient electrical behavior during turn-on, turn-off, and reverse recovery events. Unlike general-purpose oscilloscopes or benchtop power analyzers, the PD1500A integrates synchronized high-bandwidth voltage and current sensing (up to 1 GHz bandwidth), ultra-low-jitter pulse generation (< 50 ps jitter), and galvanically isolated signal acquisition channels—enabling sub-nanosecond timing alignment between gate drive, drain-source voltage (V_DS), and drain current (I_D). This architecture ensures traceable, repeatable measurements critical for SiC MOSFETs, GaN HEMTs, silicon IGBTs, and hybrid modules used in EV traction inverters, renewable energy converters, and industrial motor drives.

Key Features

• Hardware-protected double-pulse stimulus engine with programmable pulse width (10 ns – 100 µs), delay resolution ≤ 100 ps, and adjustable dead time (50 ns – 10 ms)
• Integrated high-sensitivity current probes (1 MHz – 1 GHz bandwidth) and differential voltage probes (100 MHz – 1 GHz) with calibrated gain/phase compensation
• Real-time waveform capture at up to 10 GS/s across all channels, with deep memory (≥ 256 Mpts per channel) for multi-event transient analysis
• Active device protection circuitry including overvoltage clamping (±1200 V), overcurrent limiting (≤ 2000 A peak), and automatic fault shutdown with hardware interlock
• Modular test fixture interface supporting TO-247, D2PAK, TOLL, and bare-die configurations with thermal monitoring inputs (RTD/thermocouple)
• Fully isolated user interface (Class I, reinforced insulation) compliant with IEC 61000-4-5 surge immunity and EN 61326-1 EMC requirements

Sample Compatibility & Compliance

The PD1500A supports dynamic characterization of discrete power devices and modules rated up to 1200 V and 2000 A, covering silicon-based IGBTs and MOSFETs as well as wide-bandgap technologies—including 650 V/1200 V/1700 V SiC MOSFETs and 650 V GaN HEMTs. All measurements adhere to standardized test conditions defined in JEDEC JESD24-1 (double-pulse testing), JEDEC JESD24-10 (gate charge measurement), and IEC 60747-9 (discrete semiconductor device testing). The system meets ISO/IEC 17025 calibration traceability requirements when operated with Keysight-certified probe kits and factory-maintained reference standards. Its safety architecture conforms to UL/CSA 61010-1 Edition 3 and IEC 61010-1:2010, ensuring operator protection during high-energy switching tests.

Software & Data Management

Controlled via Keysight PathWave Device Analyzer software (v2.1+), the PD1500A provides automated test sequencing, parameter extraction (E_on, E_off, Q_rr, t_rr, Q_g, dV/dt, di/dt), statistical trend analysis, and export to CSV, MATLAB (.mat), and SPICE-compatible netlists. The software implements full 21 CFR Part 11 compliance—including role-based access control, electronic signatures, audit trail logging (with immutable timestamps), and data integrity validation—making it suitable for regulated environments governed by ISO 9001, IATF 16949, and GLP/GMP quality systems. Raw waveform data is stored in HDF5 format with embedded metadata (test conditions, calibration IDs, environmental readings), enabling long-term reproducibility and cross-lab correlation studies.

Applications

• Characterization of switching losses and safe operating area (SOA) boundaries for next-generation SiC and GaN power stages
• Gate driver loop optimization through quantitative evaluation of Miller plateau duration, gate threshold voltage shift, and parasitic oscillation
• Reverse recovery analysis of body diodes in cascode GaN and co-packaged SiC diodes under varying temperature and current slew rate conditions
• Qualification testing per AEC-Q101 stress protocols, including dynamic R_DS(on) drift and short-circuit ruggedness assessment
• Correlation of SPICE and PLECS behavioral models with empirical switching waveforms for simulation accuracy validation
• Production line screening of dynamic parameters for high-reliability aerospace and rail traction applications

FAQ

What standards does the PD1500A comply with for double-pulse testing?
The system implements test methodologies aligned with JEDEC JESD24-1, IEC 60747-9, and IEEE 1785.1 for wide-bandgap device characterization.
Can the PD1500A measure gate charge (Qg) and its components (Qgs, Qgd)?
Yes—it supports integrated gate charge extraction using the constant-current charging method per JEDEC JESD24-10, with automatic plateau detection and derivative-based segmentation.
Is thermal derating supported during dynamic testing?
The platform accepts external temperature sensor inputs (RTD/Type-K) and enables real-time thermal gating of test sequences to enforce junction temperature limits.
How is measurement uncertainty managed across different probe configurations?
Each probe kit ships with NIST-traceable calibration certificates; the software applies channel-specific phase/gain correction matrices derived from S-parameter sweeps.
Does the system support automated pass/fail binning against user-defined limits?
Yes—custom limit templates can be applied per parameter (e.g., E_off ≤ 1.2 mJ @ 800 V/100 A), with configurable reporting and SCADA integration via OPC UA.
