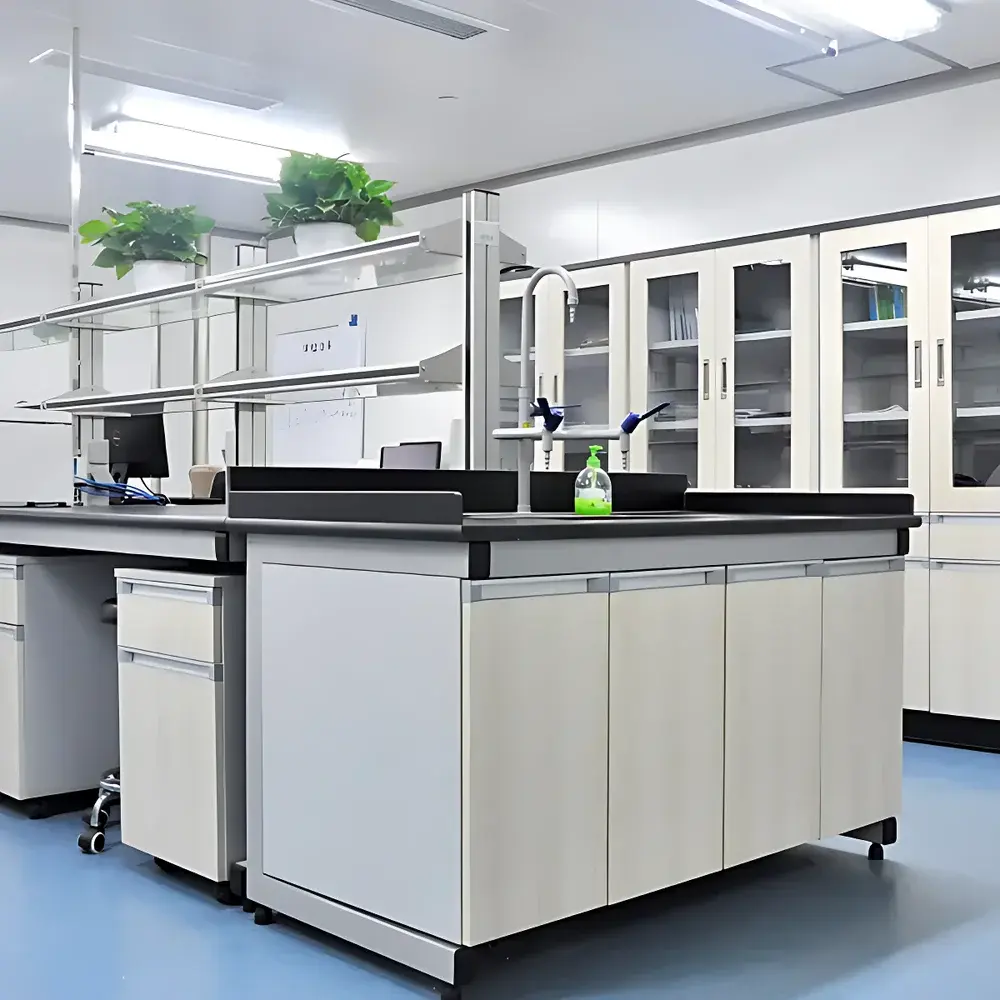

KHLAB Pathology Laboratory Turnkey Engineering Services

Overview

KHLAB Pathology Laboratory Turnkey Engineering Services deliver comprehensive, standards-aligned laboratory infrastructure solutions tailored specifically for clinical pathology diagnostics and biomedical research. Grounded in ISO 15189, CAP (College of American Pathologists) checklist requirements, and China’s WS/T 641–2018 “General Requirements for Clinical Pathology Laboratories”, this service encompasses end-to-end planning, architectural integration, HVAC system specification, containment zoning (including grossing, embedding, sectioning, staining, and microscopy areas), and commissioning support. The design philosophy prioritizes workflow efficiency, biosafety compliance (BSL-2 principles), airborne contaminant control via directional airflow and HEPA filtration, and long-term adaptability to evolving diagnostic technologies such as digital pathology scanners and AI-assisted image analysis platforms.

Key Features

• Workflow-Optimized Layout Design: Zoning strategy strictly separates pre-analytical (specimen reception, grossing), analytical (microtomy, H&E/IHC staining, slide scanning), and post-analytical (reporting, archiving) functions to minimize cross-contamination and specimen tracking errors.
• Biosafety-Integrated Infrastructure: Includes dedicated fume hoods with ≥0.5 m/s face velocity for formalin-based grossing stations, negative-pressure isolation rooms for infectious specimen handling, and anterooms with interlocked doors between high-risk zones.
• Environmental Control System: Precision HVAC with independent air handling units (AHUs) per zone; supply air filtered through MERV-14 pre-filters and HEPA H14 final filters; exhaust air treated via carbon adsorption before release to meet GB 16297–1996 emission limits.
• Digital Pathology Readiness: Structural provisions for high-bandwidth fiber-optic cabling, redundant power circuits (UPS-backed), vibration-damped flooring for whole-slide imaging systems, and thermal management for server racks housing WSI storage and AI inference engines.
• Regulatory Documentation Package: Delivered upon project closeout includes as-built drawings, equipment qualification records (IQ/OQ), HVAC validation reports (air change rate, pressure cascade, particle count), and a traceable compliance matrix mapping each design element to relevant clauses in ISO 15189:2022 and CAP LAB.42345.

Sample Compatibility & Compliance

This engineering service is applicable to human tissue specimens (fixed, frozen, or decalcified), cytology samples (Pap smears, body fluids), and molecular pathology workflows requiring integrated DNA/RNA extraction modules. All designs comply with national and international regulatory frameworks including: GB 50346–2011 “Code for Design of Biosafety Laboratories”, WS/T 641–2018, ISO 15189:2022 Clause 5.2 (Facilities and Environmental Conditions), and CAP accreditation standards for specimen integrity, environmental monitoring, and risk-based facility maintenance. Fire safety follows GB 50016–2014 (2018 Edition), and electrical systems conform to GB 50054–2011.

Software & Data Management

While not a software product per se, KHLAB’s engineering deliverables include seamless interoperability interfaces for LIS (Laboratory Information Systems) and digital pathology platforms. Structural provisions accommodate standardized API endpoints (HL7/FHIR-compliant) for bidirectional specimen status synchronization between LIS and physical lab zones. Environmental monitoring data from HVAC sensors, particulate counters, and temperature/humidity loggers can be integrated into centralized SCADA or CMMS platforms supporting audit trails compliant with GLP/GMP Annex 11 and FDA 21 CFR Part 11 requirements for electronic records and signatures.

Applications

• Hospital-based clinical pathology departments seeking CAP or ISO 15189 accreditation
• Academic medical centers establishing translational research pathology cores
• Reference laboratories expanding capacity for high-volume IHC, FISH, and NGS sample preparation
• Contract research organizations (CROs) requiring auditable, validated pathology infrastructure for clinical trial specimen processing
• Regional health authorities implementing standardized pathology service networks across tier-2 and tier-3 hospitals

FAQ

Does KHLAB provide turnkey construction, or only design consultancy?
KHLAB delivers full turnkey engineering services—including schematic design, detailed engineering drawings, vendor coordination, on-site supervision, and commissioning support—but partners with licensed general contractors for civil works and mechanical installation.
Can the design accommodate future expansion of molecular pathology capabilities?
Yes. Modular layout planning includes reserved floor space, structural load allowances (≥5 kN/m²), dedicated 24/7 power feeds, and pre-installed cryogenic piping routes for potential -80°C ultra-low freezers and liquid nitrogen storage.
Is validation documentation included in the scope?
Yes. IQ/OQ documentation for critical utilities (HVAC, compressed air, vacuum), as well as air balance reports and pressure cascade verification, are delivered as part of the final handover package.
What is the typical timeline for a medium-scale (300–500 m²) pathology lab project?
From initial briefing to operational handover, the standard duration is 6–9 months—contingent on client review cycles, permitting timelines, and local construction regulations.
Do you support international clients outside mainland China?
KHLAB has supported projects in Southeast Asia and the Middle East; all documentation is provided in English, and design standards can be adapted to local regulatory equivalents (e.g., UK HTA, US CLIA, or GCC GSO requirements) upon request.
