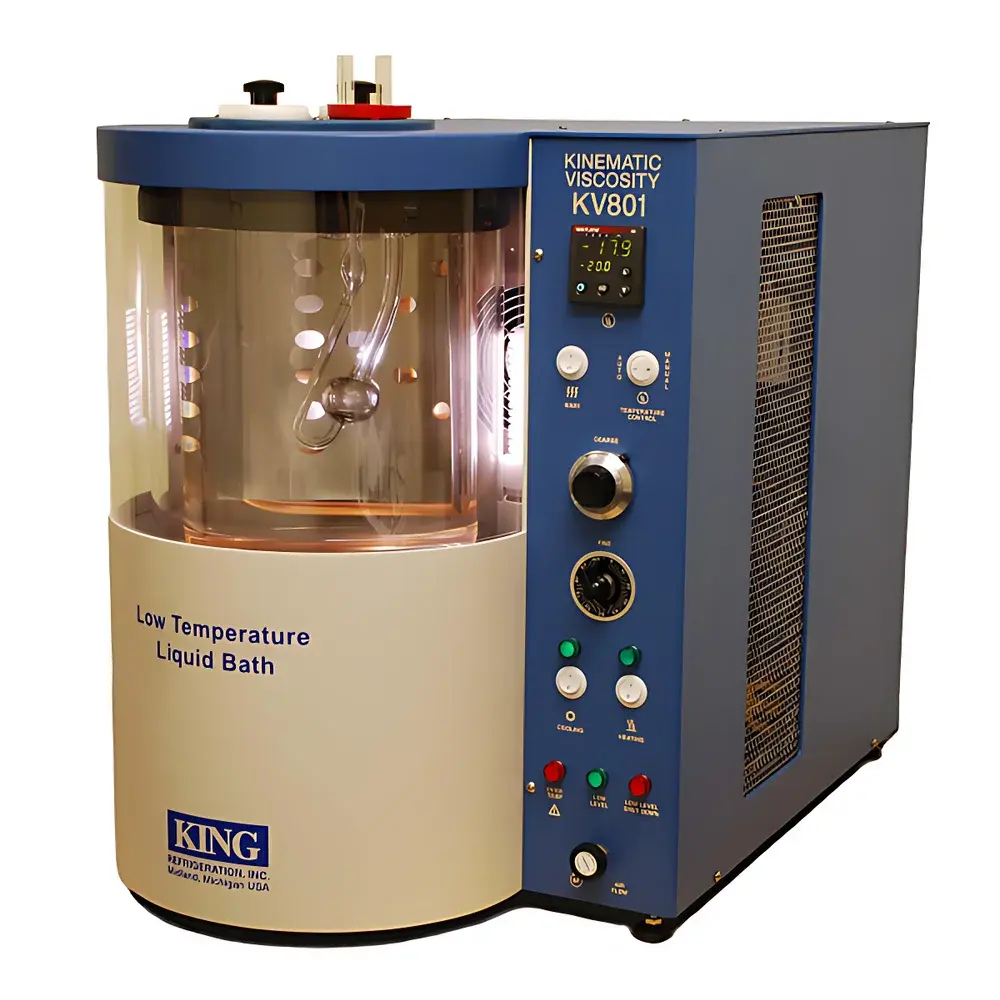

King KV801/KV802/KV803 Kinematic Viscosity Bath System

Overview

The King KV801/KV802/KV803 Kinematic Viscosity Bath System is a precision-engineered thermal bath platform designed specifically for standardized capillary viscometry in petroleum, lubricant, and specialty fluid testing laboratories. Operating on the principle of gravity-driven capillary flow—where kinematic viscosity (ν) is derived from the efflux time of a fixed volume of liquid through a calibrated glass capillary under controlled temperature—the system provides thermally stable, uniform, and reproducible bath conditions across wide operational ranges. Each model is purpose-built for distinct thermal regimes: KV801 supports low-temperature testing down to –40 °C; KV802 extends capability to ultra-low temperatures of –70 °C using dual-stage HFC refrigeration; and KV803 delivers high-temperature stability up to 150 °C with integrated resistive heating and advanced PID-controlled thermal management. All units comply with ASTM D445 “Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity)” and its Chinese national equivalent GB/T 265, ensuring traceable, inter-laboratory comparable results required for product specification, quality control, and regulatory submission.

Key Features

• Triple-model architecture optimized for specific thermal domains: KV801 (–40 °C), KV802 (–70 °C), and KV803 (150 °C), eliminating cross-range compromise in precision or reliability
• Dual-sensor temperature control architecture: digital readout with ±0.1 °C accuracy and analog feedback loop achieving ±0.01–0.02 °C short-term stability—critical for meeting ASTM D445 repeatability criteria (≤0.35% RSD)
• Integrated high-efficiency refrigeration: KV802 employs cascade R507/R508B refrigerant system with 1/3 HP hermetic compressor, enabling rapid cooldown (~30 °C/h average from ambient to –70 °C) without external chillers
• Large-format viewing window (41 cm × 23 cm) with anti-fog coating permits real-time visual monitoring of capillary efflux and meniscus tracking during timed measurements
• Rigid powder-coated aluminum frame construction ensures dimensional stability under thermal cycling and long-term mechanical integrity in ISO 17025-accredited lab environments
• Modular bath geometry accommodates standard Ubbelohde, Cannon-Fenske, and BS/IP capillary viscometers—four positions for KV801/KV802, six for KV803—to support parallel sample throughput and method validation studies

Sample Compatibility & Compliance

The King KV series is validated for use with transparent and opaque petroleum-based fluids—including base oils, finished lubricants, fuel blends, bitumens (after dilution), and synthetic esters—as specified in ASTM D445 Annex A1. The bath’s uniform temperature field (±0.05 °C spatial gradient across full working volume) ensures compliance with clause 7.2 of ASTM D445, which mandates “temperature uniformity within ±0.02 °C at the capillary bulb location.” Units are supplied with calibration-ready geometry and documentation supporting IQ/OQ protocols. Full traceability to NIST-traceable reference standards is maintained via optional factory calibration certificates (NIST-traceable RTD verification at three points per range). The system meets mechanical and electrical safety requirements per UL 61010-1 and IEC 61010-1, and its thermal control firmware architecture supports audit-ready operation under GLP and GMP frameworks where electronic record retention and user-access controls are mandated.

Software & Data Management

While the King KV baths operate as standalone hardware platforms per ASTM D445’s manual timing protocol, they integrate seamlessly into modern laboratory data ecosystems. Analog voltage outputs (0–10 V) and RS-232 serial interface enable connection to LIMS, ELN, or custom SCADA systems for automated timestamping of bath temperature at start/end of efflux cycles. Optional King TempLog™ software (sold separately) provides continuous logging at 1 Hz resolution, configurable alarm thresholds, and CSV export compliant with 21 CFR Part 11 requirements—including electronic signatures, audit trails, and user role-based permissions. All firmware revisions are version-logged and digitally signed to support FDA-regulated environments requiring change control documentation.

Applications

• Refinery QC labs performing routine kinematic viscosity grading of crude distillates and finished fuels per ASTM D445 and IP 71
• Lubricant formulation centers evaluating shear-thinning behavior and VI improver efficacy across wide temperature spans
• Aviation fuel certification labs verifying Jet A-1 and JP-8 viscosity compliance at –40 °C (ASTM D97) and 100 °C
• Research institutions conducting low-temperature flow studies of bio-based hydraulic fluids and e-mobility thermal management fluids
• Third-party testing facilities accredited to ISO/IEC 17025, requiring documented thermal uniformity mapping and annual verification per ILAC-G8:2022

FAQ

What capillary viscometer types are compatible with the King KV baths?
Ubbelohde, Cannon-Fenske Routine, and BS/IP standard capillaries (Ostwald-type) with nominal diameters from 0.4 mm to 1.2 mm are fully supported. Mounting fixtures accommodate vertical alignment per ASTM D445 Section 8.2.
Does the system include temperature calibration documentation?
Yes—each unit ships with a factory-verified calibration report referencing NIST-traceable RTDs. Optional UKAS-accredited calibration certificates are available upon request.
Can the KV802 operate continuously at –70 °C?
Yes. The cascade refrigeration system and insulated bath chamber are rated for indefinite operation at –70 °C, provided ambient conditions remain ≤30 °C and relative humidity <70% non-condensing.
Is remote monitoring supported?
RS-232 and analog 0–10 V outputs allow integration with building management systems (BMS) or PLCs. Ethernet/Wi-Fi connectivity requires external gateway hardware.
What maintenance is required for long-term reliability?
Biannual inspection of refrigerant charge (KV801/KV802), compressor oil level, and condenser coil cleaning is recommended. No user-serviceable parts exist inside sealed refrigeration modules—service must be performed by Tannas & King–authorized technicians.
