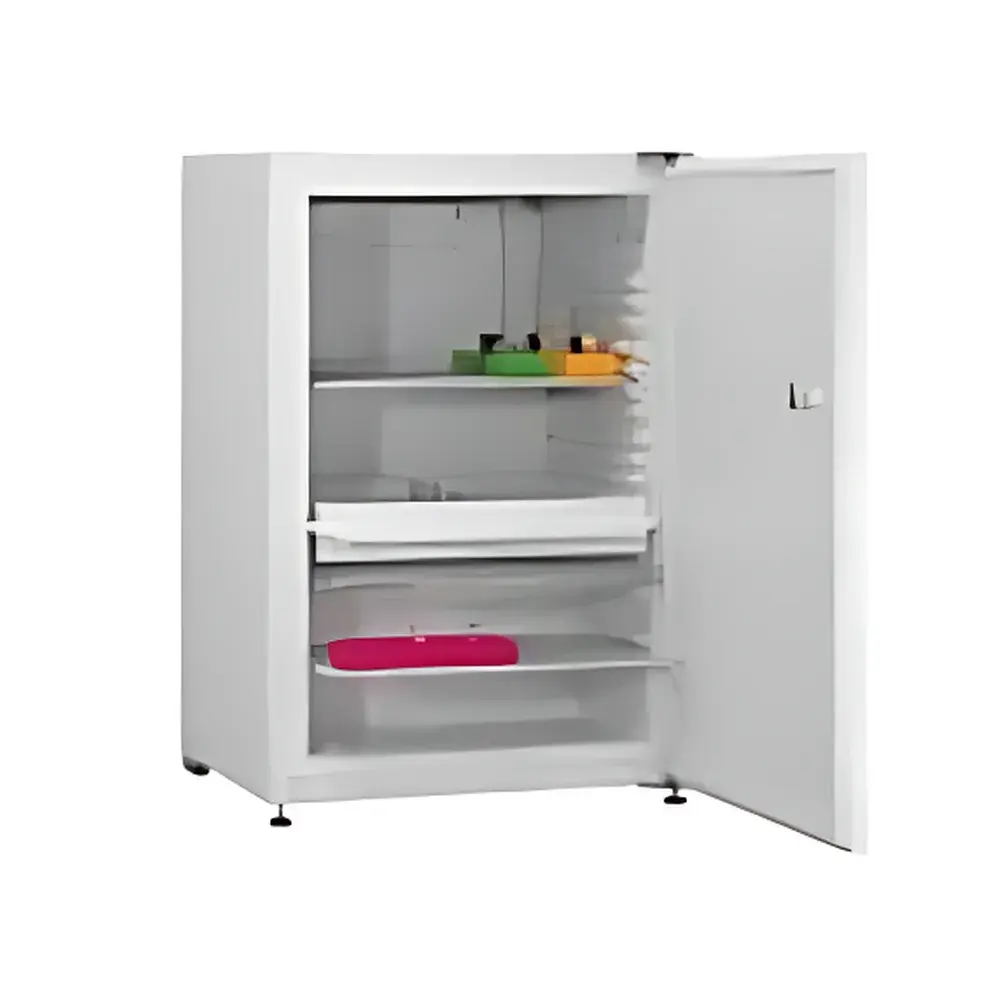

KIRSCH LABEX-125 Explosion-Proof Laboratory Refrigerator

Overview

The KIRSCH LABEX-125 is a certified explosion-proof upright laboratory refrigerator engineered for safe, stable, and compliant cold storage of flammable substances—including solvents, reagents, standards, and reference materials—in hazardous environments classified under Zone 2 (gas) per IEC 60079-0 and ATEX Directive 2014/34/EU. Designed and manufactured in Germany, the unit operates on a forced-air cooling architecture with precision temperature control across a validated range of 2–20 °C—optimized for applications requiring strict thermal stability without compromising intrinsic safety. Its Ex II 3G T6 certification confirms suitability for use with gases having ignition temperatures above 85 °C (e.g., acetone, ethanol, toluene), and its fully sealed, spark-free internal construction eliminates ignition risks from electrical components, fans, or thermostats. Unlike standard refrigerators, the LABEX-125 integrates redundant safety layers—including panel lockout, dual-sensor monitoring (control + display), and fail-safe defrost logic—to meet GLP, ISO/IEC 17025, and pharmaceutical QA/QC infrastructure requirements.

Key Features

• Explosion-proof compliance certified to EN 60079-1 (flameproof enclosure), EN 60079-7 (increased safety), and EN 60079-31 (dust ignition protection), with full ATEX and IECEx documentation traceable to KIRSCH’s German production facility.
• 50 mm high-density polyurethane insulation with zero-ozone-depleting blowing agents (cyclopentane), achieving ≤0.8 kW·h/24h energy consumption at 25 °C ambient—verified per ISO 8564-2.
• Reinforced white powder-coated galvanized steel exterior resists corrosion from cleaning agents and organic vapors; interior molded from static-dissipative, chemical-resistant ABS plastic rated UL 94 HB.
• Modular shelving system includes two adjustable coated plastic shelves and one full-width drawer featuring independent longitudinal and transverse partitioning—enabling customizable segregation of volatile samples per SOP or UN transport grouping.
• Intelligent microprocessor controller with membrane keypad interface, real-time digital display, and non-volatile min/max temperature memory (retained >10 years without power).
• Dual independent alarm system: local audible buzzer + visual LED indicator, plus dry-contact relay output for integration into building management systems (BMS) or centralized lab monitoring platforms.
• RS485 serial interface compliant with Modbus RTU protocol supports bidirectional communication with third-party data loggers or LIMS—enabling automated audit trails aligned with FDA 21 CFR Part 11 Annex 11 requirements.

Sample Compatibility & Compliance

The LABEX-125 is validated for continuous storage of Class I, Group D (North America) and IIA–IIB (Europe) flammable liquids and vapors. It accommodates standard laboratory containers (e.g., 100 mL–2 L glass bottles, HDPE carboys, stainless steel cans) without airflow obstruction due to its uniform forced-convection design. All internal surfaces are inert to common solvents (acetone, methanol, ether, xylene), and the magnetic door gasket maintains ≥0.5 mm compression seal integrity over 100,000 cycles (tested per DIN EN 1287). The unit conforms to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions), and carries CE marking with DoC issued by TÜV Rheinland (Certificate No. R 50361270 0001). It supports GxP-aligned validation protocols—including IQ/OQ/PQ—and includes factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt).

Software & Data Management

While the LABEX-125 operates as a standalone appliance, its RS485 port enables seamless integration with validated environmental monitoring systems (EMS) such as SensiLog, Vaisala viewLinc, or custom SCADA architectures. Communication parameters (baud rate: 9600, parity: none, stop bits: 1) are configurable via service mode. Raw temperature data—including setpoint, actual chamber reading, sensor status, and alarm history—is timestamped and exportable in CSV format. When connected to compliant software, the system supports electronic signatures, role-based access control, and ALCOA+ data integrity principles. Audit trail generation satisfies FDA 21 CFR Part 11 §11.10(a) and EU Annex 11 §4.3 requirements for electronic records in regulated laboratories.

Applications

• Safe short- to medium-term storage of flammable analytical standards (e.g., EPA Method 8021B volatiles, ASTM D323 Reid vapor pressure standards).
• Controlled-temperature holding of QC samples prior to GC/FID, HPLC, or titration analysis in petrochemical, pharmaceutical, and agrochemical testing labs.
• Secure storage of pyrophoric catalysts (e.g., Raney nickel slurries), peroxide-forming ethers, and halogenated solvents under OSHA 1910.106 and NFPA 45 guidelines.
• Supporting ISO/IEC 17025 Clause 5.4.2 (environmental conditions) in accredited calibration labs handling reference thermometers or hygrometers.
• Integration into explosion-hazardous cleanrooms (ISO 14644-1 Class 7/8) where refrigeration must coexist with nitrogen purging or solvent vapor detection networks.

FAQ

What does Ex II 3G T6 mean for my lab’s hazard classification?
Ex II indicates equipment for use in non-mining surface environments; 3G denotes protection level “increased safety” for gas atmospheres (Zone 2); T6 specifies maximum surface temperature ≤85 °C—ensuring compatibility with common organic vapors.
Can the LABEX-125 be validated for GMP compliance?
Yes. KIRSCH provides IQ/OQ templates, sensor calibration certificates (NIST-traceable), and FAT/SAT documentation packages upon request—fully compatible with Annex 15 and WHO TRS 986 validation frameworks.
Is remote temperature monitoring supported out-of-the-box?
The RS485 interface requires external Modbus master hardware or EMS gateway; no built-in Wi-Fi or Ethernet is provided—maintaining electromagnetic isolation for intrinsic safety.
How often does the automatic defrost cycle activate?
Defrost initiates only when condenser frost accumulation exceeds threshold (monitored via dedicated NTC sensor); typical interval is 24–72 hours depending on ambient humidity and door-open frequency.
Are replacement gaskets and shelves available as spare parts?
All consumables—including magnetic door gaskets, shelf rails, drawer partitions, and condenser filters—are stocked globally via KIRSCH’s authorized distribution network with <72-hour lead time in EEA and North America.
