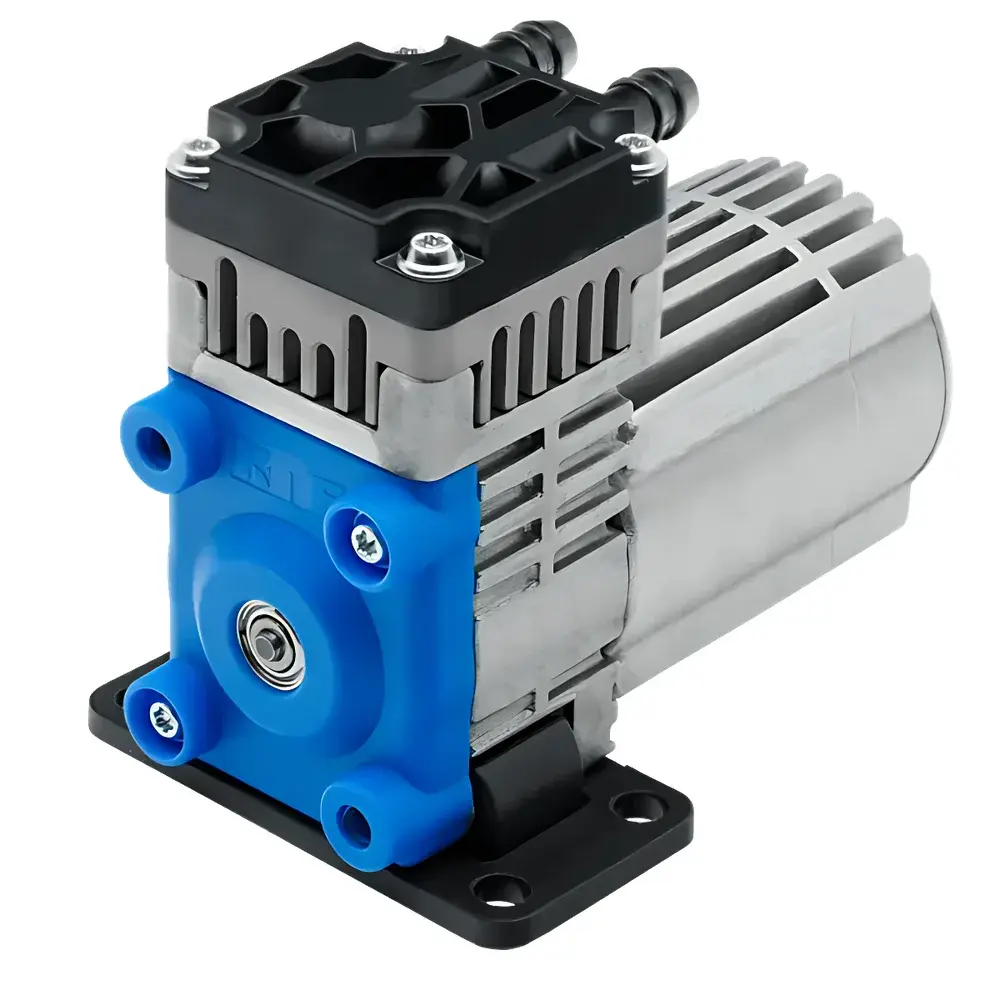

KNF NPK 02 Rocking Piston Vacuum and Pressure Pump

Overview

The KNF NPK 02 is a compact, OEM-grade rocking piston pump engineered for precise, oil-free vacuum generation and low-pressure gas compression in space-constrained laboratory and analytical instrument applications. Unlike diaphragm pumps of comparable physical footprint, the rocking piston mechanism delivers higher volumetric efficiency—enabling a maximum continuous flow rate of 1.8 L/min at ambient conditions—while maintaining stable performance across variable backpressure and duty cycles. Its operation relies on a dynamically balanced, reciprocating piston housed within a precision-machined aluminum or PEEK pump head, actuated by an integrated DC or brushless DC motor. The absence of lubricants eliminates risk of hydrocarbon contamination, making the NPK 02 suitable for sensitive gas-handling tasks where sample integrity, instrument longevity, and regulatory traceability are critical—particularly in analytical chemistry, medical device integration, and environmental monitoring systems.

Key Features

• True oil-free operation with no internal lubrication required—ensures zero hydrocarbon carryover into sampled or processed gas streams
• Compact form factor (62.5 × 48.6 × 40 mm) and ultra-lightweight design (103 g) optimized for embedded integration in portable analyzers, handheld diagnostics, and benchtop instrumentation
• Robust rocking piston architecture delivering high torque-to-volume ratio and consistent flow stability under variable load conditions
• Selectively configurable materials: aluminum or chemically resistant PEEK pump head; EPDM valve elastomers compatible with humid, mildly acidic, or polar gas matrices
• Motor options include standard DC and maintenance-free brushless DC variants—supporting PWM-based speed control for programmable flow modulation
• Operational flexibility: capable of bidirectional function—vacuum generation down to 400 mbar (abs.) and positive pressure delivery up to 2.1 bar (rel.)—without reconfiguration
• No scheduled maintenance intervals; lifetime-rated components support >10,000 hours of continuous operation under typical lab-duty profiles

Sample Compatibility & Compliance

The NPK 02 is validated for handling dry, non-corrosive, non-condensable gases—including ambient air, nitrogen, argon, and CO₂—within ISO Class 5–7 cleanroom-compatible environments. Its FDA-compliant wetted materials (EPDM seals, aluminum/PEEK housing) meet USP and cytotoxicity and extractables requirements for indirect patient contact applications. While not certified as a medical device itself, the pump is routinely integrated into Class IIa/IIb IVD platforms compliant with IEC 61010-1 (safety) and IEC 62304 (software lifecycle). It supports GLP-aligned workflows via external control interfaces that enable audit-trail-capable parameter logging when paired with compliant host controllers adhering to 21 CFR Part 11 data integrity principles.

Software & Data Management

As an OEM component, the NPK 02 does not include embedded firmware or proprietary software. Instead, it interfaces seamlessly via analog (0–5 V or 0–10 V) or digital (PWM, UART) control signals—enabling full integration into custom LabVIEW, Python, or PLC-based instrument control architectures. Speed regulation is linear and repeatable across its operating range, facilitating closed-loop flow calibration using external mass flow meters (e.g., Bronkhorst EL-FLOW series). When deployed in regulated environments, system-level validation documentation—including IQ/OQ protocols, material traceability records, and motor lifetime test reports—can be supplied upon request to support FDA 510(k), CE technical file, or ISO 13485 quality system submissions.

Applications

• Gas sampling and aspiration modules in portable GC, FTIR, and electrochemical sensors
• Vacuum-assisted liquid handling and degassing in microfluidic cartridge readers
• Pressure-driven fluid actuation in inkjet printheads and aerosol generation systems
• Ambient air intake and filter challenge testing in particulate matter (PM₂.₅/PM₁₀) monitors
• Low-flow purge-and-trap circuits for VOC analysis in environmental field instruments
• Positive-pressure cabin ventilation and sterilant gas distribution in compact disinfection enclosures
• Integrated vacuum source for handheld blood gas analyzers and point-of-care coagulation testers

FAQ

Is the NPK 02 suitable for continuous duty operation?

Yes—it is rated for uninterrupted operation at nominal voltage and ambient temperatures between 5 °C and 40 °C, with thermal protection built into the motor windings.
Can it handle condensable vapors or particulates?

No. The pump is intended for clean, dry gases only. Inlet filtration (e.g., sintered stainless steel or hydrophobic membrane filters) is strongly recommended if moisture or aerosols are present.
What certifications does the NPK 02 hold?

It carries CE marking per EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU; UL recognition applies to motor subassemblies (E476927). RoHS 2011/65/EU compliance is documented.
Does KNF provide application-specific validation support?

Yes—KNF’s OEM engineering team offers joint development services including mechanical mounting analysis, thermal modeling, EMI screening, and protocol-ready test reports aligned with ISO 14971 risk management frameworks.
How is service life verified?

Accelerated lifetime testing is conducted per ISO 12100 Annex A, with mean time to failure (MTTF) exceeding 10,000 hours under 0.5 bar differential pressure and 25 °C ambient conditions.
