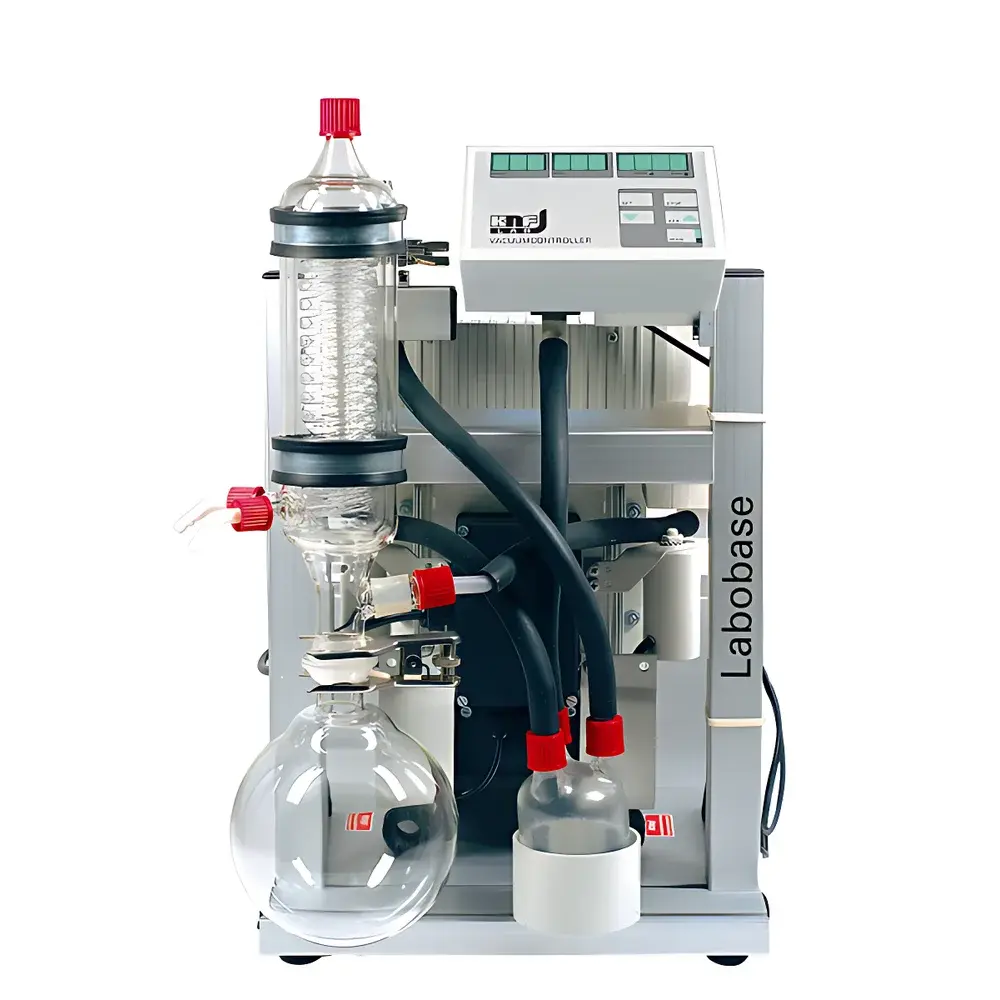

KNF SBC Series Multi-User Vacuum Pump System

Overview

The KNF SBC Series Multi-User Vacuum Pump System is an engineered solution for centralized vacuum supply in modern research and quality control laboratories. Designed around a robust oil-free diaphragm pumping principle, the SBC platform delivers consistent, chemically inert vacuum across multiple workstations without cross-contamination risk. Unlike traditional water aspirators or single-point rotary vane pumps, the SBC architecture employs a modular, pressure-regulated manifold system that maintains stable vacuum levels (≤2 mbar absolute) even under variable demand—enabling simultaneous operation of up to six independent users (e.g., rotary evaporators, vacuum ovens, gel dryers, and filtration manifolds). All fluid-contact components—including diaphragms, valves, and housing seals—are constructed from high-purity PTFE, ensuring resistance to aggressive solvents (e.g., acetone, chloroform, concentrated acids/bases) and eliminating lubricant degradation or outgassing concerns. The system operates on brushless DC motor technology, enabling precise speed modulation via analog or digital input (0–10 V / 4–20 mA), thereby optimizing energy use and extending service life.

Key Features

• Fully PTFE-wetted path for maximum chemical compatibility and long-term stability in corrosive environments
• Oil-free diaphragm design eliminates maintenance associated with oil changes, vapor traps, or mist filters
• Intelligent speed control allows real-time adjustment of suction rate (via front-panel potentiometer or external signal) to match process requirements—reducing noise (<52 dB(A)) and mechanical vibration
• Integrated vacuum sensor and PID-controlled regulation maintain setpoint stability ±0.5 mbar under dynamic load conditions
• Modular manifold interface supports up to six user ports with individual shut-off valves and pressure gauges for traceable allocation

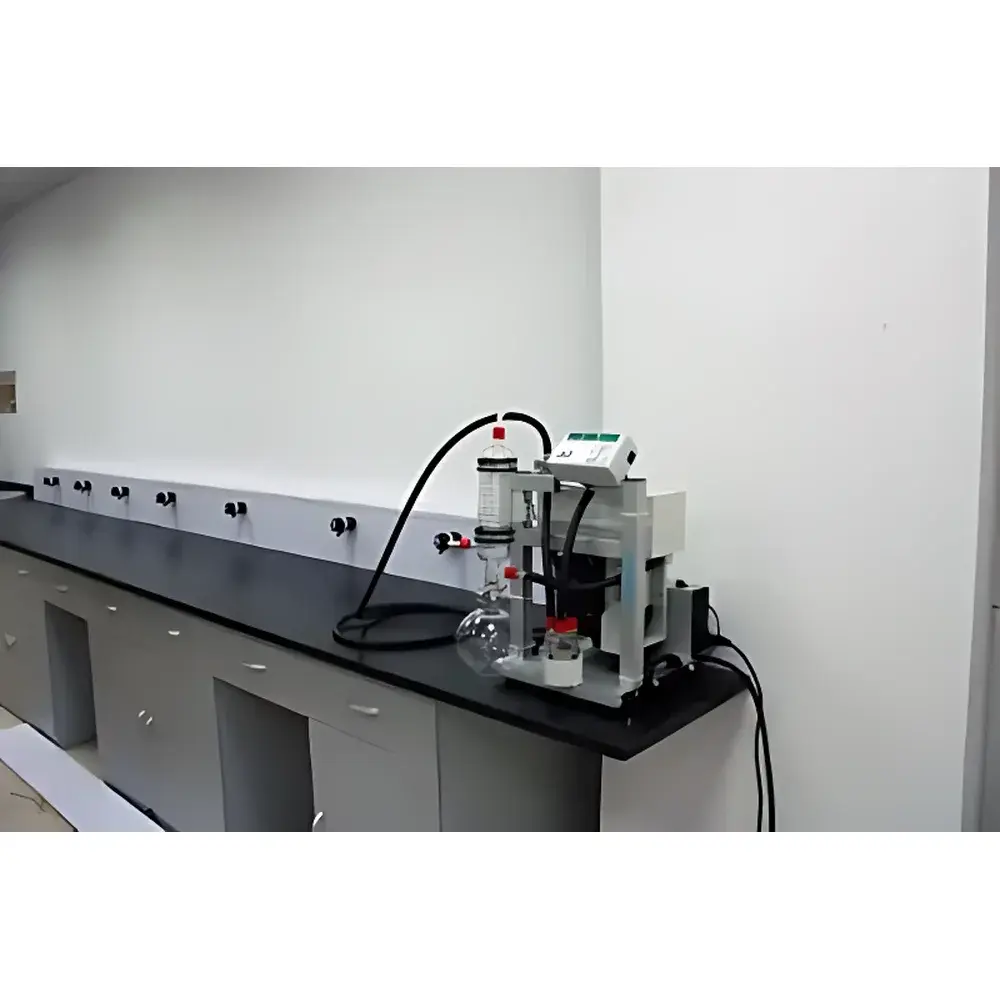

• Compact footprint (W × D × H: 420 × 420 × 320 mm) and low weight (18–20 kg) enable benchtop or under-bench installation without structural reinforcement

Sample Compatibility & Compliance

The SBC system is compatible with standard laboratory vacuum accessories including glassware with 10–14 mm ground-glass joints, stainless-steel tubing, and PTFE-lined hoses. Its fully fluoropolymer construction ensures compliance with ASTM D2671 (chemical resistance of elastomers) and meets material requirements for ISO 15195 (laboratory vacuum systems). As an electrical device, it conforms to IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and carries CE marking under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. While not intrinsically safe, its design aligns with general laboratory safety practices per ANSI Z9.11 and EN 14175-3 for fume hood auxiliary equipment.

Software & Data Management

The SBC series supports analog integration into centralized lab infrastructure via 0–10 V or 4–20 mA control loops. Optional KNF LabLink module enables RS485 Modbus RTU communication for remote monitoring of vacuum level, motor speed, runtime hours, and thermal status. Logged data can be exported in CSV format for inclusion in GLP-compliant audit trails. Though no proprietary software suite is bundled, the pump’s analog/digital interface permits seamless integration with third-party SCADA platforms (e.g., LabVIEW, Ignition, or Siemens Desigo) for trend analysis, predictive maintenance scheduling, and electronic batch record generation per FDA 21 CFR Part 11 requirements when paired with validated system architecture.

Applications

• Routine solvent removal via rotary evaporation under controlled vacuum gradients
• Accelerated drying of hydrogels, protein gels, and chromatography media in vacuum desiccators
• Multi-station parallel filtration (e.g., Buchner funnels, membrane filtration rigs)
• Low-temperature distillation and fractional crystallization setups requiring stable sub-atmospheric pressure
• Replacement of water-jet aspirators in teaching labs—eliminating water waste, freezing risks, and back-siphon hazards
• Supporting vacuum-assisted sample preparation for SEM, XRD, and TGA instrumentation where hydrocarbon contamination must be avoided

FAQ

Can the SBC system operate continuously for 24/7 applications?
Yes—the SBC 840 and SBC 860 are rated for continuous duty (IEC 60034-1 S1 rating) with thermal protection and automatic restart after cooldown.
Is validation documentation available for GMP environments?
KNF provides Factory Acceptance Test (FAT) reports, material certifications (e.g., PTFE lot traceability), and IQ/OQ templates upon request; final PQ remains site-specific and user-responsible.
What maintenance intervals are recommended?
Diaphragm replacement is advised every 12,000 operating hours or biannually under typical lab usage; all consumables are field-replaceable without specialized tools.
Does the system require external cooling or ventilation?
No—passive convection cooling suffices; ambient temperature must remain between 10–40 °C with ≥10 cm clearance on all sides.
Can I retrofit an existing vacuum network with the SBC system?
Yes—the inlet manifold accepts standard NPT or metric threaded connections; adapters for Swagelok, Camlock, or hose barb fittings are available as accessories.
