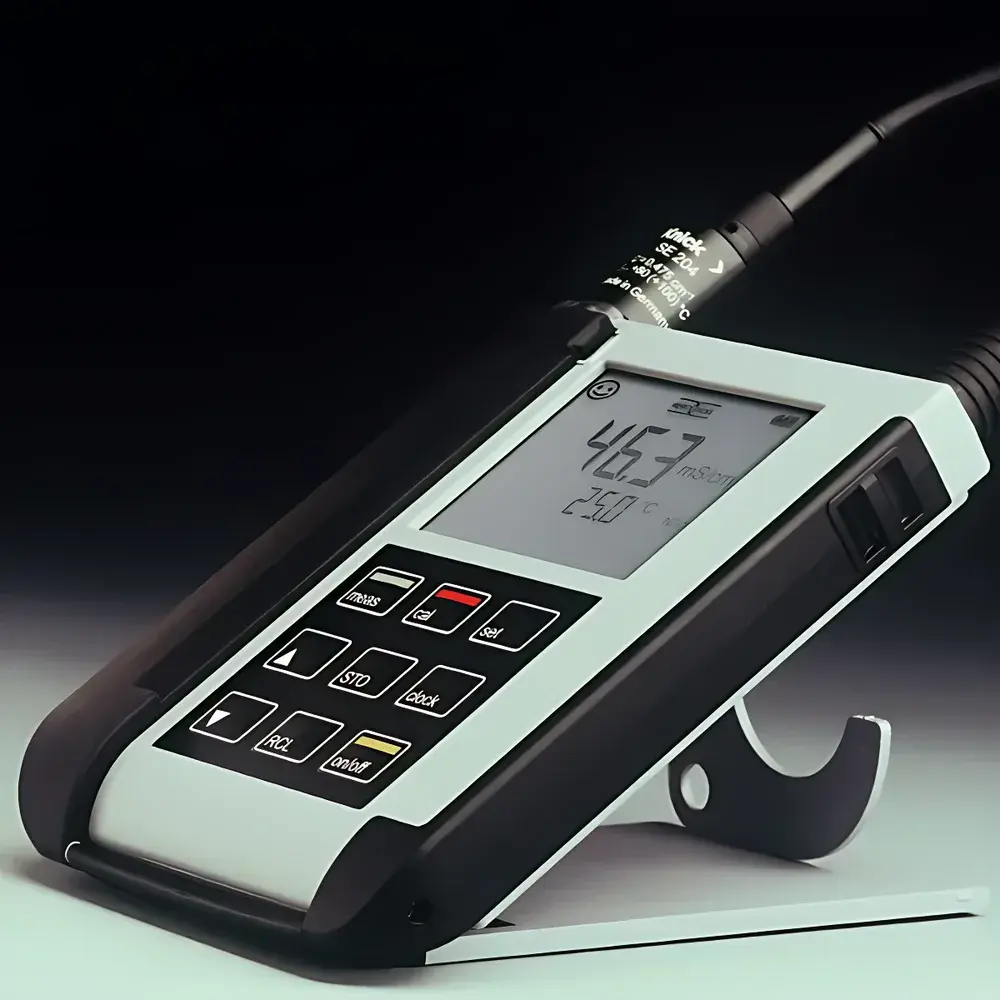

Knick Portavo 904 X ATEX-Certified Portable Multi-Parameter Analyzer for Hazardous Areas
| Brand | Knick |
|---|---|
| Origin | Germany |
| Manufacturer | Yes |
| Import Status | Imported |
| Model | Portavo 904 X |
| Pricing | Upon Request |
Overview
The Knick Portavo 904 X is an intrinsically safe, ATEX-certified portable multi-parameter analyzer engineered for precise, real-time measurement of pH, ORP (oxidation-reduction potential), dissolved oxygen (DO), and conductivity in hazardous environments—including Zone 0 and Zone 1 classified areas per Directive 2014/34/EU. Unlike conventional field analyzers limited to non-hazardous locations, the Portavo 904 X integrates digital Memosens sensor interface technology with robust intrinsic safety design, enabling direct operation in explosive atmospheres where flammable gases, vapors, mists, or combustible dusts may be present. Its core architecture follows IEC 60079-0 and IEC 60079-11 standards for equipment protection by intrinsic safety “ia” (suitable for Zone 0). The device employs electrochemical principles for pH/ORP (glass electrode + reference system), galvanic or optical luminescence-based detection for dissolved oxygen, and four-electrode AC conductivity measurement—ensuring high reproducibility, minimal polarization error, and long-term stability across diverse aqueous matrices.
Key Features
- ATEX Category 1G, Ex ia IIC T4 Ga certified for continuous use in Zone 0 and Zone 1 gas atmospheres
- Digital Memosens interface supporting plug-and-play calibration data transfer, automatic sensor identification, and lifetime sensor diagnostics
- High-contrast segmented color display with transflective technology—fully readable under direct sunlight and low-light conditions
- Integrated data logger storing up to 5,000 measurement values with timestamp, sensor ID, and environmental metadata
- Rechargeable lithium-ion battery providing >100 hours of continuous operation (typical usage) and hot-swappable via integrated bayonet lock
- Ergonomic, chemically resistant housing (IP67-rated) featuring reversible protective cover, detachable sensor pouch, and multi-position hanging hook for hands-free deployment
- Universal analog and optical DO sensor compatibility alongside Memosens—enabling legacy sensor integration without compromise on safety or accuracy
Sample Compatibility & Compliance
The Portavo 904 X is validated for aqueous and mildly aggressive liquid samples encountered in petrochemical effluent monitoring, offshore platform water treatment, chemical manufacturing process streams, and emergency response scenarios involving unknown hazardous substances. It complies with ISO 5667-3 (water sampling), ASTM D1293 (pH of water), ASTM D5391 (conductivity of pure water), and EN ISO 5814 (electrochemical determination of dissolved oxygen). All configurations meet EU RoHS and REACH requirements. The ATEX certification covers both sensor and analyzer unit—eliminating the need for separate barrier systems or zone-specific accessories. Device firmware adheres to IEC 62443-3-3 cybersecurity principles for industrial automation, and audit trails support GLP/GMP-aligned workflows when paired with Knick’s optional calibration management software.
Software & Data Management
Data acquisition and configuration are managed via Knick’s proprietary CalFree software (Windows-based), which supports secure USB connection through the standard micro-USB port. The software enables full traceability: users can export logged datasets in CSV or XML formats with embedded calibration history, sensor health reports, and operator credentials. Firmware updates preserve all user-defined settings and comply with IEC 62304 Class B medical device software lifecycle requirements—reflecting Knick’s broader quality management system certified to ISO 9001 and ISO 13485. For regulated environments, optional 21 CFR Part 11-compliant electronic signatures and role-based access control are available via enterprise license modules.
Applications
- Real-time monitoring of cooling water circuits in refineries and chemical plants where hydrocarbon vapors pose explosion risks
- Field verification of wastewater neutralization efficacy prior to discharge into segregated hazardous-area collection networks
- Emergency response triage for unknown liquid spills—simultaneous pH, conductivity, and redox assessment aids rapid hazard classification per GHS criteria
- In-situ validation of membrane integrity in desalination pre-treatment units located within classified zones
- QA/QC during catalyst wash water recycling in pharmaceutical API synthesis facilities requiring Zone 1 compliance
FAQ
What hazardous area classifications does the Portavo 904 X support?
It is certified for Zone 0 and Zone 1 (gas) per ATEX 2014/34/EU and IECEx schemes, with “ia” intrinsic safety protection level.
Can it connect to non-Memosens analog sensors?
Yes—the device accepts standardized 0–20 mA or 4–20 mA analog inputs for conductivity and optical DO sensors while maintaining full intrinsic safety via internal galvanic isolation.
Is the data logger compliant with FDA 21 CFR Part 11?
Out-of-the-box logging meets ALCOA+ principles; Part 11 compliance requires deployment of the optional CalFree Enterprise module with electronic signature and audit trail configuration.
How is sensor calibration verified in hazardous locations?
Memosens sensors store full calibration history and uncertainty budgets onboard; calibration verification is performed offline using traceable buffer standards in safe areas—no field recalibration required.
What is the operating temperature range for Zone 0 use?
–10 °C to +50 °C ambient, with full specification retention across the entire range, including battery performance and display contrast.
