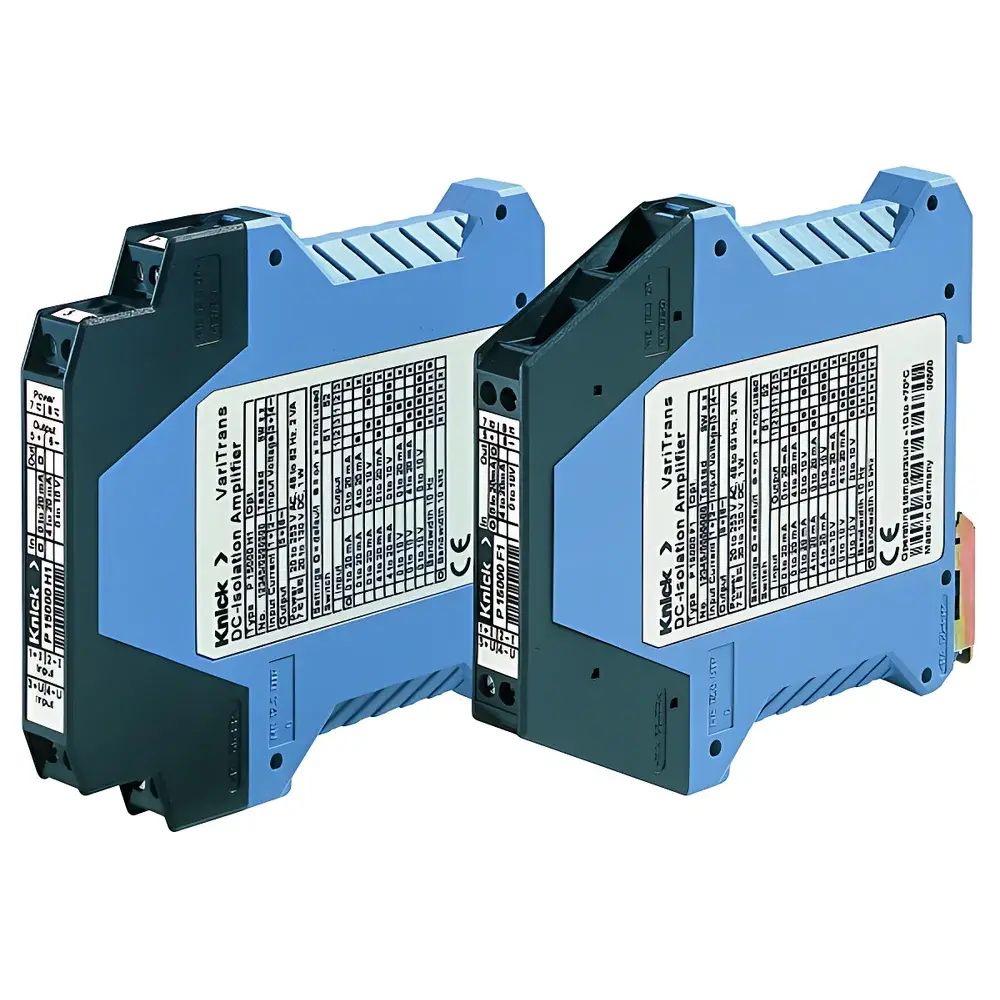

Knick VariTrans P15000 Standard Signal Isolation Amplifier
| Brand | Knick |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Product Origin | Imported |
| Model | Knick VariTrans P15000 |
| Voltage Range | 0–10 V |
| Measurement Accuracy | Gain Error < 0.08 % of Reading (DC) |
| Maximum Output Current | 20 mA |
Overview
The Knick VariTrans P15000 is a high-precision, three-port isolated standard signal amplifier engineered for mission-critical signal conditioning in lithium-ion battery manufacturing and Battery Management System (BMS) test environments. Operating on the principle of galvanic isolation via transformer-coupled or opto-isolated signal transmission, the P15000 ensures complete electrical separation between input, output, and power supply circuits—eliminating ground loops, common-mode interference, and transient-induced measurement corruption. Designed specifically for integration into automated BMS validation rigs, cell-level voltage monitoring stacks, and production-line EOL (End-of-Line) testers, this amplifier delivers metrologically traceable signal fidelity under industrial voltage fluctuations and electromagnetic noise typical in high-power battery assembly facilities.
Key Features
- Three-port galvanic isolation compliant with EN 61140, providing reinforced insulation against overvoltage events up to 3.75 kVAC (per IEC/EN 61000-4-5 surge immunity testing)
- Precision DC signal amplification with gain error ≤ 0.08 % of reading (typical at 23 °C, after factory calibration per EN 10204 2.2 material certification)
- Universal wide-range power supply: 20–253 V AC/DC, enabling direct operation from industrial mains or uninterruptible power systems without external converters
- Ultra-compact modular housing (12.5 mm width) optimized for DIN-rail mounting—up to 80 units per meter, maximizing rack density in space-constrained BMS test cabinets
- Tool-free, snap-open housing with pre-wired terminals and pluggable screw connectors—reducing installation time by >40 % versus traditional terminal block assemblies
- No internal consumables or recalibration intervals; designed for continuous 24/7 operation with MTBF > 500,000 hours (per IEC 61709)
Sample Compatibility & Compliance
The VariTrans P15000 interfaces directly with analog voltage outputs from precision shunt-based current sensors (e.g., LEM LAH series), potentiometric cell voltage taps, and thermistor-conditioned temperature modules used across lithium battery cell formation, grading, and thermal runaway validation protocols. It supports standardized 0–10 V input signals conforming to IEC 60038 and maintains linearity across full-scale range under load variations typical in multi-channel BMS data acquisition systems. Device compliance includes CE marking per EU Machinery Directive 2006/42/EC, RoHS 2011/65/EU, and EMC conformity to EN 61326-1 (industrial environment). For regulated battery qualification workflows—including those aligned with UL 1642, UN 38.3, and ISO 12405-4—the amplifier’s isolation integrity and traceable calibration documentation support GLP/GMP audit readiness.
Software & Data Management
While the P15000 operates as a hardware-only analog signal conditioner (no embedded firmware or digital interface), its output stability and repeatability are foundational to downstream data integrity in PC-based BMS test platforms. When integrated with DAQ systems compliant with IEEE 1622 or NI-DAQmx, the amplifier enables sub-millivolt-level resolution preservation across 16-bit ADC inputs. Its low thermal drift (< 0.005 %/K) and long-term stability (< 0.05 %/year) minimize recalibration frequency in validated test environments governed by FDA 21 CFR Part 11 requirements—where audit trails must capture sensor chain uncertainty contributions. Calibration certificates (EN 10204 2.2) include measured gain, offset, and isolation resistance values at multiple points across the 0–10 V span, supporting uncertainty budgeting per GUM (JCGM 100:2008).
Applications
- Voltage signal scaling and isolation for individual cell monitoring in multi-channel BMS functional testers
- Noise-immune signal transmission from high-voltage battery packs (up to 1000 VDC system level) to low-voltage PLCs and safety controllers
- Signal conditioning in automated formation/cycling equipment where ±0.1 % full-scale accuracy is required for charge/discharge profile fidelity
- Galvanically decoupled feedback paths in active balancing verification rigs and impedance spectroscopy stimulus stages
- Interface module in ISO 26262 ASIL-B compliant diagnostic subsystems for EV battery control units
FAQ
Does the VariTrans P15000 support HART or other digital communication protocols?
No—it is a strictly analog signal isolator with no digital interface. It is intended for use upstream of smart transmitters or downstream of analog sensor outputs.
Can it be used with bipolar input ranges such as ±5 V?
The standard P15000 variant supports unipolar 0–10 V input only. Bipolar configurations require the P15000-2 model variant, which must be specified at time of order.
Is third-party calibration supported?
Yes—calibration may be performed by accredited labs per ISO/IEC 17025, using the device’s documented traceability path to PTB (Physikalisch-Technische Bundesanstalt) reference standards.
What is the maximum cable length between input sensor and amplifier?
For optimal noise immunity, shielded twisted-pair cabling is recommended; maximum recommended length is 30 m at 1 kHz bandwidth, assuming proper grounding per IEC 61000-5-2.
Does it meet SIL2 requirements for functional safety applications?
The P15000 itself is not SIL-certified, but its failure modes and diagnostic coverage data are included in Knick’s FMEDA reports, enabling integration into SIL2 architectures when combined with appropriate redundancy and voting logic per IEC 61508.
