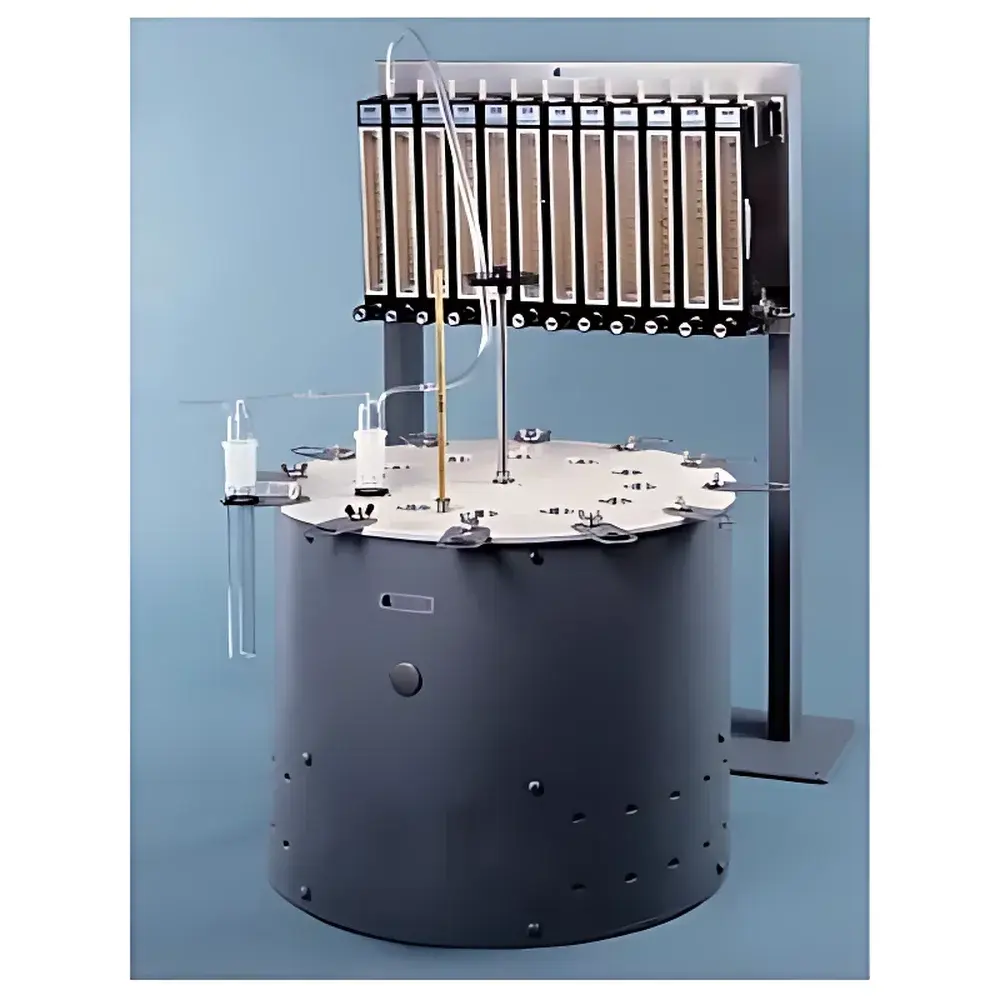

Koehler K56190 / K56290 Oxidation Stability Test Bath (IP Standard Compliant)

Overview

The Koehler K56190 and K56290 Oxidation Stability Test Baths are precision-engineered thermal test systems designed specifically for evaluating the oxidative resistance of lubricating oils, turbine oils, hydraulic fluids, and other petroleum-based products in accordance with internationally recognized Institute of Petroleum (IP) standards. These instruments implement a controlled accelerated oxidation protocol using an aluminum block heating medium to ensure uniform thermal distribution across all 12 sample positions. The system operates on the principle of forced-air oxidation under defined temperature, time, and airflow conditions—mimicking long-term service degradation in a reproducible laboratory environment. Unlike oil-bath or water-bath alternatives, the solid aluminum block architecture eliminates fluid contamination risks, improves thermal response time, and enables precise setpoint attainment within ±0.2 °C—critical for inter-laboratory method equivalence under IP 48, IP 306, and IP 335 protocols.

Key Features

• Microprocessor-based PID temperature controller with dual-line LED display supporting simultaneous readout of setpoint and actual temperature in either °C or °F.
• Integrated overtemperature safety cutoff: automatically de-energizes heating elements if block temperature exceeds user-defined limit—ensuring equipment integrity and operator safety.
• Dedicated air flow management: K56190 delivers 1 L/h per test position; K56290 supplies 15 L/h per position—both configured with calibrated, independent mass flow control to meet IP-specified ventilation requirements.
• 12-position aluminum heating block with optimized thermal mass and low thermal gradient (<0.5 °C across block surface), minimizing inter-sample variability.
• Modular design: test bath unit (43.2 × 55.9 cm) and separate flow control console (61 × 20.3 × 76.8 cm) allow flexible benchtop integration and simplified maintenance access.
• No consumable heating fluids required—reducing operational cost, disposal liability, and cross-contamination risk between test runs.

Sample Compatibility & Compliance

These test baths support standard IP-compliant oxidation vessels—including copper coil assemblies, glass oxidation tubes, and specified pressure-rated reaction cells—as referenced in IP 48 (for turbine oils), IP 280 (for industrial lubricants), IP 306 (for greases), IP 307 (for transformer oils), IP 331 (for diesel engine oils), and IP 335 (for aviation turbine fuels). Each unit is supplied with full documentation traceable to NIST-traceable calibration procedures and conforms to ISO/IEC 17025 laboratory accreditation prerequisites for method validation. All electrical components comply with UL 61010-1 and CE marking directives for laboratory equipment. Routine operation satisfies GLP audit requirements when paired with appropriate procedural SOPs and instrument logbooks.

Software & Data Management

While the K56190/K56290 operate as standalone hardware platforms, they are fully compatible with Koehler’s optional K-Link™ data acquisition software (sold separately), which supports real-time temperature logging, airflow verification alerts, run-time scheduling, and automated report generation in PDF or CSV format. When integrated into a validated laboratory information management system (LIMS), the instrument meets FDA 21 CFR Part 11 requirements for electronic records and signatures—provided audit trail functionality, user access controls, and electronic signature workflows are implemented at the LIMS level. Raw temperature and airflow data can be exported for statistical process control (SPC) analysis per ASTM E2587 or ISO 5725 guidelines.

Applications

• Quality control of new and in-service lubricants for oxidative induction time (OIT) determination.
• Formulation development of antioxidant packages in base oil blends.
• Comparative stability assessment of synthetic vs. mineral-based hydraulic fluids under simulated operating temperatures.
• Regulatory conformance testing for OEM specifications (e.g., GEK 32568, Siemens TLV 9013, Rolls-Royce RRES 90061).
• Root cause analysis of premature varnish formation or sludge generation in turbine systems.
• Supporting ASTM D2272 (Rotating Pressure Vessel Oxidation Test) auxiliary thermal conditioning where IP-aligned protocols are mandated by contract or regional regulation.

FAQ

Which IP standards does this bath explicitly support?
It is certified for IP 48, IP 280, IP 306, IP 307, IP 331, and IP 335—covering oxidation testing of turbine oils, industrial lubricants, greases, transformer oils, diesel engine oils, and aviation fuels.
Is the airflow rate adjustable per sample position?
Yes—each of the 12 stations features independent, calibrated mass flow control, enabling precise delivery of either 1 L/h (K56190) or 15 L/h (K56290) without cross-talk or drift.
Can this unit be used for ASTM D943 or D2272 testing?
No—this bath is purpose-built for IP methods only; ASTM D943 requires a different apparatus (sludge and acid number monitoring over extended duration), while D2272 mandates a rotating pressure vessel configuration not supported by this platform.
What maintenance is required for long-term accuracy?
Annual verification of temperature uniformity across the block and recalibration of airflow sensors using NIST-traceable flow meters is recommended; no routine oil changes or fluid replenishment is necessary.
Does the system include sample holders or oxidation vessels?
Vessels and copper coils must be ordered separately per IP specification—Koehler offers compatible K56100 series accessories including IP-certified glass tubes, sealing caps, and immersion thermocouple adapters.
