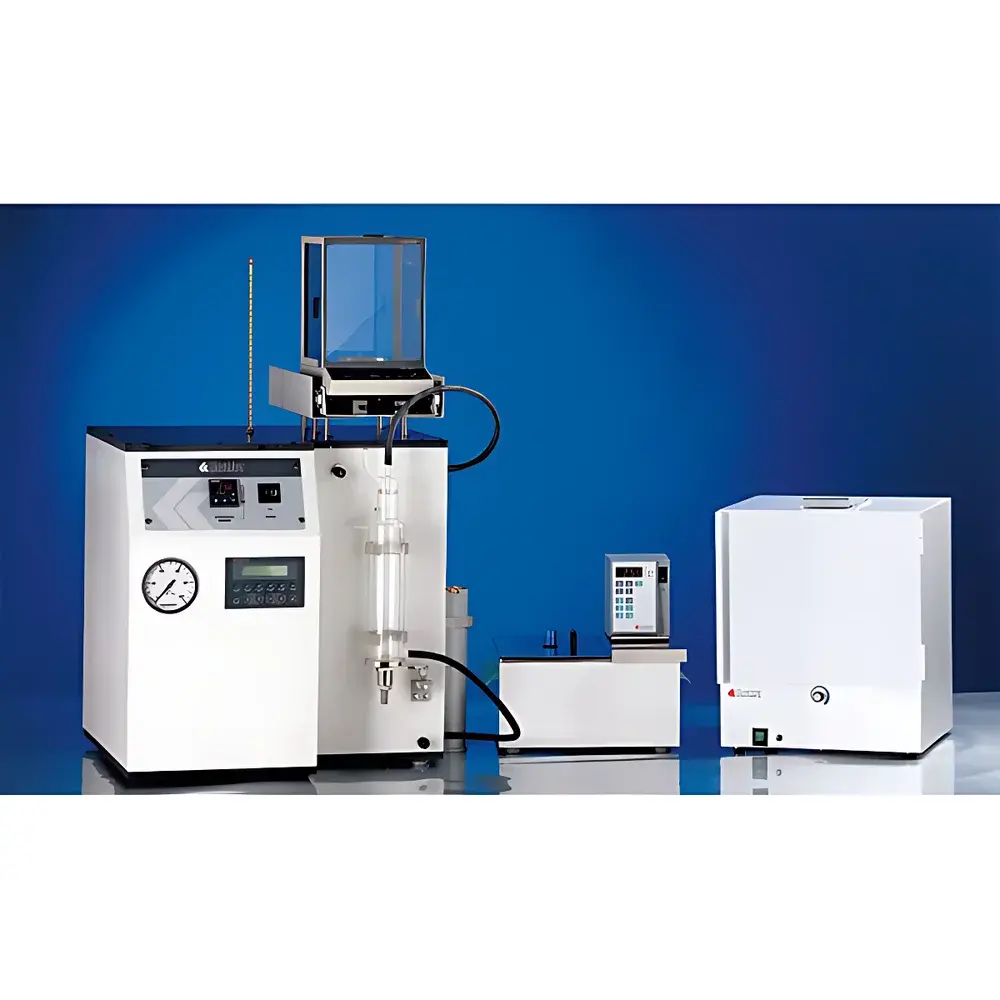

Koehler K88501 Air Release Value Tester for Petroleum Oils

Overview

The Koehler K88501 Air Release Value Tester is a precision-engineered laboratory instrument designed to quantify the ability of petroleum-based lubricants—including turbine oils, hydraulic fluids, and industrial lubricating oils—to release entrained air under controlled thermal and aerodynamic conditions. This measurement is critical for assessing oil stability in high-shear, high-pressure systems where rapid air separation prevents cavitation, oxidation acceleration, and loss of hydrodynamic film integrity. The instrument operates in strict accordance with internationally recognized test methods: ASTM D3427 (Standard Test Method for Air Release Properties of Petroleum Oils), IP 313 (Institute of Petroleum), DIN 51381 (German Institute for Standardization), and NF E48-614 (French Standard). It employs a defined protocol wherein a preheated 200 mL oil sample is subjected to a regulated stream of compressed air at a specified flow rate and temperature (typically 50 °C or 75 °C per method requirements). Upon cessation of airflow, the instrument measures the elapsed time required for the volume of dispersed air bubbles to decrease by 0.2 %—a metric reported as the Air Release Value (ARV) in seconds. This endpoint reflects interfacial tension, viscosity, and additive package efficacy in promoting coalescence and buoyant rise of microbubbles.

Key Features

• Microprocessor-controlled digital temperature regulation with LED display ensures stable, repeatable bath temperatures from ambient to 75 °C (±0.1 °C accuracy over full range)
• Integrated air flow management system featuring calibrated pressure regulator, stainless-steel air delivery tubing, and precision pressure gauge (0–100 psi range)
• Dedicated thermostatically controlled air bath assembly with circulation pump, calibrated mercury-in-glass thermometer, and sinker for accurate thermal equilibration of the test vessel
• Automated timing sequence initiated upon airflow termination; real-time bubble volume decay tracking via optical or manual observation interface
• Overtemperature cut-off circuitry prevents thermal runaway and safeguards operator safety during extended testing cycles
• Modular design supports optional accessories including heated sample sleeve (to minimize condensation), baffle kit (for standardized bubble dispersion geometry), and dry box enclosure (for moisture-sensitive formulations)

Sample Compatibility & Compliance

The K88501 is validated for use with mineral-, synthetic-, and semi-synthetic-based lubricants, including but not limited to turbine oils (ISO VG 32–100), hydraulic fluids (HL, HM, HVLP), compressor oils, and gear oils. It accommodates samples meeting ISO 3104 (viscosity measurement) and ASTM D445 preparation guidelines. All operational parameters align with Good Laboratory Practice (GLP) documentation requirements. The system architecture supports audit-ready operation when paired with Koehler’s optional Windows-based software, which logs timestamps, temperature profiles, pressure readings, and ARV results with user ID, instrument ID, and calibration certificate traceability—fully compliant with FDA 21 CFR Part 11 electronic record and signature provisions when configured with appropriate access controls and audit trail settings.

Software & Data Management

Koehler offers an optional PC-based software suite compatible with Windows 10/11 that interfaces directly with the K88501’s microcontroller via RS-232 or USB-to-serial adapter. The software provides guided workflow navigation, automated calculation of ARV, dynamic graphing of bubble decay curves, and export of raw and summary data to CSV, Excel, or PDF formats. Each test record includes metadata such as analyst name, date/time stamp, calibration status, environmental temperature/humidity (when integrated sensors are installed), and deviation flags for out-of-specification conditions. Data integrity is preserved through encrypted local storage and configurable backup intervals. For regulated environments, the software can be deployed in 21 CFR Part 11 mode, enabling electronic signatures, role-based permissions, and immutable audit trails required for pharmaceutical-grade lubricant qualification or OEM technical service laboratories.

Applications

• Quality control of new lubricant batches prior to shipment or commissioning
• Formulation development and additive package screening for enhanced air release performance
• Field oil analysis programs monitoring in-service degradation (e.g., oxidation-induced surfactant depletion)
• Technical support for turbine and hydraulic system OEMs requiring specification conformance (e.g., GEK 32568, Siemens TLV 9013)
• Third-party certification laboratories performing accredited testing per ISO/IEC 17025
• Research into foam inhibition mechanisms and interfacial rheology of lubricant-air systems

FAQ

What standards does the K88501 fully support?
ASTM D3427, IP 313, DIN 51381, and NF E48-614 — all implemented with hardware and procedural fidelity to clause-level requirements.
Is temperature calibration traceable to NIST?
Yes; the digital temperature controller accepts external calibration inputs, and Koehler provides optional NIST-traceable calibration certificates for the integrated thermometer and bath sensor.
Can the instrument operate continuously across multiple shifts?
Yes — the robust thermal insulation, redundant overheat protection, and sealed electronics enclosure enable unattended 24-hour operation when housed in a climate-controlled lab environment.
What maintenance is required for long-term reliability?
Quarterly verification of air flow rate using a calibrated rotameter, annual recalibration of the temperature controller, and biannual inspection of O-rings and pressure seals in the air delivery path.
Is the K88501 compatible with LIMS integration?
Yes — the optional software supports HL7 and ASTM E1384-compliant data export protocols, enabling direct ingestion into laboratory information management systems without manual re-entry.
