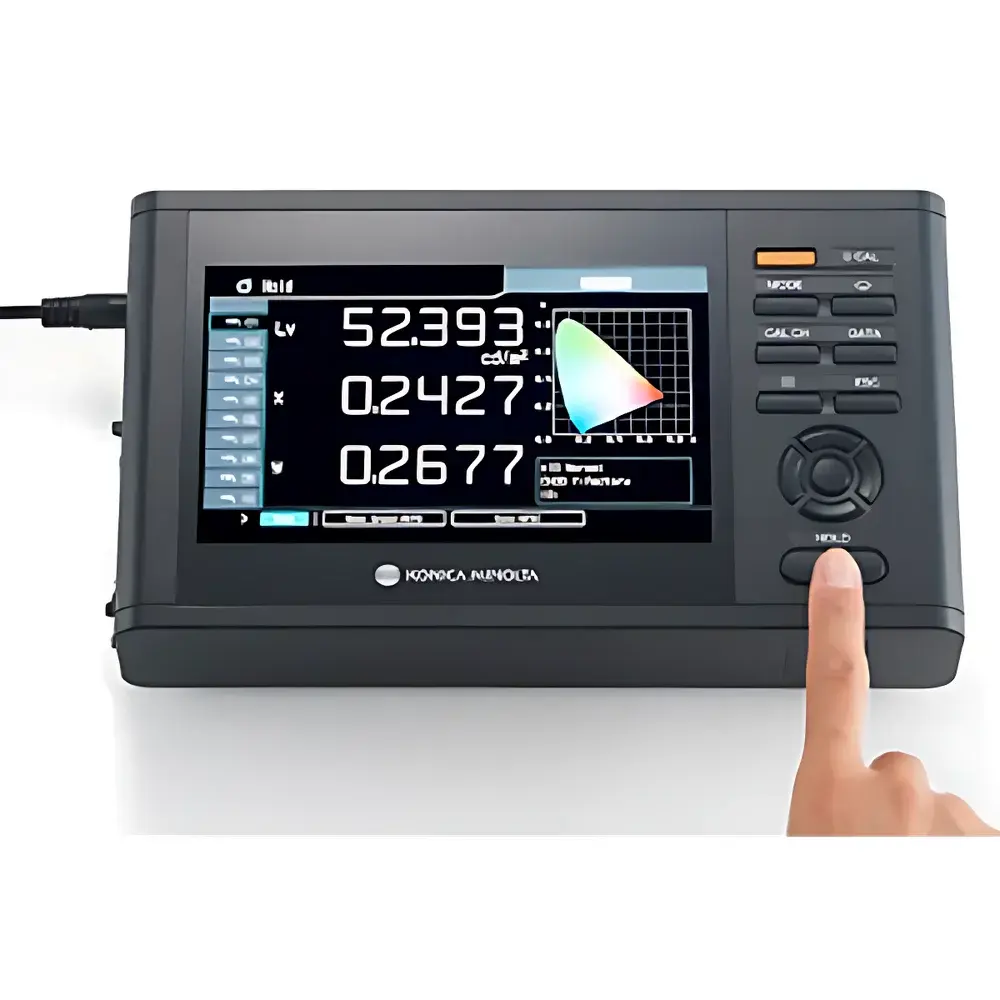

Konica Minolta CA-410 Color Analyzer

Overview

The Konica Minolta CA-410 Color Analyzer is a high-precision photometric and colorimetric measurement instrument engineered for R&D laboratories, display manufacturing lines, and quality assurance facilities requiring traceable, repeatable evaluation of emissive displays—including OLED, microLED, MiniLED-backlit LCDs, and HDR-capable panels. Operating on the principle of tristimulus colorimetry, the CA-410 employs spectrally optimized XYZ filter assemblies matched to the CIE 1931 2° standard observer function, with optional probe variants (CA-P427C/CA-P410C) conforming to the updated CIE 170-2:2015 spectral matching requirements. Its core architecture integrates a high-sensitivity silicon photodiode array, low-noise analog front-end circuitry, and real-time digital signal processing to ensure linear photometric response across an extended luminance range—from 0.0003 cd/m² to 3,000 cd/m² (depending on probe configuration). This dynamic range enables reliable characterization of black-level performance, gamma curves, white point drift, and chromaticity uniformity under both ultra-low-brightness and peak-luminance conditions—critical for next-generation display validation.

Key Features

• Ultra-wide luminance measurement range: Validated accuracy from 0.0003 cd/m² (with CA-VP427A/CA-VP410A probes) up to 3,000 cd/m², supporting OLED black-level calibration and MiniLED local dimming verification.
• Enhanced spectral fidelity: Improved XYZ filter spectral transmittance closely approximates the CIE 1931 2° color matching functions; optional CIE 170-2:2015-compliant probes available for alignment with latest metrological standards.
• Factory-calibrated using LED-based standard sources: Each probe undergoes spectral irradiance calibration against NIST-traceable LED reference standards, minimizing metameric error in wide-gamut display assessment.
• High-speed measurement modes: Includes LTD (Low Time Delay) AUTO mode for rapid sequential luminance/chromacity acquisition and SF (Single Frame) mode with user-defined integration time for synchronized pulsed-display measurements.
• Industrial-grade system integration: Native USB virtual COM port implementation (no driver installation required), RS-232C interface, automatic zero-point compensation, and external sync input compatible with 1.8 V TTL logic—enabling seamless integration into automated optical inspection (AOI) platforms.

Sample Compatibility & Compliance

The CA-410 is designed for non-contact, spot-based measurement of self-luminous devices including AMOLED, QD-OLED, RGB-MicroLED, and high-dynamic-range LCDs with local dimming. It supports compliance-critical workflows aligned with ISO 13406-2, IEC 62341-6-3 (OLED display measurement), and ASTM E308-22 (computing tristimulus values from spectral data). Probe interchangeability ensures adaptability across form factors—from small wearable displays to large-format video walls. All factory calibrations are documented per ISO/IEC 17025 requirements, and measurement uncertainty budgets are provided in calibration certificates. The instrument meets CE marking directives for electromagnetic compatibility (2014/30/EU) and low voltage safety (2014/35/EU).

Software & Data Management

The CA-410 operates natively with Konica Minolta’s CA-Solution software suite, which provides real-time waveform monitoring, gamma curve fitting (including BT.1886, sRGB, DCI-P3, and custom EOTF models), and spatial uniformity mapping via multi-point grid acquisition. Raw measurement data is exported in CSV and XML formats, preserving timestamp, probe ID, integration time, and ambient temperature metadata. For regulated environments, CA-SDK2—the standardized software development kit—supports audit-trail-enabled integration with LabVIEW, Python (via PySerial), and C#/.NET applications. CA-SDK2 maintains full backward compatibility with legacy CA-210 and CA-310 command syntax, reducing migration effort for existing AOI infrastructure. All communications support checksum validation and timeout recovery protocols to ensure data integrity in high-throughput production settings.

Applications

• OLED panel gamma tuning and lifetime-induced chromaticity shift tracking during burn-in testing.
• MiniLED backlight zone calibration and local contrast ratio validation.
• White point stability analysis under varying drive currents and thermal loads.
• Color filter and encapsulation layer R&D, where sub-0.001 cd/m² dark-state emission must be quantified.
• QC gate validation for display modules prior to module assembly, supporting statistical process control (SPC) via automated pass/fail thresholds.
• Research into perceptual uniformity metrics (e.g., CIEDE2000 ΔE*uv) across wide-gamut primaries.

FAQ

Does the CA-410 support CIE 170-2:2015 standard observer compliance?
Yes—optional probe models CA-P427C and CA-P410C are specifically engineered to match the CIE 170-2:2015 2° standard observer spectral sensitivity curve.
Can the CA-410 be integrated into an existing CA-310-based automation system without firmware or software rework?
Yes—CA-410 retains identical SCPI-style command structure and response protocol as CA-210/CA-310; CA-SDK2 includes COM registration tools to enable drop-in replacement in legacy Windows-based control environments.
What is the minimum measurable luminance with the standard probe versus the high-sensitivity variant?
The base CA-410 probe measures down to 0.005 cd/m²; the CA-VP427A and CA-VP410A high-sensitivity probes extend the lower limit to 0.0003 cd/m² with certified uncertainty < ±5% at 0.001 cd/m².
Is USB connection truly driver-free on modern Windows and Linux systems?
Yes—USB enumeration implements CDC ACM class, presenting as a virtual COM port recognized natively by Windows 10/11, macOS 12+, and Linux kernels ≥ 5.4 without additional drivers.
How does the CA-410 handle synchronization with pulse-width-modulated (PWM) displays?
The external sync input accepts 1.8 V TTL-level trigger signals (introduced March 2021); combined with SF mode, it enables precise frame-locked acquisition for flicker-sensitive applications such as VR headset display validation.
