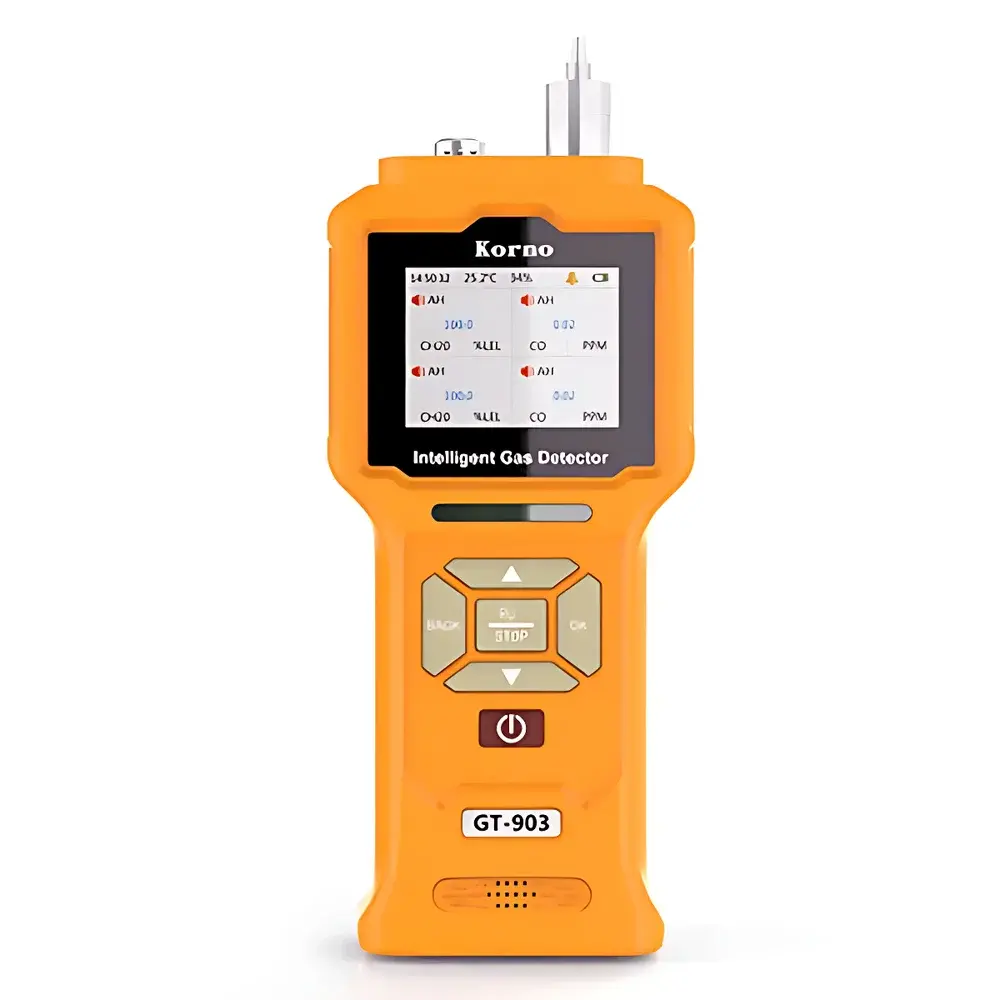

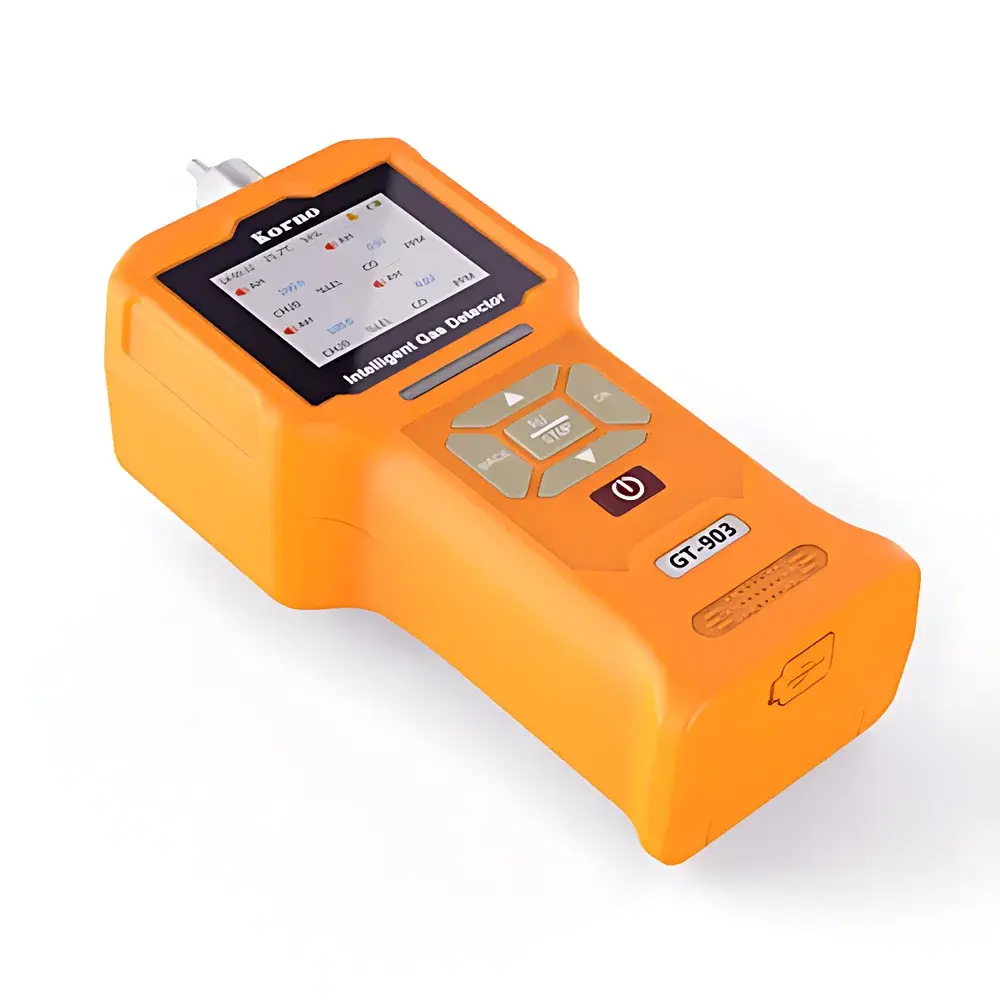

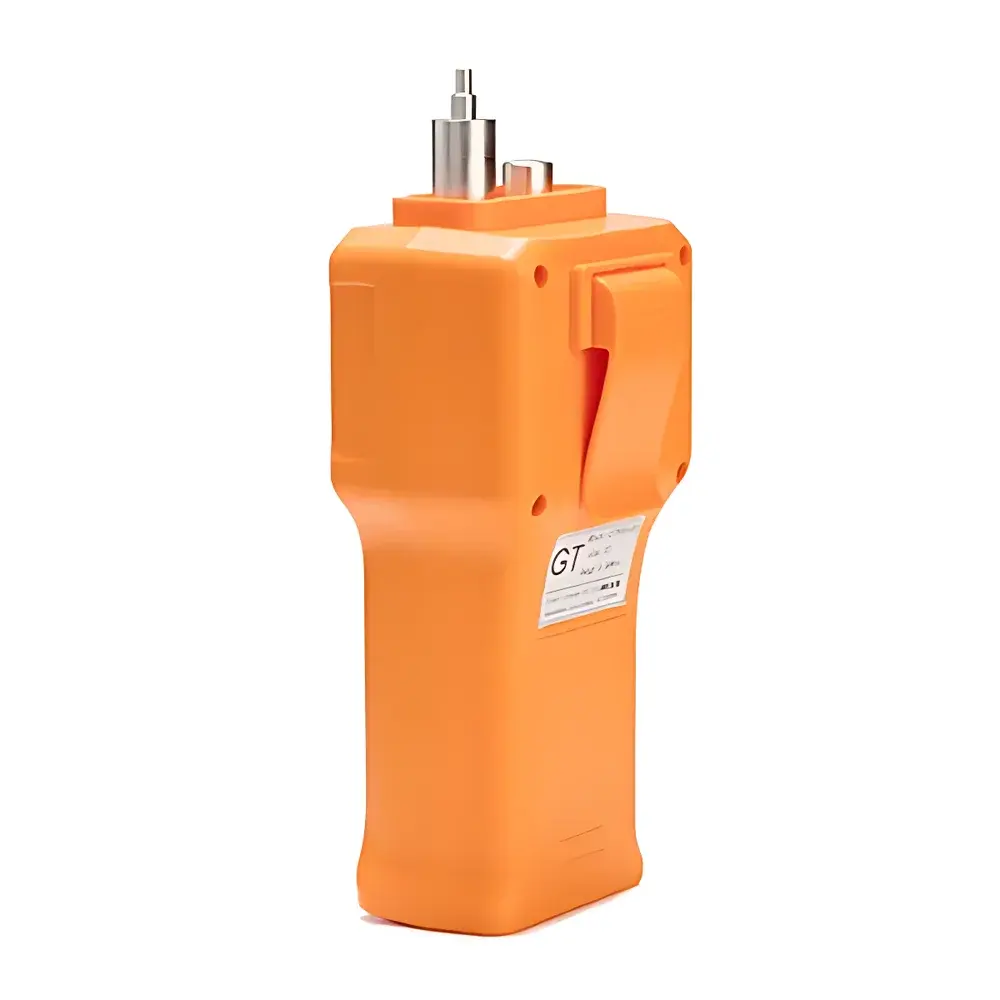

Korno GT-903-SF6 Portable NDIR Infrared Sulfur Hexafluoride (SF₆) Gas Detector

Overview

The Korno GT-903-SF6 is a purpose-engineered portable gas detector designed for reliable, real-time quantification of sulfur hexafluoride (SF₆) in indoor air, industrial facilities, substation enclosures, GIS (gas-insulated switchgear) maintenance zones, and confined-space environments. It employs non-dispersive infrared (NDIR) spectroscopy—a physically robust, interference-resistant optical method—where SF₆ molecules absorb specific mid-infrared wavelengths (typically near 10.55 µm), enabling selective and stable concentration measurement without cross-sensitivity to common background gases such as CO₂, CH₄, or water vapor. Unlike electrochemical or catalytic bead sensors, the NDIR platform delivers long-term baseline stability, minimal zero drift, and no consumable parts, making it ideal for continuous monitoring applications requiring regulatory traceability and audit-ready performance.

Key Features

• High-fidelity NDIR sensing core with factory-calibrated optical path and temperature-compensated signal processing
• Integrated micro-diaphragm sampling pump ensuring consistent flow rate (≥300 mL/min) and rapid T90 response (<20 s)
• Dual-range detection capability: configurable ppm-level (0–10,000 ppm) and %vol-level (0–100% vol) modes for leak screening and bulk gas verification
• 3800 mAh high-density polymer lithium-ion battery supporting >12 hours of continuous operation under typical load; USB-C recharging compatible with standard power banks and lab-grade bench supplies
• Full firmware-based calibration suite—including automatic zero adjustment, span calibration, and up to six-point multi-concentration target calibration—to maintain metrological integrity across extended deployment cycles
• IP67-rated enclosure with reinforced polycarbonate housing and elastomeric seals, certified to CLEx25.9118 for use in Zone 1/21 hazardous locations per IEC 60079 series (aligned with GB/T 3836.1 & 3836.4–2021)
• On-device data review: scrollable historical log display with timestamp, concentration value, and unit annotation; exportable via USB mass storage mode

Sample Compatibility & Compliance

The GT-903-SF6 is validated for direct sampling of ambient air, compressed gas streams (with optional inline particulate/moisture filtration), and headspace vapors in electrical equipment compartments. Its NDIR architecture inherently rejects interference from CO, NO₂, SO₂, and hydrocarbons within typical indoor IAQ matrices. The instrument complies with national mandatory standards GB/T 3836.1–2021 (General Requirements for Equipment in Explosive Atmospheres) and GB/T 3836.4–2021 (Intrinsic Safety “i” Protection). While not FDA 21 CFR Part 11-certified out-of-box, its audit trail functionality—including immutable timestamps, user-access logs, and calibration history—supports GLP/GMP-aligned documentation workflows when deployed in quality-critical infrastructure maintenance programs.

Software & Data Management

Data acquisition and configuration are managed via embedded firmware with intuitive menu navigation and multilingual UI (English default). All measurements are time-stamped using an internal RTC synchronized at boot. Stored records (up to 120,000 entries) include gas concentration, ambient temperature/humidity (when optional probe installed), battery voltage, and pump status. Export occurs in CSV format via USB connection—no proprietary software required. Firmware updates are delivered via signed binary files to ensure integrity; version history and checksums are retained in device memory for validation during QA audits.

Applications

• Leak detection and quantification in SF₆-filled GIS, circuit breakers, and transformers during commissioning and preventive maintenance
• Occupational exposure monitoring in switchgear rooms, control panels, and utility substations per OSHA PEL (1000 ppm TWA) and ACGIH TLV® guidelines
• Decommissioning verification of SF₆-containing assets prior to recycling or disposal
• Indoor air quality assessment in laboratories handling SF₆-based plasma etching or dielectric testing
• Emergency response triage for accidental releases in enclosed high-voltage facilities

FAQ

What calibration standards are recommended for field verification?
Certified SF₆/N₂ calibration gases at 50 ppm, 1000 ppm, and 5% vol are recommended per ISO 17025-accredited protocols; zero air must meet ISO 8573-1 Class 1 purity requirements.
Can the instrument operate continuously while charging?
Yes—the GT-903-SF6 supports pass-through operation: real-time detection and data logging continue uninterrupted during USB-C charging.
Is humidity compensation automatic when the optional RH/temperature probe is installed?
Yes—firmware applies dynamic correction coefficients based on simultaneous RH and temperature readings to minimize NDIR signal attenuation caused by water vapor absorption overlap.
How is sensor longevity maintained under high-concentration exposure?
The optical path includes a replaceable desiccant cartridge and sintered stainless-steel inlet filter; exposure to >20,000 ppm SF₆ for >5 minutes requires post-event zero recalibration and optical window inspection.
Does the device support Modbus RTU or other industrial communication protocols?
No—communication is limited to USB-C CDC ACM virtual COM port for data dump and firmware update; external RS485 or 4–20 mA output modules are not integrated but may be added via third-party interface adapters.
