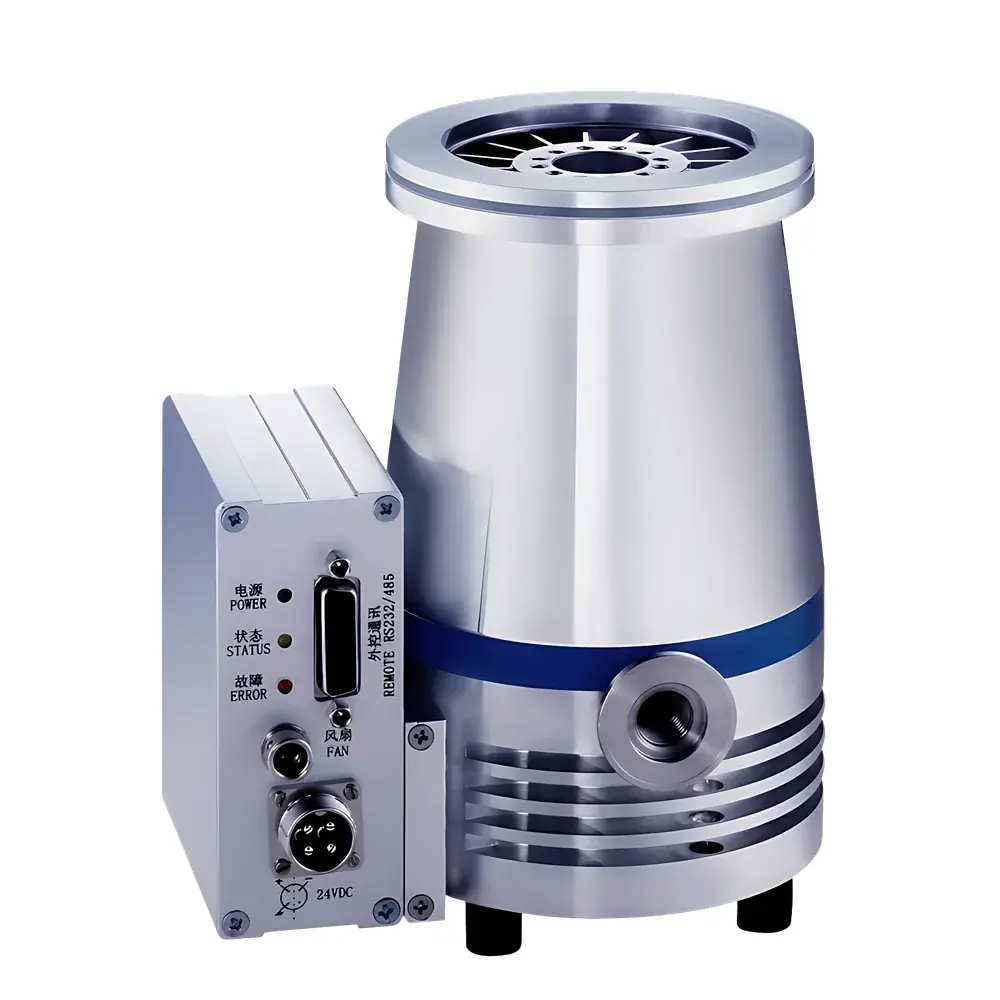

KYKY FF-63/80 Turbo Molecular Pump

Overview

The KYKY FF-63/80 Turbo Molecular Pump is a compact, high-speed, oil-free vacuum generation system engineered for integration into analytical and research-grade vacuum environments. Operating on the principle of momentum transfer via ultra-high rotational velocity—up to 72,000 RPM—the pump accelerates gas molecules from the inlet toward the exhaust using precisely angled rotor blades mounted on a magnetically levitated or high-precision ball-bearing spindle. This design enables efficient compression and evacuation of light gases (H₂, He) and heavier species (N₂, Ar) across a wide dynamic pressure range, supporting ultimate vacuum levels down to 5×10⁻⁷ Pa when paired with an appropriate backing pump. Its 24 VDC operational capability facilitates direct integration into embedded systems, portable instrumentation, and space-constrained platforms such as benchtop mass spectrometers, surface analysis chambers, and electron microscopy columns—where low vibration, minimal electromagnetic interference, and stable base pressure are critical.

Key Features

• High-speed rotor architecture delivering rated speed of 72,000 RPM with <1.5 µm radial runout tolerance for long-term mechanical stability
• Modular flange compatibility: DN63 CF and DN63 ISO-K inlet options; DN16 ISO-KF outlet standard—enabling seamless retrofitting into existing UHV and HV systems
• Dual cooling mode support: air-cooled operation for ambient-limited applications; water-cooled configuration (≥1 L/min flow, ≤25 °C inlet temperature) for sustained high-load duty cycles
• Low power consumption (≤90 W) and reduced acoustic emission (<45 dB(A) at 1 m), minimizing thermal drift in adjacent optical or electronic subsystems
• Extended forepressure tolerance: continuous operation up to 200 Pa, transient tolerance to 650 Pa—enhancing robustness during chamber venting, sample loading, or leak events
• Compact footprint and lightweight construction (3.5 kg for CF variant), optimized for vertical, horizontal, or inverted mounting per ISO 2861-2 mechanical orientation guidelines

Sample Compatibility & Compliance

The FF-63/80 is compatible with inert, non-corrosive process gases including N₂, Ar, He, H₂, and residual atmospheric species typical of high-vacuum analytical workflows. It is not rated for condensable vapors, reactive halogenated compounds, or particulate-laden streams without upstream filtration. The pump conforms to CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61000-6-3). While not certified to ISO 27001 or FDA 21 CFR Part 11, its deterministic startup sequence, real-time speed monitoring, and analog/digital I/O interfaces support integration into GLP/GMP-compliant vacuum control architectures when deployed with validated controllers (e.g., KYKY TD-80 with audit-trail logging firmware).

Software & Data Management

The FF-63/80 operates in conjunction with KYKY’s dedicated drive electronics—including the TD-80, TCP-100, and TC-100 series controllers—which provide RS-485, analog 0–10 V, and discrete TTL I/O for remote status interrogation and closed-loop regulation. Controller firmware supports programmable ramp profiles, overtemperature/overpressure fault latching, and rotational speed feedback with ±100 RPM repeatability. Raw telemetry (speed, current, temperature, error codes) is accessible via Modbus RTU protocol for ingestion into LabVIEW, Python-based SCADA, or enterprise MES platforms. No proprietary cloud service or vendor-hosted dashboard is required; all configuration and diagnostics remain locally executable.

Applications

• Mass spectrometry systems requiring stable 10⁻⁶–10⁻⁷ Pa operating pressure with rapid pump-down and minimal hydrocarbon backstreaming
• Scanning electron microscopes (SEM) and focused ion beam (FIB) tools where low-vibration pumping preserves beam coherence and detector signal-to-noise ratio
• X-ray photoelectron spectroscopy (XPS) and Auger electron spectroscopy (AES) chambers demanding high N₂/Ar compression ratios (>10⁸) to suppress background partial pressures
• Additive manufacturing (metal 3D printing) build chambers requiring repeatable vacuum integrity verification between layers
• Research-scale thin-film deposition (PVD, CVD) and surface science experiments involving controlled gas dosing and residual gas analysis (RGA)

FAQ

What backing pump is recommended for optimal performance?
A rotary vane or diaphragm backing pump with pumping speed between 0.5 L/s and 2 L/s is recommended—ensuring forepressure remains below 200 Pa during continuous operation.
Can the FF-63/80 be operated in any orientation?
Yes—it supports full 360° mechanical mounting per ISO 2861-2, though water-cooled variants require gravity-assisted coolant return if installed inverted.
Is the pump compatible with hydrogen or helium-rich environments?
Yes; it achieves pumping speeds of 44 L/s for H₂ and 58 L/s for He, with compression ratios of 1×10⁴ and 1×10⁵ respectively—critical for plasma and fusion-related diagnostics.
Does the pump require periodic oil replacement or lubrication?
No; it is a fully dry, oil-free turbomolecular design with either magnetic bearing or high-precision grease-lubricated ball bearings rated for >15,000 hours MTBF.
What is the typical pump-down time from atmosphere to 10⁻⁵ Pa?
When paired with a 1.5 L/s backing pump and a 50 L chamber volume, average pump-down time is approximately 12–15 minutes—dependent on system conductance and initial outgassing rate.
