Lab Companion IB-15G General-Purpose Laboratory Incubator

Overview

The Lab Companion IB-15G is a precision-engineered, general-purpose laboratory incubator designed for consistent thermal control in life science research, clinical diagnostics, and quality assurance laboratories. It operates on natural convection air-jacketed heating architecture—eliminating forced airflow to minimize vibration, desiccation, and cross-contamination risks. This design is particularly advantageous for sensitive applications such as yeast culture, embryonic development studies, and long-term tissue maintenance where mechanical disturbance or humidity fluctuation must be avoided. The chamber maintains stable setpoint temperatures across its full operating range (ambient + 5°C to 70°C), with documented uniformity of ±0.1°C at the critical 37°C benchmark—a performance level aligned with DIN 12880:2015 specifications for Class II incubators. Its robust stainless-steel interior, seamless welds, and smooth surfaces support ISO 14644-compliant cleaning protocols and routine decontamination using ethanol, hydrogen peroxide vapor, or low-corrosion biocides.

Key Features

• Air-jacketed natural convection system ensures uniform temperature distribution without internal fans—reducing mechanical stress on delicate biological samples.
• Microprocessor-based PID temperature controller with auto-tuning, self-calibration, and adaptive compensation for ambient load variations.
• Backlit LED display with 0.1°C resolution and intuitive menu navigation; supports three user-defined quick-access temperature presets.
• Dual-stage overtemperature protection: primary electronic limiter and independent mechanical high-limit thermostat (patent KR 10-0397583).

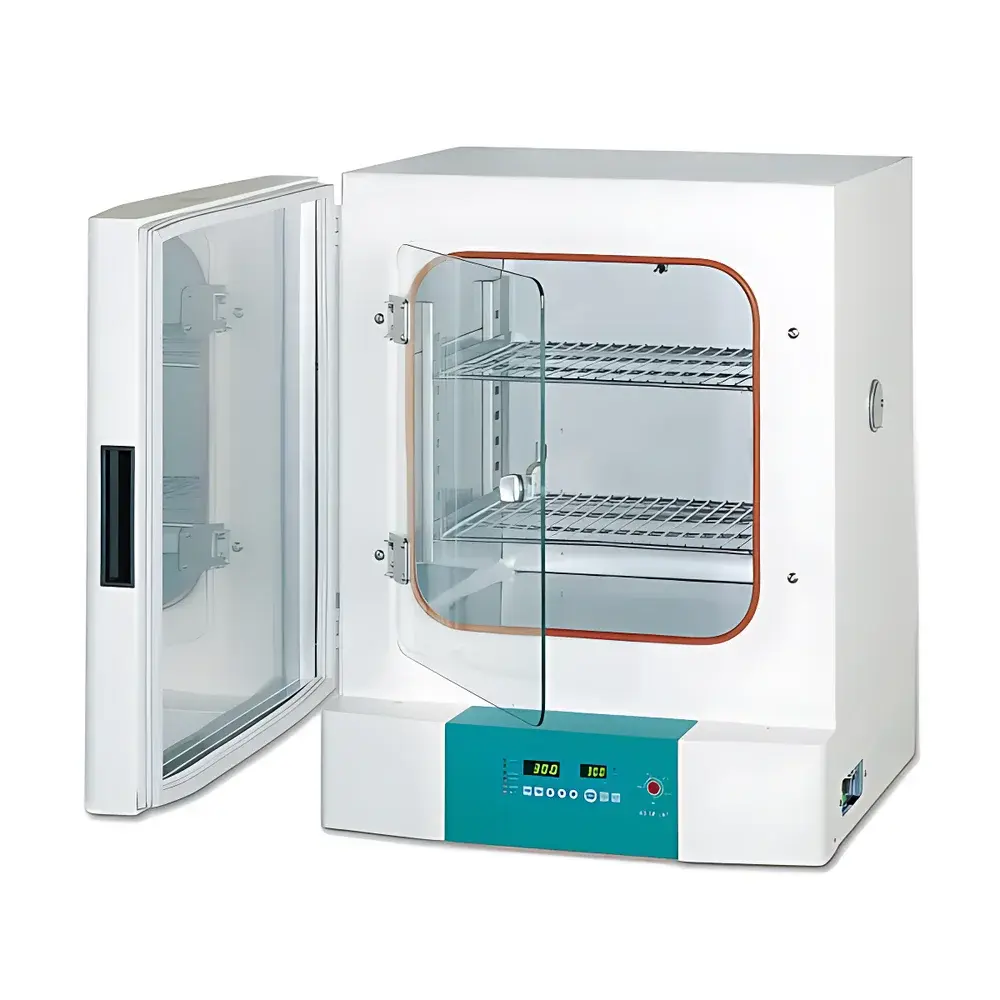

• Tempered glass observation door with double-sealed frame preserves thermal integrity while enabling non-invasive sample monitoring.
• Integrated 38 mm cable port allows external instrumentation (e.g., pH probes, CO₂ sensors, data loggers) to operate inside the chamber without compromising seal integrity.
• Stainless steel interior (AISI 304) and reinforced wire shelving (load capacity: 30 kg/shelf); up to six shelves accommodated for flexible configuration.
• Full electrical isolation and circuit-level safeguards against overcurrent, short-circuit, and thermal runaway conditions.

Sample Compatibility & Compliance

The IB-15G supports a broad spectrum of biological and biochemical workflows—including bacterial and fungal cultivation, enzyme kinetics assays, antibody affinity testing, histological processing (e.g., paraffin embedding and dewaxing), and cell-based viability screening. Its absence of active humidification makes it suitable for applications requiring dry thermal environments, such as reagent drying, crystallization trials, and stability testing of lyophilized pharmaceutical intermediates. The unit complies with DIN 12880:2015 for general-purpose incubators and incorporates design elements compatible with GLP and GMP documentation frameworks—particularly its auditable error logging, controller access restriction, and deterministic thermal recovery metrics. While not certified for IEC 61010-1 safety compliance out-of-the-box, its electrical architecture meets essential risk-mitigation criteria for Class I laboratory equipment under standard installation conditions.

Software & Data Management

The IB-15G operates as a standalone instrument with embedded firmware—no proprietary software or driver installation required. All operational parameters (setpoint, actual temperature, timer status, fault codes) are displayed in real time on the front-panel interface. Event-driven error codes (e.g., E01 = sensor failure, E03 = overtemperature) are retained in non-volatile memory and accessible via diagnostic mode. For integration into centralized lab management systems, optional RS-485 or analog 4–20 mA output modules (sold separately) enable connection to SCADA platforms or building automation controllers. Audit trail generation is supported through external data loggers interfaced via the standard cable port, satisfying basic FDA 21 CFR Part 11 record-keeping prerequisites when paired with validated timestamping hardware.

Applications

• Microbiological culture of thermophiles (e.g., Geobacillus stearothermophilus) and mesophiles under controlled dry-heat conditions.
• Enzymatic digestion protocols requiring precise thermal ramping and dwell stability (e.g., restriction enzyme incubations, protease treatments).
• Clinical specimen conditioning prior to ELISA, PCR setup, or flow cytometry staining workflows.
• Tissue processing stages including fixation, dehydration, and paraffin infiltration where ambient humidity interference must be excluded.
• Stability assessment of small-molecule APIs and excipients under accelerated aging conditions (ICH Q1A).
• Calibration verification of secondary temperature sensors using NIST-traceable reference standards placed within the working volume.

FAQ

Does the IB-15G support humidity control?
No. This model is a dry-air incubator and does not include humidification capability. For moisture-sensitive applications, consider the IB-15GH variant.
Can the incubator be validated for IQ/OQ/PQ protocols?
Yes. Its documented temperature uniformity, recovery time, and repeatability metrics align with common validation templates for Class II incubators per ISO/IEC 17025-accredited labs.
Is the stainless steel interior electropolished?
No. The chamber features mechanically polished AISI 304 stainless steel, optimized for cleanability and corrosion resistance—not optical-grade finish.
What is the maximum allowable ambient operating temperature?
The unit is rated for continuous operation in environments up to 30°C ambient with ≤70% RH, per DIN 12880 environmental class definitions.
Are calibration certificates included with shipment?
Factory calibration data is provided; however, NIST-traceable certification requires third-party service at time of installation or during scheduled maintenance intervals.
