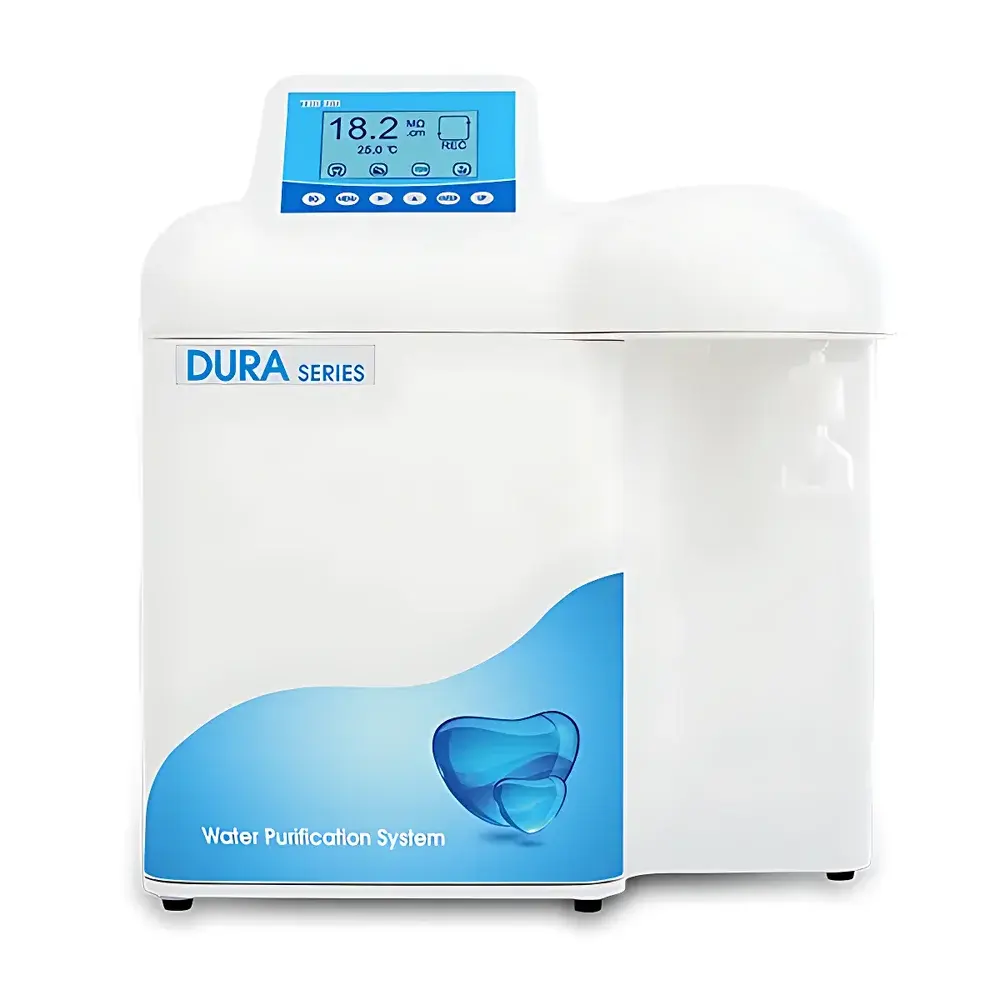

The Lab Dura 12/24 Ultra-Pure Water System

Overview

The Lab Dura 12/24 Ultra-Pure Water System is an integrated, benchtop-grade water purification platform engineered for laboratories requiring consistent, trace-level purity across multiple analytical, life science, and clinical applications. It employs a rigorously validated dual-stage reverse osmosis (RO) architecture—comprising two independent high-efficiency RO membranes, dedicated booster pumps, and an intermediate storage tank—to achieve stable feedwater rejection even under variable municipal supply conditions. This design ensures secondary RO permeate conductivity remains tightly controlled within 1–5 µS/cm, forming a robust foundation for subsequent deionization and ultra-purification stages. Final product water meets or exceeds the stringent specifications for Type I reagent water defined in ASTM D1193-20, ISO 3696:1987, CLSI EP20-A2, USP , and EP 2.2.44. The system delivers up to 24 L/h of purified water and up to 2.0 L/min of ultra-pure water (when reservoirs are pressurized), with real-time monitoring of source, RO, and UP water quality at three discrete points.

Key Features

• Triple-pump architecture: Dedicated primary RO booster pump, secondary RO booster pump, and recirculation/disinfection pump for independent process control and automated sanitization cycles.
• Dual-reservoir configuration: Integrated 5.8 L PE air-filtered storage tank (with hydrophobic vent filter) and 12 L pressure-rated polypropylene reservoir—both NSF-certified and designed to minimize atmospheric contamination.
• Three-point online water quality monitoring: Simultaneous resistivity (µS/cm / MΩ·cm), TOC (ppb), and endotoxin-sensitive conductivity measurement at source, RO, and UP outlets—with configurable alarm thresholds and automatic logging.
• Modular, tool-free consumables: Pre-assembled, bayonet-style pretreatment cartridges (5 µm PP + KDF + coconut-shell activated carbon); factory-integrated DOW FilmTec™ RO elements; and high-capacity mixed-bed ion exchange columns with Dow Amberjet™ resins.
• UV/UF final polishing: Dual-wavelength (185 nm + 254 nm) low-pressure mercury lamp housed in medical-grade 316L stainless steel chamber, coupled with 5,000 Da MWCO ultrafiltration membrane for endotoxin and nuclease removal—certified for cell culture, IVF, and molecular biology workflows.
• Comprehensive GLP-compliant data management: RS232 and USB interfaces support timestamped export of temperature, resistivity, TOC, and pressure logs; full audit trail with user authentication (dual-level password protection) and configurable service reminders.
• Automated maintenance protocols: Scheduled RO membrane flush (startup + timed), one-touch chemical disinfection (using NSF-certified chlorine dioxide tablets), and programmable UV lamp cycling to extend component lifetime.

Sample Compatibility & Compliance

The Dura 12/24 is validated for use with standard municipal tap water (5–45 °C, 1.0–4.0 kgf/cm² inlet pressure) as feedstock. Its pretreatment train—including NSF/ANSI 42 & 53 certified components—ensures compatibility with variable hardness, chlorine, and organic load profiles. All wetted materials (PE tanks, PES final filters, 316L UV chamber, EPDM gaskets) comply with USP and FDA 21 CFR Part 177 for food-contact polymers. Final water output satisfies the chemical and microbiological criteria for Type I water per ASTM D1193-20, ISO 3696 Class 1, CLSI EP20-A2, and USP . Endotoxin and nuclease specifications (<0.001 EU/mL, <1 pg/mL RNase, <5 pg/mL DNase) align with requirements for sterile tissue culture media preparation and next-generation sequencing library construction.

Software & Data Management

The embedded 106 × 57 mm LCD interface provides animated, real-time visualization of system status—including flow path schematics, pump duty cycles, UV lamp hours, and consumable remaining life (pre-filter, RO membrane, UV lamp, UP column). All operational parameters—including time-stamped resistivity, TOC, temperature, and pressure readings—are stored internally for ≥30 days and exportable via USB or RS232 to CSV-compatible spreadsheet software. Audit trails record operator login/logout events, parameter modifications, alarm triggers, and service interventions—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with validated third-party LIMS integration. Calibration certificates for all sensors (resistivity, TOC, UV intensity) are provided with initial commissioning and available upon request for annual recalibration.

Applications

• HPLC, UHPLC, and LC-MS mobile phase preparation where low TOC and silica content prevent column fouling and baseline drift.
• Cell culture media formulation requiring endotoxin-free water for primary neuron isolation, stem cell expansion, and embryoid body differentiation.
• Molecular biology workflows including PCR, qRT-PCR, CRISPR-Cas9 editing, and RNA-seq library synthesis—where RNase/DNase contamination compromises assay fidelity.
• Atomic absorption spectroscopy (AAS), ICP-OES, and ICP-MS calibration standards preparation demanding sub-ppt metal ion levels.
• Pharmaceutical QC testing per USP and EP 2.2.44 for injectable formulations and parenteral drug manufacturing support.
• Trace elemental analysis in environmental and geological labs where background interference from Na⁺, K⁺, Ca²⁺, and SiO₂ must be eliminated.

FAQ

What is the expected service life of the DOW RO membranes under typical municipal feedwater conditions?
DOW FilmTec™ BW30-400 elements typically operate for 2–3 years with proper pretreatment and scheduled flushing; lifetime is extended by the integrated KDF/carbon stage and automated anti-scalant rinse protocol.
Can the system be configured for remote monitoring via Ethernet or Wi-Fi?
The Dura 12/24 does not include native Ethernet or Wi-Fi connectivity; however, its RS232/USB data stream is compatible with third-party industrial gateways supporting Modbus RTU or ASCII protocols for SCADA integration.
Is the UF membrane replaceable independently of the UP cartridge?
Yes—the 5,000 Da MWCO ultrafiltration module is a separate, field-replaceable component mounted downstream of the UP column and upstream of the final 0.1 µm PES filter.
Does the system meet ISO 13485 requirements for medical device manufacturing environments?
While the Dura 12/24 itself is not ISO 13485-certified, its design, documentation package (IQ/OQ/PQ templates), and compliance with USP , EP 2.2.44, and ISO 3696 enable qualification in ISO 13485-regulated facilities when installed and maintained per The Lab’s validation guidance.
How frequently must the UV lamp be replaced to maintain specified TOC reduction performance?
The dual-wavelength lamp is rated for 9,000 hours of continuous operation; replacement is recommended annually or after 8,000 hours of cumulative runtime, whichever occurs first—tracked automatically by the onboard timer.
