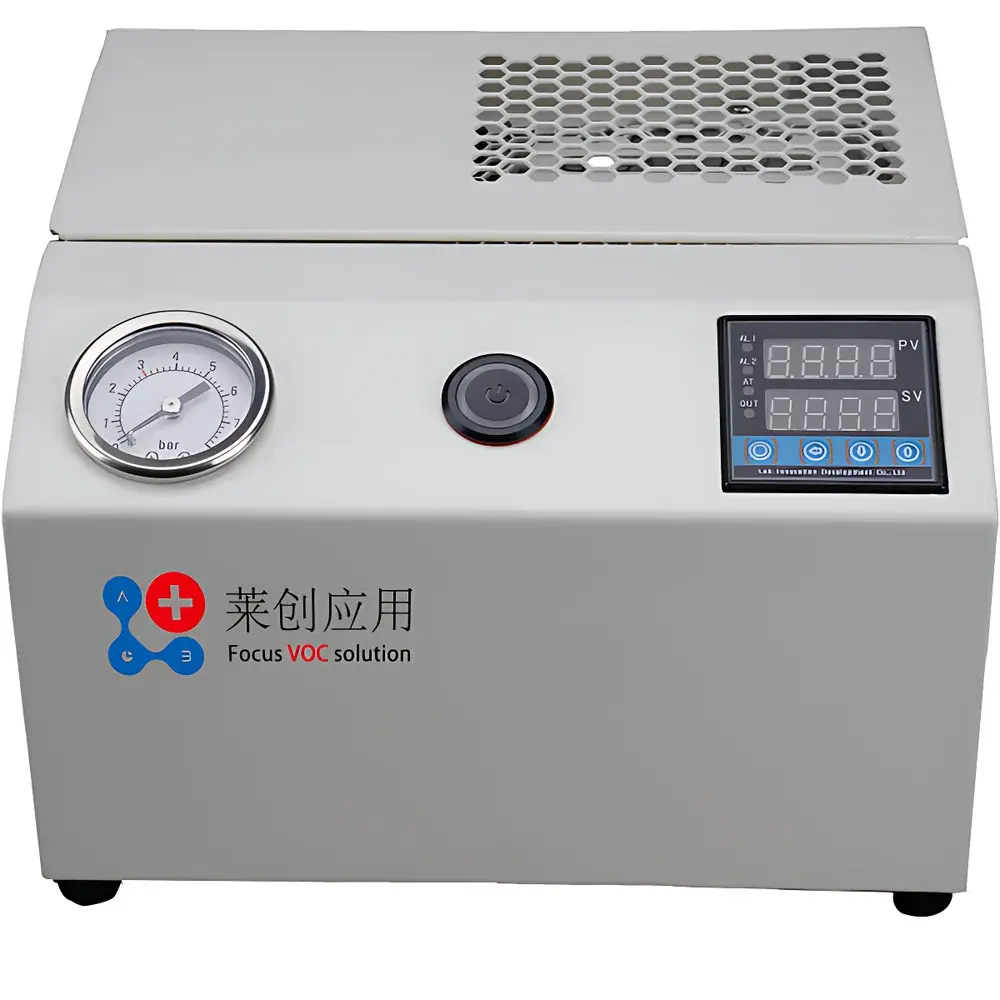

LAB-T100mini Thermal Desorption Tube Aging Unit by 4Labplus

Overview

The LAB-T100mini Thermal Desorption Tube Aging Unit is an engineered benchtop system designed for the controlled thermal conditioning of sorbent-packed sampling tubes prior to VOC analysis. It operates on the principle of programmed thermal desorption—applying precise, uniform heating under inert gas purge to remove residual volatiles, moisture, and manufacturing contaminants from adsorbent media (e.g., Tenax TA, Carbopack B/C, graphitized carbon blacks). This pre-conditioning step is critical to achieving low method blanks, high reproducibility in thermal desorption–gas chromatography–mass spectrometry (TD-GC-MS) workflows, and extended sorbent tube service life. The unit complies with core procedural requirements outlined in EPA Method TO-17, ISO 16017-1, and ASTM D6196 for sorbent tube preparation, supporting laboratories engaged in ambient air, indoor air, workplace exposure, and emissions monitoring.

Key Features

• Tool-free plug-and-play tube insertion: Spring-loaded clamping mechanism ensures secure, repeatable positioning without mechanical fasteners or alignment tools.
• Compact footprint (260 × 320 × 280 mm): Optimized for fume hood integration or dedicated benchtop placement—no external ventilation ducting required when operated with appropriate lab exhaust.
• Patented dual-stage gas flow architecture: Each of the 10 aging channels features independent pressure-regulated inert gas supply (N₂ or He), eliminating cross-contamination and enabling selective activation of subsets of tubes.
• High-pressure, low-flow control (<5 mL/min per channel, ±1% setpoint accuracy): Maintains laminar purge conditions across full temperature range (room temp to 350°C), minimizing thermal stress on fragile sorbents.
• Partial-load flexibility: Users may age 1–10 tubes simultaneously without compromising temperature uniformity or gas residence time—no mandatory full-batch operation.
• Ultra-low-background construction: Internal surfaces utilize electropolished 316L stainless steel and high-purity alumina ceramic heaters; all wetted components are certified non-leaching and solvent-resistant.
• Rapid thermal ramping: Achieves 300°C setpoint in under 3 minutes (typical), reducing turnaround time between batches and improving throughput in high-volume environmental labs.
• Integrated timing and alert system: Digital timer with audible buzzer confirmation upon cycle completion; no manual stopwatch dependency or risk of over-aging.

Sample Compatibility & Compliance

The LAB-T100mini accommodates standard 1/4″ OD stainless steel or quartz thermal desorption tubes (6.35 mm OD), including those from PerkinElmer, Markes International, Dani Instruments, and domestic manufacturers compliant with ASTM D6196 tube geometry specifications. All internal gas pathways meet USP <661.1> material classification for pharmaceutical-grade inertness. The system supports GLP-compliant documentation when paired with external logging software; audit trails for temperature setpoints, duration, and gas flow rates can be manually recorded per batch to satisfy ISO/IEC 17025 clause 7.7 traceability requirements.

Software & Data Management

The LAB-T100mini operates as a standalone hardware platform with no embedded firmware or proprietary software dependencies. Temperature setpoint, dwell time, and gas on/off sequencing are configured via front-panel rotary encoder and LCD interface. All operational parameters are retained in non-volatile memory after power cycling. For laboratories requiring electronic recordkeeping, the unit’s analog output (0–5 V DC proportional to chamber temperature) and digital TTL trigger output (cycle complete) enable integration with LabVantage, Empower, or custom SCADA systems for automated data capture and 21 CFR Part 11–compliant electronic signatures (when deployed with validated middleware).

Applications

• Pre-activation of multi-bed sorbent tubes (e.g., Tenax GR + Carbograph 1TD + Carboxen 1000) used in EPA TO-17 compliance monitoring.
• Regeneration of reused tubes following GC-MS analysis—restoring baseline integrity without compromising bed integrity.
• Method development studies evaluating optimal aging temperature/duration for novel sorbent formulations.
• QC/QA verification of tube lot consistency prior to field deployment in occupational hygiene surveys.
• Support for accredited environmental testing laboratories maintaining ISO/IEC 17025 accreditation scope for VOC analysis.

FAQ

What inert gases are compatible with the LAB-T100mini?
Nitrogen (≥99.999% purity) and helium (≥99.995%) are recommended. Avoid argon or synthetic air due to potential oxidation effects on certain carbon-based sorbents.
Can the unit be used for conditioning passive samplers?
No—this device is engineered exclusively for active-sampling thermal desorption tubes operating under positive-pressure purge; it does not support diffusion-based or badge-style passive collectors.
Is calibration certificate included with shipment?
A factory-as-tested temperature verification report (traceable to NIST standards) is provided. On-site calibration using a calibrated thermocouple probe is advised annually per ISO/IEC 17025 Clause 6.4.
Does the system support remote start/stop via RS-232 or Ethernet?
No—remote control is not natively supported. Integration requires external relay control of the main power input or TTL-level triggering of the completion signal.
What maintenance is required for long-term reliability?
Quarterly inspection of O-rings and gas fittings; annual replacement of ceramic heater insulation if operating above 300°C routinely; no lubrication or filter replacement needed under normal use conditions.
