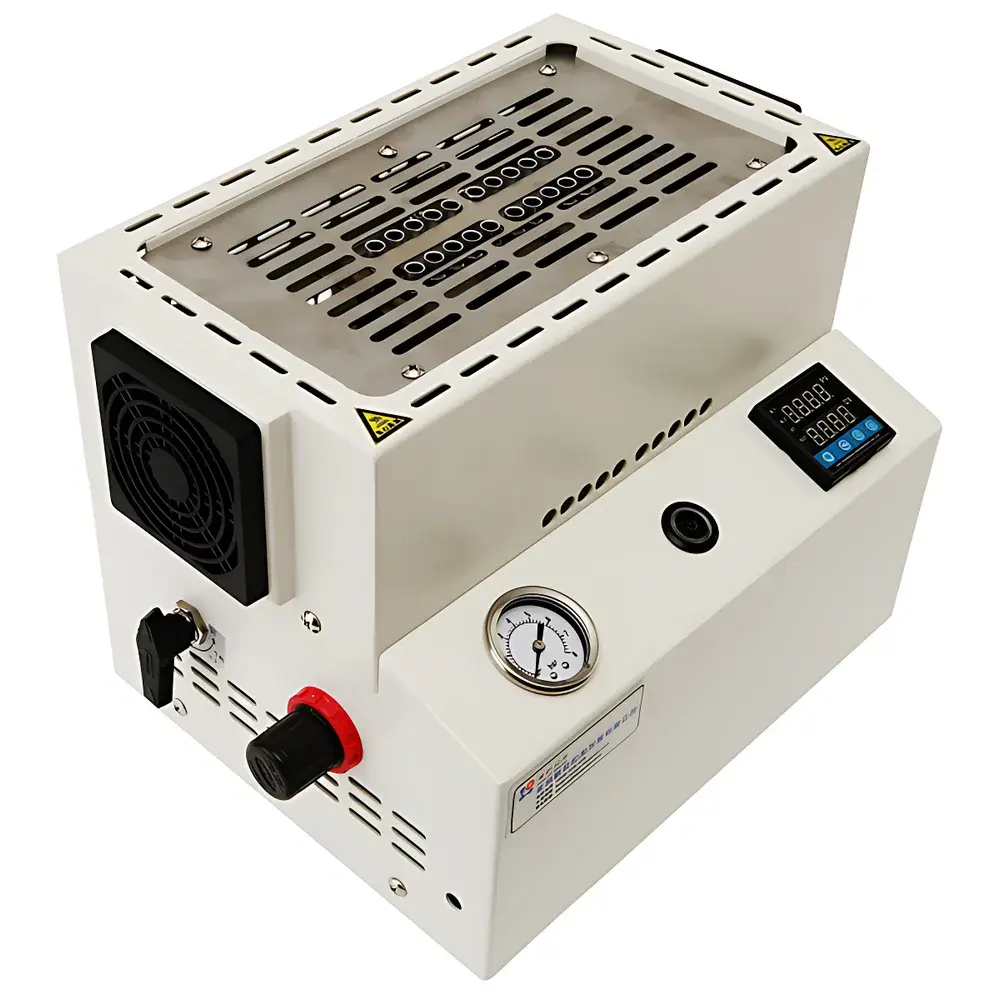

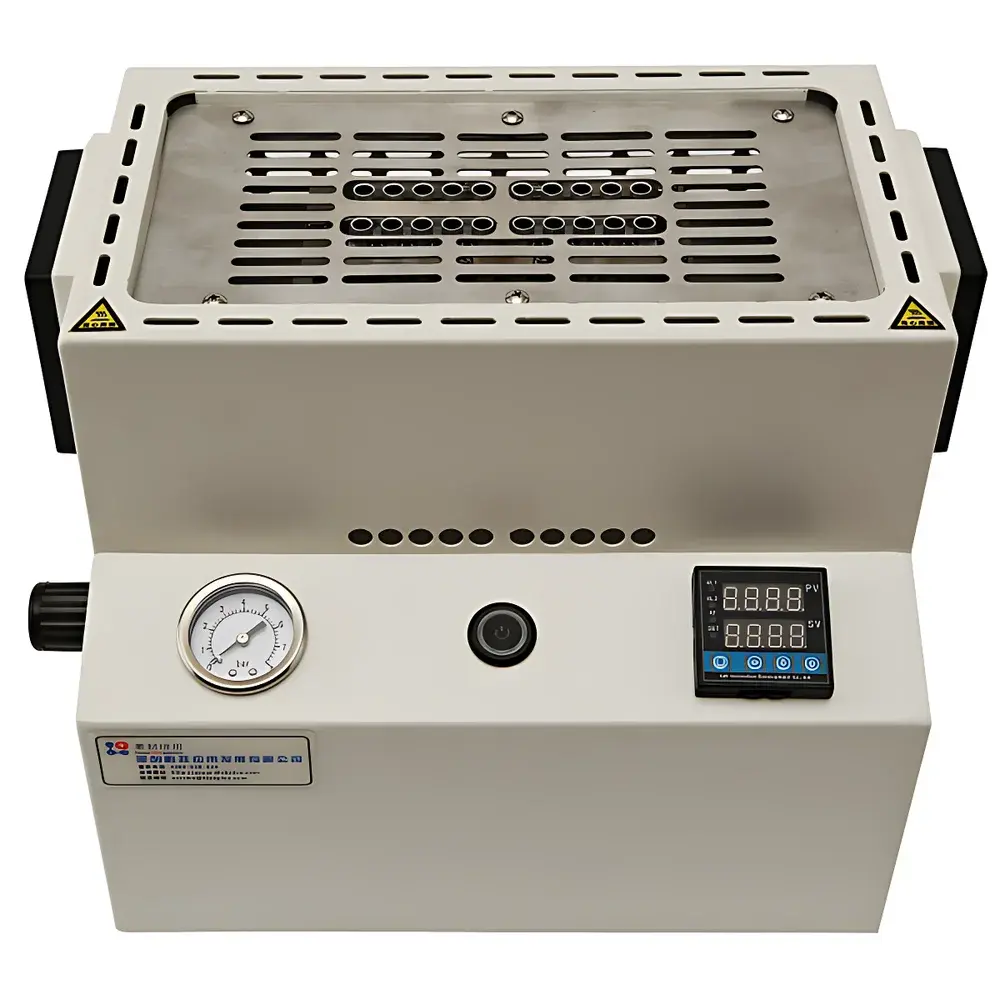

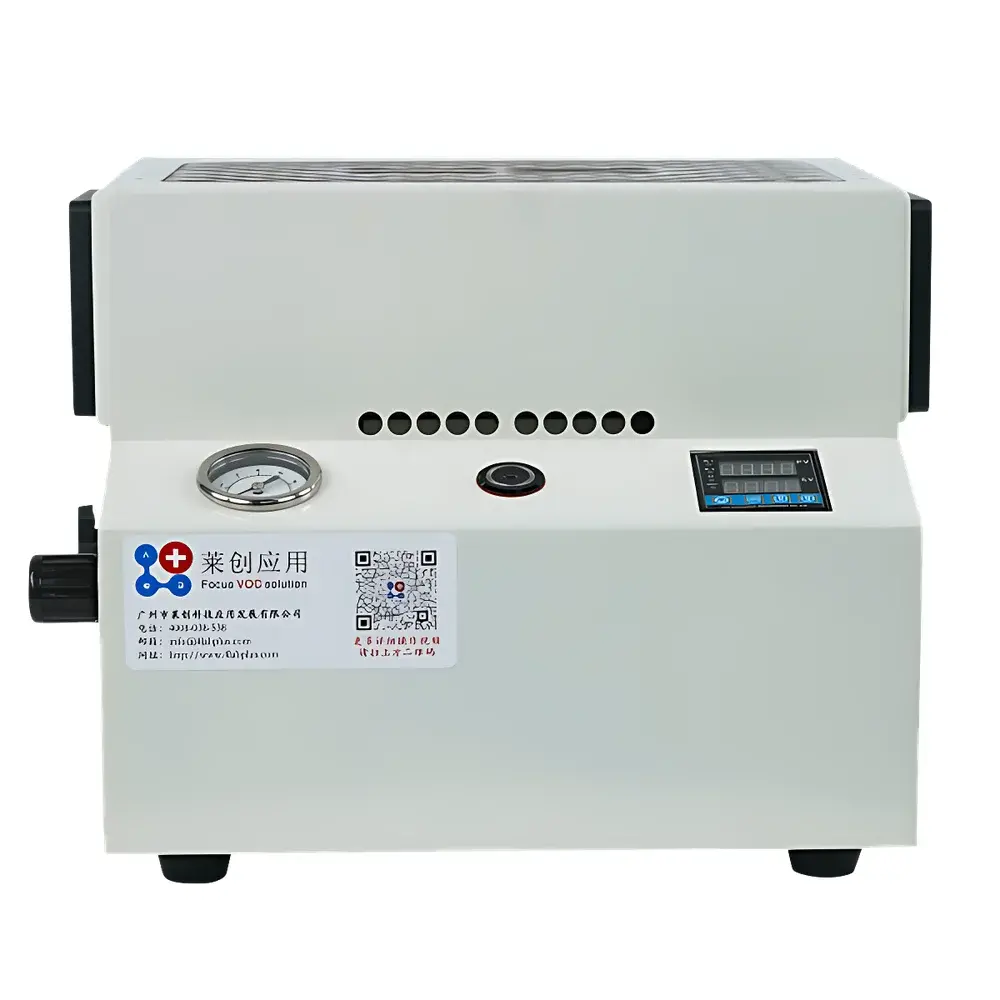

LAB-T210P Thermal Desorption Tube Aging Unit by 4Labplus

Overview

The LAB-T210P Thermal Desorption Tube Aging Unit is an engineered benchtop system designed for the controlled thermal conditioning of sorbent-packed tubes used in volatile organic compound (VOC) analysis workflows. It operates on the principle of programmed thermal desorption—applying precise, uniform heating under inert carrier gas flow to remove residual contaminants, moisture, and native volatiles from adsorbent media (e.g., Tenax TA, Carbopack B/C, graphitized carbon blacks) prior to analytical use. This pre-conditioning step is critical to achieving low method detection limits, minimizing carryover, and ensuring chromatographic reproducibility in EPA Method TO-17, ASTM D6196, ISO 16017-1, and other regulatory-compliant VOC monitoring protocols. The unit is fully compatible with standard 1/4″ OD stainless steel or quartz thermal desorption tubes and integrates seamlessly into laboratory environments where trace-level environmental, occupational health, or indoor air quality testing is performed.

Key Features

• 20-position modular tube holder with tool-free plug-and-play insertion—enabling rapid loading/unloading without mechanical fasteners or alignment fixtures.
• Benchtop footprint optimized for fume hood integration; constructed with corrosion-resistant, ultra-low-outgassing materials including electropolished stainless steel manifolds and PTFE-sealed gas pathways to eliminate background interference.
• Intelligent carrier gas pressure monitoring system: automatically interrupts heating if inlet pressure falls below safe operational threshold (<5 psi), preventing dry-heating damage to internal heaters and tube beds.
• Patented independent-channel gas flow architecture: each tube position receives isolated, pressure-regulated flow—eliminating cross-talk between channels and ensuring consistent thermal profiles across all 20 positions.
• High-pressure, low-flow design (operating range: 20–100 psi inlet, 10–50 mL/min per channel): delivers stable, laminar carrier gas delivery even during extended aging cycles (up to 120 min), minimizing flow drift and thermal gradient deviation.
• Energy-optimized standby mode: reduces heater power draw by >85% when idle; resumes full thermal ramp upon tube insertion, supporting sustainable lab operations without compromising readiness.
• Variable-load operation: aging cycle initiates only for occupied positions—no requirement to fill all 20 slots, reducing gas consumption and cycle time for partial batches.
• Rapid thermal response: achieves 300°C setpoint in under 3 minutes via high-density ceramic-heated aluminum block—accelerating turnaround between validation runs and routine QC checks.
• Integrated audible alert with programmable countdown timer: provides tactile and acoustic confirmation at cycle completion, supporting unattended overnight aging under GLP-compliant supervision.

Sample Compatibility & Compliance

The LAB-T210P accommodates industry-standard 3.5″ and 6″ thermal desorption tubes (OD 6.35 mm) used with PerkinElmer TD-20, Markes UNITY-xr, Dani MTD-12, and domestic platforms such as JieDao JD-TD20 and Huaze HZ-TD100. All wetted surfaces conform to USP Class VI and ISO 10993-5 biocompatibility standards. The system supports audit-ready documentation: temperature logs (±0.5°C accuracy), gas pressure timestamps, and cycle start/stop metadata are exportable via USB interface. Firmware complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with validated LIMS integration. Meets IEC 61010-1 safety standards for laboratory electrical equipment and is CE-marked for EMC and low-voltage directive compliance.

Software & Data Management

The unit operates via embedded microcontroller with dual-mode interface: local control via tactile membrane keypad and LCD display (backlit, 128×64 resolution), or remote configuration via optional USB-to-serial protocol (ASCII command set). Cycle parameters—including target temperature, dwell time, ramp rate, and position-specific activation—are stored in non-volatile memory with 10,000-cycle retention. Audit trail functionality records operator ID (via optional RFID badge reader), date/time stamps, and failure events (e.g., pressure dropout, overtemperature). Raw data exports as CSV-compatible .log files for integration into ELN systems or statistical process control dashboards.

Applications

• Pre-conditioning of multi-bed sorbent tubes prior to EPA TO-17 compliance sampling for ambient air, stack emissions, and workplace exposure assessments.
• Reactivation of reused tubes in high-throughput environmental labs performing >500 samples/week.
• Method development support for thermal desorption-GC/MS quantification of C2–C12 hydrocarbons, oxygenates, halocarbons, and semi-volatile PAHs.
• Quality assurance for certified reference material (CRM) preparation and inter-laboratory comparison studies requiring ultra-low blank performance.
• GMP-regulated pharmaceutical stability testing where residual solvent carryover must be excluded from headspace analysis.

FAQ

What tube formats are supported?
Standard 1/4″ OD stainless steel or quartz tubes (3.5″ and 6″ lengths); custom adapters available for 3.2 mm OD micro-tubes.
Does the system require external gas regulators?
No—integrated precision needle valves and digital pressure transducers eliminate need for external regulators; inlet connection accepts standard 1/8″ NPT fittings.
Can aging parameters be saved per tube lot?
Yes—up to 99 user-defined methods stored locally, each assignable to specific sorbent types (e.g., “Tenax TA – 280°C/30min”) with unique ramp profiles.
Is firmware upgradable in-field?
Yes—USB-based firmware updates preserve calibration coefficients and audit trail history without data loss.
What safety certifications does the unit hold?
IEC 61010-1 Ed.3 (2010), CE (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU), RoHS 2011/65/EU compliant.
