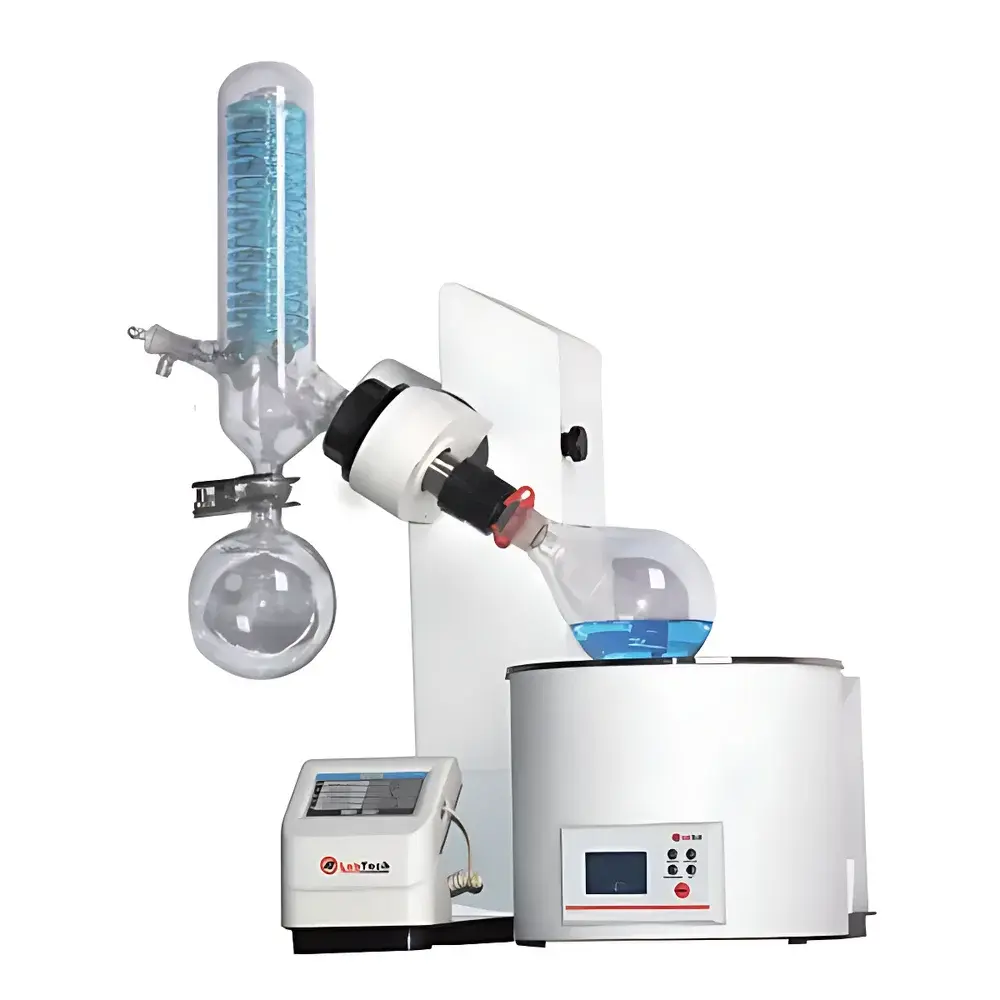

LabTech EV400VAC Vacuum-Controlled Rotary Evaporator

Overview

The LabTech EV400VAC Vacuum-Controlled Rotary Evaporator is an engineered solution for reproducible, solvent-efficient concentration and purification under reduced pressure. Based on the fundamental principle of rotary evaporation—where simultaneous rotation, heating, and vacuum application lower the boiling point of solvents while enhancing surface area and mass transfer—the EV400VAC integrates closed-loop digital vacuum regulation, real-time vapor temperature monitoring, and adaptive distillation logic to maintain thermally sensitive sample integrity. Designed for routine operation in QC laboratories, synthetic chemistry workflows, natural product isolation, and pharmaceutical R&D, it complies with core operational requirements of ISO/IEC 17025-accredited environments and supports audit-ready documentation when used in GLP-compliant protocols.

Key Features

• Digital vacuum control system with integrated corrosion-resistant diaphragm pump, enabling precise setpoint regulation from atmospheric pressure down to ≤5 mbar with <±0.2 mbar stability over 60-minute runs
• Auto-D Intelligent Distillation Mode: automatically selects optimal vacuum ramping profiles, rotational speed gradients, and bath temperature sequences based on solvent identification from an embedded database of 120+ common organic and aqueous solvents (e.g., acetone, ethyl acetate, methanol, DMSO, water)
• Real-time vapor temperature sensing via a calibrated Pt100 probe positioned at the condenser inlet, delivering direct measurement of solvent vapor phase—not bath or ambient temperature—ensuring accurate thermal exposure assessment for heat-labile compounds
• Graphical distillation curve display (time vs. temperature/vacuum/rotation) with exportable CSV logging; supports up to 99 user-defined method presets with password-protected access levels
• Vertical dual-layer condenser with PTFE-coated cooling jacket and 1,200 cm² effective surface area, optimized for high-efficiency condensation across volatile and semi-volatile solvents (bp range: 30–220 °C)
• Modular bath compatibility: interchangeable water bath (max 99 °C) and silicone oil bath (max 180 °C), both featuring PT100 feedback control and overtemperature cut-off per IEC 61000-4-11

Sample Compatibility & Compliance

The EV400VAC accommodates standard ground-glass jointed glassware (ISO 29771:2019 compliant), including 50 mL to 4 L round-bottom flasks, receiving flasks, and bump traps. Its chemically resistant construction—borosilicate 3.3 glass, PTFE-sealed rotary joints, and stainless-steel chassis—ensures compatibility with aggressive solvents (e.g., chlorinated hydrocarbons, strong acids/bases at controlled concentrations). The system meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and its vacuum control firmware adheres to data integrity principles aligned with FDA 21 CFR Part 11 when paired with LabTech’s optional ELN-integrated software module.

Software & Data Management

The onboard 7-inch capacitive touchscreen interface provides full parameter visualization and method execution without external PC dependency. All distillation events—including vacuum setpoints, actual vapor temperature, rotation speed, bath temperature, and elapsed time—are timestamped and stored locally (internal 8 GB flash memory) with automatic backup to USB drive. Raw data exports support CSV and PDF report generation with embedded metadata (operator ID, method name, instrument serial number, calibration status). Optional LabTech Connect™ software enables remote monitoring, centralized method library management, and integration with LIMS platforms via RESTful API.

Applications

• Routine solvent removal post-extraction in environmental analysis (e.g., EPA Method 3510C, 3520C)
• Concentration of reaction mixtures in medicinal chemistry synthesis, minimizing decomposition of intermediates
• Purification of thermally unstable natural products (e.g., terpenoids, glycosides) via low-residence-time evaporation
• Parallel multi-solvent fractionation using programmable vacuum/temperature ramps for polarity-based separation
• Preparative-scale drying of lyophilized samples where residual solvent content must be quantified per USP <467>

FAQ

Does the EV400VAC support validation documentation (IQ/OQ/PQ)?
Yes—LabTech provides standardized IQ/OQ protocol templates and factory-verified calibration certificates traceable to NIST standards for bath temperature, vacuum sensor, and rotation encoder.
Can the system operate unattended overnight?
Yes—equipped with automatic end-of-distillation detection (vapor temperature plateau + vacuum stabilization), safety interlocks (bath dry-run prevention, motor overheat cutoff), and alarm-triggered email/SMS notification via optional network module.
Is the vacuum pump oil-free and serviceable in-house?
Yes—the integrated diaphragm pump is maintenance-free for ≥5,000 hours and requires no oil changes; consumables limited to replaceable PTFE diaphragms and inlet filters.
How is method transfer ensured between different EV400VAC units?
All methods are stored as encrypted binary files with embedded instrument configuration fingerprints; cross-unit consistency is verified via built-in performance qualification tests (e.g., vacuum decay test, temperature uniformity mapping).
