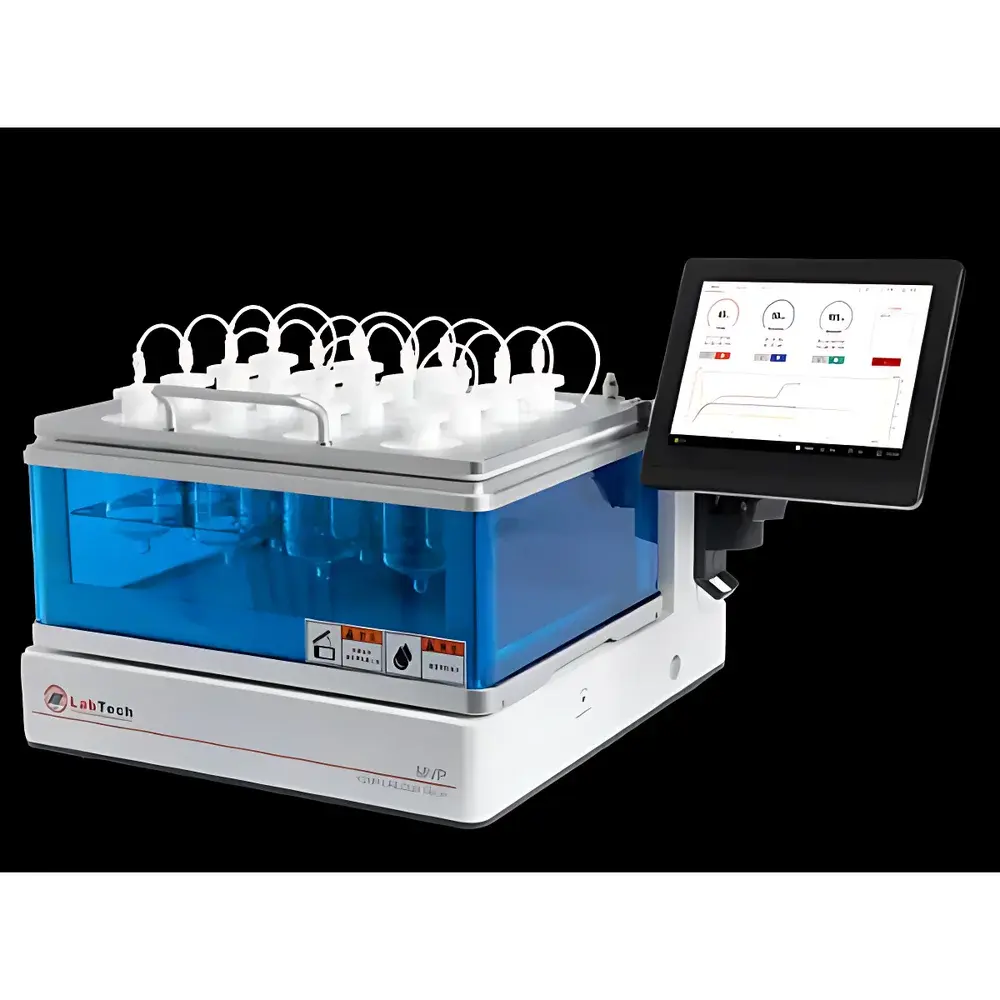

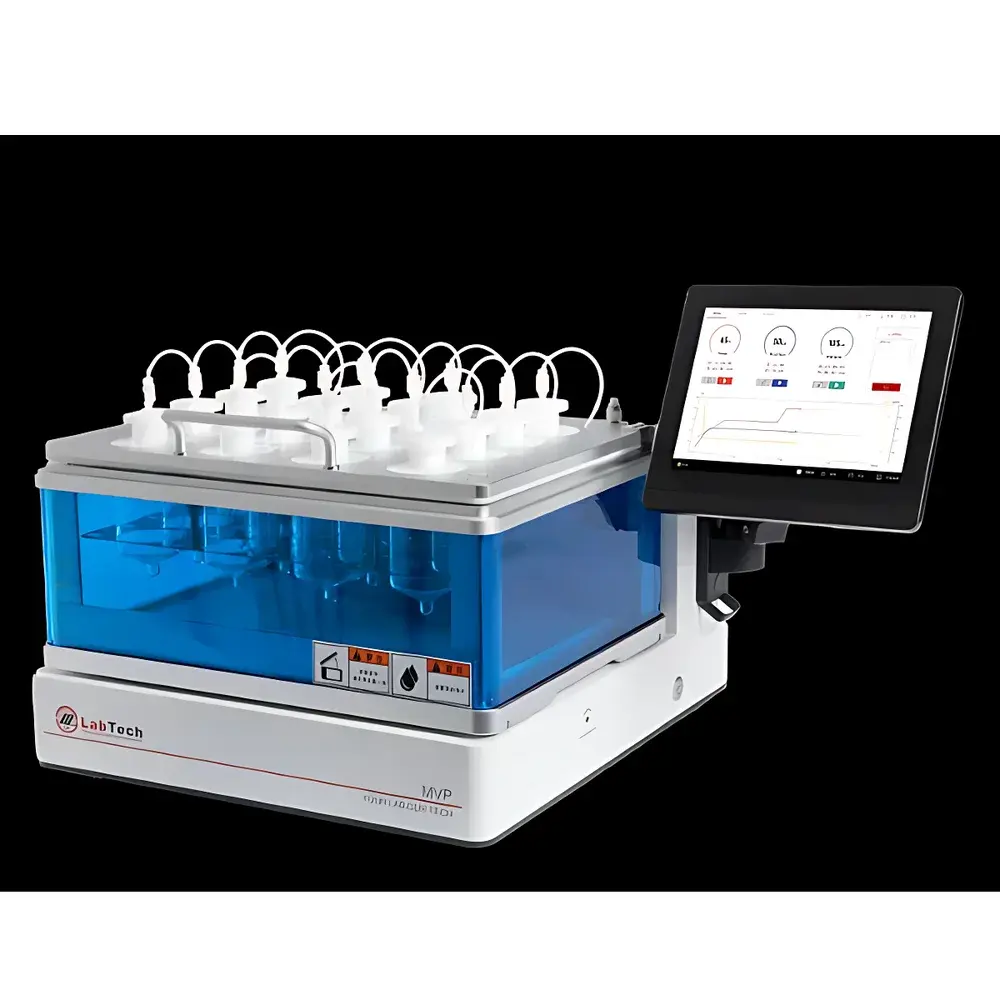

LabTech Flex-MVP Vacuum Parallel Concentrator

Overview

The LabTech Flex-MVP Vacuum Parallel Concentrator is an engineered solution for high-throughput sample concentration under controlled vacuum, regulated heating, and programmable orbital agitation. It operates on the principle of simultaneous solvent evaporation via reduced pressure (typically 1–200 mbar), thermally assisted desolvation (ambient to 100 °C), and gentle mechanical mixing to prevent bumping and promote uniform surface renewal. Unlike single-vial rotary evaporators or non-agitated nitrogen blow-down systems, the Flex-MVP enables parallel processing of up to 16 samples with independent control over thermal, vacuum, and mechanical parameters per vial—making it particularly suited for laboratories performing routine quantification workflows in food safety testing, herbal medicine QC, environmental residue analysis (e.g., pesticides, PAHs), agricultural product screening, and biomolecular sample preparation (e.g., metabolite extraction, plasma derivatization).

Key Features

• Dual-Mode Sealing Architecture: Combines bulk chamber sealing with individual vial-level vacuum isolation. Each sample position features a dedicated solenoid valve and pressure-sensing port, allowing insertion or removal of a single vial without interrupting ongoing concentration of remaining samples.
• Independent Vial-Specific Control: Real-time adjustment of temperature, vacuum setpoint, and oscillation frequency (0–300 rpm) for each position—critical for heterogeneous sample matrices requiring differential evaporation kinetics.
• Optimized Evaporation Dynamics: Integrated orbital shaker provides consistent 20 mm amplitude motion at variable speed, minimizing crust formation and enhancing mass transfer across liquid–vapor interfaces without inducing foaming or splashing.
• Transparent Observation Chamber: Fully acrylic main chamber with suspended vial mounting and integrated bottom-illuminated LED array enables unobstructed visual monitoring of meniscus recession, crystallization onset, or endpoint detection without opening the system.
• Dual-Tower Cold Trap: Two-stage condensation system captures both volatile organic solvents (e.g., acetonitrile, ethyl acetate, dichloromethane) and non-condensable process gases (e.g., CO₂ from carbonate buffers), achieving >98% solvent recovery efficiency and reducing laboratory VOC emissions.
• Robust Thermal Management: Peltier-assisted pre-cooling and PID-regulated resistive heating deliver ±1 °C stability across the full 0–100 °C range, verified per ISO/IEC 17025 traceable calibration protocols.

Sample Compatibility & Compliance

The Flex-MVP accommodates standard conical-bottom glass vials (40 mL, 50 mL, 200 mL), screw-cap tubes, and custom-fit reaction vessels with O-ring sealing interfaces. Its modular manifold design supports method transfer between common analytical platforms—including LC-MS, GC-MS, and ICP-MS sample prep workflows. The instrument complies with key regulatory frameworks for analytical laboratories: hardware-level audit trail logging meets FDA 21 CFR Part 11 requirements for electronic records; vacuum and temperature control modules are validated per ASTM E2656 (Standard Practice for Validation of Automated Liquid Handling Systems); and its closed-loop solvent recovery aligns with ISO 14001 environmental management principles. All wetted surfaces contact only borosilicate glass, PTFE, or electropolished 316 stainless steel—ensuring compatibility with acidic, basic, and halogenated solvents per USP .

Software & Data Management

Control is executed via a dedicated 10-inch industrial-grade touchscreen running LabTech’s ConcentraOS firmware. The interface supports multi-step gradient programming (e.g., ramp-and-hold temperature profiles, staged vacuum reduction), real-time overlay of up to four dynamic parameters (vacuum pressure, bath temperature, oscillation speed, elapsed time), and export of timestamped CSV logs with metadata tagging (operator ID, method name, vial position). Audit-trail functionality records all parameter changes, user logins, and system events with SHA-256 hashing. Data files are stored locally on encrypted internal eMMC storage and optionally synchronized to network drives via SMB/CIFS—fully compatible with LIMS integration through RESTful API endpoints.

Applications

• Routine pesticide residue analysis in fruits, vegetables, and grains (AOAC 2007.01, EN 15662)
• Quantitative determination of mycotoxins (aflatoxins, ochratoxin A) in cereals and feedstuffs
• Concentration of environmental water extracts prior to GC-MS analysis of phthalates and alkylphenols
• Preparative cleanup of botanical extracts for HPLC fingerprinting and marker compound isolation
• High-throughput drying of plasma, serum, or urine samples in clinical toxicology screening
• Parallel evaporation of combinatorial synthesis reaction mixtures in medicinal chemistry labs

FAQ

Can the Flex-MVP be integrated into automated sample preparation lines?
Yes—it features RS-232, Ethernet, and dry-contact I/O ports for synchronization with robotic liquid handlers and autosamplers.
Is method validation support available for GLP/GMP environments?
LabTech provides IQ/OQ documentation templates, DQ checklists, and on-site PQ protocol execution support compliant with ISO/IEC 17025 and EU Annex 15.
What maintenance intervals are recommended for the vacuum pump and cold trap?
The integrated diaphragm pump requires oil-free operation and filter replacement every 6 months under continuous use; dual-tower condenser cleaning is advised after every 200 operational hours or when frost accumulation exceeds 3 mm.
Does the system support remote monitoring and alarm notification?
Yes—via optional LabTech CloudLink module, users receive SMS/email alerts for vacuum loss, temperature deviation, or door interlock activation, with live dashboard access through secure TLS 1.3 web portal.
Are third-party vials compatible with the Flex-MVP sealing mechanism?
Vials must conform to DIN 12372 or ASTM D2500 specifications for neck geometry and sealing torque; LabTech provides dimensional adapters for select non-standard formats upon request.
