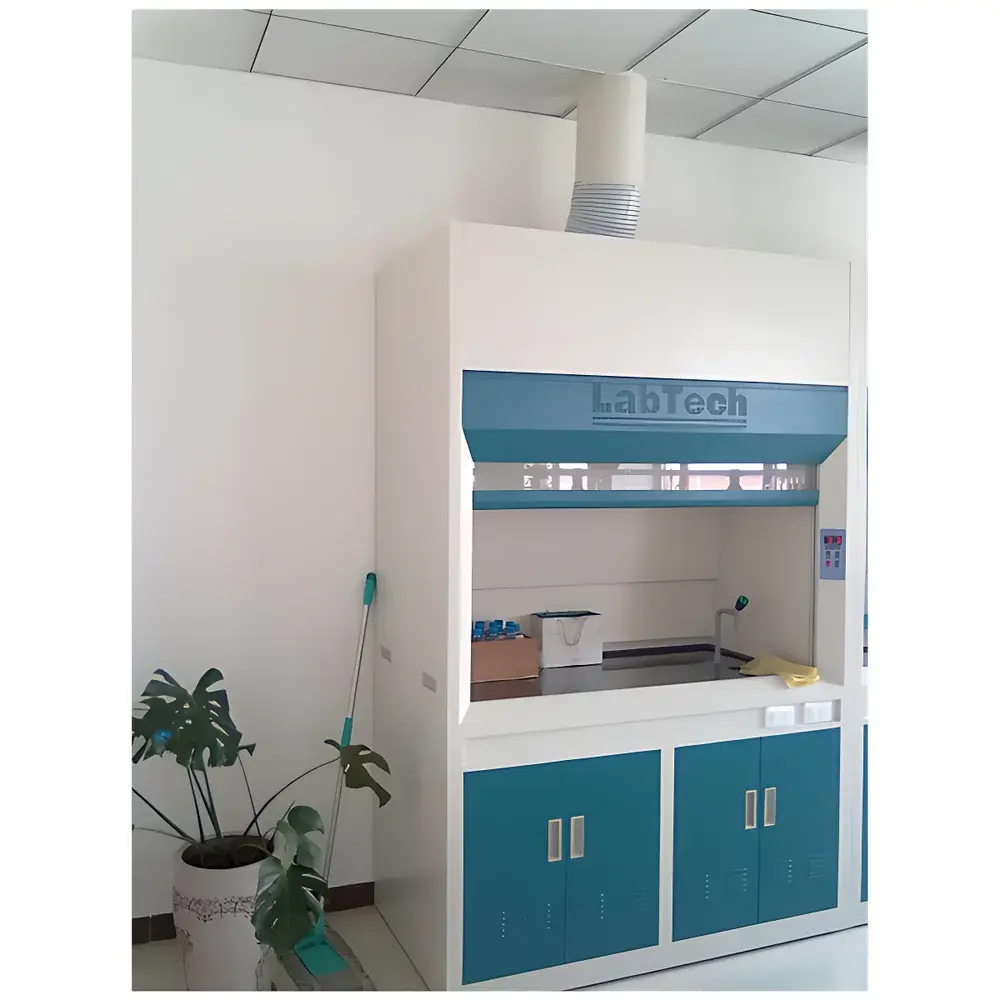

LabTech LabTech-4 PP/Steel Fume Hood

Overview

The LabTech LabTech-4 PP/Steel Fume Hood is an engineered containment system designed for safe handling of hazardous vapors, fumes, and particulates during laboratory sample preparation and chemical manipulation. It operates on the principle of directional airflow management—drawing contaminated air away from the operator’s breathing zone through a front sash opening, across the work surface, and into a ducted exhaust system. The unit integrates dual-material construction: polypropylene (PP) interior surfaces for superior chemical resistance against acids, alkalis, and solvents; and structural steel framing with powder-coated finish for mechanical stability and long-term durability. This hybrid architecture balances corrosion resilience with load-bearing integrity, making it suitable for routine QC/QA workflows in analytical chemistry, environmental testing, and pharmaceutical R&D laboratories.

Key Features

• Three-stage baffle system engineered to eliminate internal turbulence and ensure laminar flow distribution across variable exhaust velocities—critical for consistent capture efficiency across differing vapor densities.
• Non-metallic interior wall construction (PP-lined), eliminating galvanic corrosion risk and preventing reactive surface exposure—except in stainless-steel variants where 304 SS is used for high-temperature or oxidizing environments.
• Modular, bolt-free assembly using interlocking PP panels and precision-machined steel frames—enabling rapid installation, reconfiguration, and future expansion without structural retrofitting.
• Proprietary integrated control panel with programmable logic controller (PLC)-based interface, supporting one-touch emergency purge mode, real-time face velocity monitoring, and sash position feedback.
• Condensate-trapped canopy hood design with integrated liquid recovery channel—preventing backflow of corrosive condensates into the work area or exhaust ducts.
• Logo-shaped auxiliary air intake grille optimized for balanced room-air replenishment, minimizing cross-draft interference while maintaining ASHRAE 110-compliant face velocity uniformity (0.4–0.6 m/s).
• Compatible with variable air volume (VAV) duct systems via analog 0–10 VDC or Modbus RTU signaling—enabling dynamic airflow modulation in response to sash position, occupancy sensors, or building management system (BMS) commands.

Sample Compatibility & Compliance

The LabTech-4 accommodates standard benchtop instrumentation including hot plates, centrifuges, digestion blocks, and open-vessel acid digesters. Its PP interior resists sustained exposure to concentrated HCl, HNO₃, HF (≤5%), NaOH (≤40%), and organic solvents such as acetone and methanol. The unit conforms to EN 14175-3:2018 (fume hood performance testing), meets ASHRAE Standard 110-2016 tracer gas containment criteria (SF₆ sweep test ≤0.05 ppm at operator position), and supports compliance with OSHA 1910.1450 (Laboratory Standard) and ANSI Z9.5-2022 (Laboratory Ventilation). Structural components are certified to ISO 9001:2015 manufacturing protocols; electrical controls comply with IEC 61000-6-3 EMC emission limits.

Software & Data Management

While the LabTech-4 operates as a standalone mechanical containment device, its VAV-compatible control interface supports integration into centralized laboratory infrastructure. The embedded controller logs operational parameters—including sash height, average face velocity, total runtime, and alarm events—for up to 30 days onboard. Data export is available via USB-C port in CSV format for GLP/GMP audit trail generation. Optional RS-485 gateway enables connection to BMS platforms for HVAC coordination and automated shutdown sequencing during fire alarm activation per NFPA 45 requirements.

Applications

• Acid digestion and sample mineralization in environmental labs (EPA Method 3050B, 3051A)
• Reagent dispensing and solvent evaporation in pharmaceutical stability studies (ICH Q1–Q5)
• Preparation of calibration standards and reference materials under ISO/IEC 17025-accredited conditions
• Handling of cytotoxic compounds in oncology research settings requiring ISO 14644-1 Class 7 cleanroom-adjacent containment
• Training environments where ergonomic sash operation and visual airflow indicators support SOP adherence

FAQ

Does the LabTech-4 meet ASHRAE 110 containment performance standards?
Yes—it undergoes factory-certified SF₆ tracer gas testing per ASHRAE 110-2016, with results documented in the delivery compliance dossier.
Can the unit be retrofitted with a ductless carbon filtration system?
No—this model is exclusively ducted. LabTech offers separate ductless models (e.g., LabTech-DC series) with multi-stage activated carbon and HEPA filtration for non-toxic, low-volatility applications.
Is the control panel compliant with FDA 21 CFR Part 11 for electronic records?
The base panel does not include Part 11 functionality; however, optional audit-trail firmware and user-access logging modules are available under LabTech Validation Package v2.1.
What maintenance intervals are recommended for optimal performance?
Face velocity verification every 6 months; baffle inspection and cleaning quarterly; full calibration and ASHRAE 110 retesting annually or after relocation.
Does the PP interior withstand hydrofluoric acid exposure?
PP provides limited resistance to HF—only up to 5% concentration at ambient temperature. For higher concentrations or elevated temperatures, LabTech recommends optional PTFE-coated stainless-steel liners (accessory code: LS-PTFE-4).
