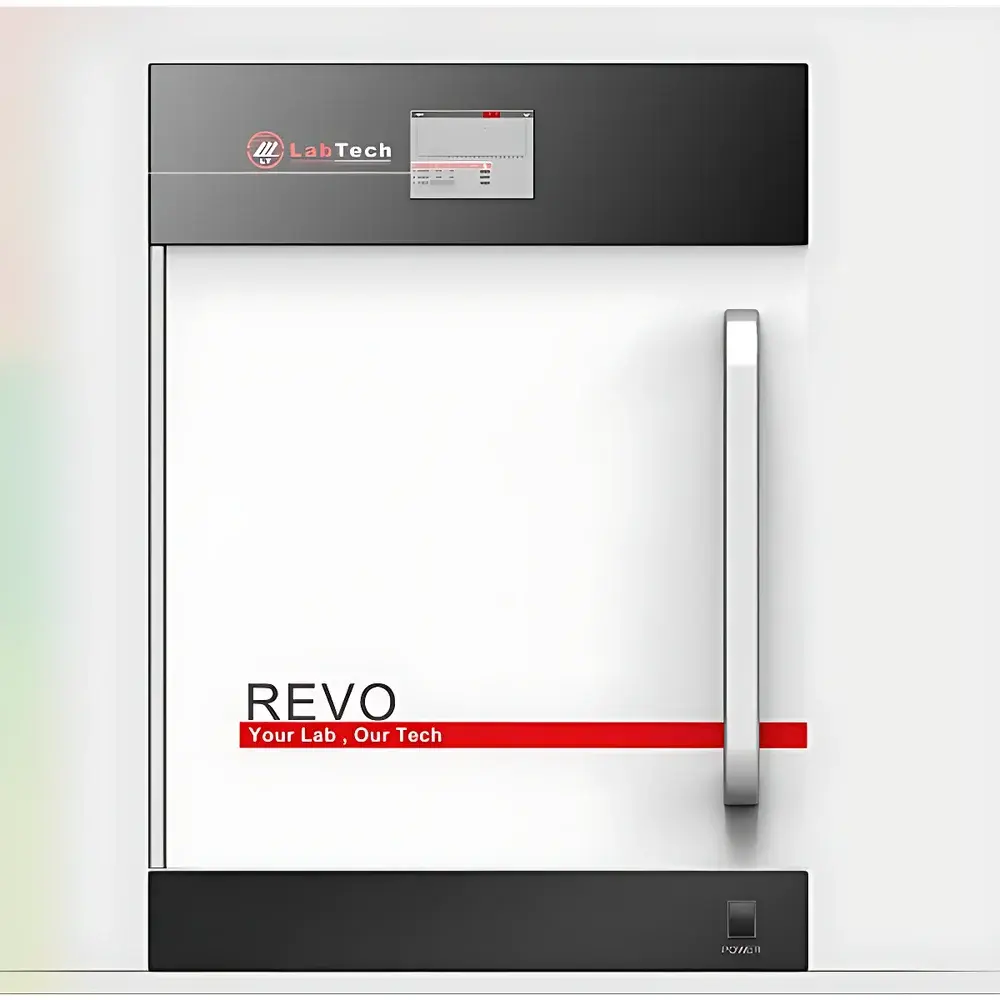

LabTech REVO Microwave Digestion and Extraction System

Overview

The LabTech REVO Microwave Digestion and Extraction System is a high-performance, multi-functional microwave platform engineered for rigorous inorganic sample preparation in analytical laboratories. Based on over two decades of LabTech’s domain expertise in sample pre-treatment, the REVO system integrates advanced microwave energy delivery with robust mechanical design to deliver reproducible, trace-metal-clean digestion and extraction outcomes. It operates on the principle of controlled microwave dielectric heating—where polar molecules (e.g., H₂O, HNO₃, HCl) absorb electromagnetic energy at 2450 MHz, generating rapid, volumetric internal heating. This mechanism enables faster reaction kinetics, reduced reagent consumption, and minimized risk of volatile element loss compared to conventional hotplate or block digestion. The system is purpose-built for applications requiring compliance with EPA Method 3051A/3052, ISO 11466, ASTM D5762, and Chinese standard HJ 680–2013 for heavy metal analysis in environmental, geological, food, and pharmaceutical matrices.

Key Features

• Enhanced Safety Architecture: Monolithic cast stainless-steel cavity with seamless welds; dual-interlocked, full-stainless safety door with pressure-rated gasket and automatic power cutoff upon door opening; microwave leakage <0.1 mW/cm² at 5 cm (≤1% of China’s GB 4706.21 limit).
• High-Throughput Capacity: 40-position rotor configuration supporting up to 160 samples per 24-hour cycle when operated in batch mode with optimized run scheduling.
• Real-Time Multi-Parameter Monitoring: E-TEM (Enhanced Temperature & Pressure Monitoring) system employs infrared sensors for non-contact, per-vessel temperature measurement and piezoresistive transducers for simultaneous pressure tracking across all 40 vessels—ensuring full traceability and thermal homogeneity verification.
• Uniform Microwave Field Distribution: Dual industrial-grade magnetrons (each ≥900 W) coupled with a resonant multimode cavity and proprietary mode-stirring geometry minimize standing-wave effects and achieve ±3°C temperature uniformity across the rotor under standard digestion conditions.
• Intuitive Human-Machine Interface: 7-inch color capacitive touchscreen with graphical workflow navigation; method editor supporting stepwise ramp/hold profiles, real-time parameter adjustment during active runs, and password-protected user role management (Operator, Supervisor, Administrator).

Sample Compatibility & Compliance

The REVO accommodates standard 55 mL and 100 mL high-pressure quartz or PTFE-TFM digestion vessels (compatible with LabTech’s XP-1500 series), as well as specialized extraction cells for accelerated solvent extraction (ASE)-style protocols. Vessel materials meet USP Class VI and FDA 21 CFR 177.1550 requirements for food-contact compliance. All hardware and software modules are designed to support GLP/GMP-aligned workflows: audit trails record operator ID, method version, timestamps, parameter changes, and final results; electronic signatures comply with FDA 21 CFR Part 11 when integrated with LabTech’s optional LIMS-ready data server module.

Software & Data Management

LabTech’s REVO Control Software (v4.2+) provides full method lifecycle management—from template creation and validation to execution, reporting, and archiving. Raw sensor data (temperature, pressure, power, time) are logged at 1 Hz resolution and exported in CSV or XML formats compatible with third-party statistical tools (e.g., JMP, Minitab). Built-in QC checks include automatic vessel imbalance detection, pressure deviation alerts (>±15% from setpoint), and post-run integrity verification (e.g., residual acid volume estimation via weight correlation). Data backups are configurable to network drives or encrypted USB storage with SHA-256 hash verification.

Applications

• Determination of As, Cd, Cr, Cu, Ni, Pb, and Hg in soils, sediments, sludges, and airborne particulates (per EPA 3052 and ISO 17294-2)
• Trace metal profiling in biological tissues (liver, kidney, muscle) and plant materials using closed-vessel digestion prior to ICP-MS or ICP-OES analysis
• Extraction of PAHs, PCBs, and organochlorine pesticides from environmental solids using microwave-assisted solvent extraction (MASE) with toluene, acetone, or dichloromethane
• Routine digestion of catalysts, alloys, ceramics, and electronic waste for elemental composition certification
• Method development and validation studies requiring strict thermal control and inter-batch repeatability (RSD <3% for triplicate Cr digestions in certified reference material BCR-668)

FAQ

What safety certifications does the REVO system hold?
The system complies with GB 4706.21 (China), IEC 61000-4 (EMC immunity), and meets CE marking requirements for electromagnetic compatibility and low-voltage directive. Full test reports are available under NDA upon request.
Can the REVO be integrated into an automated laboratory workflow?
Yes—via RS-232, Ethernet (TCP/IP), or optional Modbus RTU interface, the REVO supports bidirectional communication with robotic sample handlers and central LIMS platforms.
Is method validation support provided by LabTech?
LabTech offers application-specific validation packages including IQ/OQ documentation templates, CRM-based recovery studies, and on-site installation qualification support by certified field engineers.
What maintenance intervals are recommended for the magnetrons and pressure sensors?
Magnetrons are rated for ≥5,000 hours of operation; pressure sensors require annual calibration verification using NIST-traceable deadweight testers—service kits and scheduled maintenance contracts are available globally.
