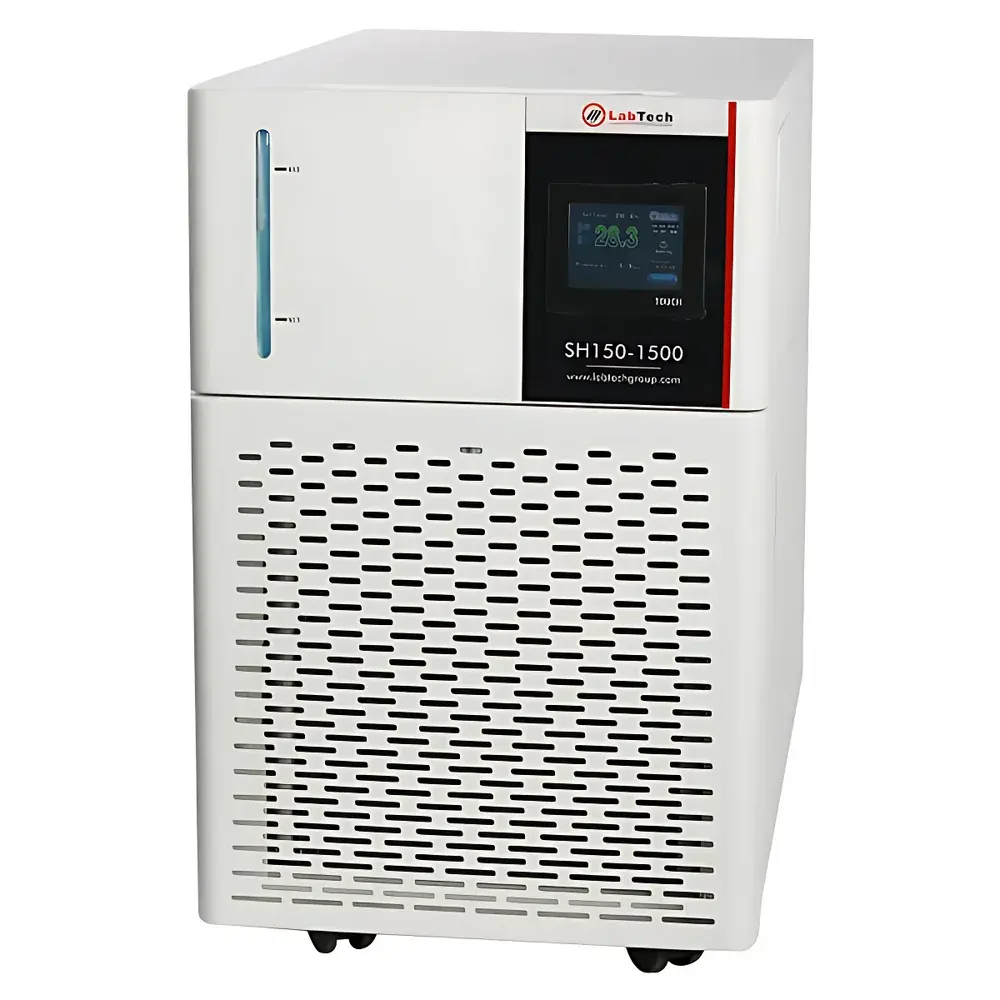

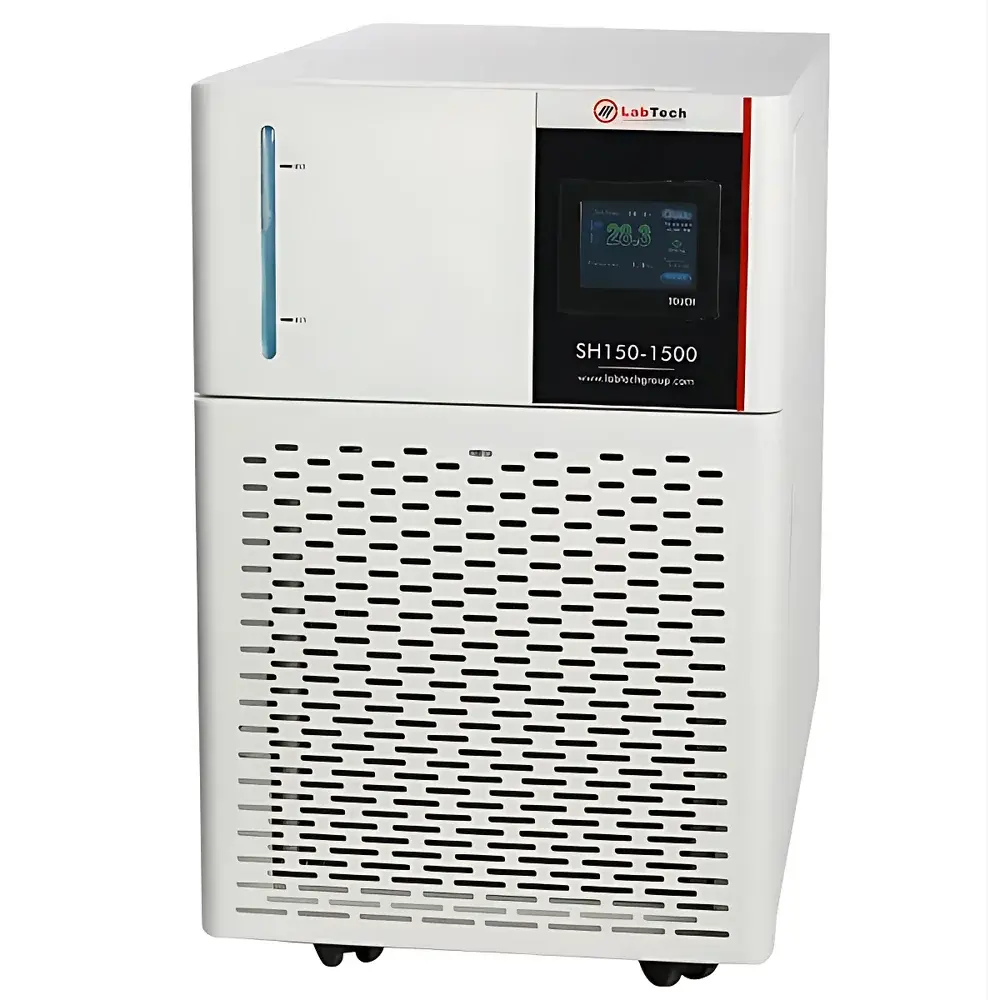

LabTech SMART Series Medium-Capacity Circulating Chiller

Overview

The LabTech SMART Series Medium-Capacity Circulating Chiller is an engineered thermal management solution designed for stable, continuous cooling of high-heat-load laboratory instruments—including atomic absorption spectrometers (AAS), inductively coupled plasma optical emission spectrometers (ICP-OES), and inductively coupled plasma mass spectrometers (ICP-MS). Utilizing a robust air-cooled refrigeration architecture with Hot Gas Bypass modulation, the system eliminates on/off cycling and delivers uninterrupted coolant flow at precisely regulated temperatures. Unlike conventional thermostatic chillers reliant on compressor start-stop control, the SMART Series maintains thermal equilibrium through dynamic refrigerant flow regulation—ensuring minimal temperature overshoot, reduced mechanical stress on compressors, and long-term operational consistency. Its compact integrated design integrates refrigeration, circulation, and digital control into a single footprint, optimized for benchtop or under-bench installation in analytical laboratories where space and reliability are critical.

Key Features

• Continuous-duty operation enabled by Hot Gas Bypass technology—eliminates compressor cycling and ensures stable thermal output over extended periods
• Precision temperature control with ±0.1 °C stability across the 8–35 °C range; low-temperature variants extend coverage to −20 °C for specialized applications
• High-efficiency microchannel parallel-flow heat exchanger—reduces refrigerant charge volume while improving heat transfer coefficient and energy efficiency
• Eco-conscious refrigerant with zero ozone depletion potential (ODP = 0), compliant with international environmental directives including EU F-Gas Regulation and EPA SNAP program requirements
• Integrated touch-screen HMI with real-time digital display of pressure, flow rate, inlet/outlet temperatures, and system status diagnostics
• Comprehensive safety suite: dual-level temperature alarms (supply and return), low-water-level detection, pressure deviation alert, flow interruption monitoring, and automatic shutdown upon fault confirmation

Sample Compatibility & Compliance

The SMART Series chiller is validated for use with a broad spectrum of heat-sensitive analytical instrumentation requiring consistent coolant delivery—particularly instruments generating >500 W of waste heat during operation. Its 6.4 L/min flow capacity and 3 bar pump head support multi-instrument daisy-chaining configurations when deployed with external manifolds. The system meets IEC 61010-1:2010 for electrical safety in laboratory equipment and conforms to electromagnetic compatibility standards per EN 61326-1. All firmware and control logic are structured to support GLP-compliant environments: audit trails for setpoint changes, user-access logs, and timestamped alarm records are retained locally for traceability. While not FDA 21 CFR Part 11–certified out-of-the-box, the embedded controller architecture supports integration with validated LIMS or SCADA systems via Modbus RTU/ASCII protocol for regulated QA/QC workflows.

Software & Data Management

The SMART Series includes an embedded Linux-based controller with a responsive capacitive touchscreen interface. System parameters—including target temperature, flow rate limits, alarm thresholds, and pump speed—are configurable via intuitive menus. Optional remote monitoring is supported through LabTech’s secure cloud gateway: authenticated users access live telemetry (temperature, pressure, flow, runtime hours), historical trend plots (7-day rolling buffer), and push notifications for critical events via iOS/Android mobile applications. All data exchanges employ TLS 1.2 encryption; local storage uses write-protected flash memory to preserve integrity during power interruptions. For enterprise deployment, the unit supports SNMP v3 traps and OPC UA server integration (via optional firmware upgrade) to enable centralized asset monitoring within industrial IoT frameworks.

Applications

• Cooling of plasma sources in ICP-OES and ICP-MS systems to maintain nebulizer stability and reduce matrix deposition
• Thermal regulation of high-power laser modules in Raman spectrometers and confocal microscopes
• Temperature stabilization of X-ray generators and detector cooling assemblies in XRF and XRD platforms
• Supporting continuous-operation chromatographic systems—including preparative HPLC and SFC—where solvent viscosity and column backpressure must remain thermally invariant
• Providing auxiliary cooling for vacuum pumps, RF generators, and power amplifiers in materials science and semiconductor characterization labs

FAQ

What is the expected service life of the SMART Series chiller under continuous operation?
With scheduled maintenance—including annual refrigerant circuit inspection, filter replacement, and heat exchanger cleaning—the unit is rated for ≥15,000 hours of continuous duty, equivalent to approximately 8 years at 24/7 operation.
Can the chiller be integrated into a building management system (BMS)?
Yes—via optional RS-485 Modbus RTU interface or Ethernet-based OPC UA server (firmware upgrade required), enabling bidirectional communication with third-party BMS platforms for centralized HVAC and lab infrastructure monitoring.
Does the system support glycol-water mixtures for sub-zero operation?
Low-temperature models (−20 °C variant) are compatible with up to 30% propylene glycol/water solutions; concentration must be verified prior to use to ensure viscosity remains within pump specifications and heat transfer efficiency is maintained.
How is calibration traceability ensured for temperature sensors?
Each unit ships with NIST-traceable calibration certificates for both supply and return temperature sensors, valid for 12 months from date of manufacture; field recalibration is supported using external reference probes compliant with ASTM E74-22.
Is the chiller suitable for cleanroom environments (ISO Class 5 or better)?
While the unit itself is not ISO 14644-certified, its sealed refrigerant circuit, oil-free circulation pump, and low particulate-generation fan assembly make it suitable for adjacent cleanroom support zones; exhaust airflow should be ducted externally to prevent recirculation of warm, humid air.
