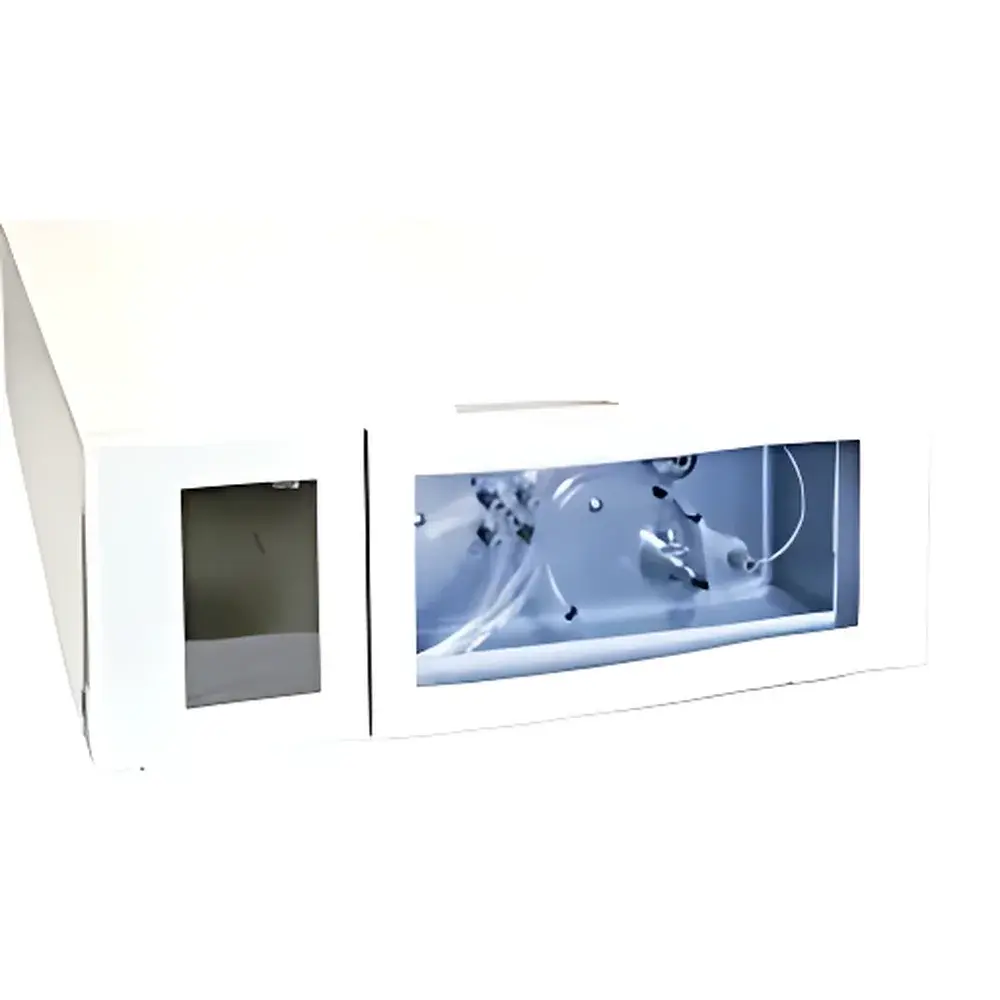

Lambert LB8110 Plus Low-Pressure Quaternary Dynamic Mixing Pump

Overview

The Lambert LB8110 Plus is a low-pressure quaternary dynamic mixing pump engineered for high-precision liquid delivery in analytical and preparative high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) systems. Unlike high-pressure gradient systems that blend solvents post-pump, the LB8110 Plus employs a low-pressure mixing architecture where four independent solvent channels are dynamically blended upstream of the main pumping chamber using precision stepper-motor-driven proportional valves. This design enables real-time, programmable gradient formation with sub-millisecond response time and eliminates dwell volume variability inherent in high-pressure systems. The pump operates on a dual-piston reciprocating principle with active solvent compressibility compensation—continuously adjusting stroke volume based on solvent composition and temperature—to maintain flow accuracy within ±0.15% RSD across 0.01–10.0 mL/min and pressure ranges up to 400 bar. Its thermally stabilized pump head and integrated pressure pulsation dampening ensure baseline stability <0.5 mAU (254 nm, 1.0 mL/min, acetonitrile/water gradient), critical for trace-level quantitation and method transfer compliance.

Key Features

• Quaternary low-pressure dynamic mixing with four independently controlled solvent channels and real-time gradient programming via embedded firmware or external workstation
• Auto-compressibility compensation algorithm—dynamically adjusts piston displacement using preloaded solvent compressibility tables (acetonitrile, methanol, water, THF, IPA, buffer solutions) to minimize flow deviation during gradient transitions
• On-line self-cleaning mode activated between runs: automatically flushes valve seats and mixing chamber with high-flow solvent purge, reducing seal contamination and extending seal life by ≥40% versus conventional designs
• Tool-free seal replacement: ceramic-coated plunger seals and PEEK-faced check valves accessible via front-panel quick-release mechanism—full maintenance completed in ≤180 seconds without disassembly or calibration reset
• Integrated pressure monitoring with over-pressure shutdown (adjustable threshold: 100–400 bar), leak detection via flow deviation alarm (<±2% over 30 s), and real-time viscosity compensation logic
• RS-232, USB 2.0, and optional Ethernet (TCP/IP) interfaces compliant with ANSI/AAMI EC53 and ASTM E2500-21 for system integration and remote diagnostics

Sample Compatibility & Compliance

The LB8110 Plus supports all common HPLC mobile phases—including aqueous buffers (pH 1.5–12.0), organic modifiers (acetonitrile, methanol, ethanol, THF), and corrosive solvents (e.g., TFA, HFIP) when configured with optional Hastelloy C-276 wetted parts. It meets ISO 9001:2015 manufacturing standards and is validated for GLP/GMP environments per FDA 21 CFR Part 11 requirements, including full electronic audit trail for gradient method changes, flow calibration events, and maintenance logs. All firmware updates retain backward compatibility with legacy Lambert ChromaSuite v4.2+ and third-party platforms (e.g., Waters Empower, Thermo Chromeleon) via standardized ASCII command protocol.

Software & Data Management

Control and monitoring are performed through Lambert ChromaSuite software (v5.1+), which provides ICH Q2(R2)-aligned method validation templates, automated flow accuracy verification (per USP ), and real-time graphical display of pressure vs. time, flow vs. setpoint deviation, and gradient composition drift. Raw pump telemetry—including valve timing, piston position feedback, and thermal sensor outputs—is logged at 10 Hz and exportable in .CSV or .CDF (NetCDF) format for root-cause analysis. Audit trails comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support 21 CFR Part 11 user authentication, digital signatures, and role-based access control.

Applications

The LB8110 Plus is optimized for applications demanding high gradient fidelity and long-term retention time (RT) stability: reversed-phase peptide mapping (IgG C-terminal lysine variants), hydrophilic interaction liquid chromatography (HILIC) of polar metabolites, ion-pairing separations of oligonucleotides, and multi-dimensional LC–MS workflows requiring minimal dwell volume-induced retention shifts. Its low pulsation profile and compositional noise suppression (<0.8 mV RMS baseline noise, 10 Hz bandwidth) make it suitable for coupling with high-sensitivity mass spectrometers (e.g., Q-TOF, Orbitrap) and electrochemical detectors where flow-induced signal artifacts compromise LOD/LOQ.

FAQ

Is the LB8110 Plus compatible with UHPLC columns operating at 1000 bar?
No—the LB8110 Plus is rated to 400 bar maximum system pressure and is designed for HPLC and mid-pressure UHPLC applications (≤600 bar with appropriate column selection). For 1000 bar systems, Lambert recommends the LB9200 series.
Does the auto-cleaning function require dedicated wash solvents or additional plumbing?
No—self-cleaning uses the currently selected mobile phase or a user-defined rinse solvent from any of the four channels; no auxiliary lines or valves are needed.
Can the pump be calibrated in-house without sending it to service?
Yes—ChromaSuite includes a guided flow calibration wizard compliant with ISO/IEC 17025:2017 Annex A.3, requiring only a certified flowmeter (NIST-traceable, ±0.1% uncertainty) and 15 minutes.
What is the warranty coverage and extended service options?
Standard warranty: 24 months parts and labor. Extended coverage (up to 60 months) includes preventive maintenance visits, firmware update assurance, and priority remote diagnostics.
How does the LB81110 Plus differ from the original LB8110?
The LB8110 Plus introduces enhanced mixing chamber geometry (reduced dead volume to 120 µL), upgraded piezoelectric pressure sensors (±0.05% FS accuracy), and expanded solvent compressibility library covering 23 common HPLC solvents and 17 buffer systems.
