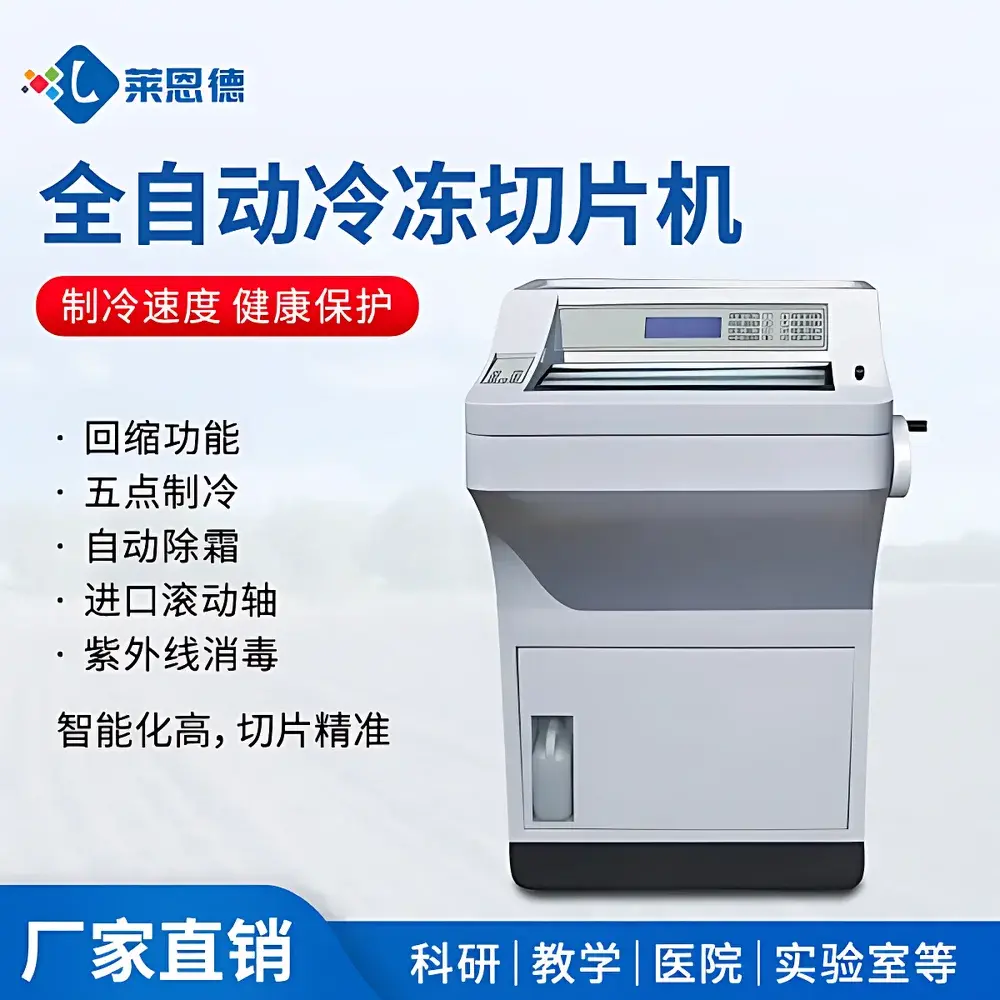

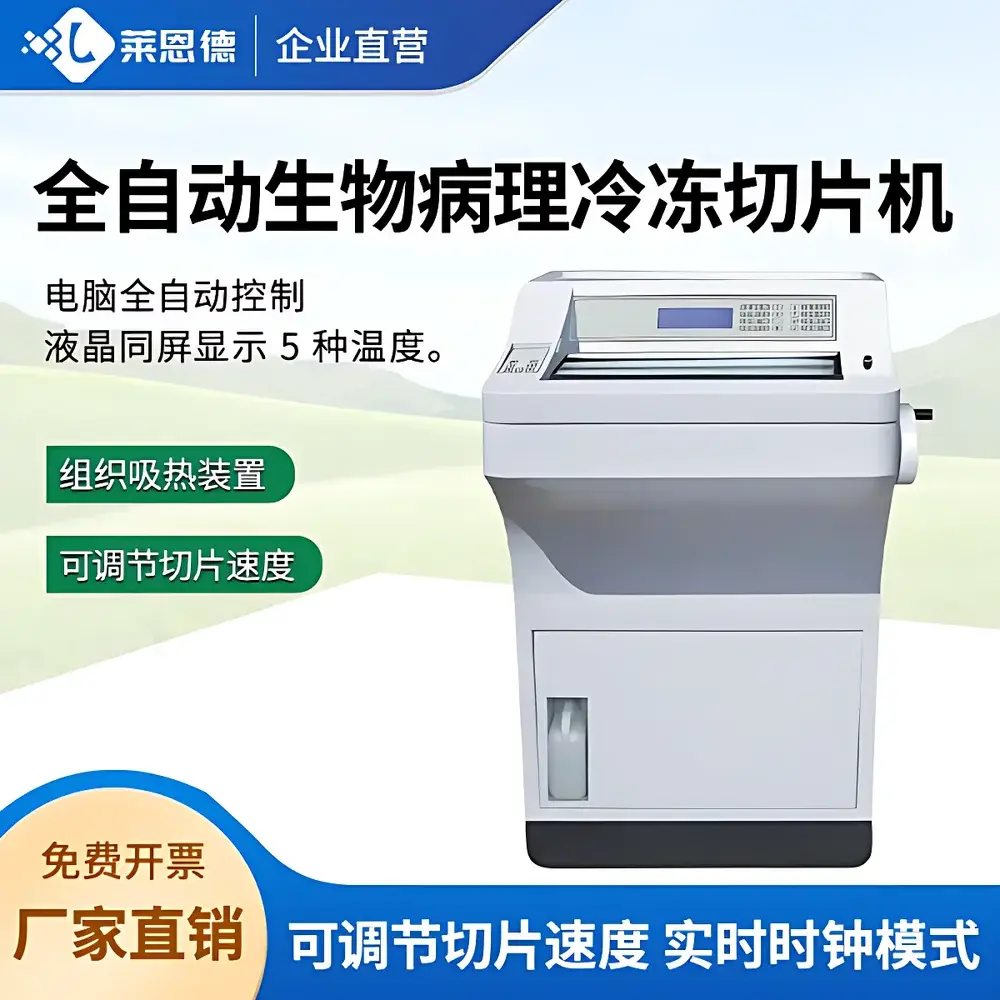

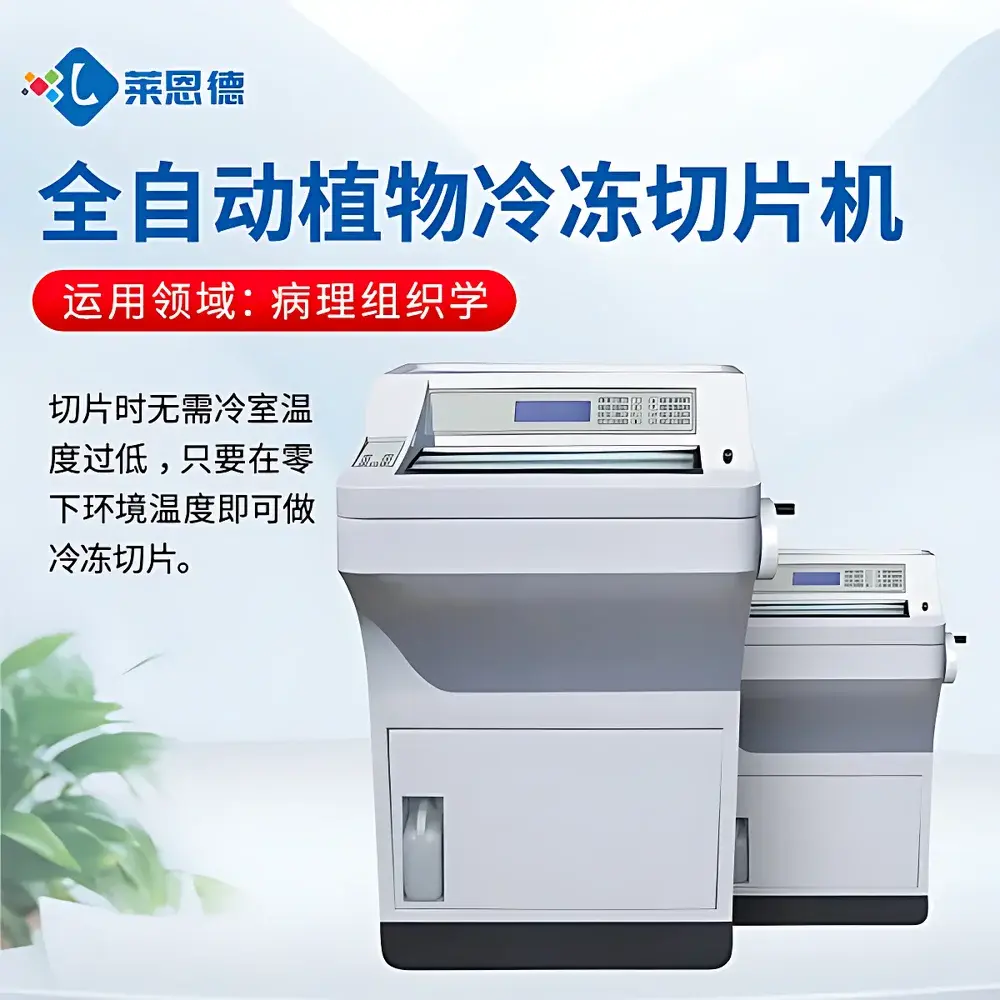

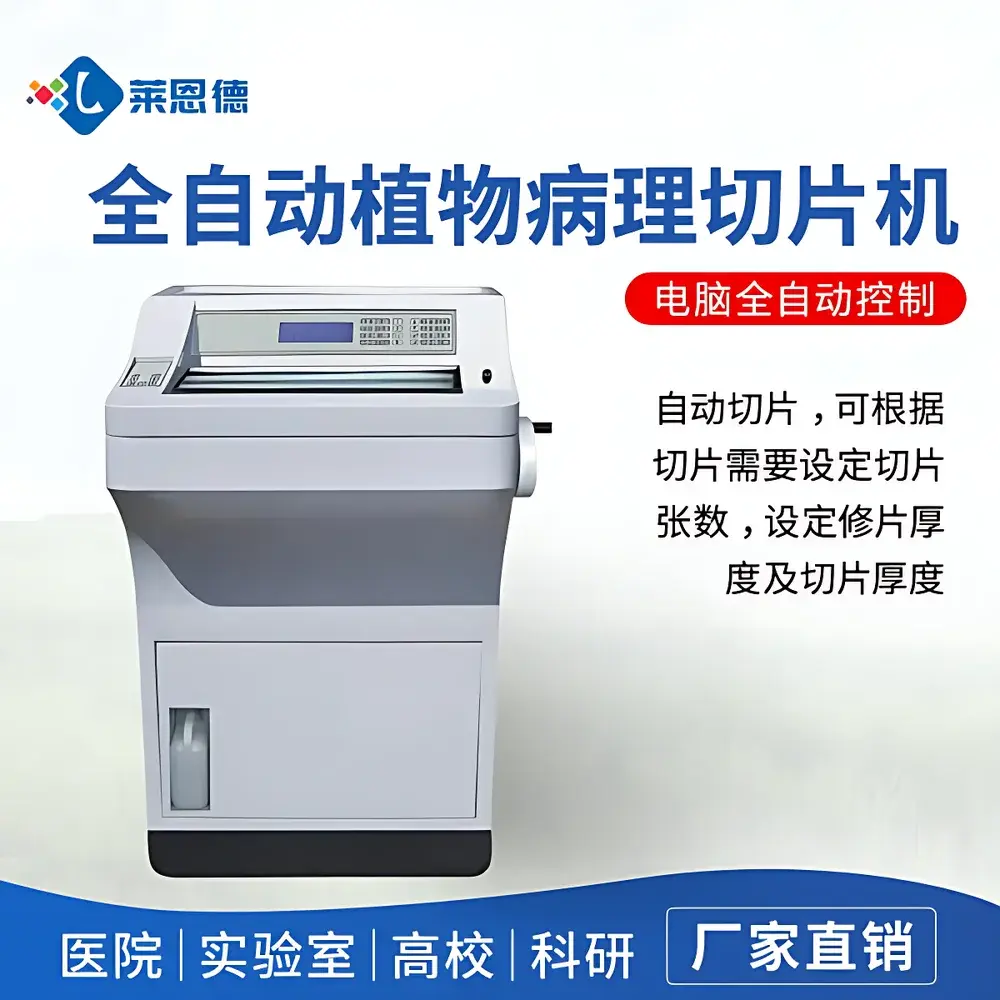

LANENDE LD-4080 Fully Automated Cryostat Microtome

Overview

The LANENDE LD-4080 Fully Automated Cryostat Microtome is an engineered solution for high-fidelity frozen sectioning in plant pathology, veterinary diagnostics, and biomedical research laboratories. Unlike conventional cryostats requiring prolonged pre-cooling or ultra-low chamber temperatures (≤−30 °C), the LD-4080 employs a dual-compressor, five-point targeted cooling architecture—simultaneously regulating cryohead, cryoblade, cryostage, dual freezing platforms, and chamber environment—to achieve operational readiness within ten minutes of startup. This design minimizes thermal shock to delicate biological tissues while maintaining precise thermal gradients essential for artifact-free sectioning of hydrated, lipid-rich, or low-structural-integrity samples such as fresh plant meristems, fungal hyphae, soft tumor biopsies, and embryonic tissues. The instrument operates on the principle of controlled conductive heat extraction, where rapid, localized cooling at the tissue–knife interface ensures optimal ice crystal morphology and mechanical stability during sectioning—critical for preserving antigenicity, enzymatic activity, and subcellular architecture in downstream IHC, ISH, or metabolomic assays.

Key Features

• Fully automated microtome control via embedded industrial-grade CPU with real-time 5-channel temperature monitoring (cryohead, cryostage, cryoblade, chamber, ambient) displayed simultaneously on a high-contrast LCD interface.
• Precise motorized sectioning with programmable parameters: section count, trimming thickness (0–600 µm in 10 µm increments), section thickness (0–100 µm with multi-step resolution), and adjustable sectioning speed.
• Dual-compressor refrigeration system delivering independent, dynamically balanced cooling across five critical thermal nodes—enabling tissue-specific optimization (e.g., −48 °C cryohead for woody plant xylem vs. −42 °C for leaf mesophyll).
• Real-time hardware status visualization: dynamic icons indicate active states of compressors A/B, LED illumination, UV sterilization module, defrost cycle, motor direction (advance/retreat), cryoblade cooling, and cryostage thermoregulation—with countdown timers preceding compressor activation.
• Integrated tissue heat-sink assembly that couples with the cryostage to accelerate vertical thermal equilibration, reducing freezing time by up to 40% compared to passive conduction alone.
• Mechanically robust construction featuring imported cross-roller linear bearings, fully enclosed gear-driven mechanism, and non-contact limit switches for blade advance/retreat—ensuring long-term repeatability and zero maintenance over >50,000 sectioning cycles.
• UV-C germicidal irradiation (254 nm) with timed activation protocol; sloped stainless-steel chamber floor with integrated drain channel for efficient decontamination and residue removal.
• Intelligent energy management: automatic transition to low-power standby mode after 8 hours of idle operation; manual override for rapid shutdown of rapid-cool subsystem without affecting chamber thermal stability.

Sample Compatibility & Compliance

The LD-4080 accommodates a broad spectrum of unembedded or OCT-embedded specimens—including fresh botanical tissues (roots, stems, flowers), animal soft tissues (brain, liver, kidney), clinical biopsy cores, and microbial biofilms—without requiring cryoprotectant infiltration or extended equilibration. Its −25 °C ± 5 °C chamber temperature eliminates operator frostbite risk while sustaining sufficient rigidity for clean 3–10 µm sections of even highly hydrated samples. All thermal and motion control systems are calibrated traceably to NIST-traceable references. When operated with optional validated firmware and electronic logbook modules, the system supports audit trails compliant with ISO 15189, CLIA, and FDA 21 CFR Part 11 for regulated diagnostic environments. Routine performance verification follows ASTM E2917-21 (Standard Practice for Calibration of Cryostat Microtomes) and USP <1043> (Cryosectioning Validation).

Software & Data Management

The LD-4080 runs on a deterministic real-time OS with embedded flash memory storing ≥10,000 session logs, including timestamped temperature profiles, section counts, thickness settings, defrost events, and user ID tags. Optional LAN/Wi-Fi connectivity enables remote monitoring via secure HTTPS interface and integration into LIS/HIS systems using HL7 v2.5.3 or ASTM E1384 messaging protocols. All parameter changes, emergency stops, and calibration actions generate immutable entries with digital signatures, satisfying GLP/GMP documentation requirements. Audit logs include operator login/logout timestamps, firmware version, and checksum-verified configuration snapshots—exportable as PDF or CSV for regulatory submission.

Applications

• Routine intraoperative frozen section analysis in surgical pathology labs requiring turnaround times <15 minutes.
• Plant disease diagnostics: rapid identification of vascular pathogens (e.g., Ralstonia solanacearum, Fusarium oxysporum) in stem cross-sections without paraffin processing artifacts.
• Neuroscience research: serial sectioning of unfixed rodent brain tissue for immediate immunofluorescence or enzyme histochemistry.
• Veterinary field diagnostics: on-site sectioning of avian or porcine tissue samples under mobile lab conditions.
• Quality control of biobanked specimens: verification of cryopreservation integrity prior to RNA/DNA extraction.
• Teaching laboratories: intuitive interface and safety-focused thermal design support supervised student training in cryomicrotomy fundamentals.

FAQ

Does the LD-4080 require liquid nitrogen or external coolant sources?
No. It is a self-contained, electrically powered cryostat relying exclusively on its dual-compressor refrigeration system.

Can the instrument maintain stable temperatures during continuous 8-hour operation?
Yes. Thermal load testing confirms ≤±0.8 °C drift across all five cooling zones over 8 hours at nominal sectioning duty (10 µm @ 20 sections/min).

Is UV sterilization compatible with routine use of OCT compound?
Yes. The 254 nm UV dose is calibrated to inactivate surface microbes without degrading OCT matrix integrity or compromising tissue adhesion.

How is defrost scheduling configured?
Defrost interval (1–72 hours), duration (5–30 min), and manual activation are configurable via password-protected service menu; defrost completion triggers automatic return to setpoint within 10 minutes.

What maintenance intervals are recommended for long-term reliability?
No scheduled lubrication or bearing service is required. Annual verification of temperature sensors and compressor efficiency is advised per ISO/IEC 17025 calibration guidelines.
