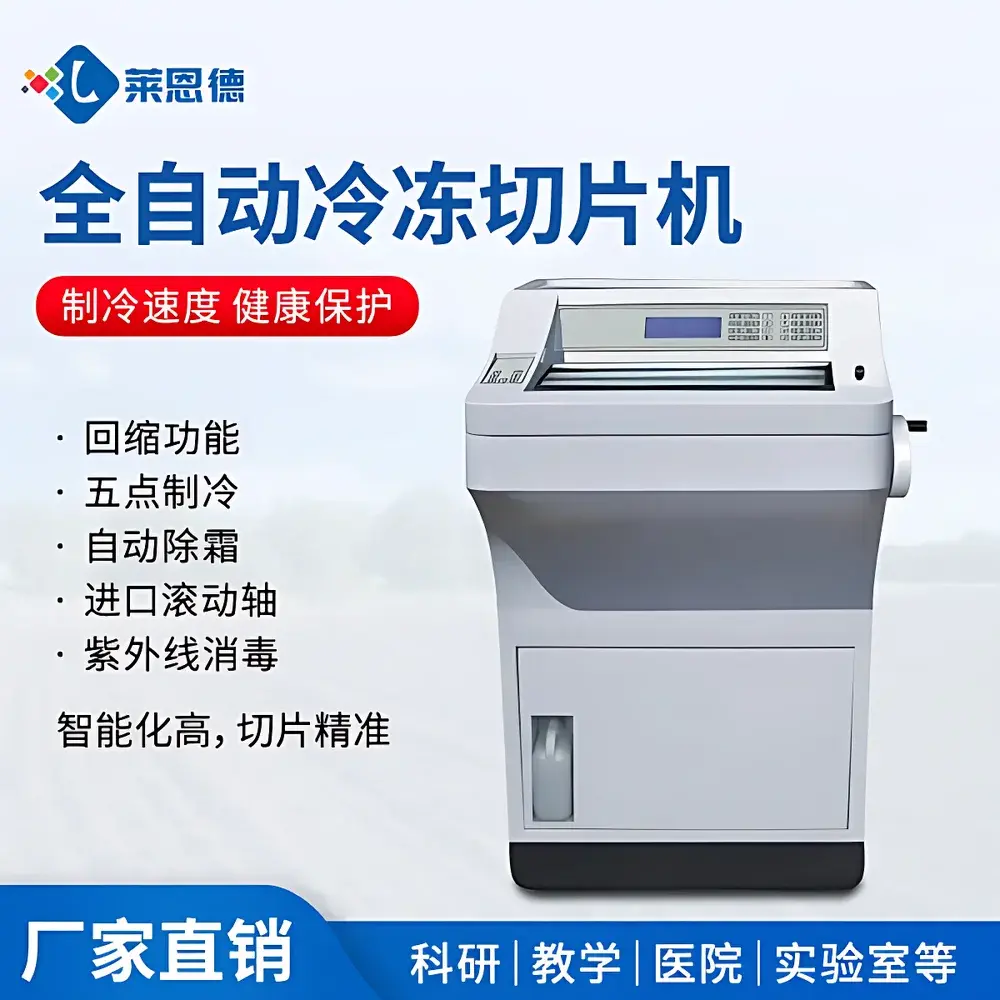

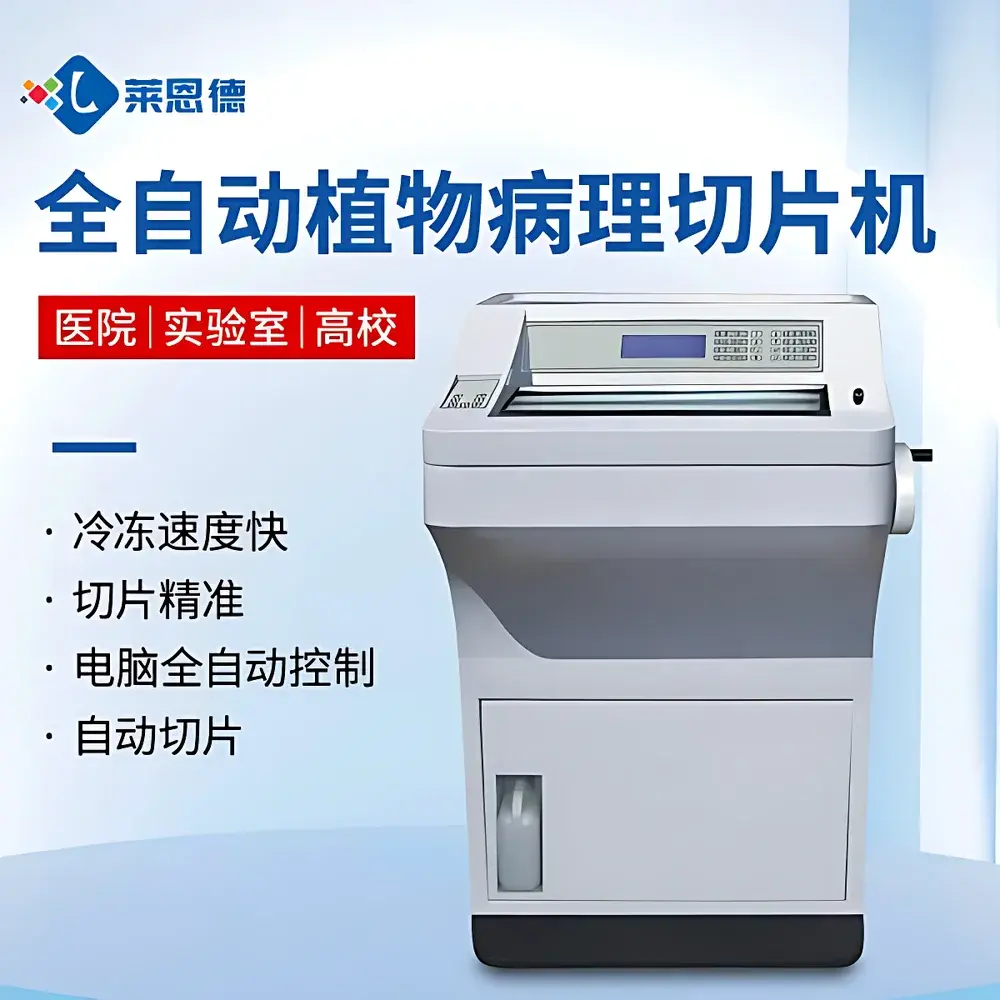

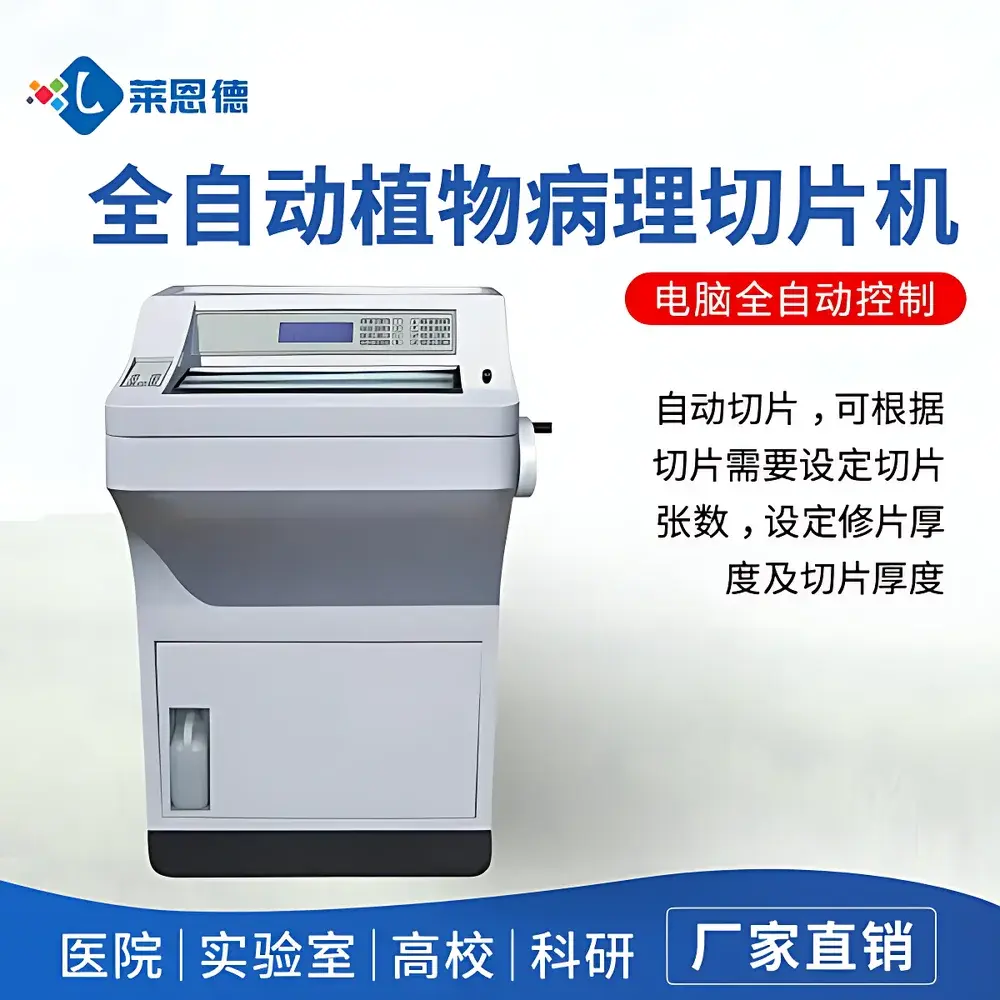

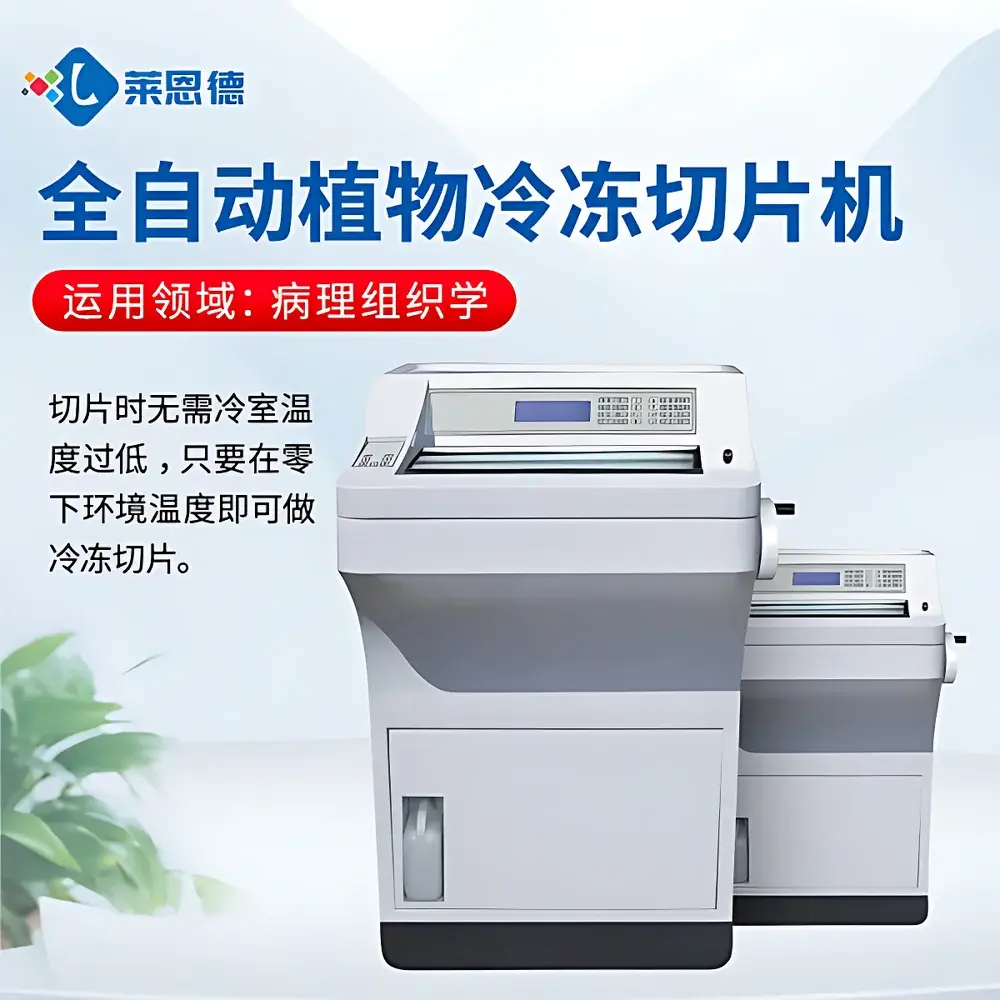

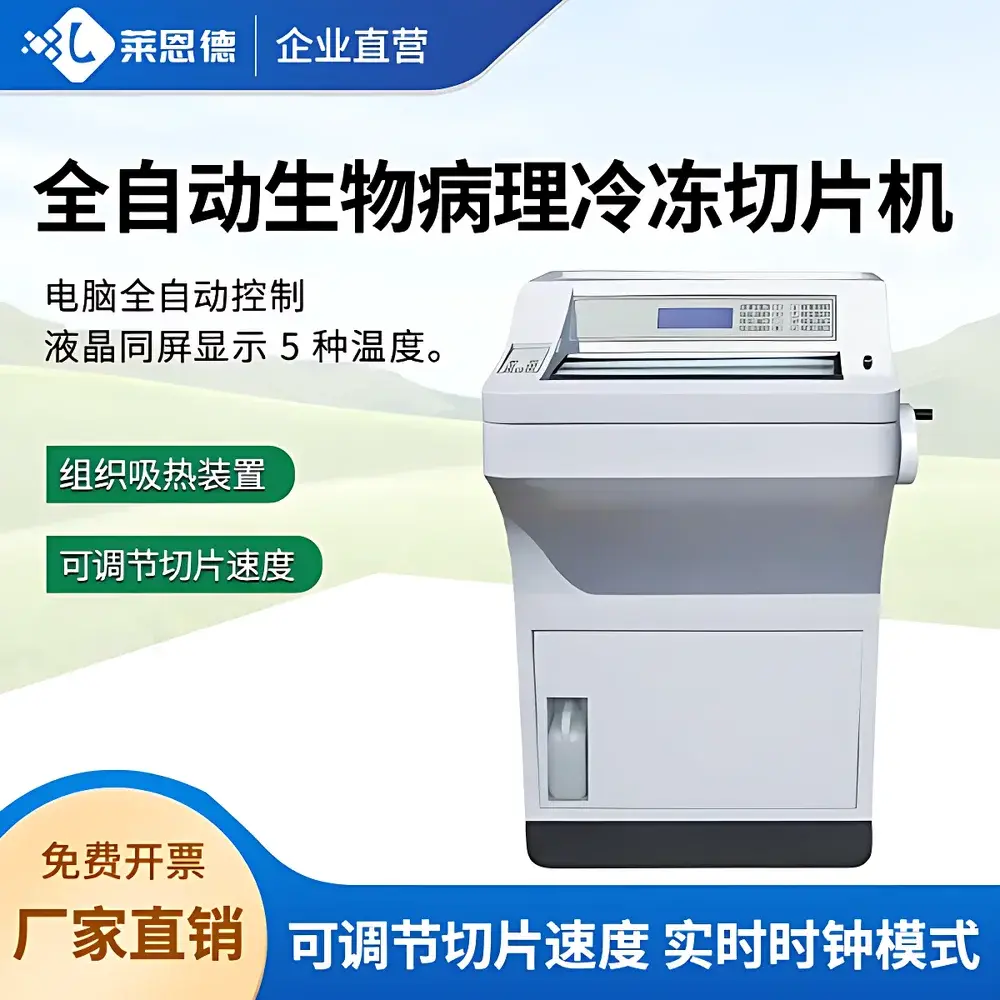

LANENDE LD-4080 Fully Automatic Cryostat Microtome for Plant Pathology

Overview

The LANENDE LD-4080 Fully Automatic Cryostat Microtome is an advanced, vertically integrated cryosectioning platform engineered specifically for plant pathology laboratories requiring high-fidelity, reproducible frozen-section preparation under controlled low-temperature conditions. Unlike conventional cryostats that demand prolonged pre-cooling and ultra-low chamber temperatures (≤ –30°C), the LD-4080 employs a proprietary five-point refrigeration architecture—targeting the cryotome head, cryoblade, dual cryostages, and specimen chamber independently—to achieve stable operating temperatures within minutes of power-on. Its core principle relies on rapid thermal equilibration between tissue, embedding medium, and cutting interface, minimizing ice crystal artifact formation while preserving subcellular morphology in delicate plant vascular, meristematic, and fungal-infected tissues. Designed for GLP-compliant workflows, the system operates without mandatory cold-room integration—maintaining a functional chamber temperature of –25°C ±5°C—thereby reducing operator thermal stress and energy consumption without compromising section integrity.

Key Features

• Fully automated sectioning sequence with programmable parameters: section count, trimming thickness (0–600 µm in 10 µm increments), cutting thickness (0–100 µm with variable resolution: 0.5 µm from 0–6 µm; 2 µm from 6–20 µm; 5 µm from 20–60 µm; 10 µm from 60–100 µm), and feed speed.
• Real-time hardware status dashboard on high-resolution LCD: dynamic indicators for dual compressors, LED illumination, UV sterilization module, defrost cycle status, motor direction (advance/retreat), cryoblade cooling, and dual-stage refrigeration—enabling predictive maintenance and immediate fault localization.
• Intelligent thermal management: auto-defrost scheduling (configurable interval and duration), manual override, and automatic entry into low-power sleep mode after 8 hours of continuous operation—ensuring compliance with ISO 50001 energy efficiency principles.
• Mechanically robust construction: sealed, maintenance-free mainframe incorporating imported cross-roller bearings for precise vertical/horizontal sample translation (25 mm horizontal, 60 mm vertical travel); anti-roll blade geometry and adjustable sectioning angle (±10°) ensure flat, wrinkle-free sections across heterogeneous plant matrices.
• Dual-cryostage configuration with independent temperature control, coupled with active tissue heat-sink integration, accelerates specimen equilibration—critical for lignified stems, succulent leaves, or mycelium-infiltrated host tissue.

Sample Compatibility & Compliance

The LD-4080 accommodates standard OCT-embedded botanical specimens—including woody stem cross-sections, root nodules, infected leaf laminae, and fungal fruiting bodies—without requiring specialized mounting or pre-chilling protocols. Its –50°C cryotome head enables clean sectioning of high-water-content samples (e.g., young herbaceous tissue), while the –45°C dual-stage design ensures dimensional stability during serial sectioning of large-volume blocks (>20 × 20 × 10 mm). The system meets mechanical safety requirements per IEC 61010-1 and incorporates UV-C (254 nm) irradiation for surface decontamination of the specimen chamber between runs—supporting biosafety Level 1 (BSL-1) and BSL-2 workflows. All temperature setpoints and operational logs are timestamped via built-in real-time clock, enabling traceability in ISO/IEC 17025-accredited labs.

Software & Data Management

No external software installation is required—the LD-4080 operates via embedded firmware with non-volatile memory for parameter retention across power cycles. All user-defined protocols (thickness, count, trim depth, defrost schedule) are stored locally with audit-trail capability: each protocol includes creation timestamp, last modification time, and operator ID field (manually entered). While not FDA 21 CFR Part 11–certified out-of-the-box, the system supports export of CSV-formatted session logs (start/end time, ambient/chamber temperatures, compressor duty cycles, section count) for integration into LIMS or ELN platforms compliant with GLP/GMP documentation standards.

Applications

• Diagnostic histopathology of phytopathogenic infections (e.g., Phytophthora, Fusarium, rust fungi) in crop tissues.
• Subcellular localization studies using immunofluorescence or enzyme histochemistry on frozen sections.
• Time-course analysis of defense response structures (callose deposits, phenolic accumulation) in inoculated leaves.
• Quality control of tissue culture-derived plantlets prior to acclimatization.
• Preparation of reference slides for digital pathology training datasets.

FAQ

Does the LD-4080 require a dedicated cold room?

No. It operates autonomously at ambient laboratory temperatures (15–25°C) and achieves functional cryo-conditions within 10 minutes without external refrigeration infrastructure.
Can it cut sections thinner than 1 µm?

No. The minimum selectable thickness is 0.5 µm, but optimal precision for plant tissue sectioning is validated between 5–20 µm due to inherent structural heterogeneity.
Is UV sterilization automated or manual?

UV activation is manually initiated before/after sessions; exposure duration is fixed at 15 minutes per cycle and cannot be adjusted.
What happens if defrost is disabled during extended use?

The system monitors frost accumulation via thermal sensors and will initiate emergency defrost if evaporator efficiency drops below 85%, ensuring uninterrupted operation.
Are replacement parts (e.g., cryoblades, stage gaskets) available internationally?

Yes—LANENDE provides OEM-certified consumables and wear components through authorized distributors in EU, North America, and APAC regions, with lead times under 14 business days.
